Input/Output Connector Modular Jack / Plug MJUWD

Modular Jack / Plug

MJUWD

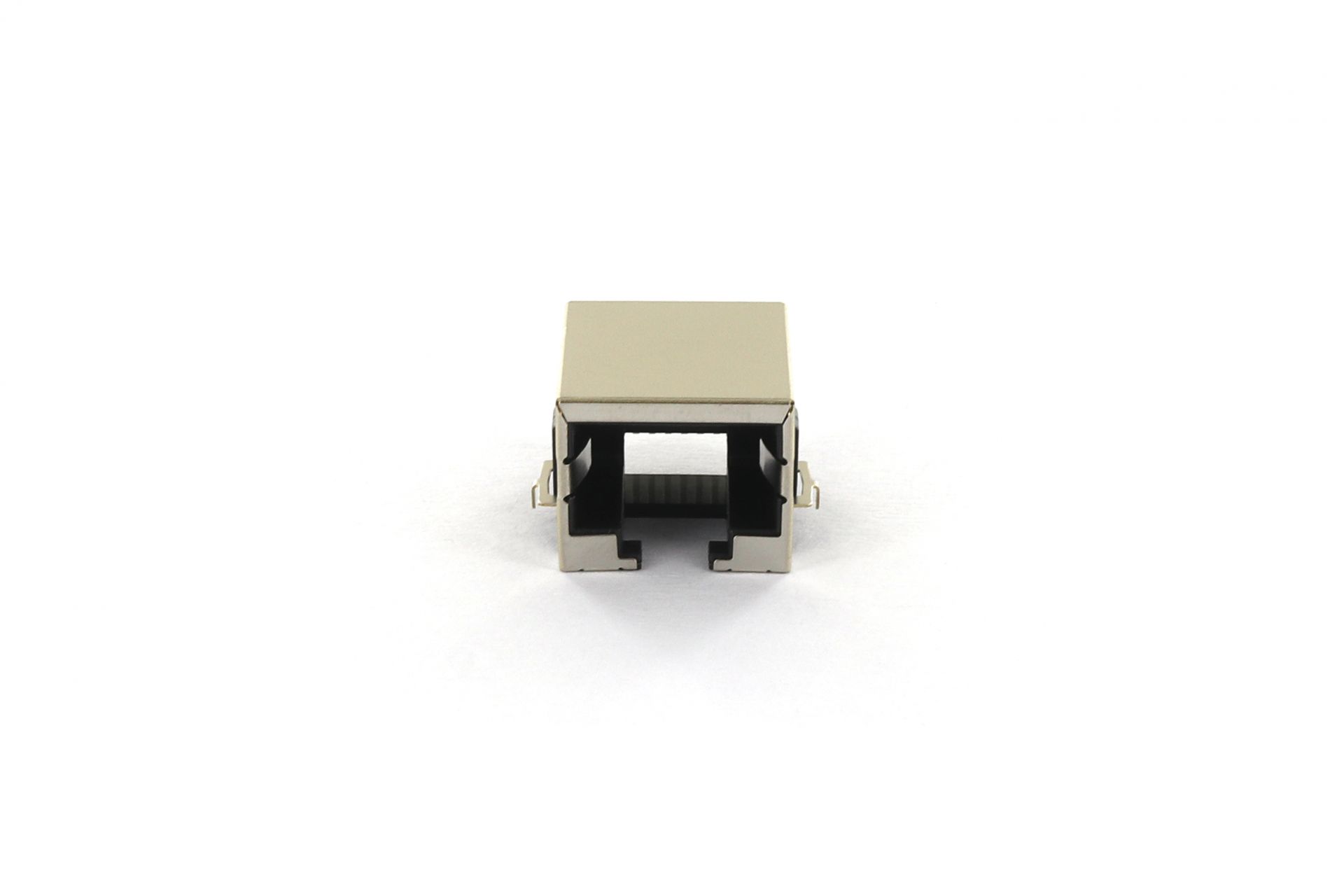

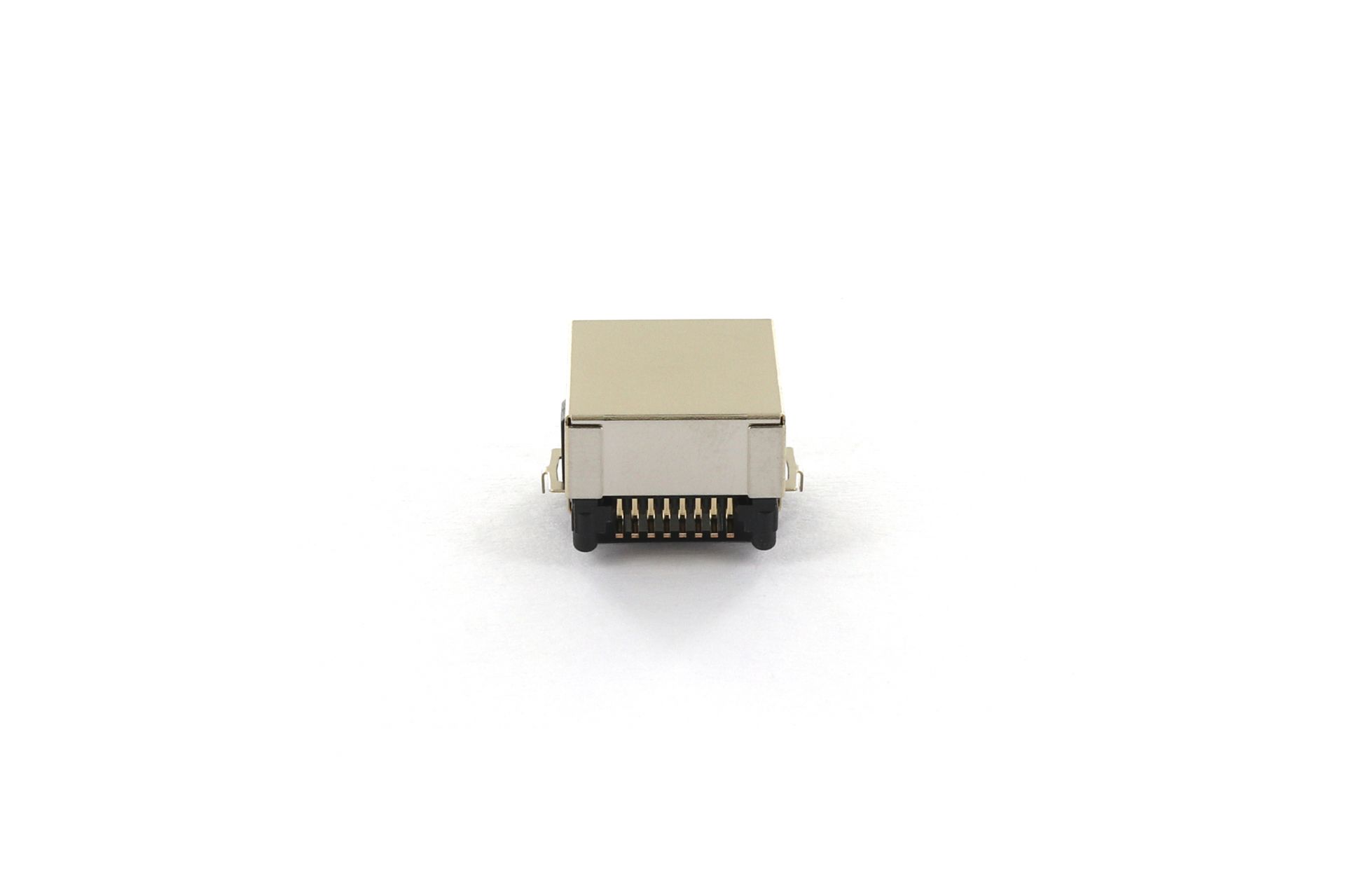

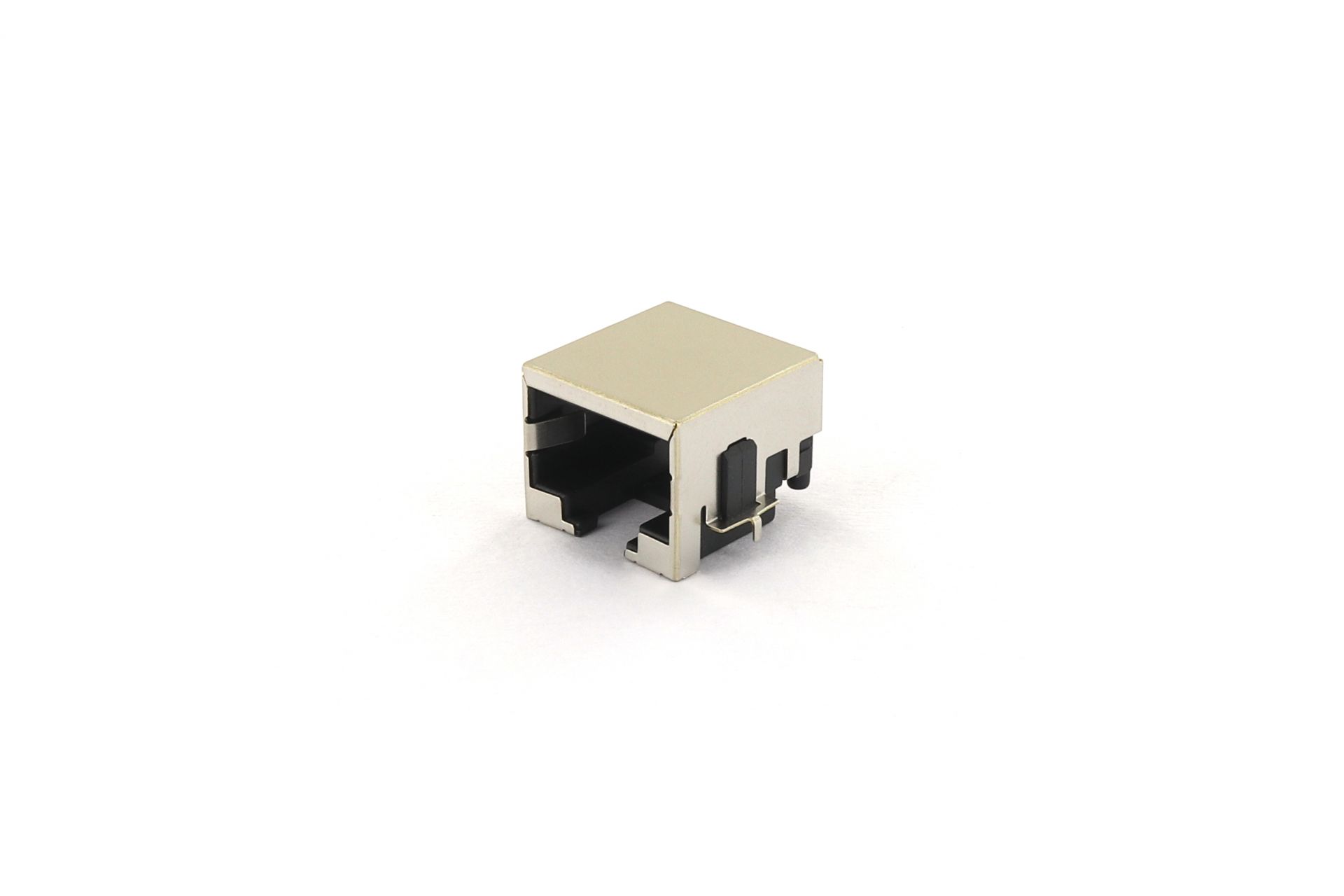

MODULAR JACK +LED SMT 90° MID-MOUNT TYPE

MJUWD0808
F
(1)
X
(2)
XX
(3)
H
(4)

Description

(1) F: WITH FULL SHIELDED
K: PLASTIC TYPE BLACK INSULATOR
(2) F:WITH PANEL GROUND
X:WITHOUT PANEL GROUND(FOR SHIELDED TYPE) OR PANEL STOP (FOR PLASTIC TYPE)
(3) 06:GOLD PLATED 6u"
15:GOLD PLATED 15u"
30:GOLD PLATED 30u"
(4) RoHS

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	MJUWD0808FXXX-R2H2-H	268KB	PDF	DOWNLOAD
