FPC / FFC Connector

MPVK

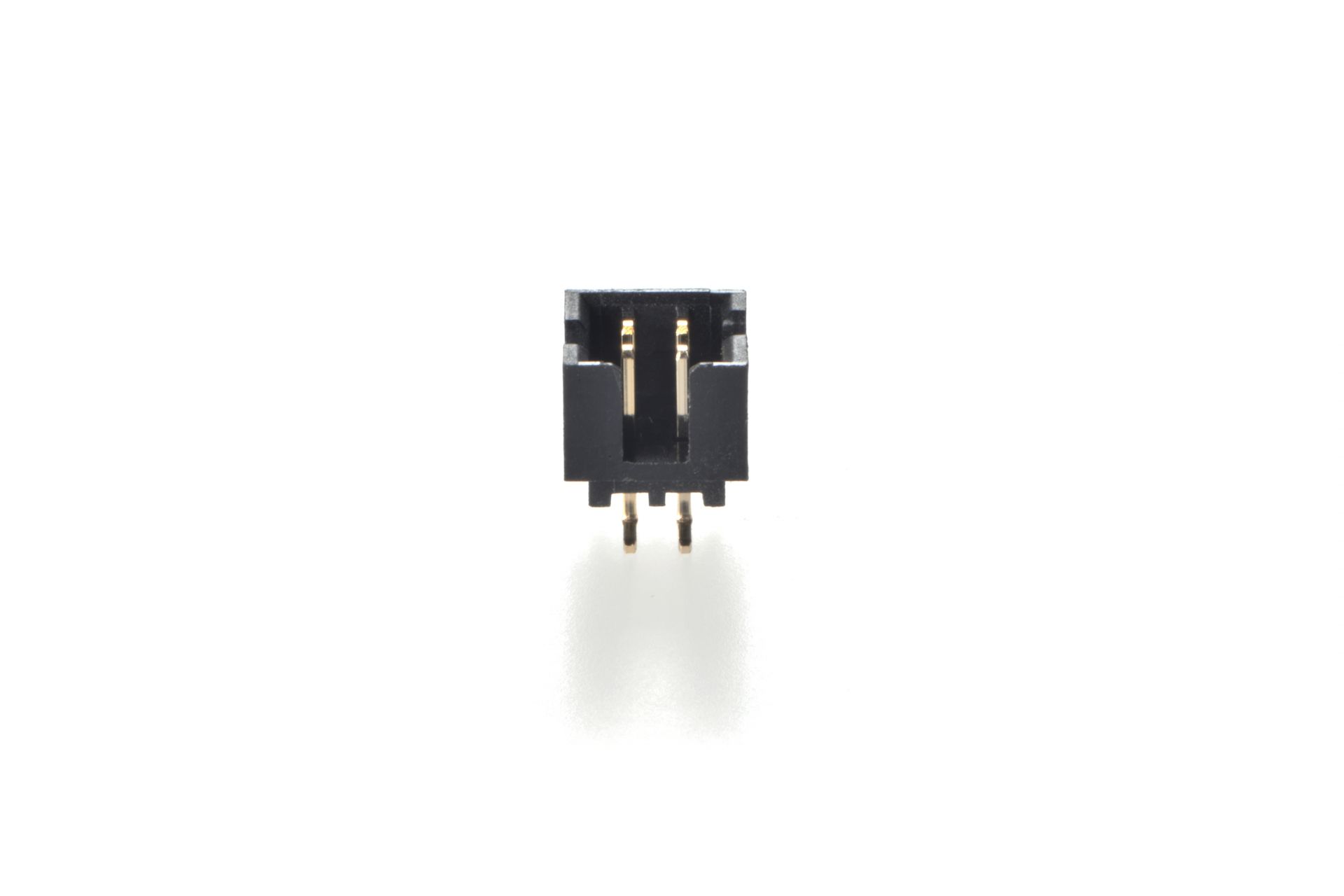

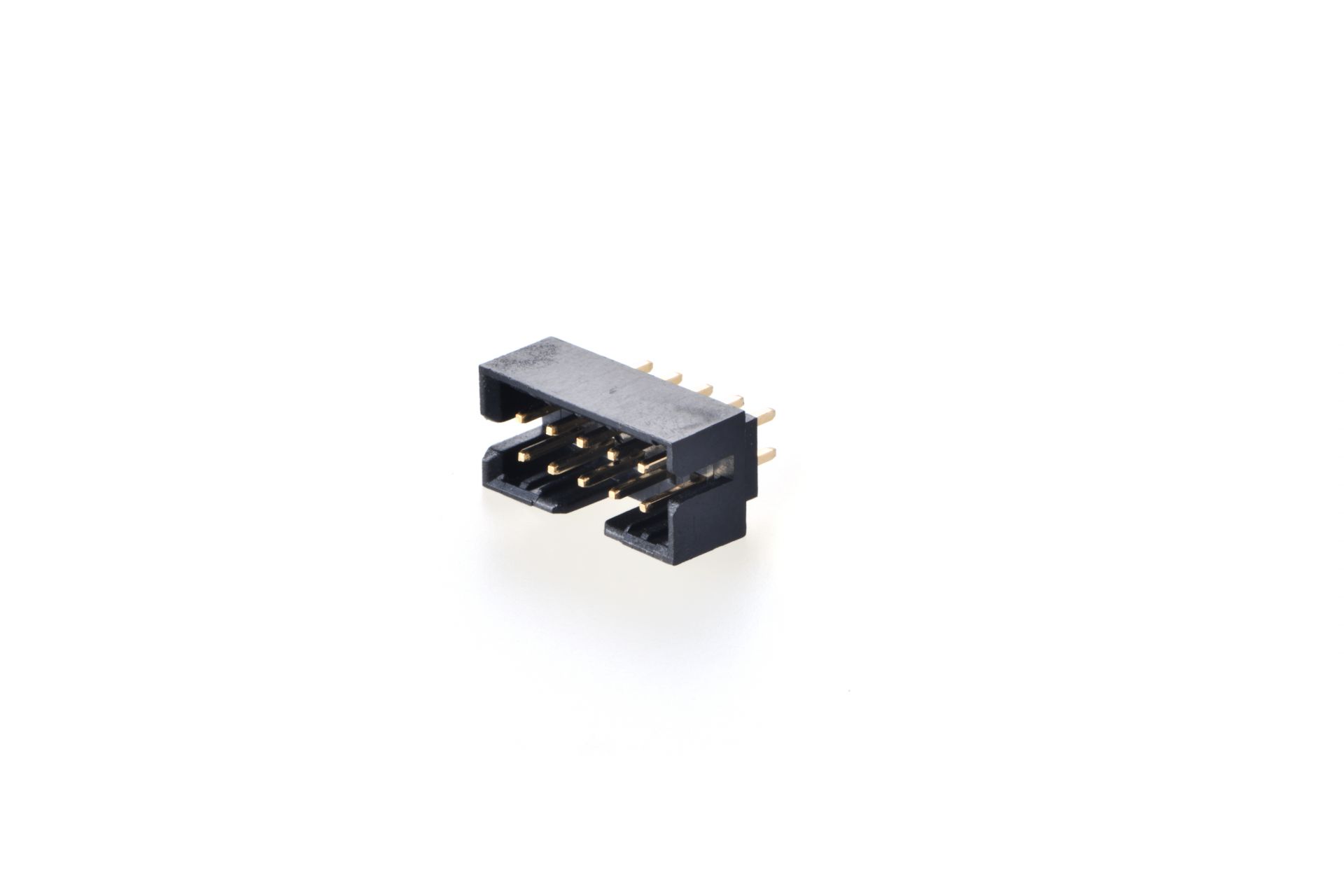

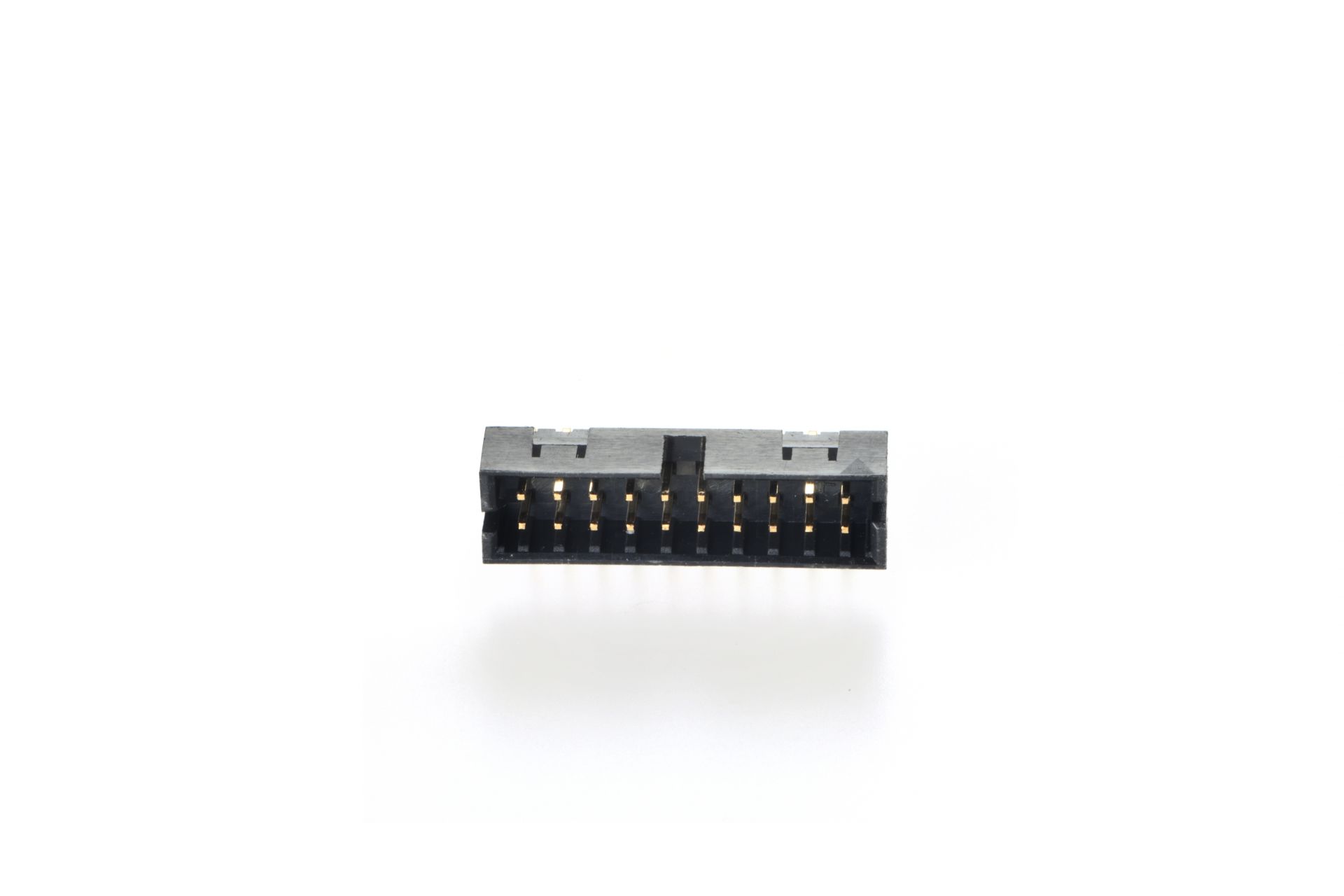

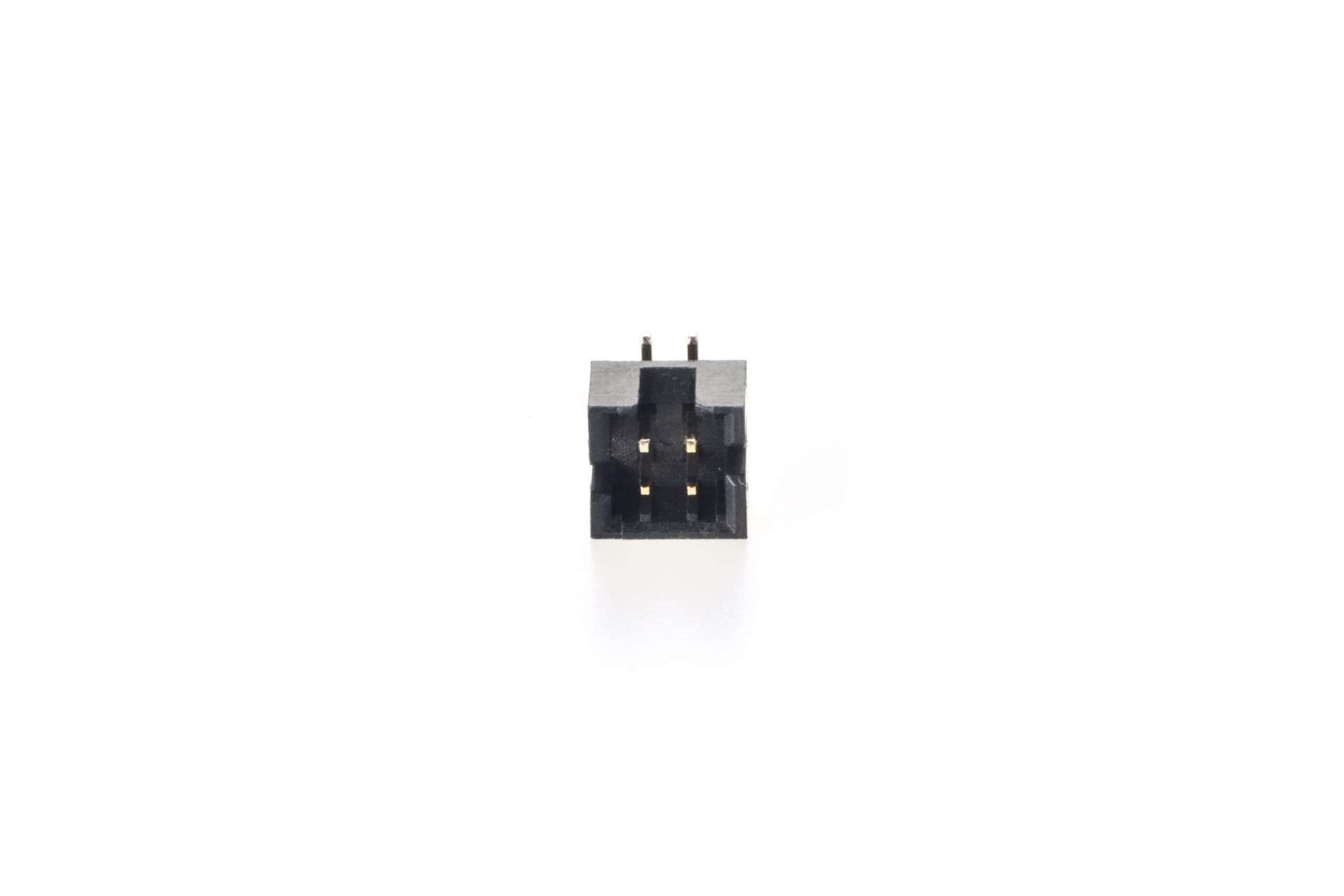

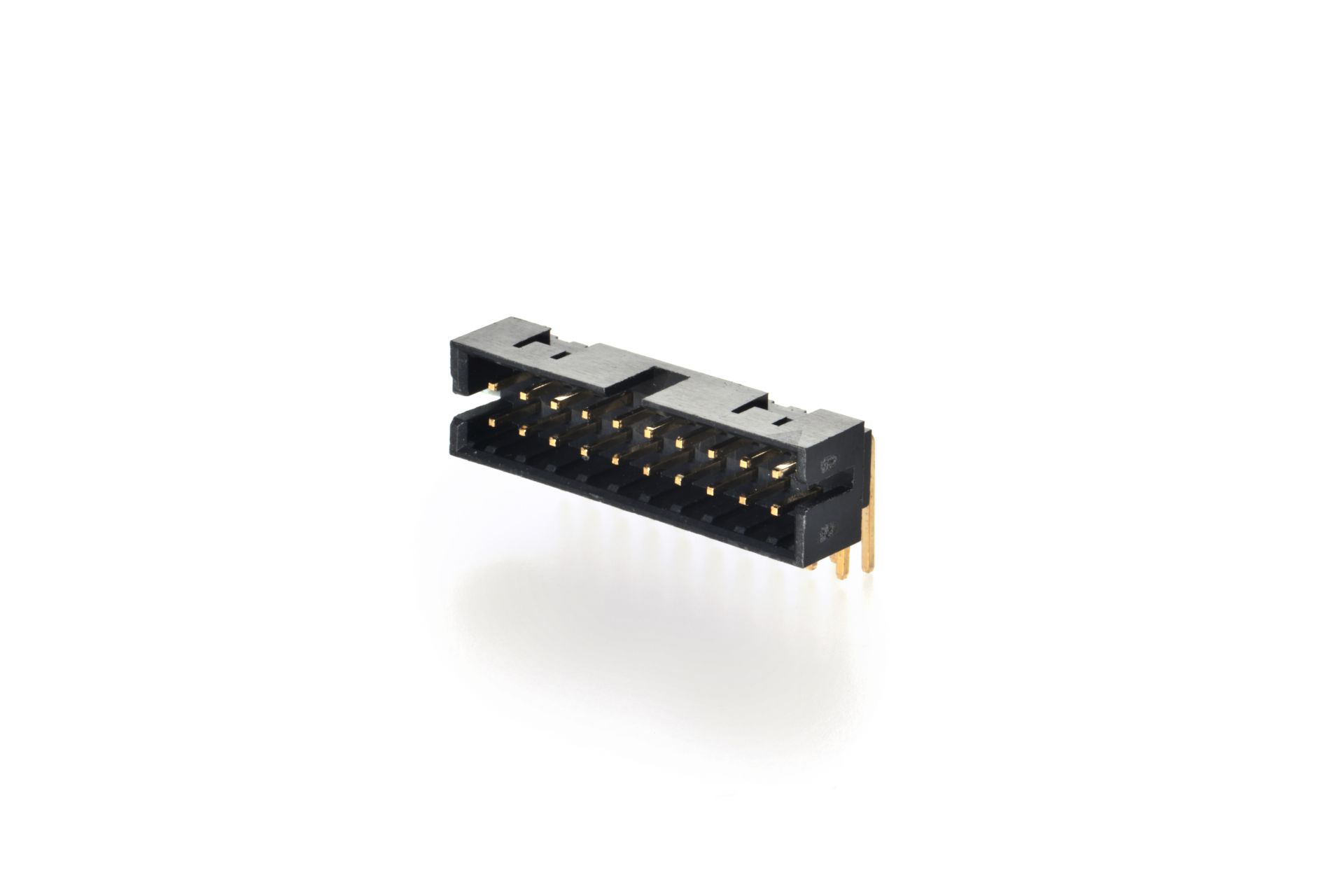

2.0mm SHROUDED HEADER FOR MPV SERIES
  • MPVK

  • 2X05
    (1)
  • D
    (2)
  •
    H
    (3)

Description

  • (1) 2X03~25:NO. OF POSITION
          S:FEMALE TERMINAL SELECTIVE GOLD FLASH

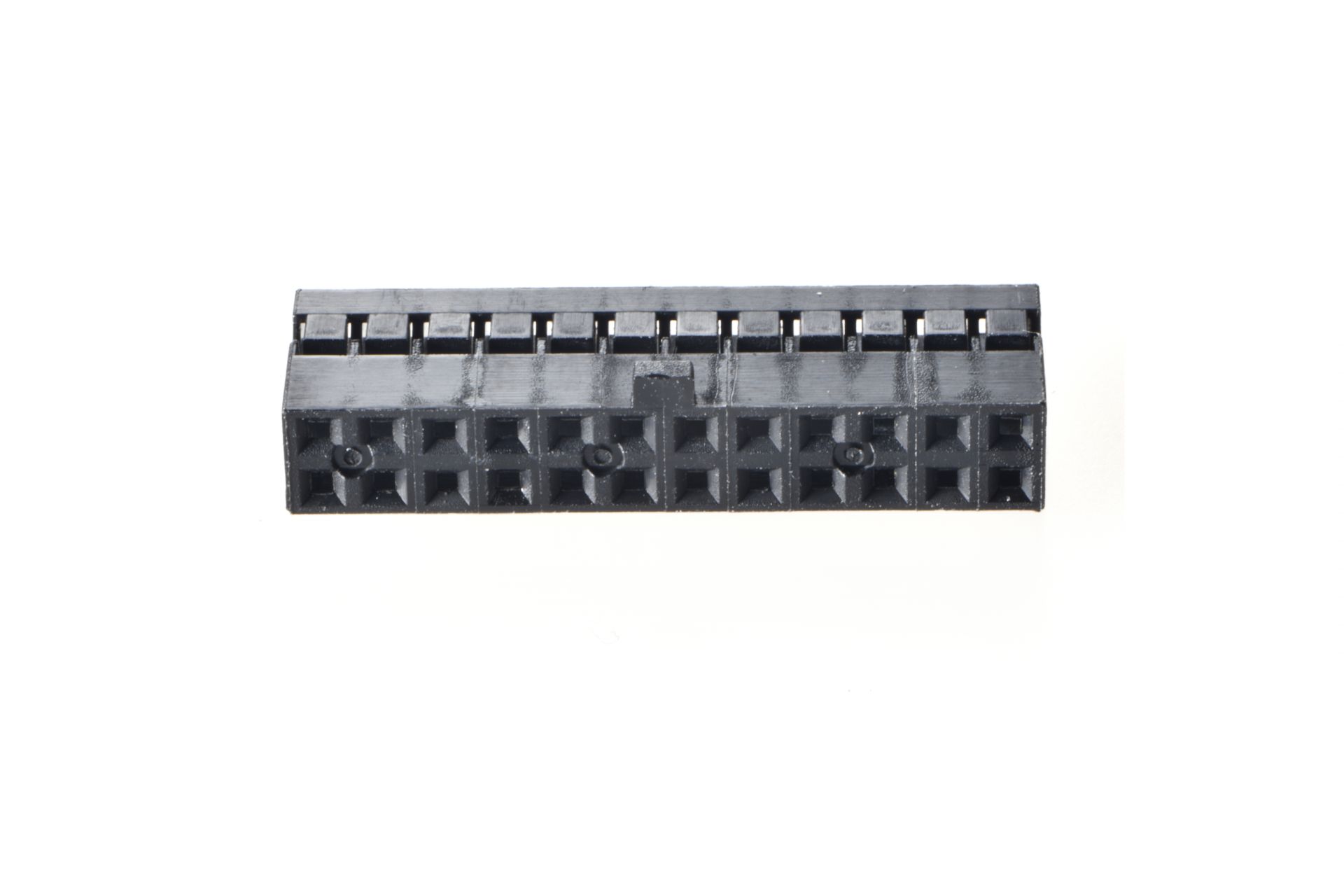

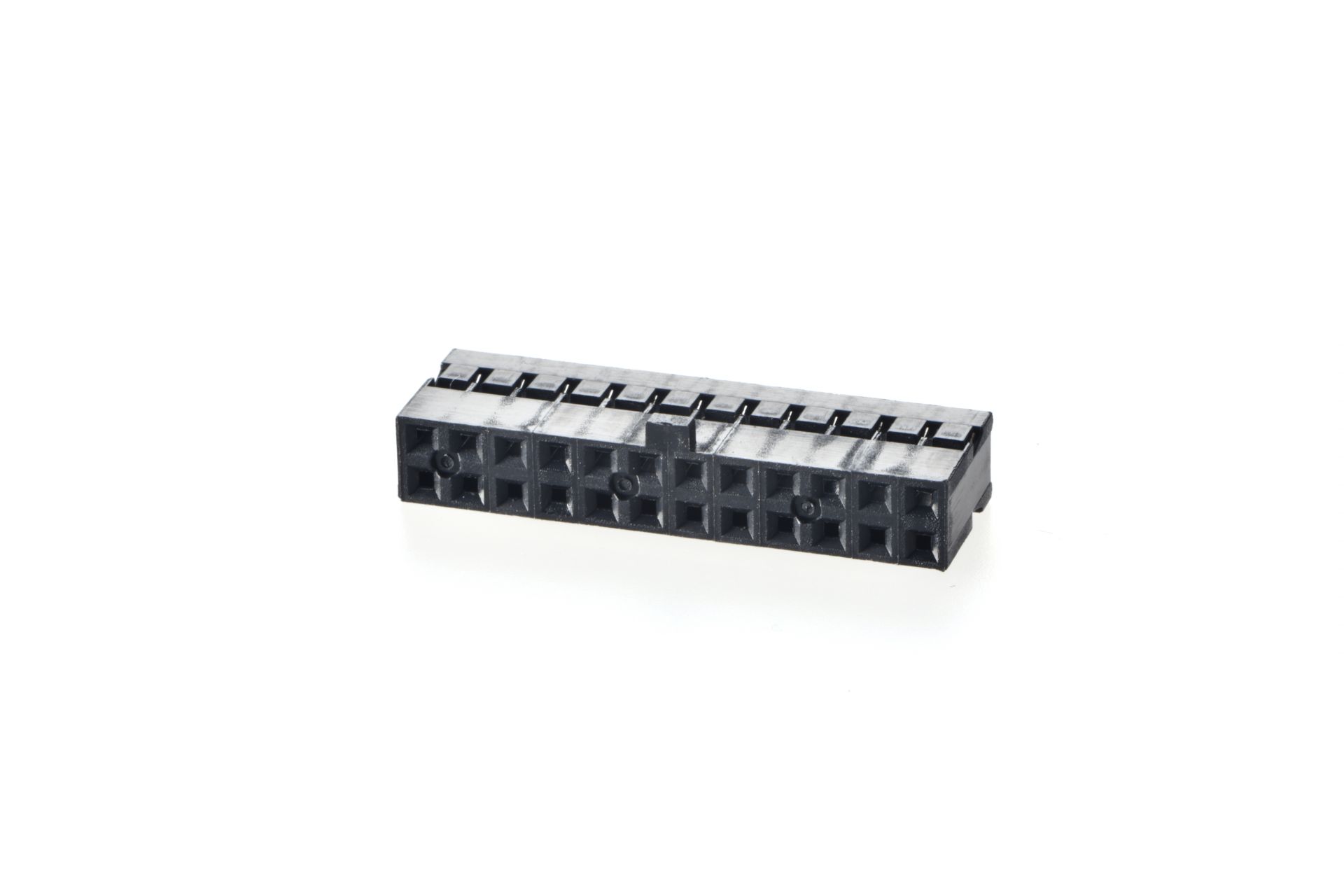

  • (2) BLANK:FEMALE HOUSING

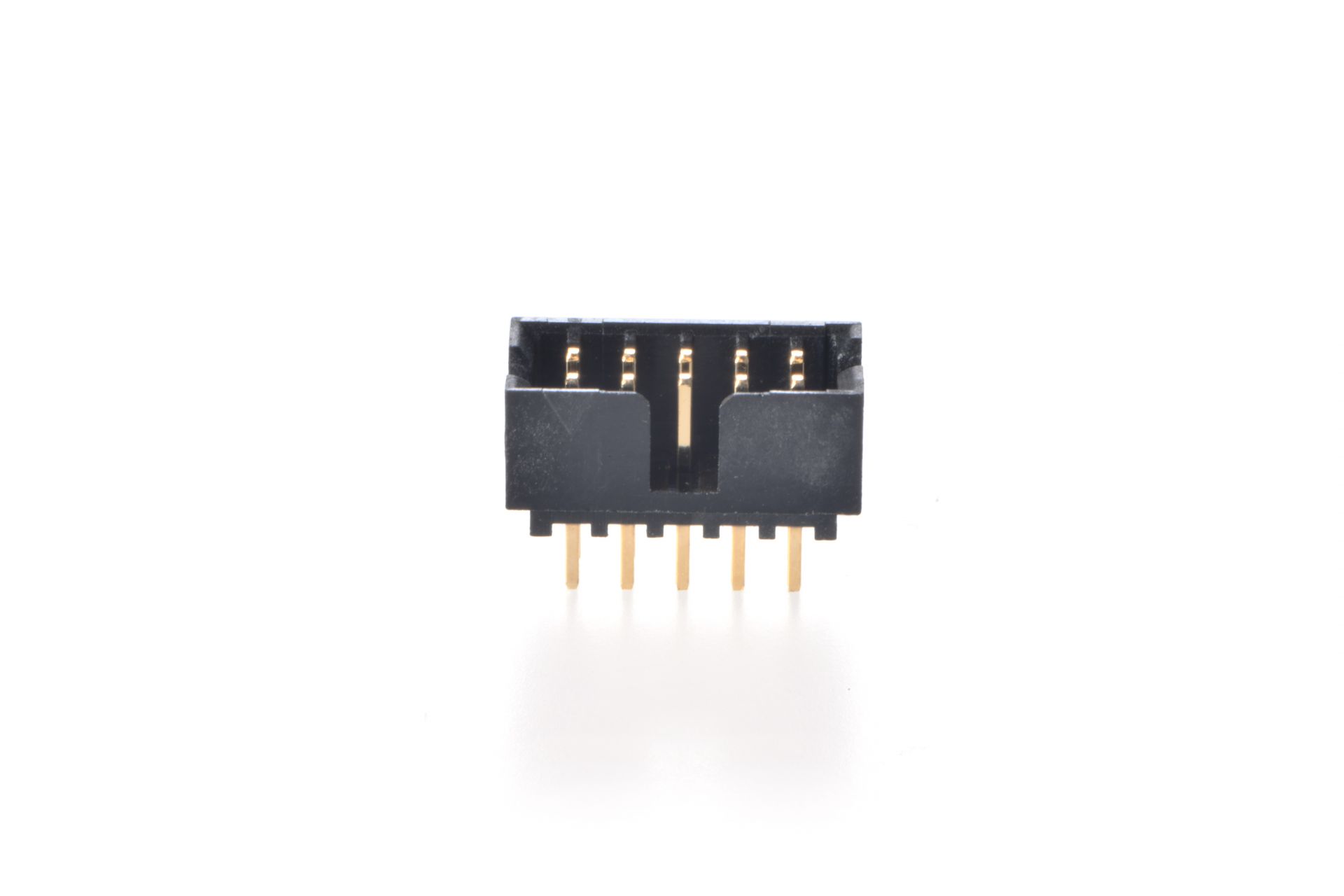

          D:DIP STRAIGHT

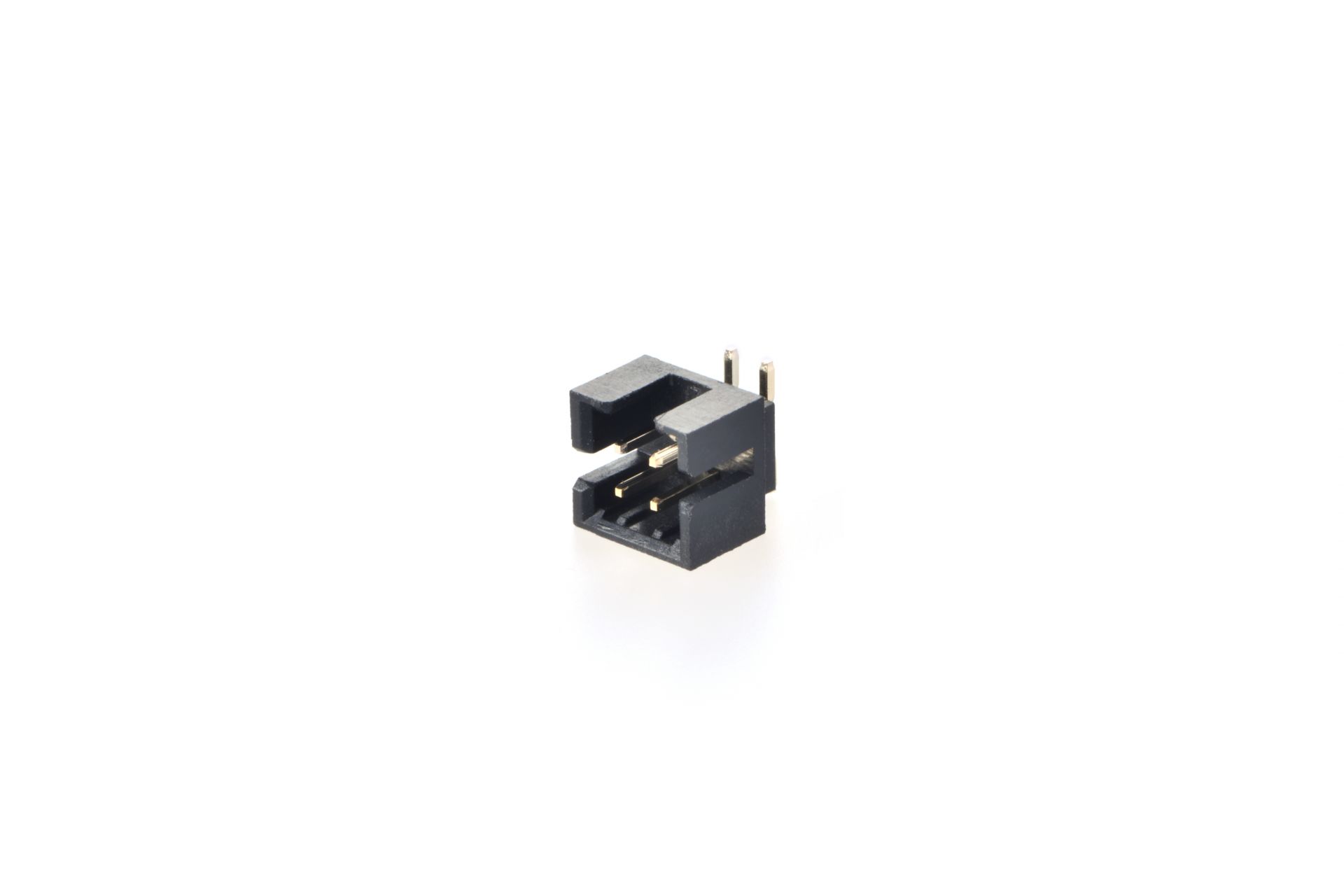

          R:DIP RIGHT ANGLE
          V:SMT STRAIGHT

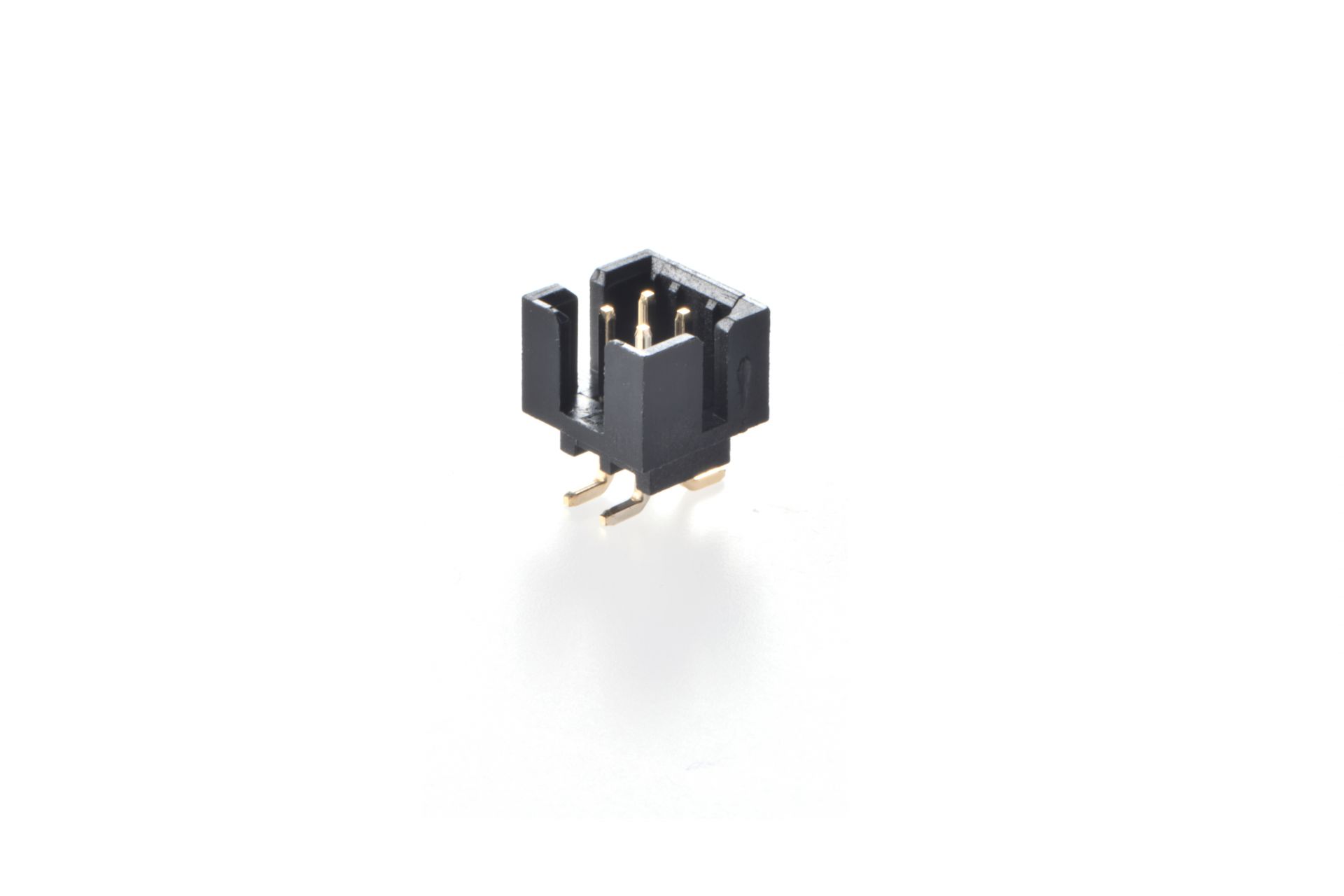

          VP:SMT STRAIGHT WITH POST
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MPVS-X-R10K-H 263KB PDF
download
DOWNLOAD
MPVK2XXXD-GXX-HH 310KB PDF
download
DOWNLOAD
MPVK2XXXR-GXX-HH 311KB PDF
download
DOWNLOAD
MPVK2XXX-H 264KB PDF
download
DOWNLOAD
MPVK2XXXV(C)-H 304KB PDF
download
DOWNLOAD
MPVK2XXXVP(C)-H 316KB PDF
download
DOWNLOAD
