Input/Output Connector Modular Jack / Plug MPXXXXR
Modular Plug&Jack

MPXXXXR

MODULAR PLUG WITHOUT METAL SHIELD
  • MP

  •
    0808
    (1)
  •
    R
    (2)
  •
    06
    (3)

Description

  • (1) 0402:4P2C
          0404:4P4C
          0602:6P2C
          0604:6P4C
          0606:6P6C
          0808:8P8C
          1010:10P10C
  • (2) F:FOR FLAT STRANDED WIRE
          R:FOR ROUND STRANDED WIRE
  • (3) BLANK:GOLD FLASH
          03:GOLD PLATED 3u”
          06:GOLD PLATED 6u”
          15:GOLD PLATED 15u”
          30:GOLD PLATED 30u”
          50:GOLD PLATED 50u”

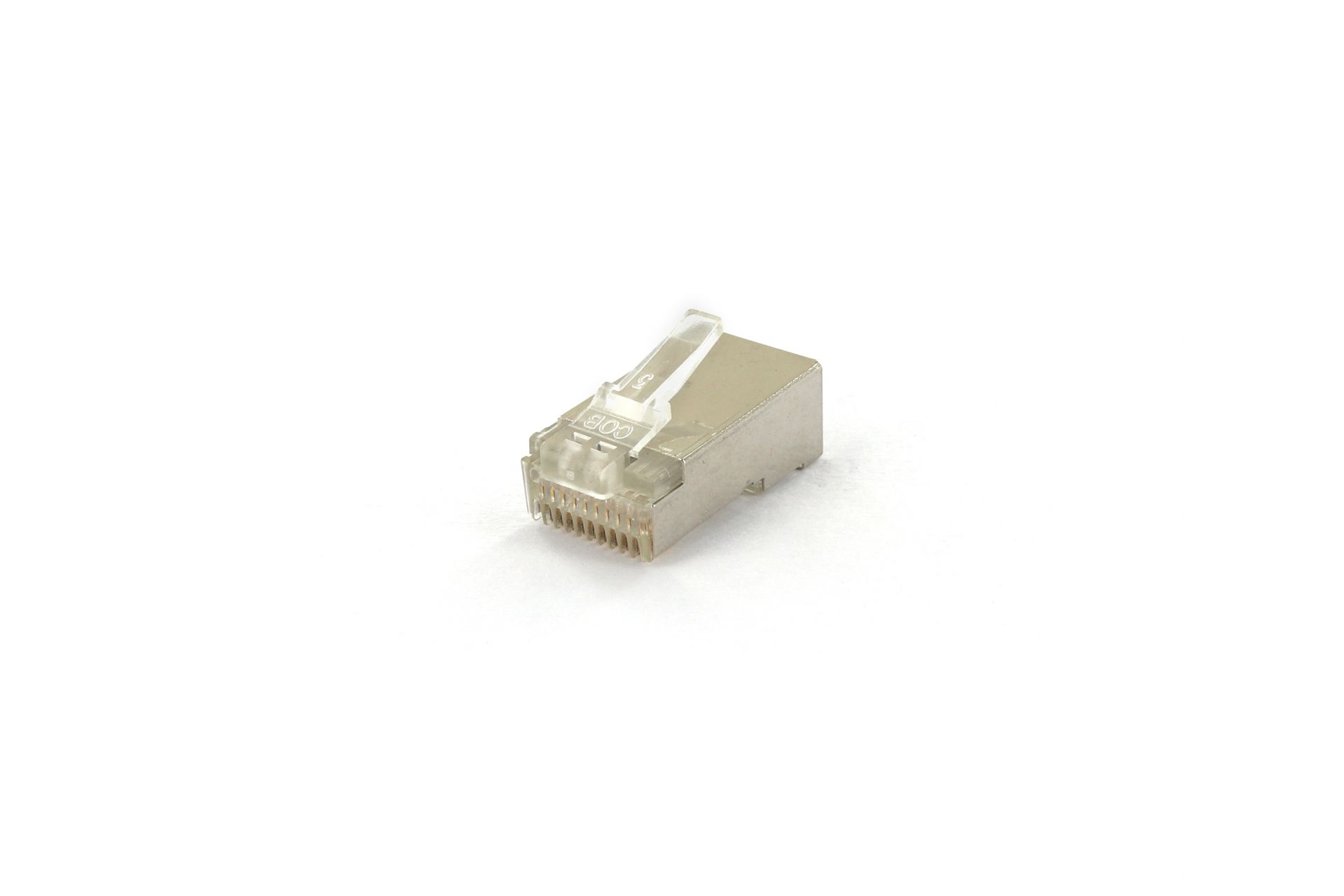

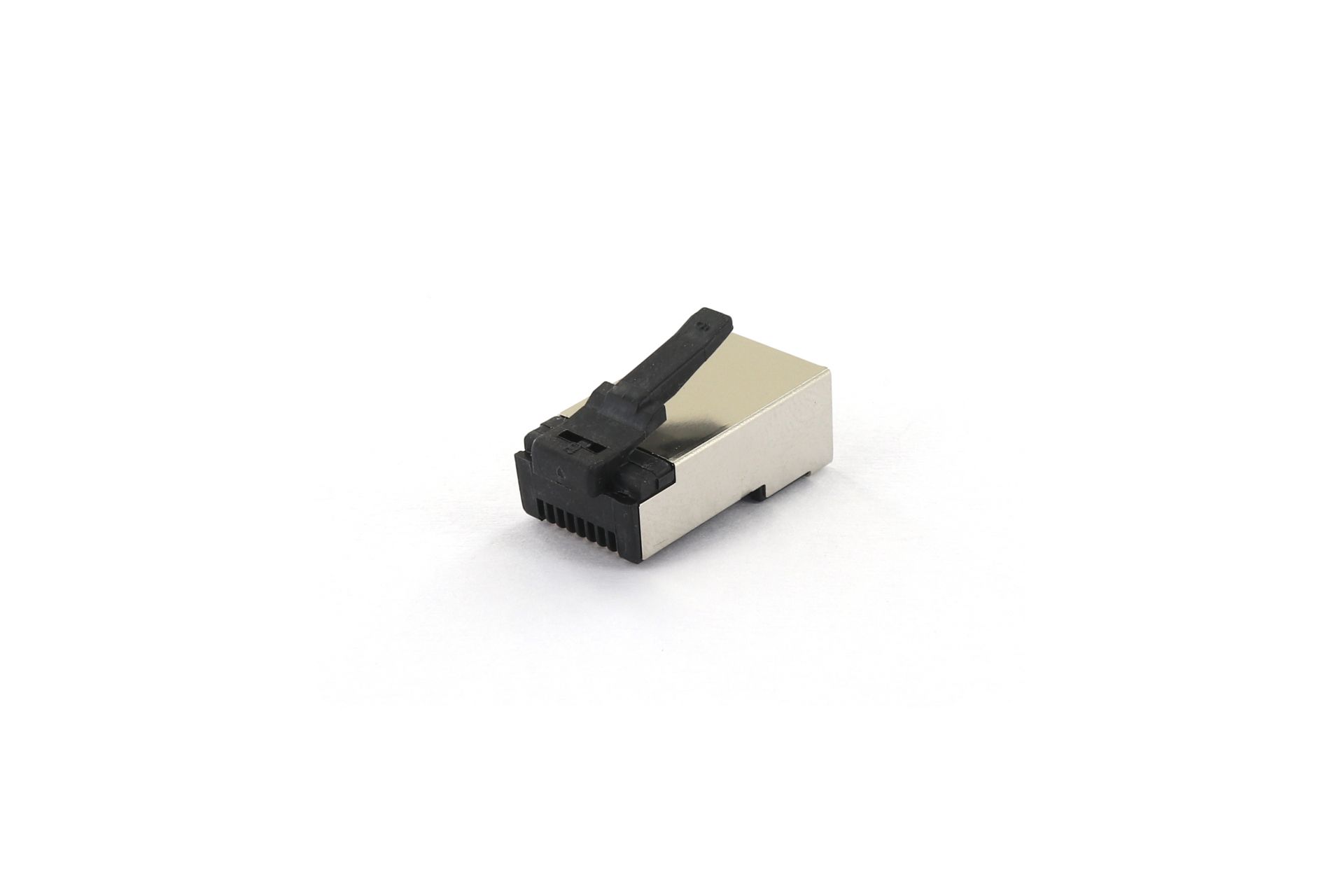

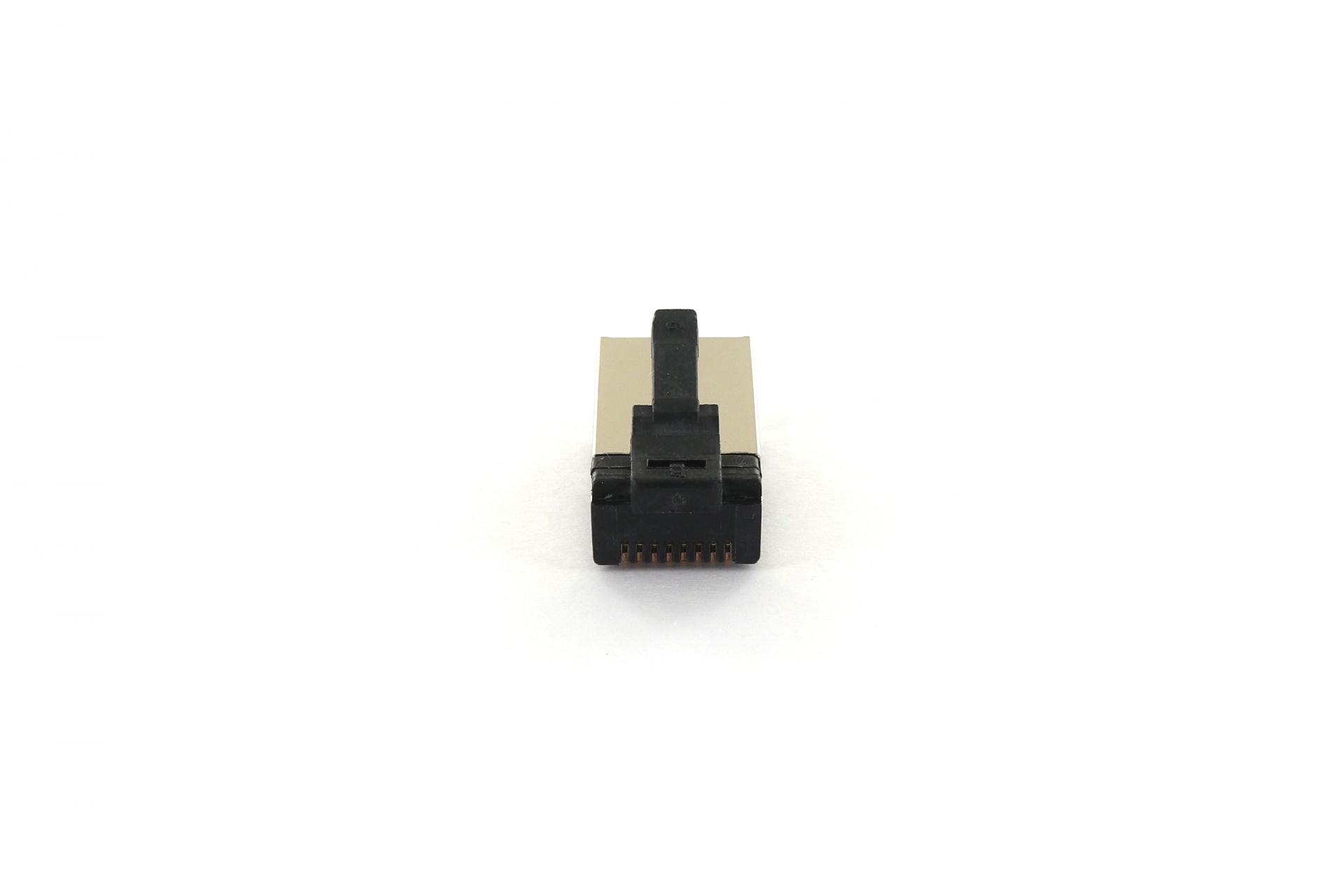

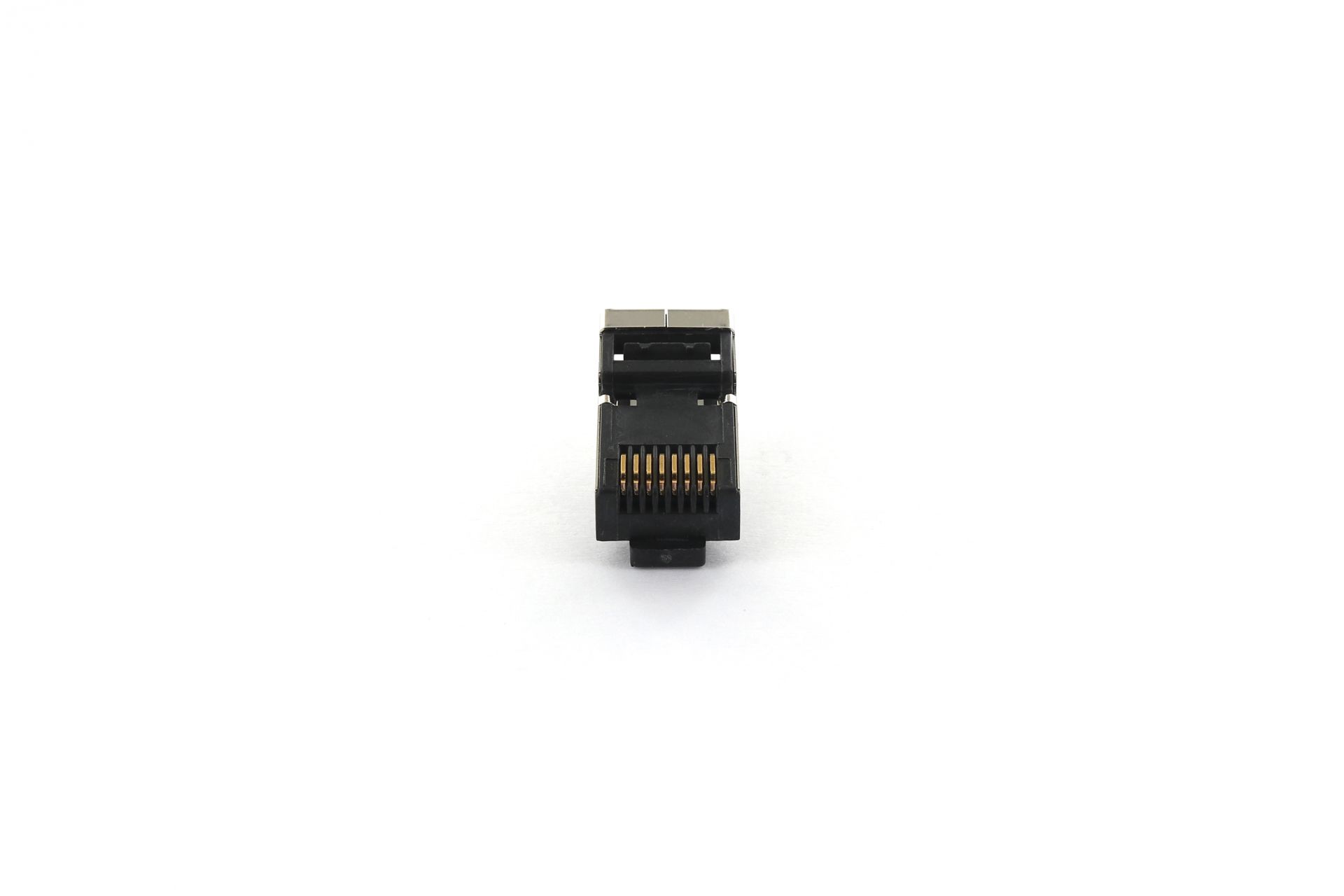

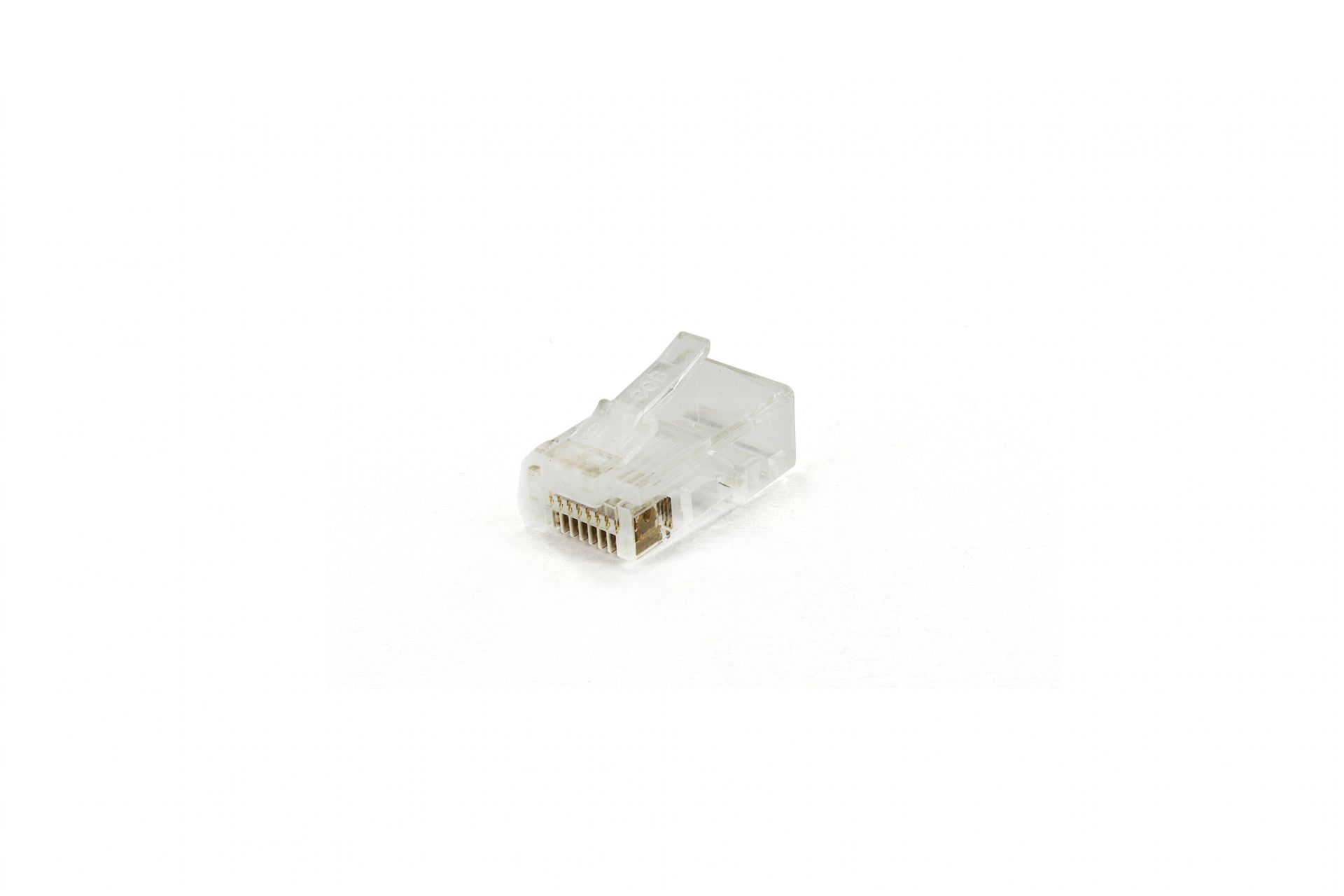

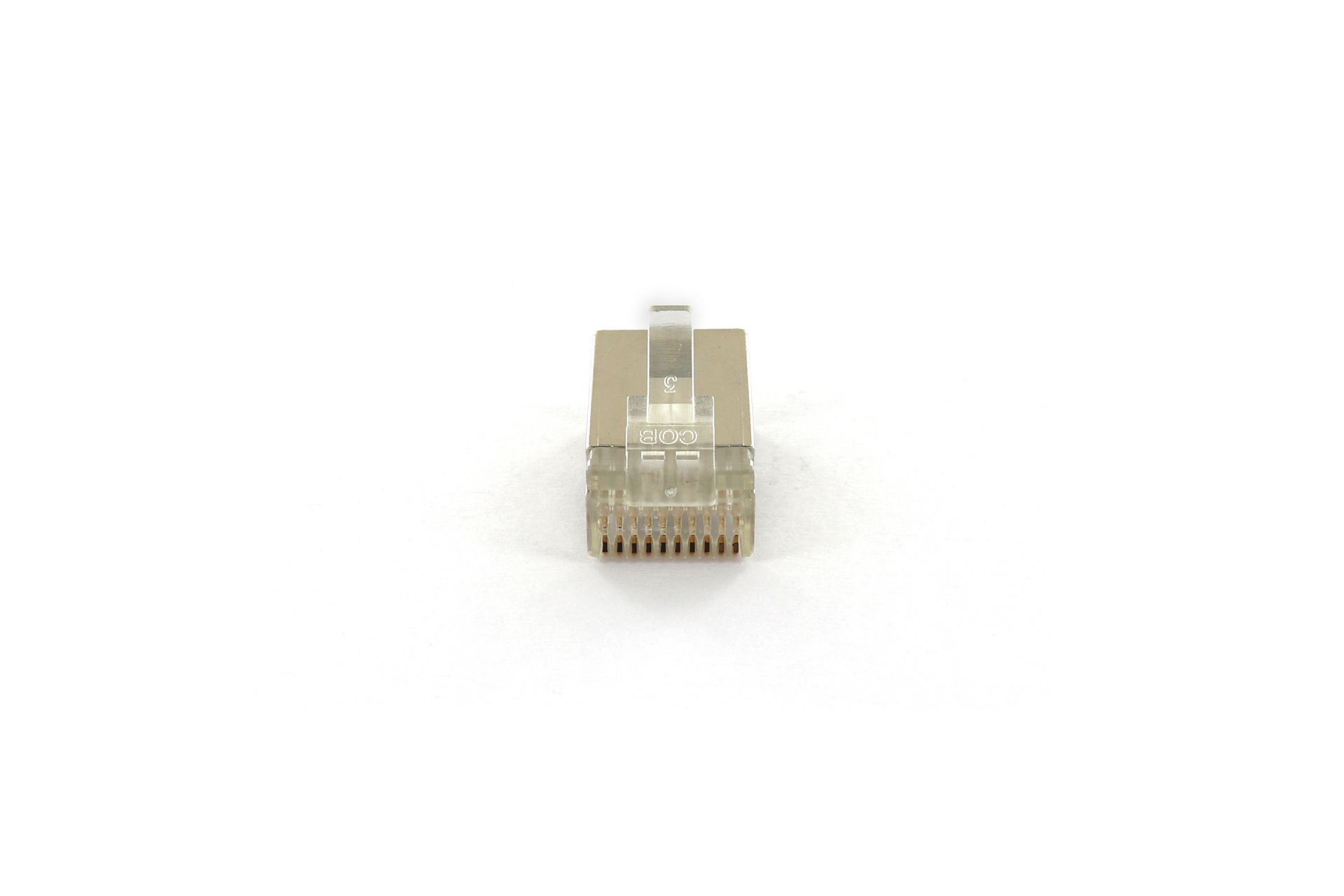

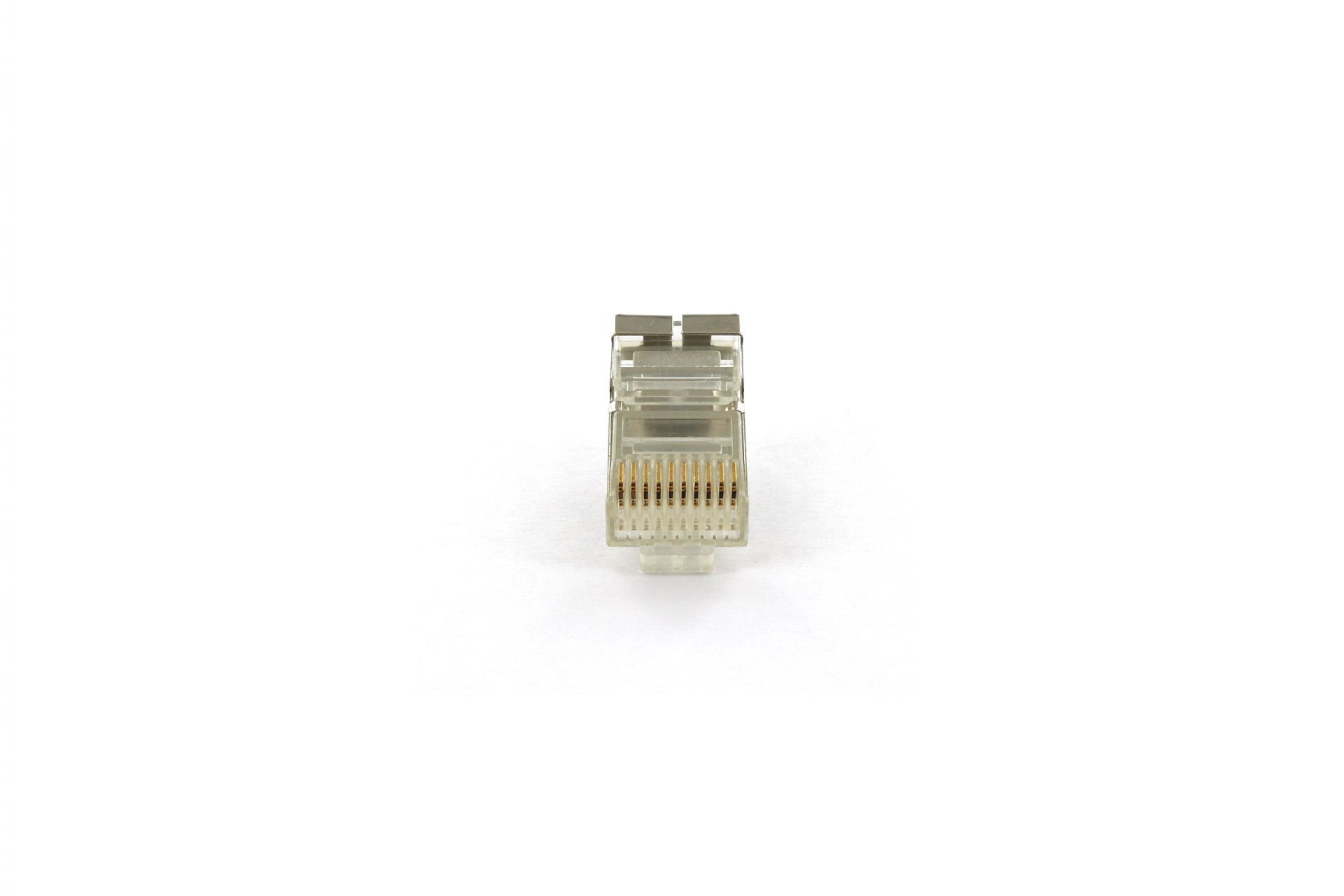

  • IMG_2330-2
  • IMG_2329-2
  • IMG_2333-2
  • IMG_2324-2
  • IMG_2323-2
  • IMG_2326-2
  • IMG_2340-2
  • IMG_2336-2
  • IMG_2339-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
MP0808FMXX-6-H 114KB PDF
download
DOWNLOAD
MP0606RXX-H 273KB PDF
download
DOWNLOAD
MP1010RXX-H 258KB PDF
download
DOWNLOAD
MP0404FXX-H 270KB PDF
download
DOWNLOAD
MP0604RXX-H 141KB PDF
download
DOWNLOAD
MP0404RXX-H 139KB PDF
download
DOWNLOAD
MP0606FXX-H 273KB PDF
download
DOWNLOAD
MP0808FXX-H 289KB PDF
download
DOWNLOAD
MP0808RXX-H 296KB PDF
download
DOWNLOAD
