Board & Wire Connector Pin / Female Header MVPXX-2X

Pin / Female Header

MVPXX-2X

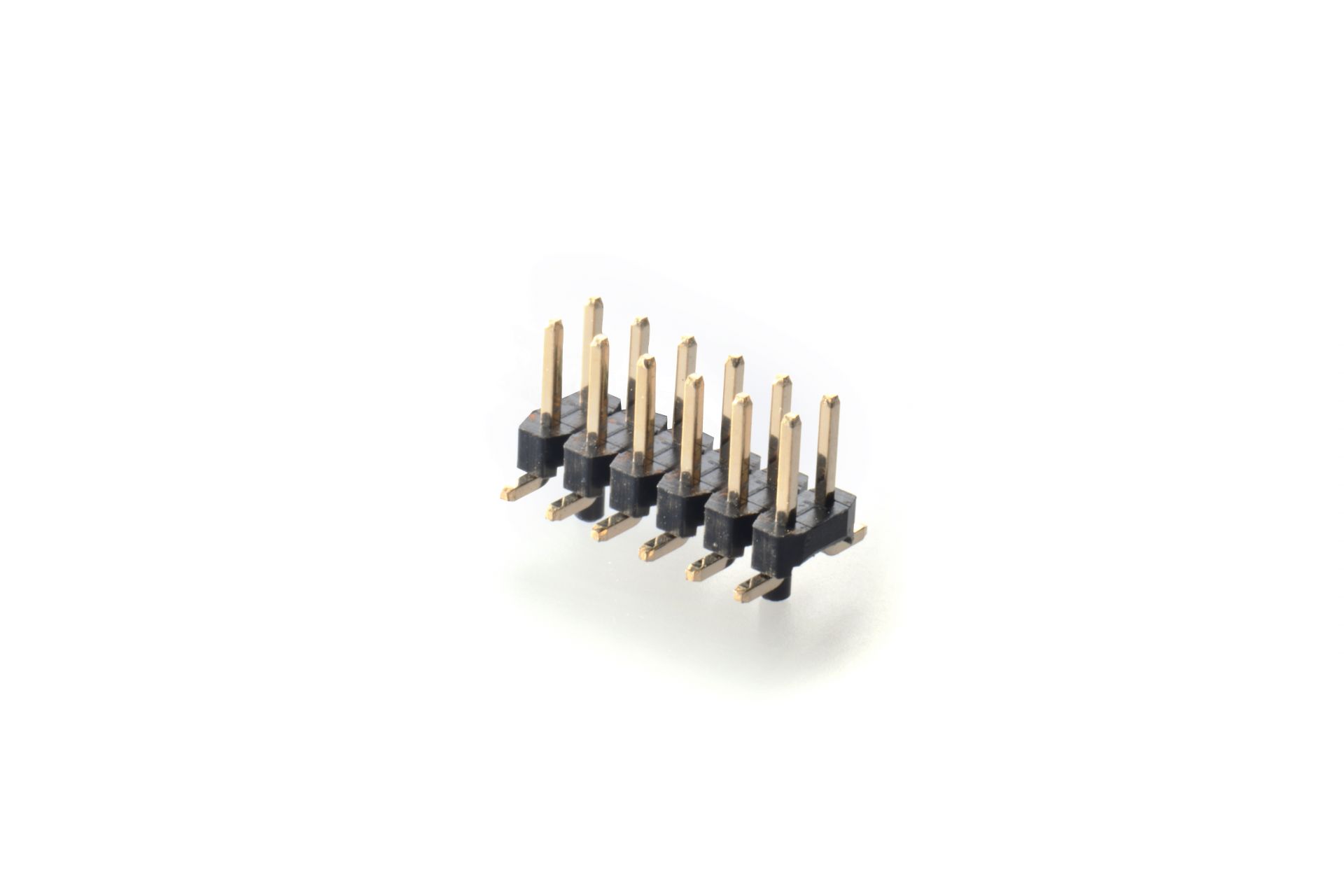

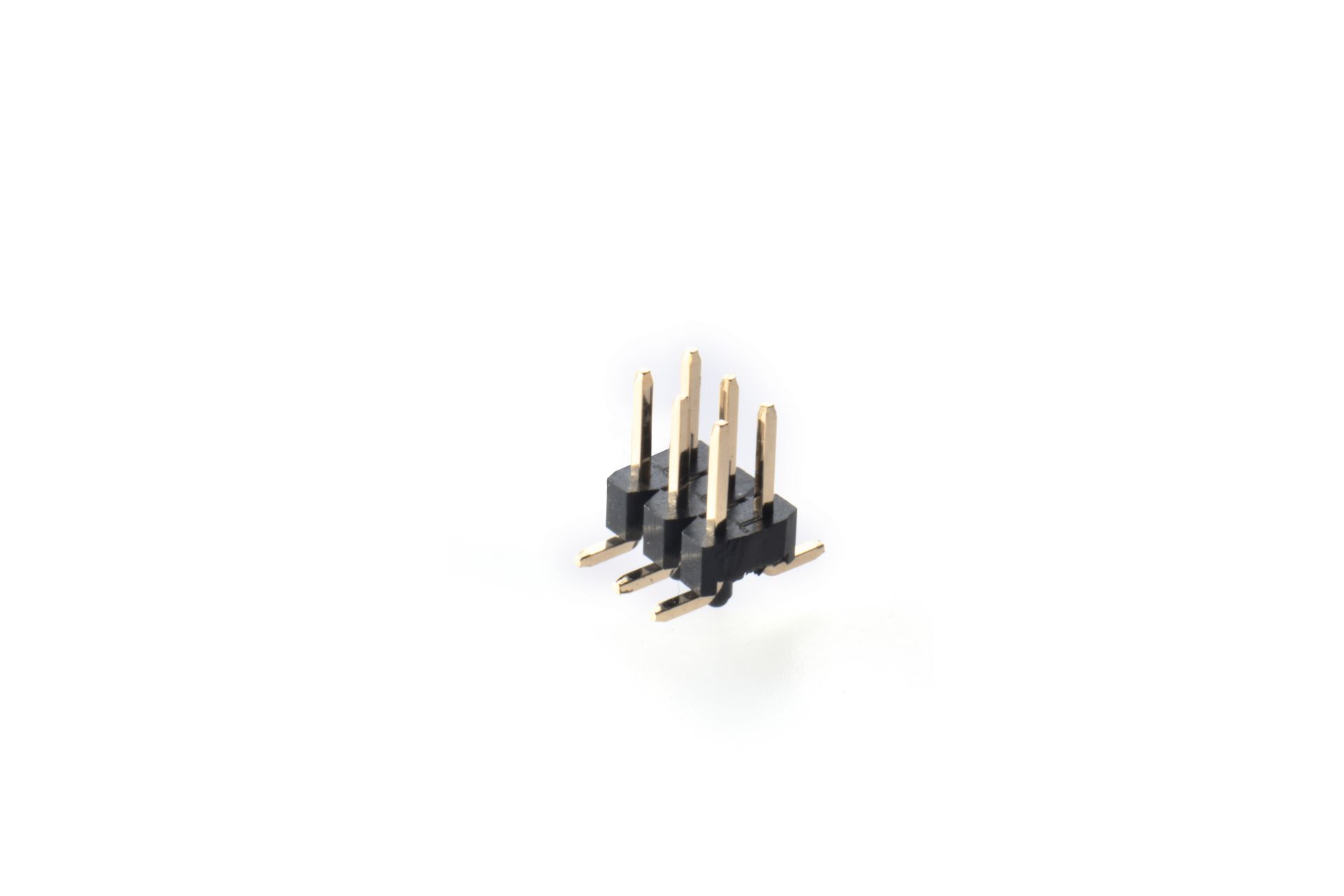

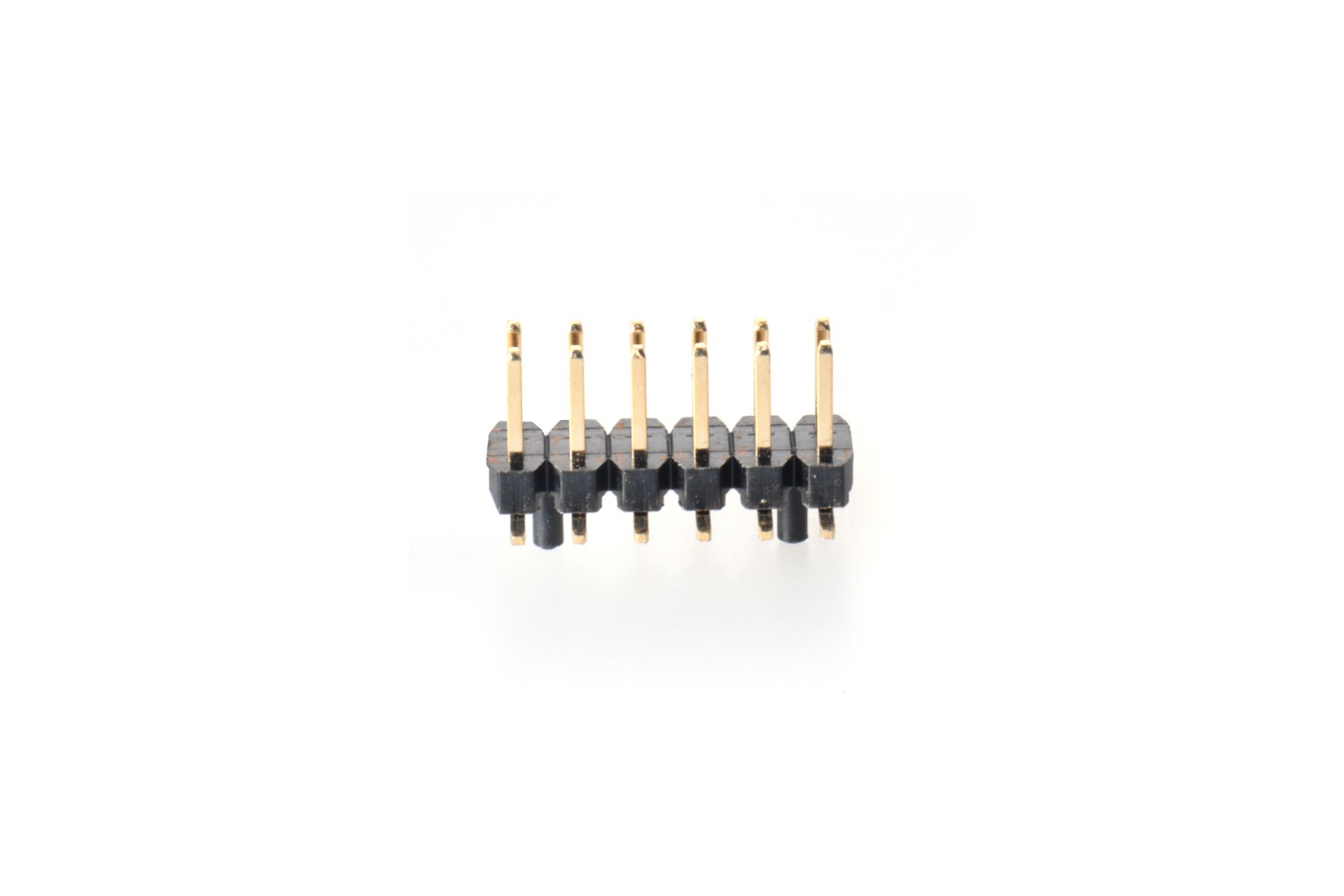

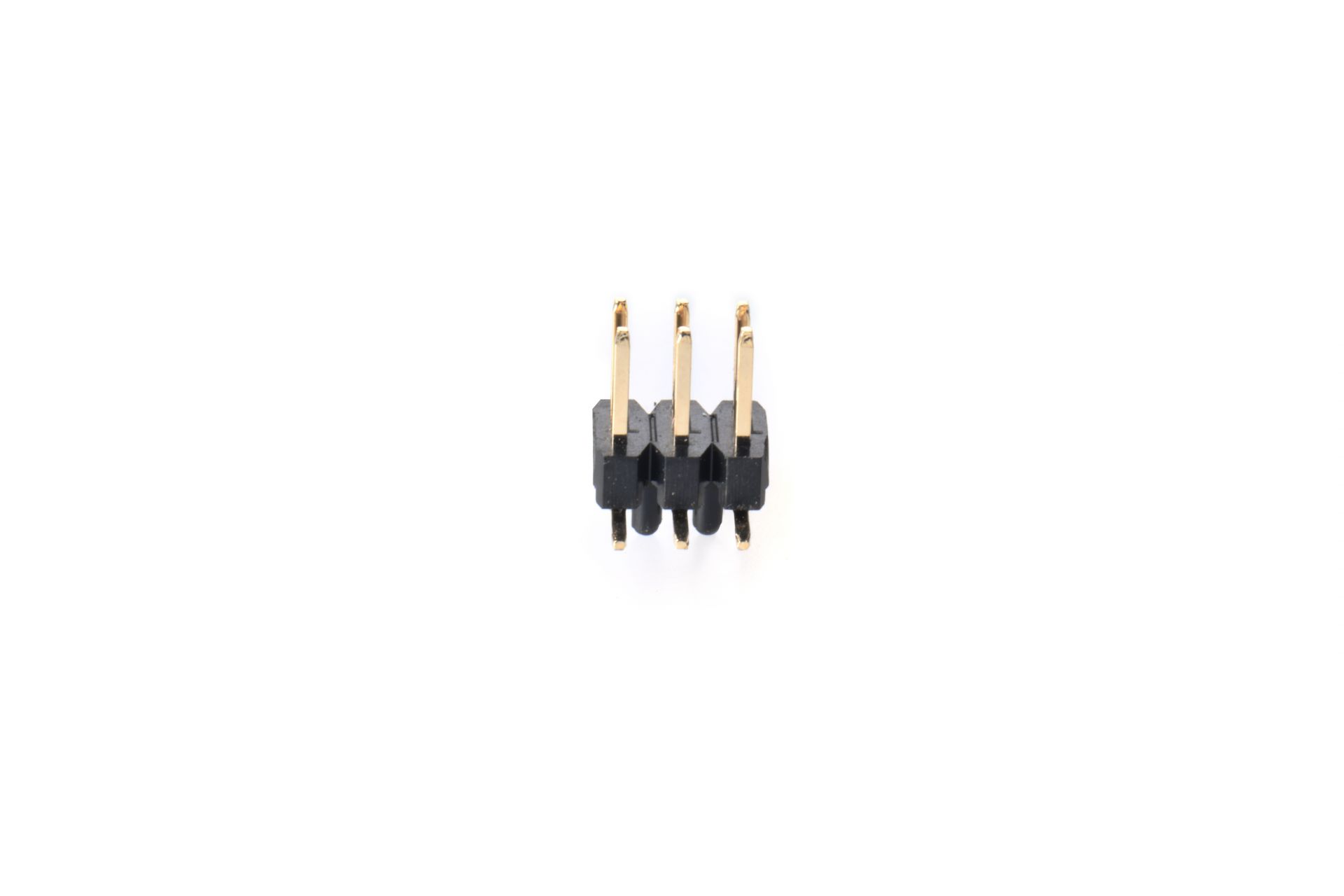

2.0mm PIN HEADER SMT 180° WITH POST DUAL ROW

MVP
21
(1)
2X
20
(2)
C
(3)
H
(4)

Description

(1)21:SMT HEIGHT 2.1mm
26:SMT HEIGHT 2.6mm
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:WITHOUT CAP
C:WITH CAP
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	MVP22-2XXX-H	249KB	PDF	DOWNLOAD
	MVP26-2XXXC-H	252KB	PDF	DOWNLOAD
