1.0 mm BOARD TO BOARD SINGLE SLOT SMT 180° WITHOUT POST WITH FITTING NAIL
  • NPA

  • XX
    (1)
  • P08
    (2)
  • QC

  •
    H
    (3)

Description

  • (1)  09、11、15、21、25、31、41、51、69: NO.OF POSITION
  • (2)STACKING HEIGHT:4.15mm:P08(MALE)+S32(FEMALE)
        STACKING HEIGHT:4.50mm:P12(MALE)+S32(FEMALE)
        STACKING HEIGHT:5.00mm:P17(MALE)+S32(FEMALE)
        STACKING HEIGHT:5.50mm:P22(MALE)+S32(FEMALE)
        STACKING HEIGHT:6.00mm:P27(MALE)+S32(FEMALE)
        STACKING HEIGHT:7.00mm:P37(MALE)+S32(FEMALE)
        STACKING HEIGHT:7.52mm:P42MALE)+S32(FEMALE)
  • (3) RoHS

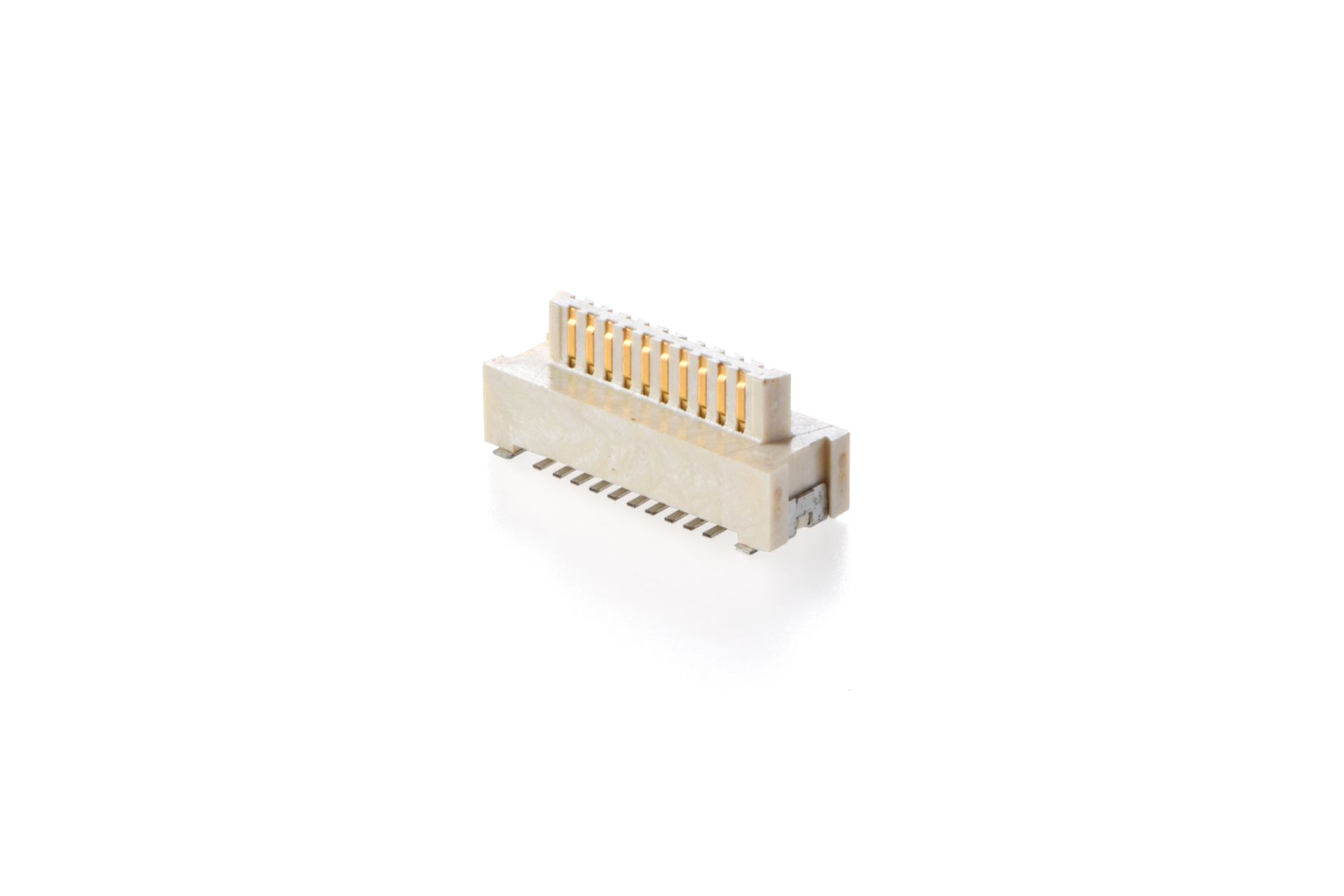

  • NPA21P37Q(432)

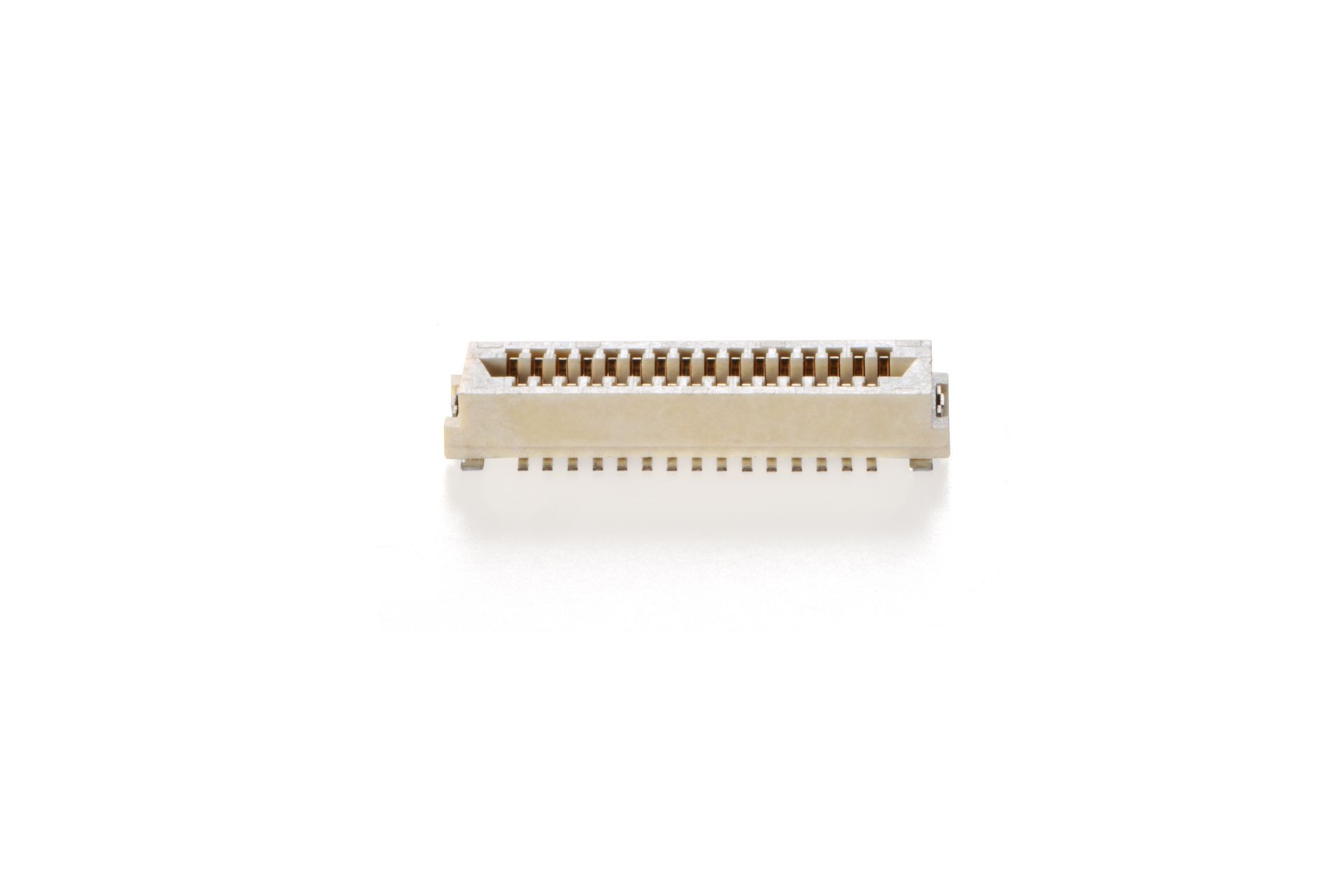

  • NPA21P37Q(432)_1

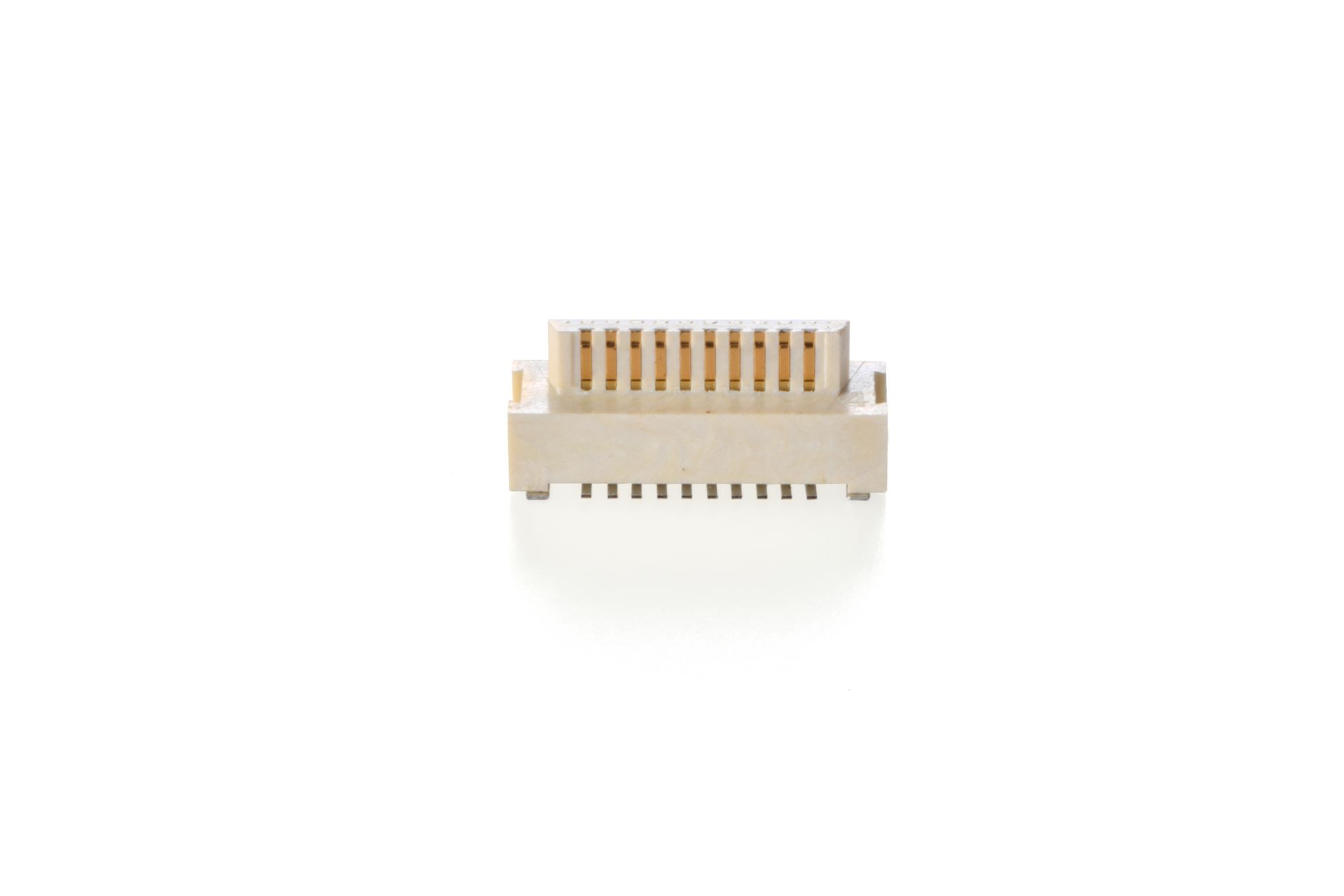

  • NPA31S32Q(432)_1

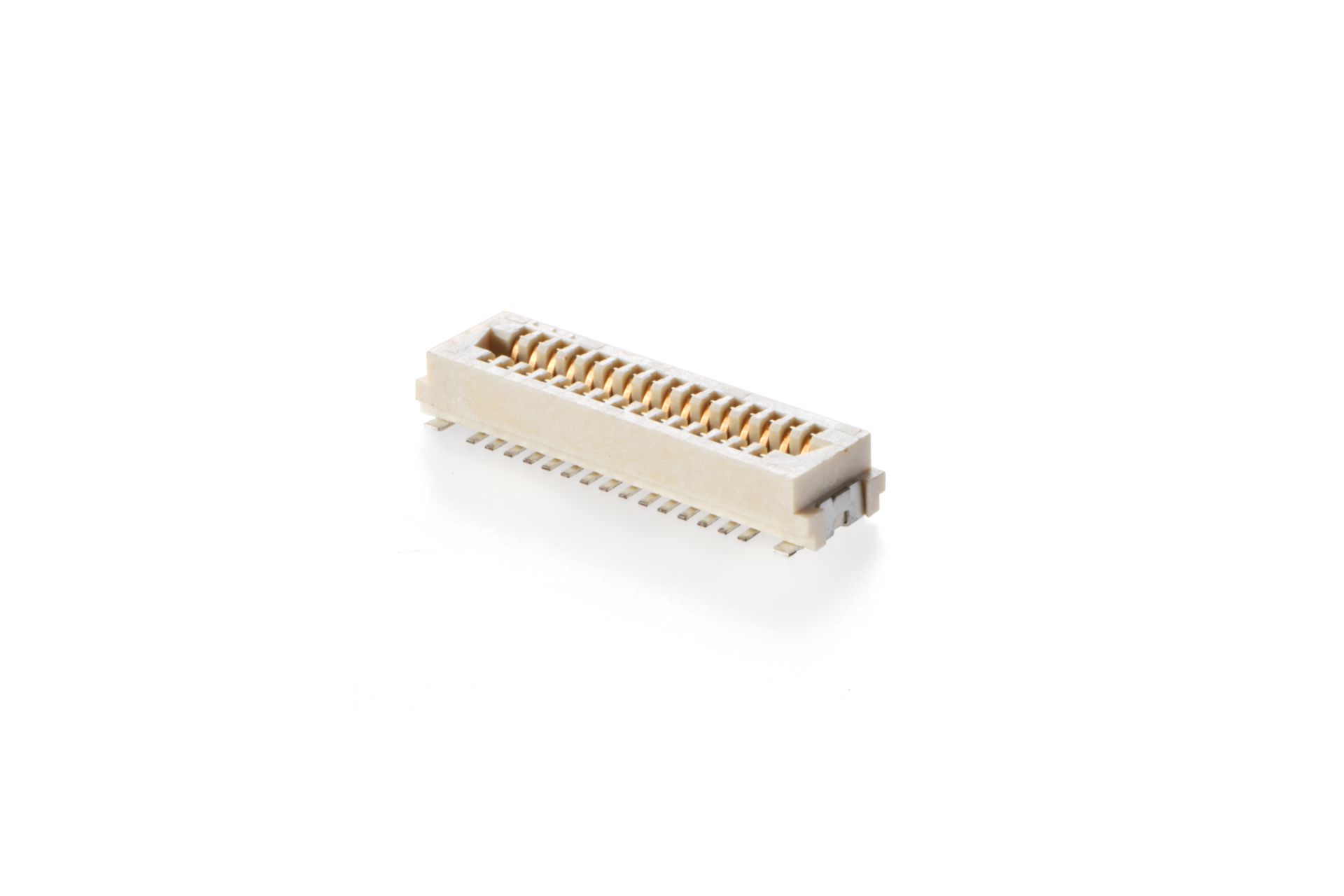

  • NPA31S32Q(432)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPAXXPXXQC-SXX-RXXX-H 143KB PDF
download
DOWNLOAD
NPAXXS32QC-SXX-RXXX-H 316KB PDF
download
DOWNLOAD
