Board To Board Connector
NPE

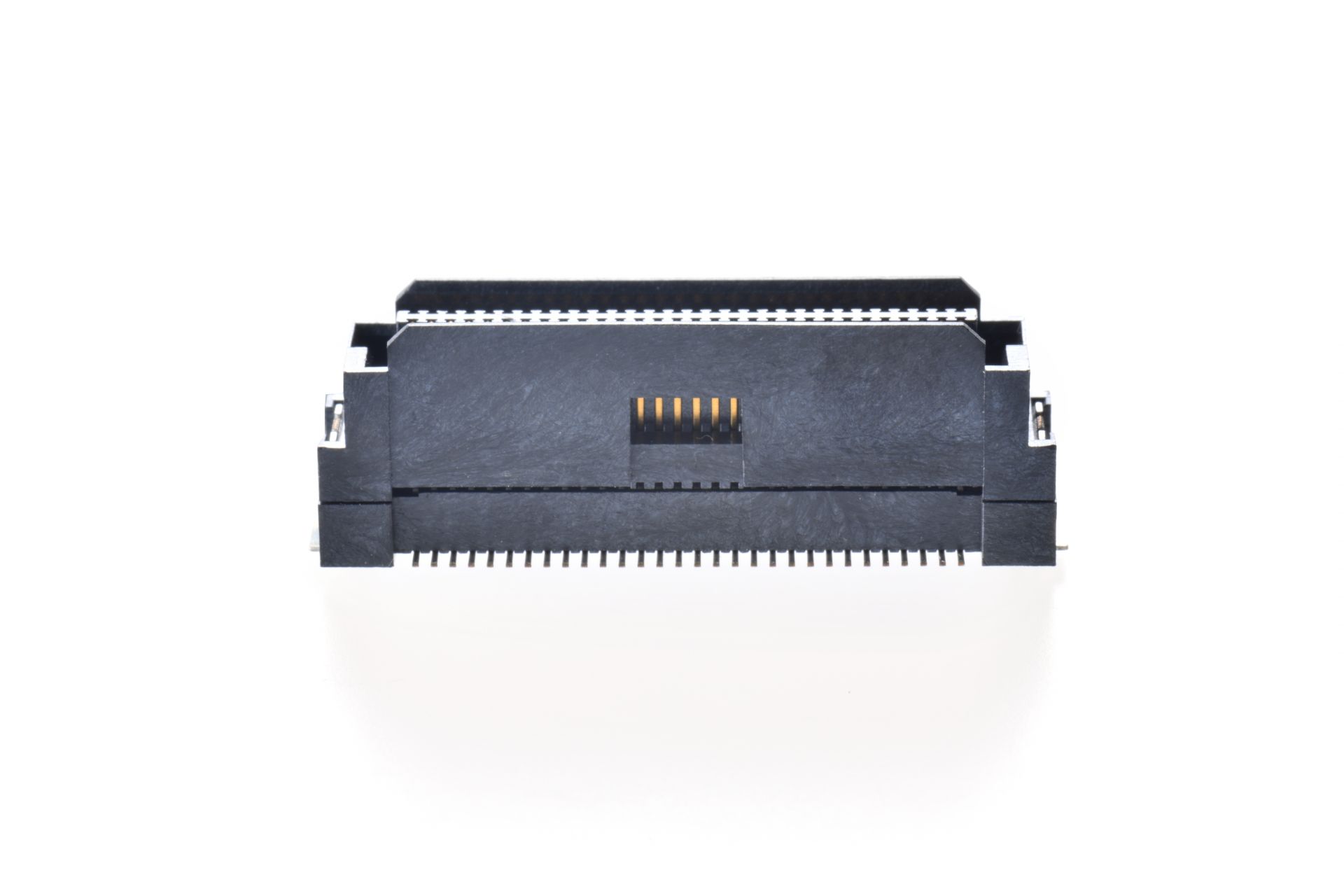

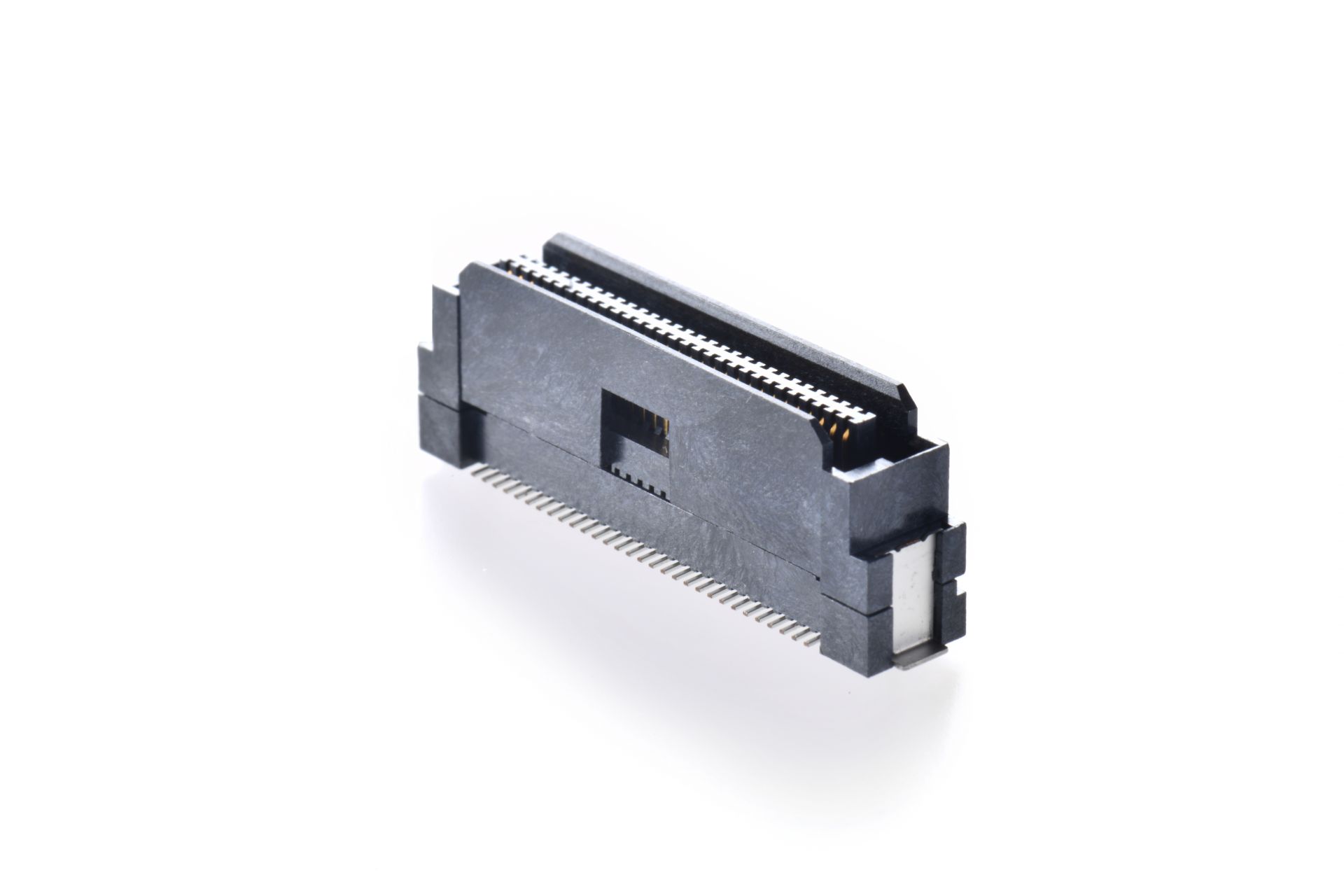

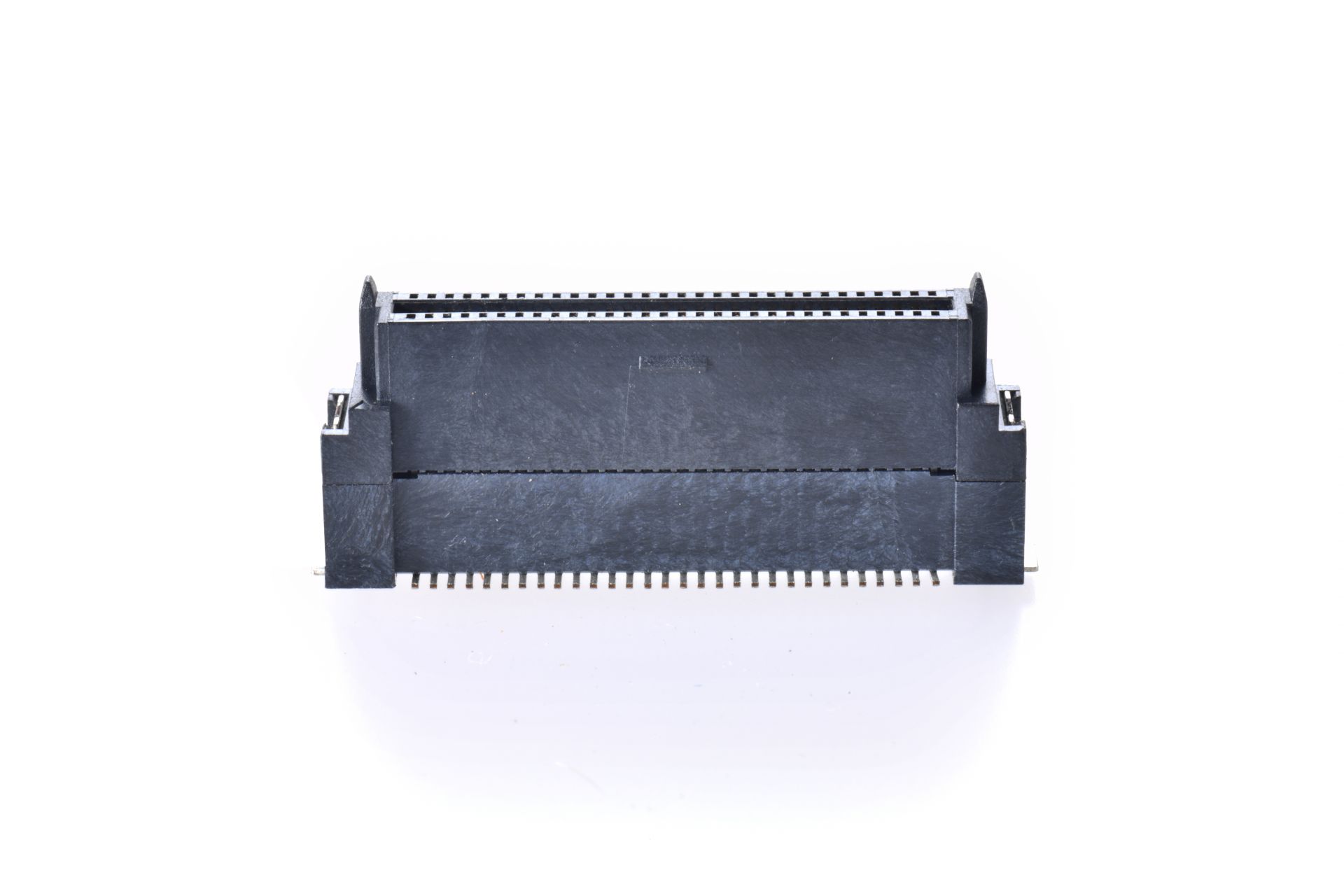

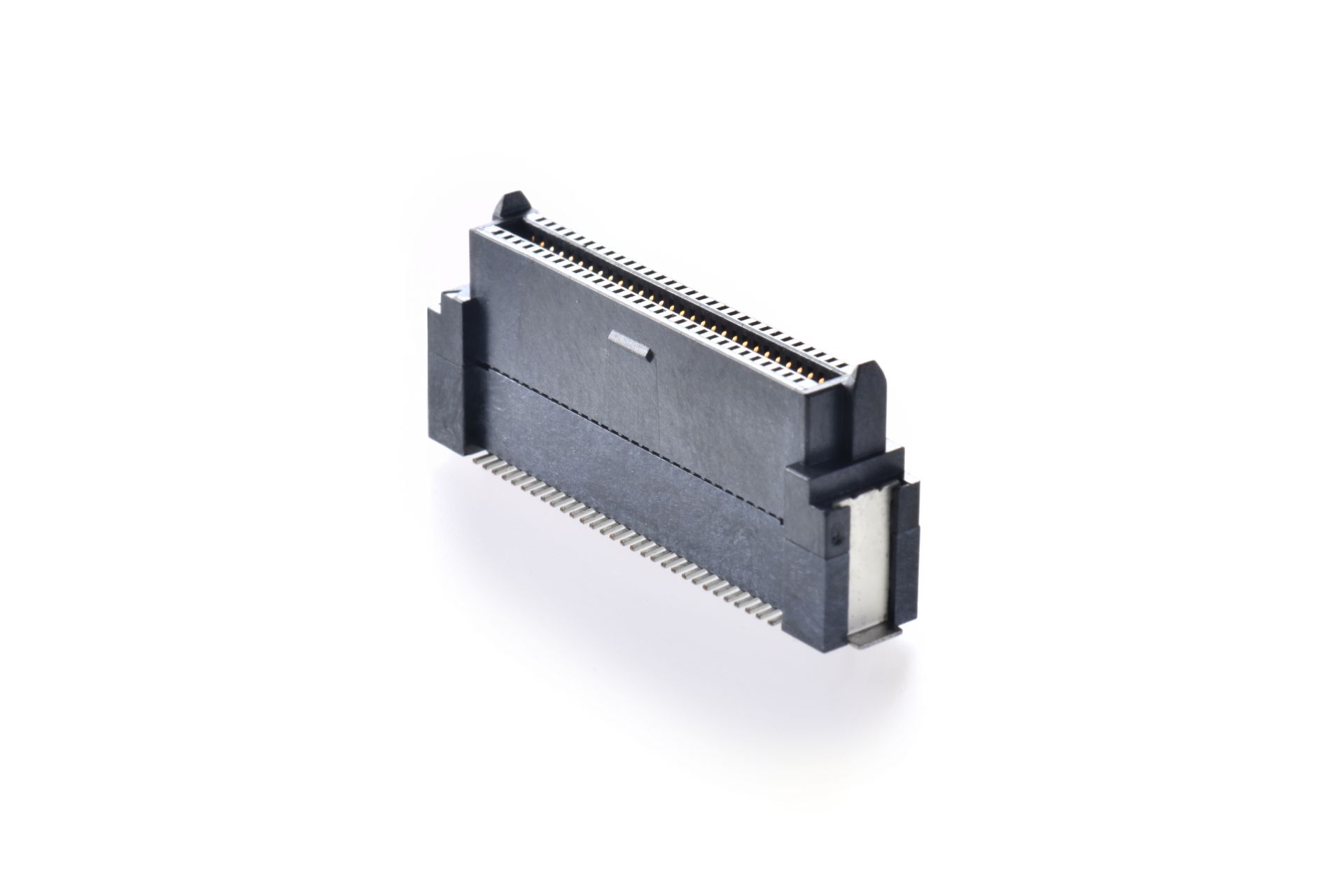

0.8mm BOARD TO BOARD SINGLE SLOT SMT 180° WITH POST WITH FITTING NAIL
-
NPE
-
120(1)
-
P100(2)
-
C
-
H(3)
Description
-
(1) 020、030、040、060、080、100、120、160: NO.OF POSITION
-
(2) STACKING HEIGHT:10.0mm:P80(MALE)+S20(FEMALE)
STACKING HEIGHT:13.0mm:P80(MALE)+S50(FEMALE)/P110(MALE)+S20(FEMALE)
STACKING HEIGHT:14.0mm:P80(MALE)+S60(FEMALE) /P120(MALE)+S20(FEMALE)
STACKING HEIGHT:15.0mm:P80(MALE)+S70(FEMALE) /P130(MALE)+S20(FEMALE)
STACKING HEIGHT:16.0mm:P80(MALE)+S80(FEMALE) /P110(MALE)+S50(FEMALE)
STACKING HEIGHT:17.0mm:P110(MALE)+S60(FEMALE) /P120(MALE)+S50(FEMALE)
STACKING HEIGHT:18.0mm:P110(MALE)+S70(FEMALE)/P120(MALE)+S60(FEMALE)/
P130(MALE)+S50(FEMALE)
STACKING HEIGHT:19.0mm:P110(MALE)+S80(FEMALE)/P120(MALE)+S60(FEMALE)/
P140(MALE)+S50(FEMALE)
STACKING HEIGHT:20.0mm:P120(MALE)+S80(FEMALE)/P130(MALE)+S70(FEMALE)/
P140(MALE)+S60(FEMALE)
STACKING HEIGHT:21.0mm:P130(MALE)+S80(FEMALE)/P140(MALE)+S70(FEMALE)
STACKING HEIGHT:220mm:P140(MALE)+S80(FEMALE) -
(3) RoHS
