Board & Wire Connector Board To Board Connector NPEB
Board To Board Connector

NPEB

0.8mm BOARD TO BOARD DOUBLE SLOT SMT 180° WITH POST WITHOUT FITTING NAIL
  • NPEB

  • XXX
    (1)
  • P40
    (2)
  • RC

  •
    H
    (3)

Description

  • (1) 010、016、020、028、030、040~100: NO.OF POSITION
  • (2) STACKING HEIGHT:4.0mm:P30(MALE)+S10(FEMALE)
         STACKING HEIGHT:4.5mm:P30(MALE)+S15(FEMALE)
         STACKING HEIGHT:5.0mm:P30(MALE)+S20(FEMALE)
         STACKING HEIGHT:5.5mm:P40(MALE)+S15(FEMALE)
         STACKING HEIGHT:6.0mm:P40(MALE)+S20(FEMALE)
         STACKING HEIGHT:6.5mm:P45(MALE)+S20(FEMALE)
         STACKING HEIGHT:7.0mm:P40MALE)+S30(FEMALE)
         STACKING HEIGHT:7.5mm:P45(MALE)+S30(FEMALE)
         STACKING HEIGHT:8.0mm:P40(MALE)+S40(FEMALE)
  • (3) RoHS

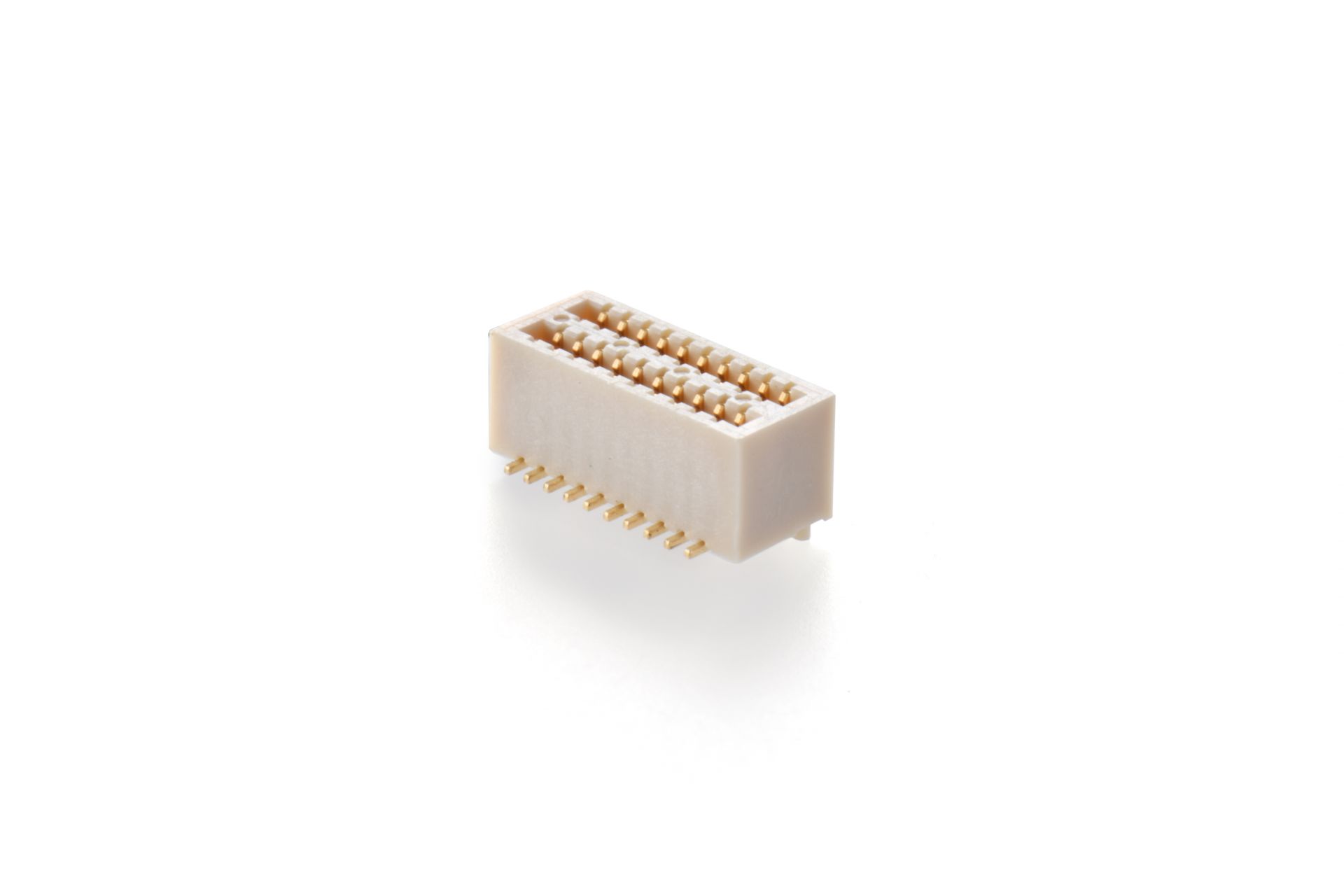

  • NPEB020P40R(432)_1

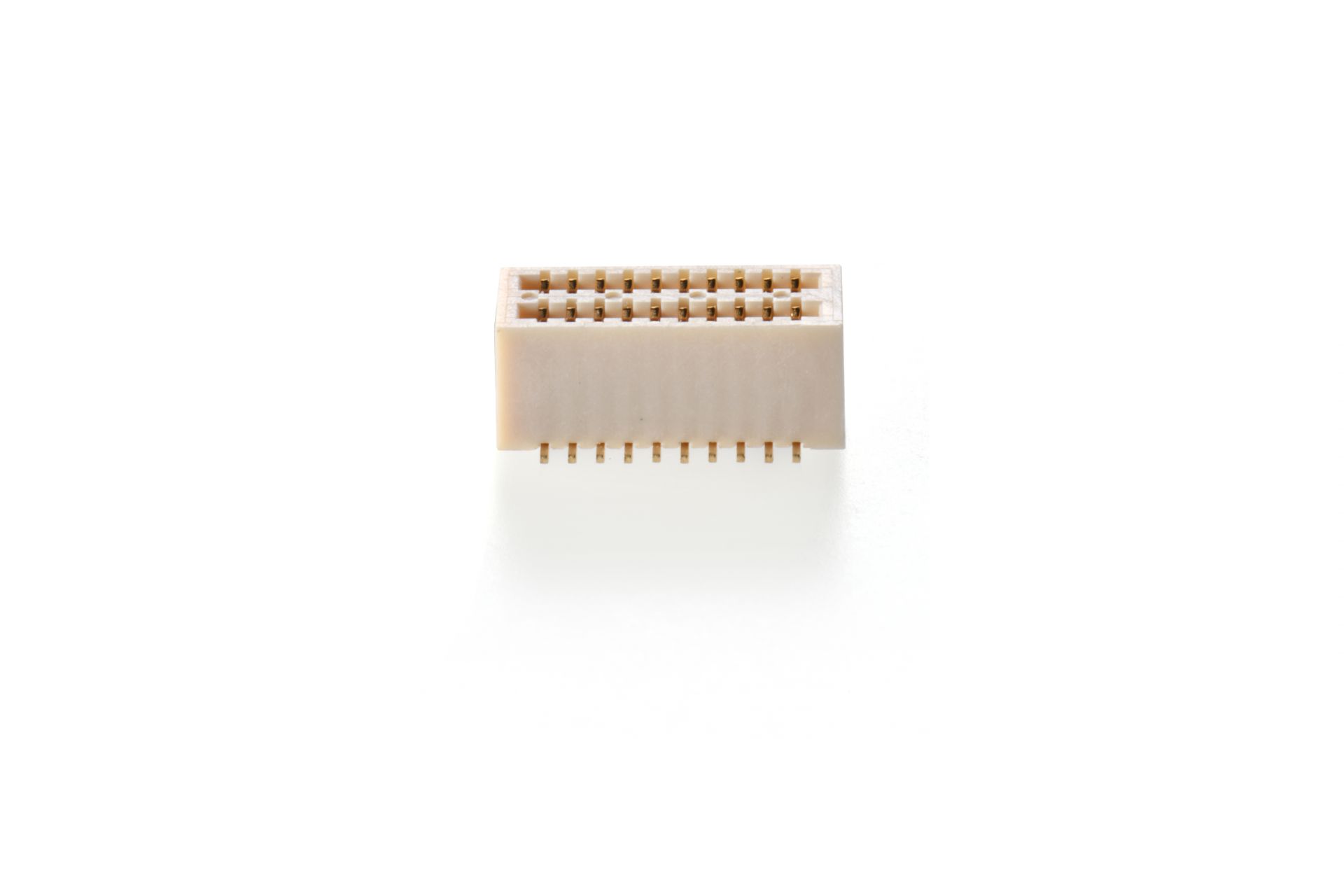

  • NPEB020P40R(432)

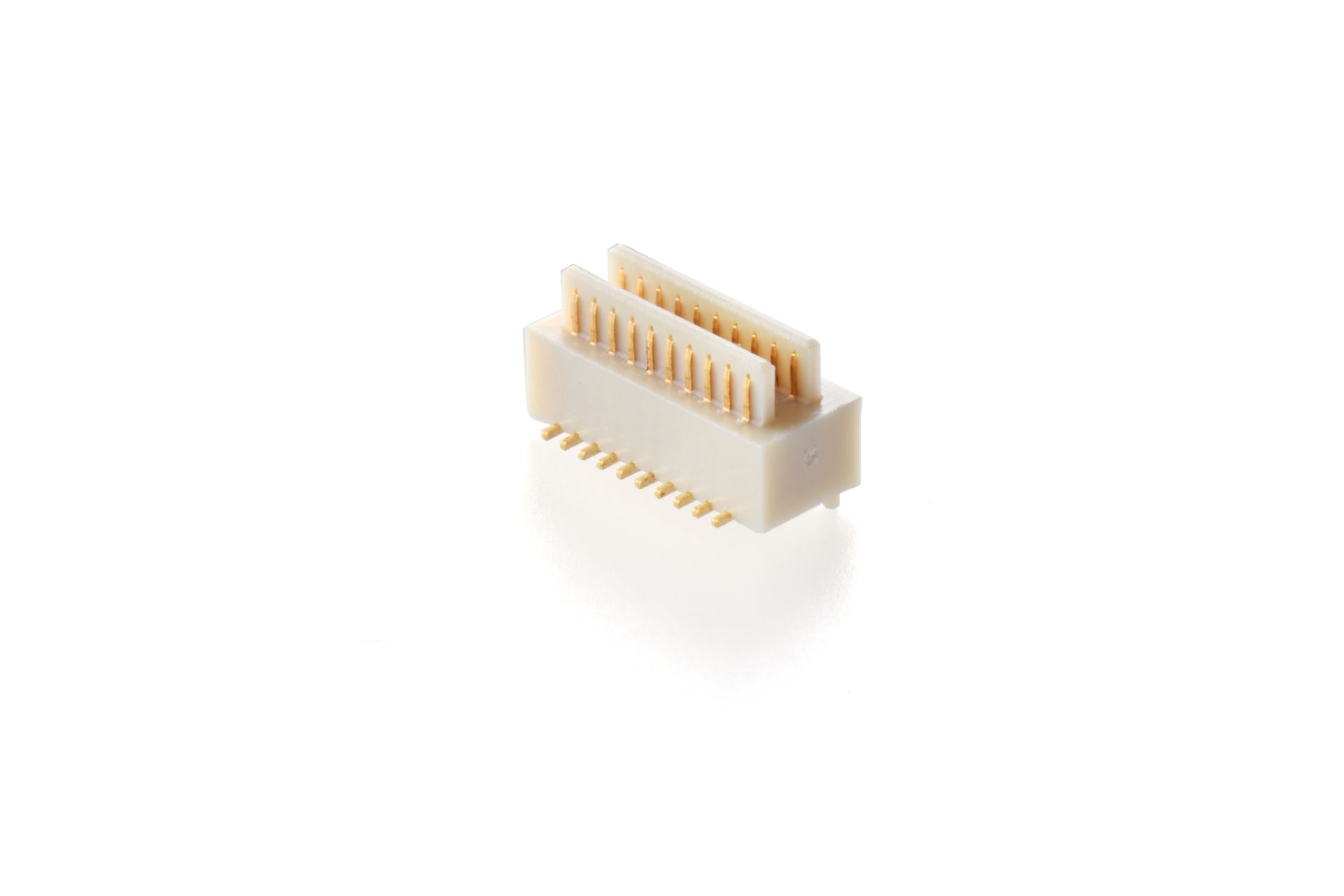

  • NPEB020S30R(432)_1

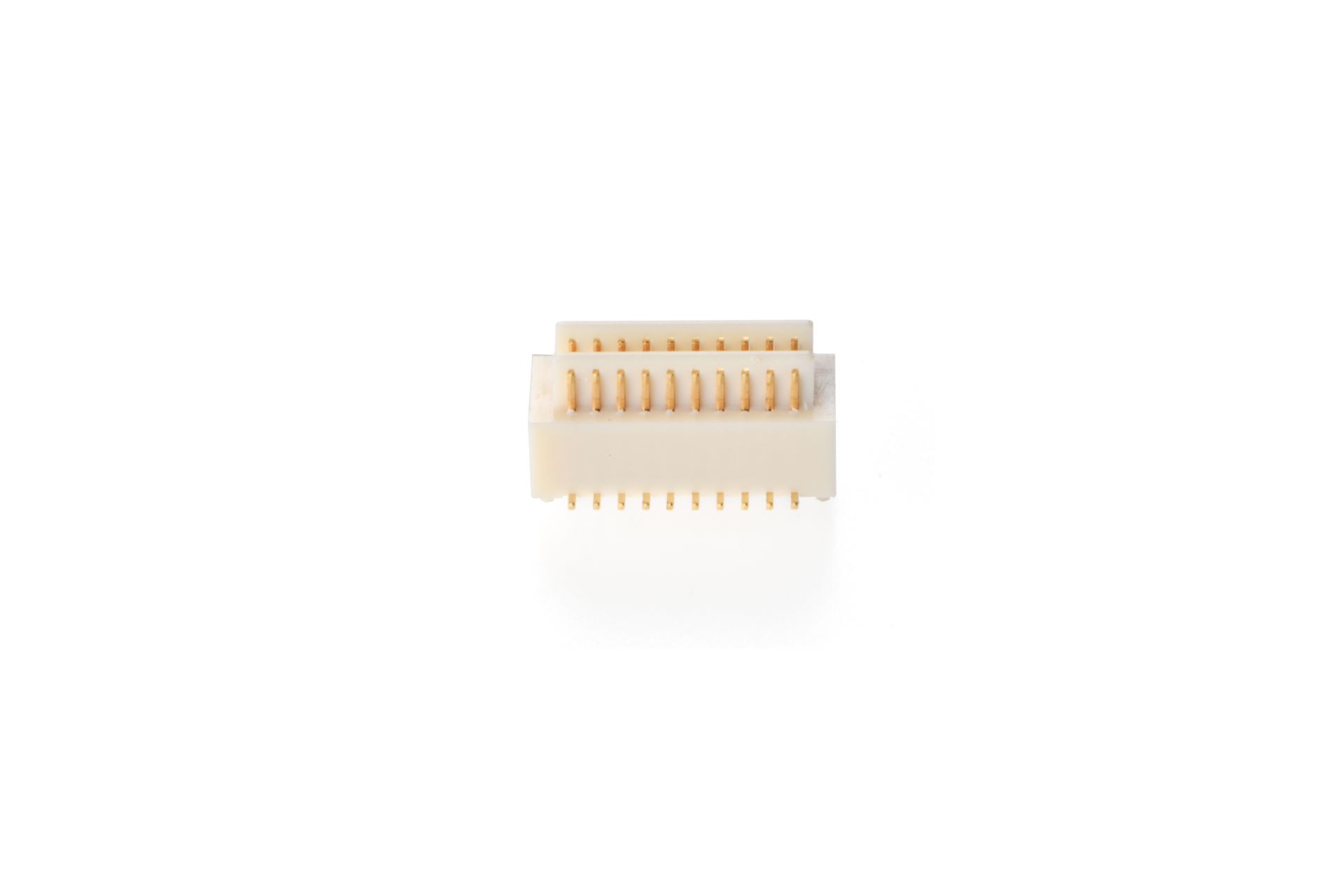

  • NPEB020S30R(432)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPEBXXXPXXRC-RXXX-H 355KB PDF
download
DOWNLOAD
NPEBXXXSXXRC-RXXX-H 334KB PDF
download
DOWNLOAD
