home Products
Board & Wire Connector Board To Board Connector NPEM
Board To Board Connector

NPEM

0.8mm BOARD TO BOARD M TYPE SINGLE SLOT SMT 180° WITH POST WITHOUT FITTING NAIL
  • NPEM

  • 010
    (1)
  • P37
    (2)
  • RC

  •
    H
    (3)

Description

  • (1) 010、012~040:NO. OF POSITION
  • (2) STACKING HEIGHT 4.50mm:P37(MALE)+S08(FEMALE)
         STACKING HEIGHT 5.00mm:P42(MALE)+S08(FEMALE)
         STACKING HEIGHT 5.55mm:P48(MALE)+S08(FEMALE)
         STACKING HEIGHT 6.00mm:P52(MALE)+S08(FEMALE)
         STACKING HEIGHT 6.50mm:P57(MALE)+S08(FEMALE)
         STACKING HEIGHT 7.00mm:P62(MALE)+S08(FEMALE)
  • (3) RoHS

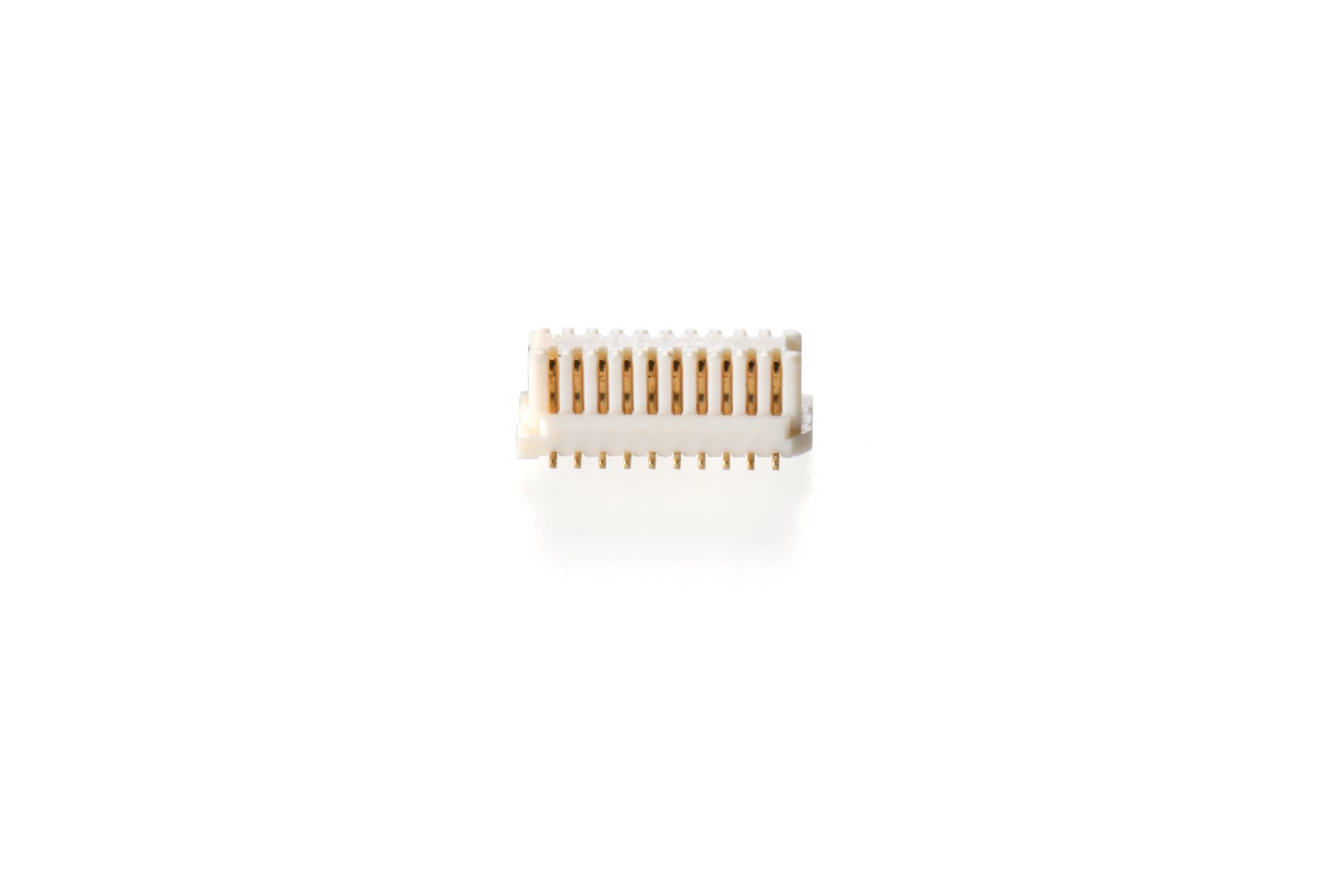

  • NPEM020P62R(432)_1

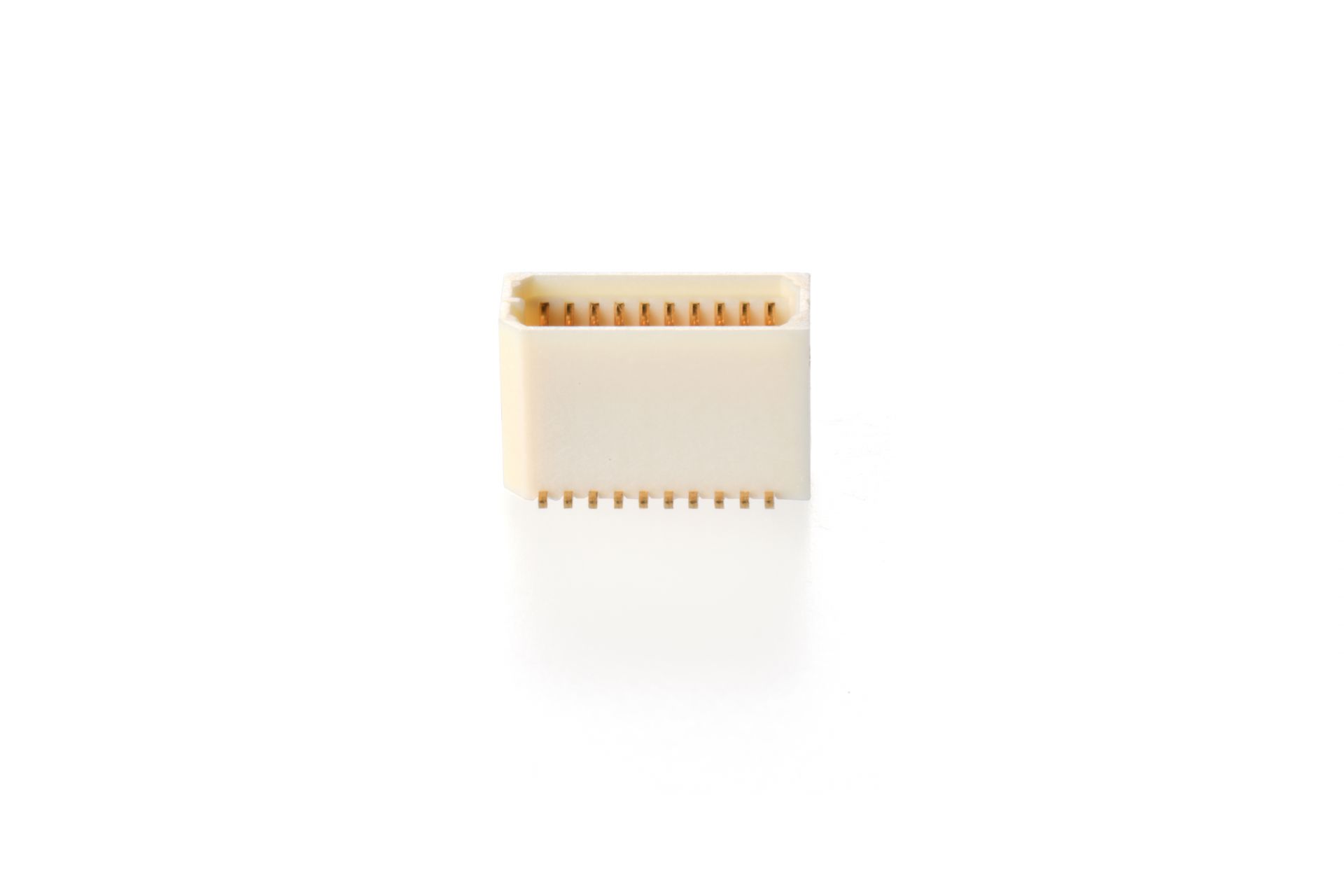

  • NPEM020P62R(432)

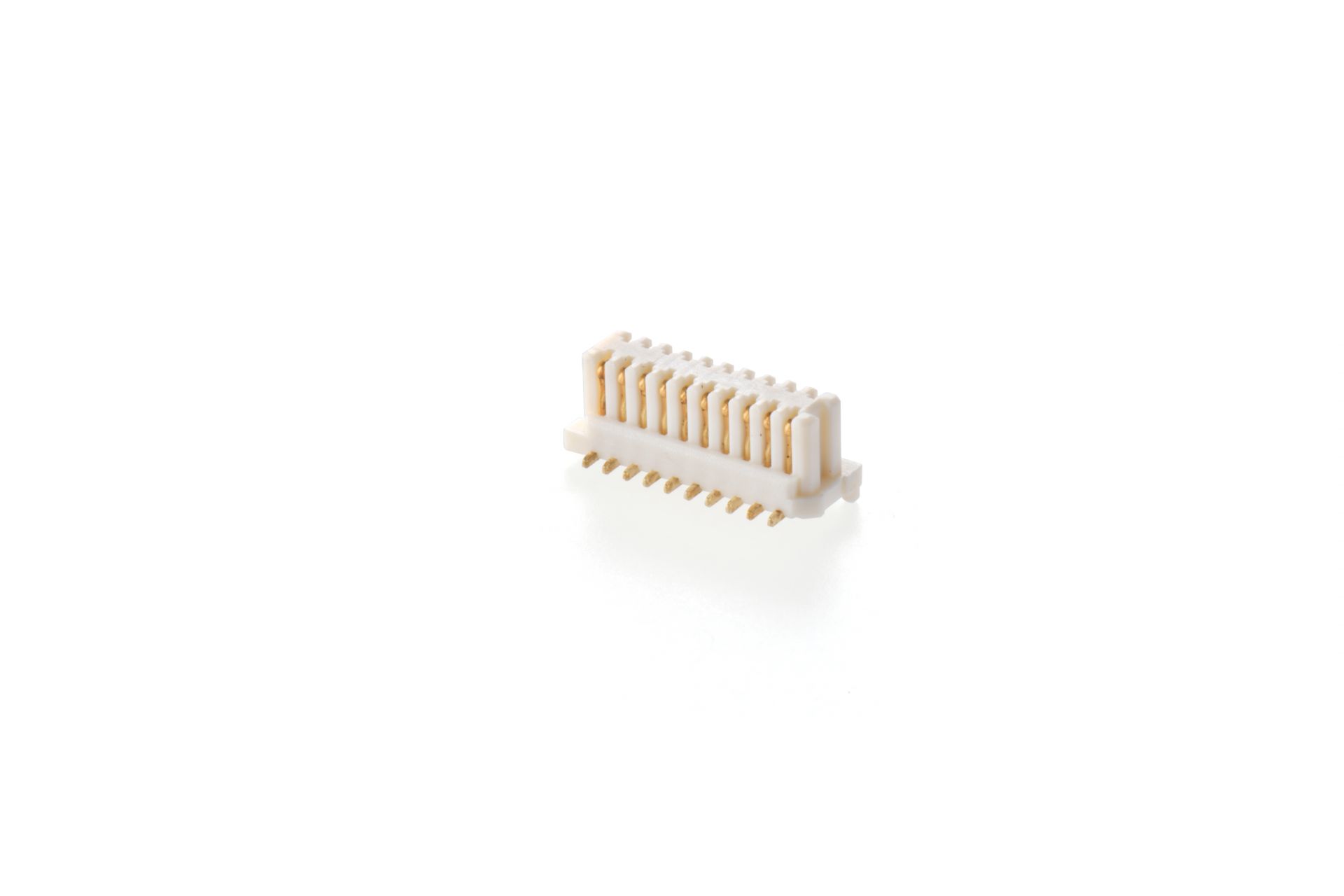

  • NPEM020S08R(432)_1

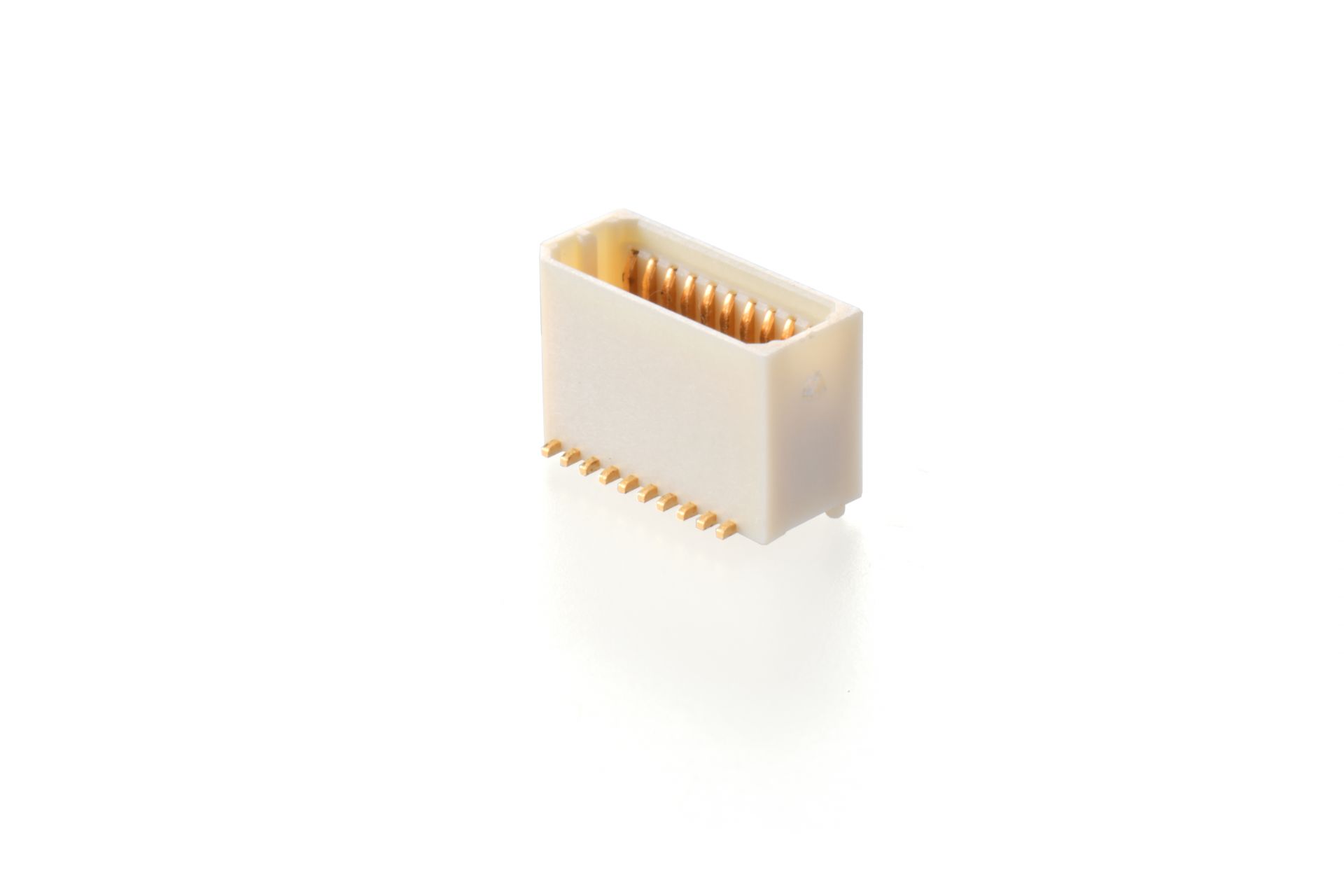

  • NPEM020S08R(432)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPEMXXXPXXRC-RXXX-H 344KB PDF
download
DOWNLOAD
NPEMXXXS08RC-R1K-H 144KB PDF
download
DOWNLOAD
