Board & Wire Connector Board To Board Connector NPEMXXXP47SW
Board To Board Connector

NPEMXXXP47SW

0.8mm BOARD TO BOARD M TYPE SINGLE SLOT SMT 90° WITH POST WITHOUT FITTING NAIL
  • NPEM

  • 010
    (1)
  • P47
    (2)
  • RW

  •
    H
    (3)

Description

  • (1) 010、012~040:NO. OF POSITION
  • (2) STACKING HEIGHT 5.65mm:P47RW(MALE)+S08R(FEMALE)
  • (3) RoHS

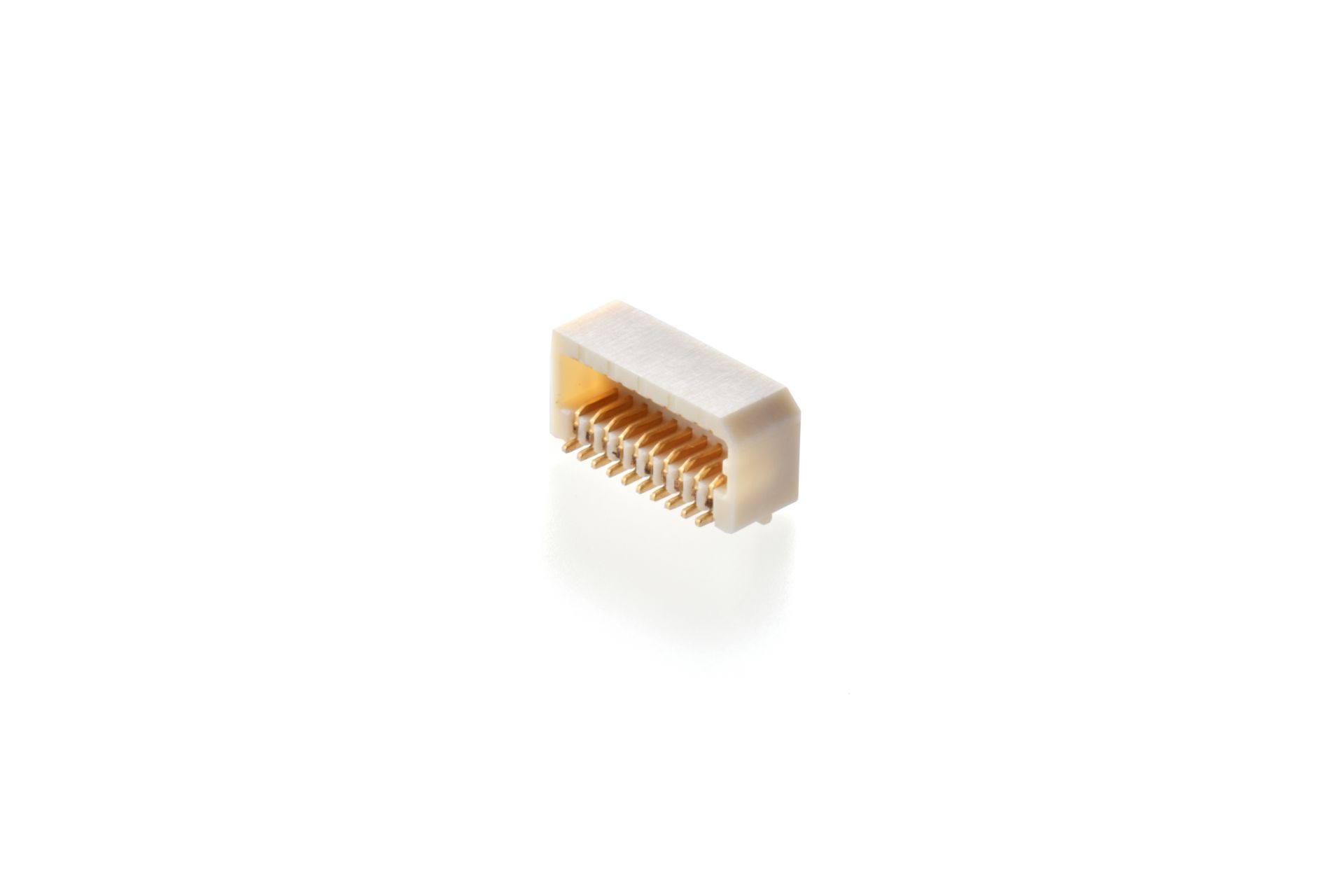

  • NPEM020P47RW(432)_1

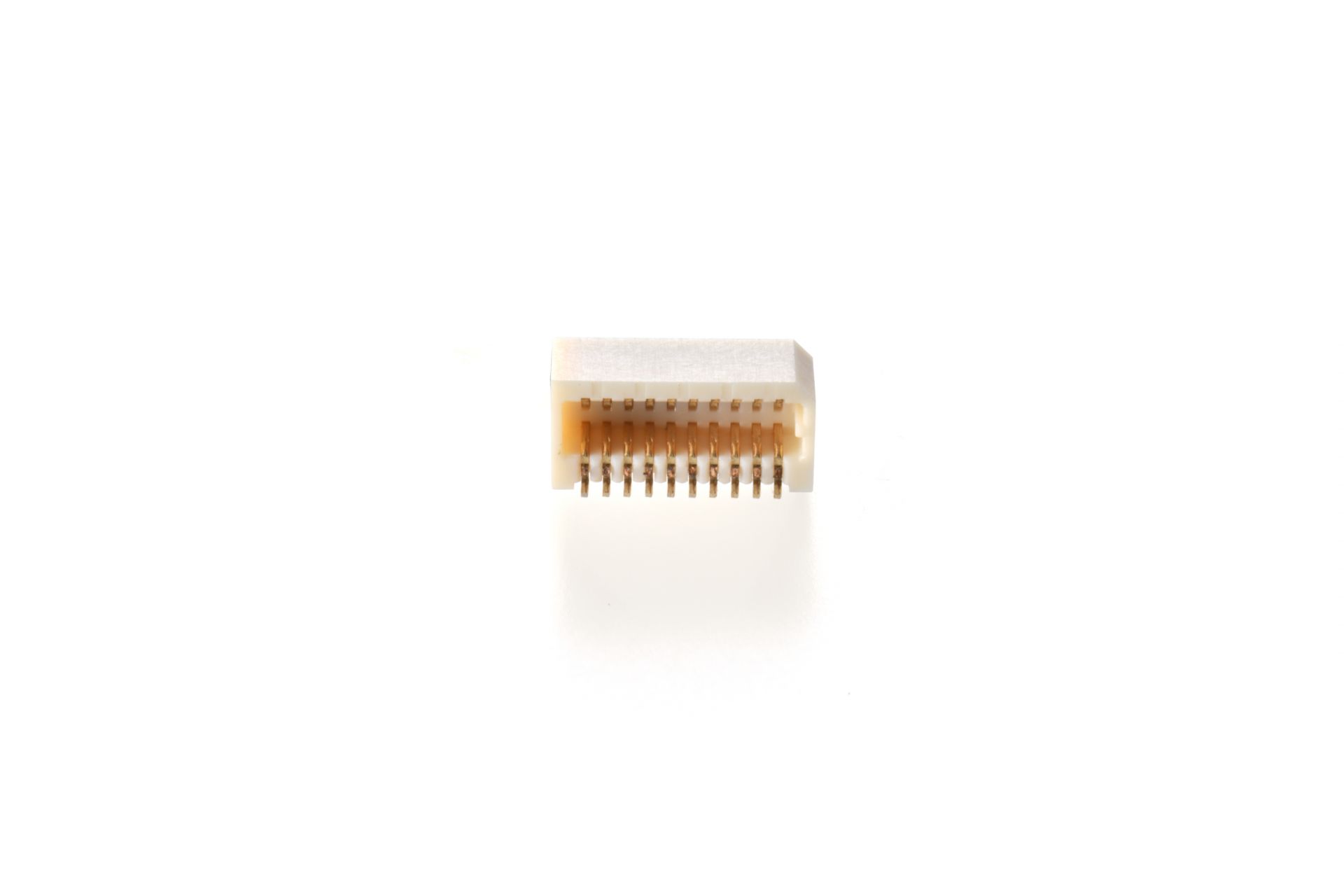

  • NPEM020P47RW(432)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPEMXXXP47RW-R9H-H 338KB PDF
download
DOWNLOAD
