Products

Board & Wire Connector Board To Board Connector NPS

Board To Board Connector

NPS

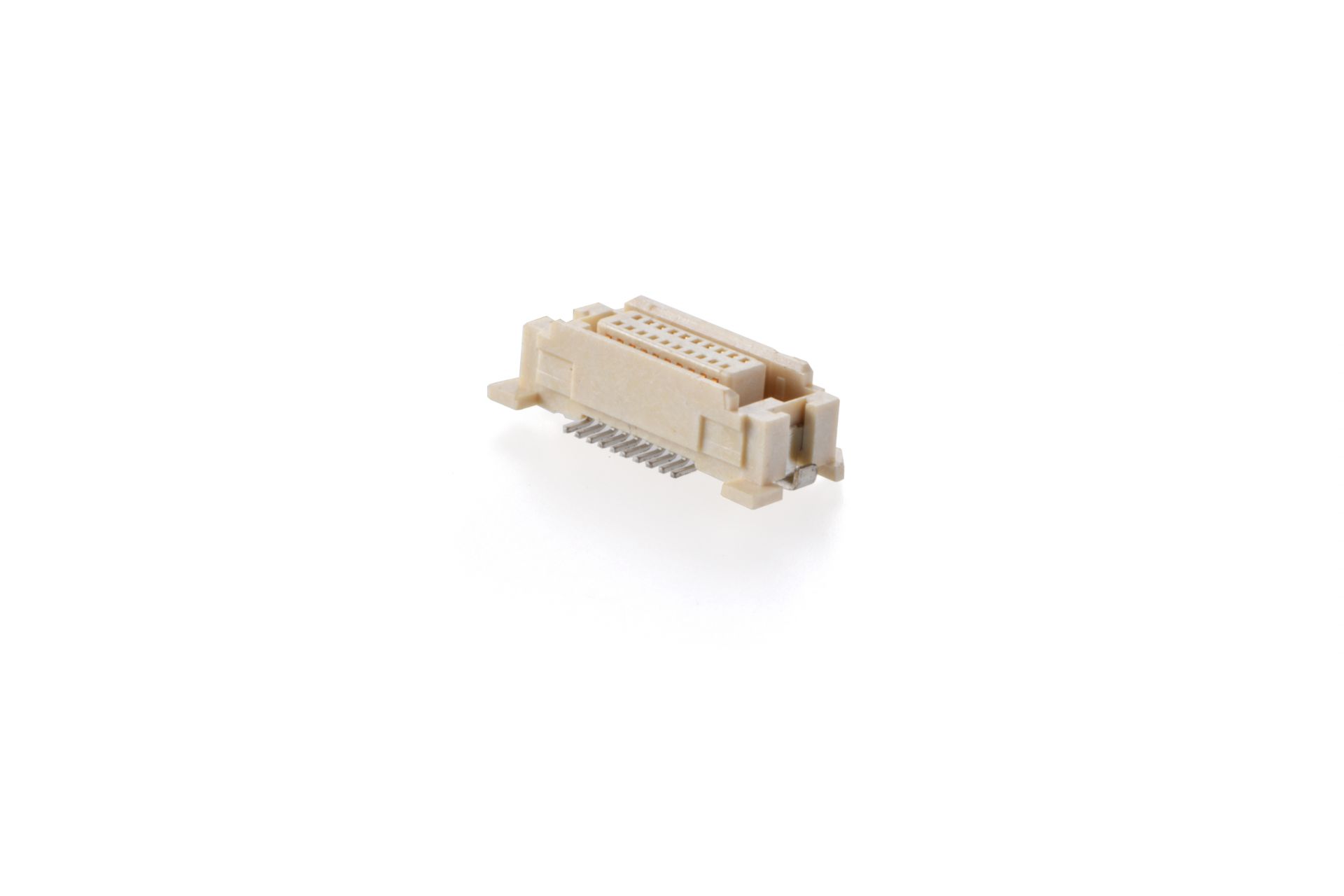

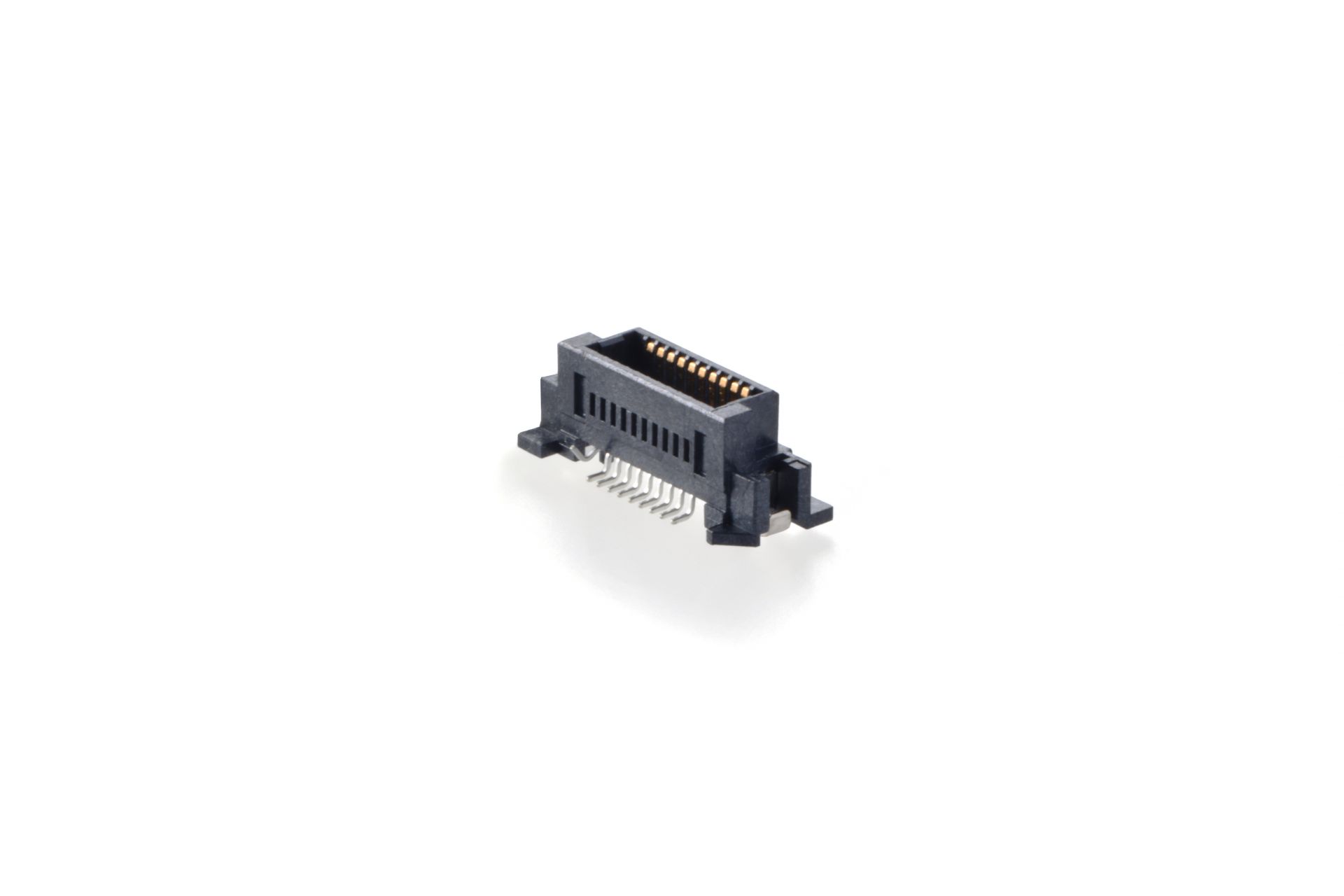

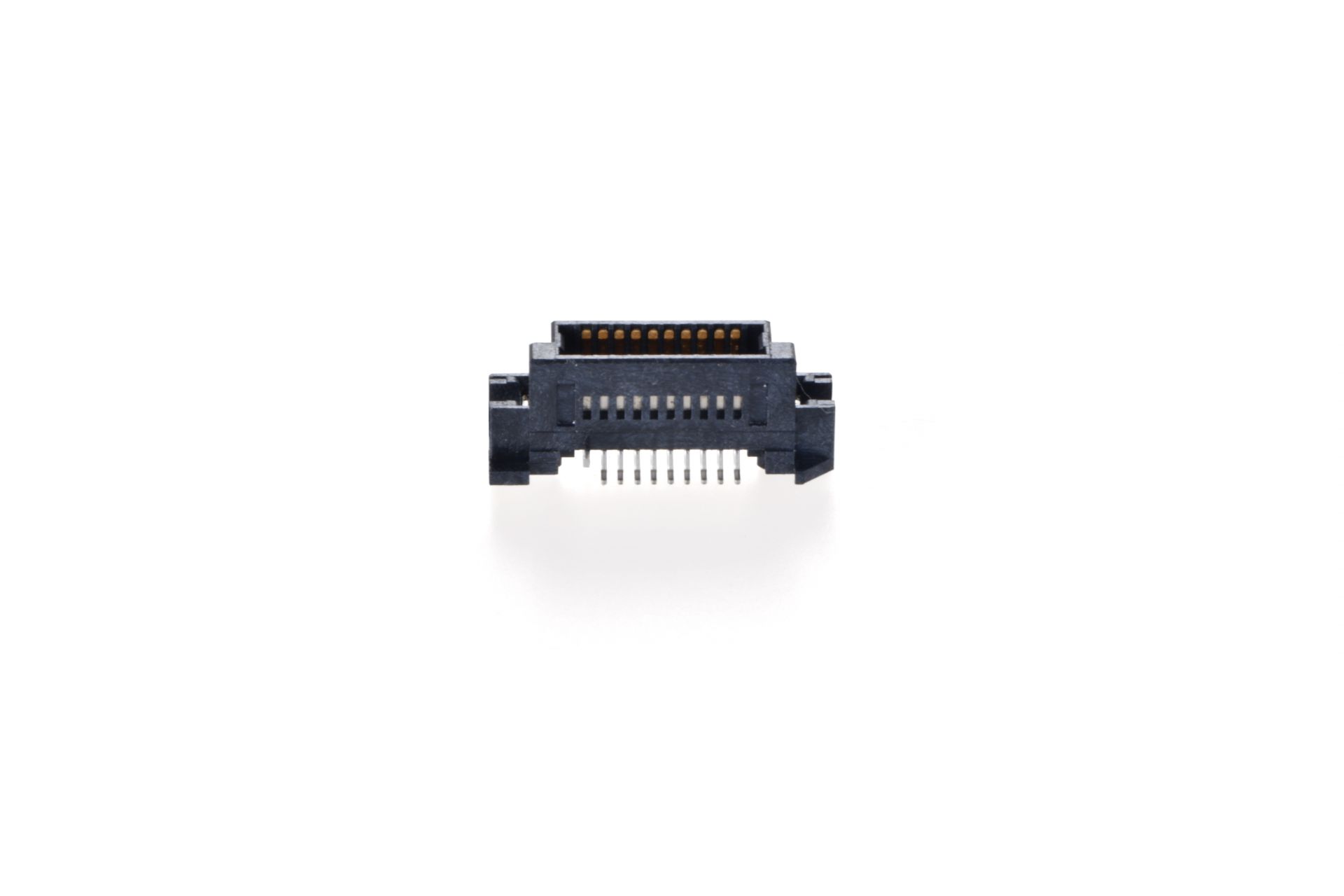

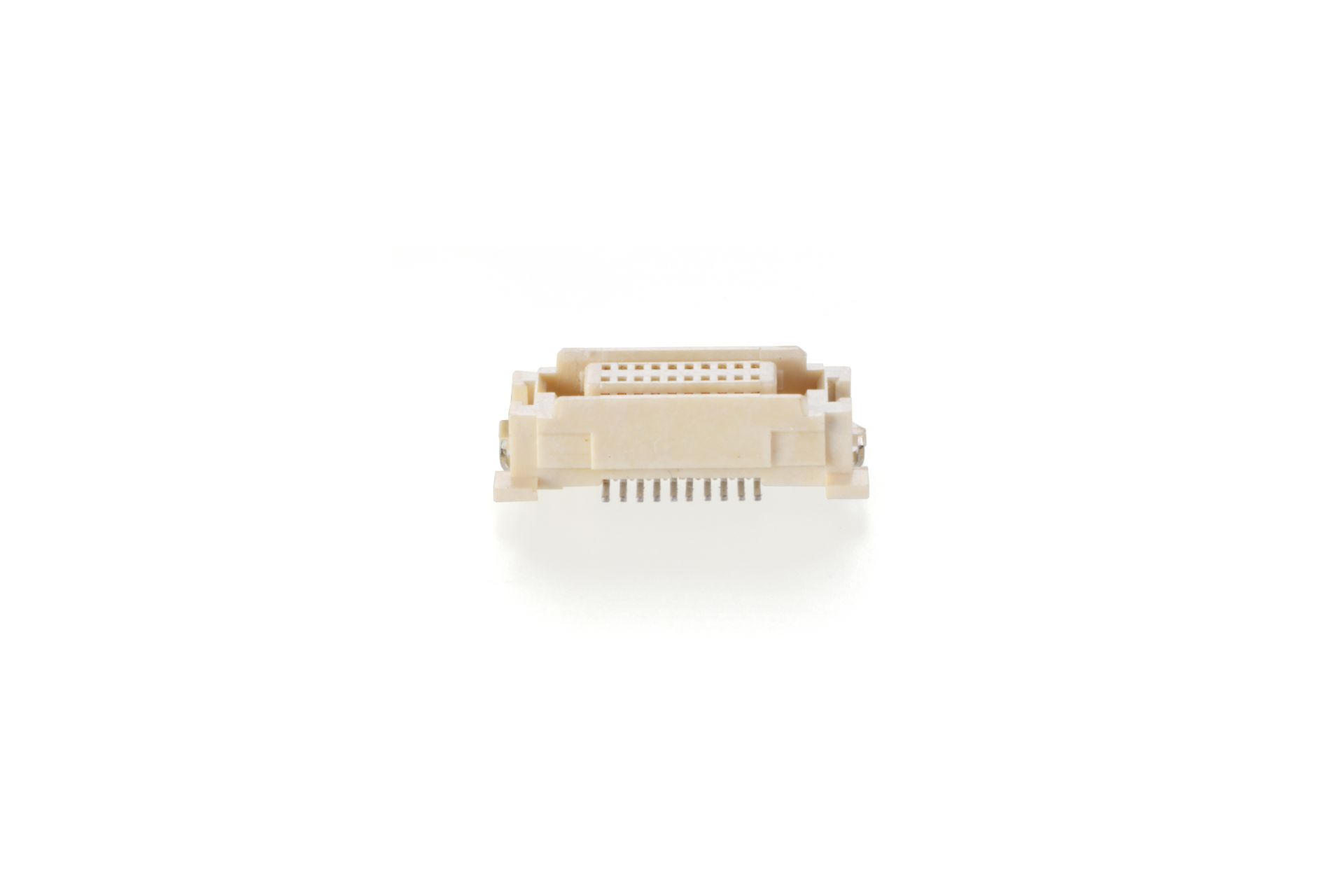

0.635mm BOARD TO BOARD SINGLE SLOT SMT 180° WITH POST WITH FITTING NAIL

NPS
XXX
(1)
S84
(2)
XX
(3)
H
(4)

Description

(1) 020、030、040、050、060~160: NO.OF POSITION
(2) STACKING HEIGHT:6.0mm:P50(MALE)+S10(FEMALE)
STACKING HEIGHT:7.0mm:P60(MALE)+S10(FEMALE)
STACKING HEIGHT:8.0mm:P70(MALE)+S10(FEMALE)
STACKING HEIGHT:9.0mm:P80(MALE)+S10(FEMALE)
STACKING HEIGHT:10.0mm:P90(MALE)+S10(FEMALE)
STACKING HEIGHT:12.0mm:P50(MALE)+S70(FEMALE)
STACKING HEIGHT:13.0mm:P60(MALE)+S70(FEMALE)
STACKING HEIGHT:13.4mm:P50(MALE)+S84(FEMALE)
STACKING HEIGHT:14.0mm:P70(MALE)+S70(FEMALE)
STACKING HEIGHT:14.4mm:P70(MALE)+S84(FEMALE)
STACKING HEIGHT:15.0mm:P80(MALE)+S70(FEMALE)
STACKING HEIGHT:15.4mm:P70(MALE)+S84(FEMALE)
STACKING HEIGHT:16.0mm:P90(MALE)+S70(FEMALE)
STACKING HEIGHT:16.4mm:P80(MALE)+S84(FEMALE)
STACKING HEIGHT:17.4mm:P90(MALE)+S84(FEMALE)
(3) BLANK: BEIGE INSULATOR
BK: BLACK INSULATOR
(4) RoHS

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	NPSXXXPXX-XX-SXX-RXXX-H	257KB	PDF	DOWNLOAD
	NPSXXXS10-XX-SXX-RXXX-H	322KB	PDF	DOWNLOAD
	NPSXXXS70-XX-SXX-RXXX-H	328KB	PDF	DOWNLOAD
	NPSXXXS84-XX-SXX-RXXX-H	332KB	PDF	DOWNLOAD
