Board To Board Connector

NPVB

0.5mm BOARD TO BOARD DOUBLE SLOT TYPE SMT 180° WITH POST WITHOUT FITTING NAIL
  • NPVB
  • 020
    (1)
  • P22
    (2)
  • R

  •
    H
    (3)

Description

  • (1) 010、012、020、030~100:NO. OF POSITION
  • (2) STACKING HEIGHT3.0mm:P22R(MALE)+S08R(FEMALE)
         STACKING HEIGHT3.5mm:P27R(MALE)+S08R(FEMALE)
         STACKING HEIGHT4.0mm:P30R(MALE)+S10R(FEMALE)
         STACKING HEIGHT4.5mm:P30R(MALE)+S15R(FEMALE)
         STACKING HEIGHT5.0mm:P30R(MALE)+S20R(FEMALE)
         STACKING HEIGHT5.5mm:P40R(MALE)+S15R(FEMALE)
         STACKING HEIGHT6.0mm:P40R(MALE)+S20R(FEMALE)
         STACKING HEIGHT6.5mm:P45R(MALE)+S20R(FEMALE)
  • (3) RoHS

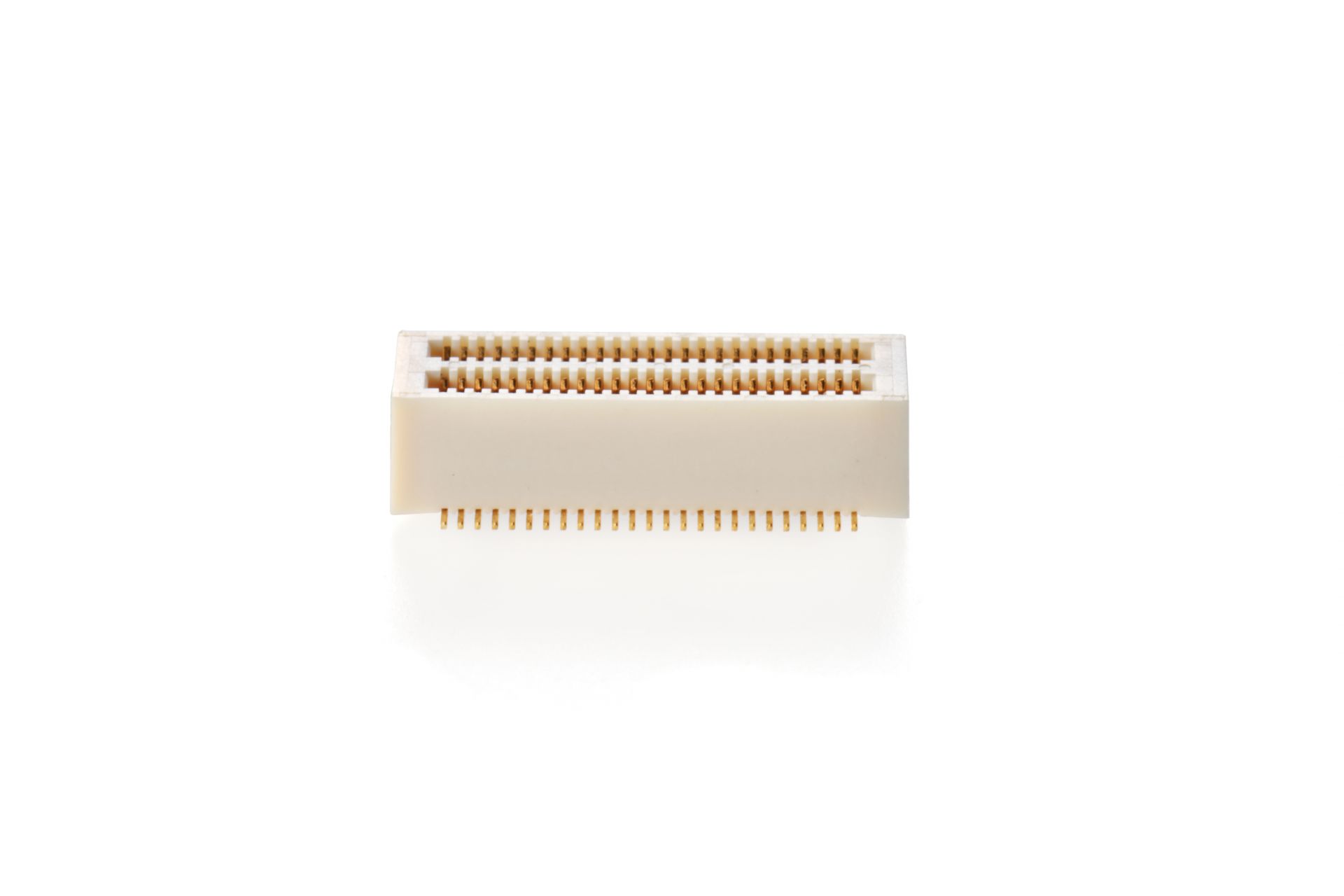

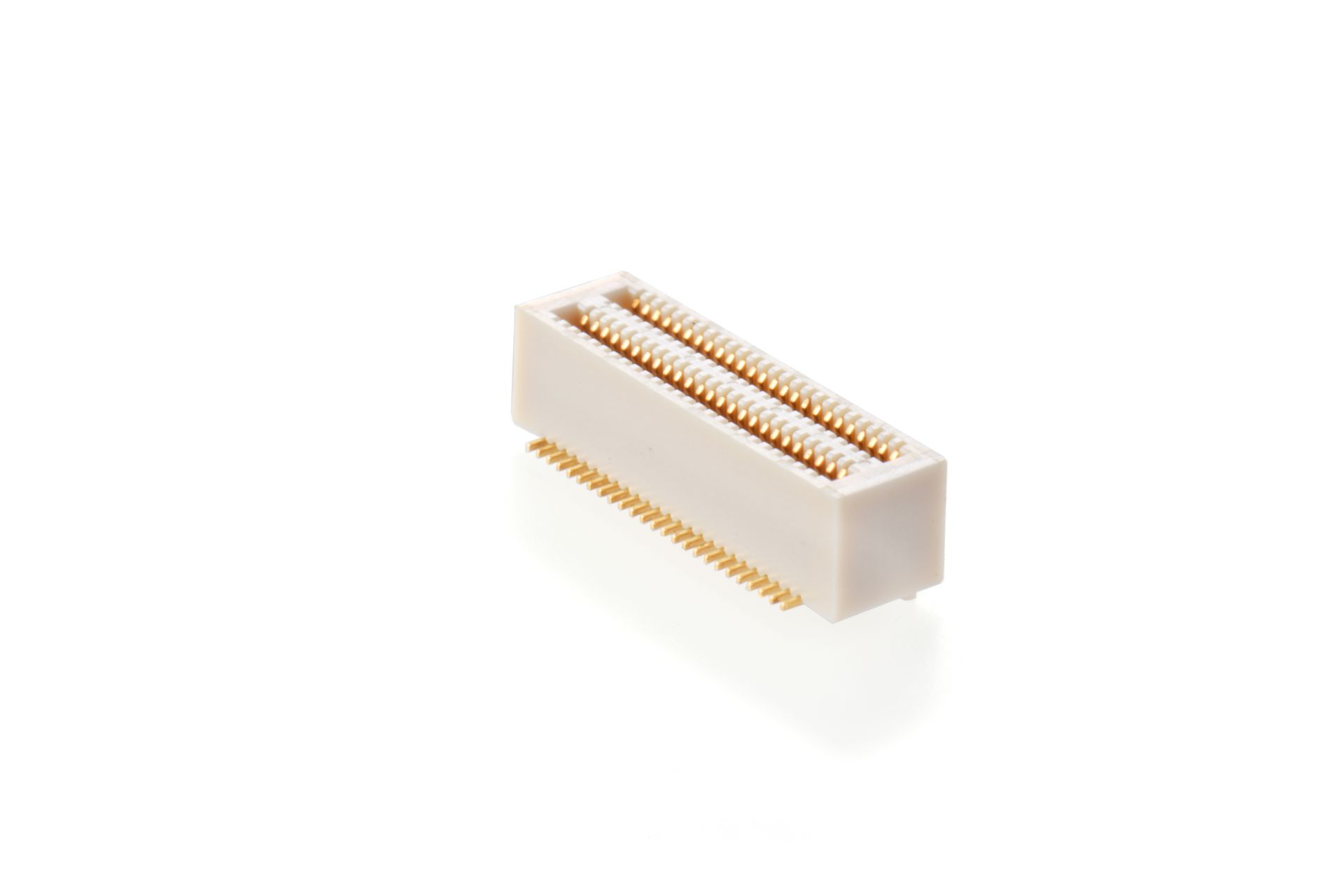

  • NPVB050P40R(432)_1

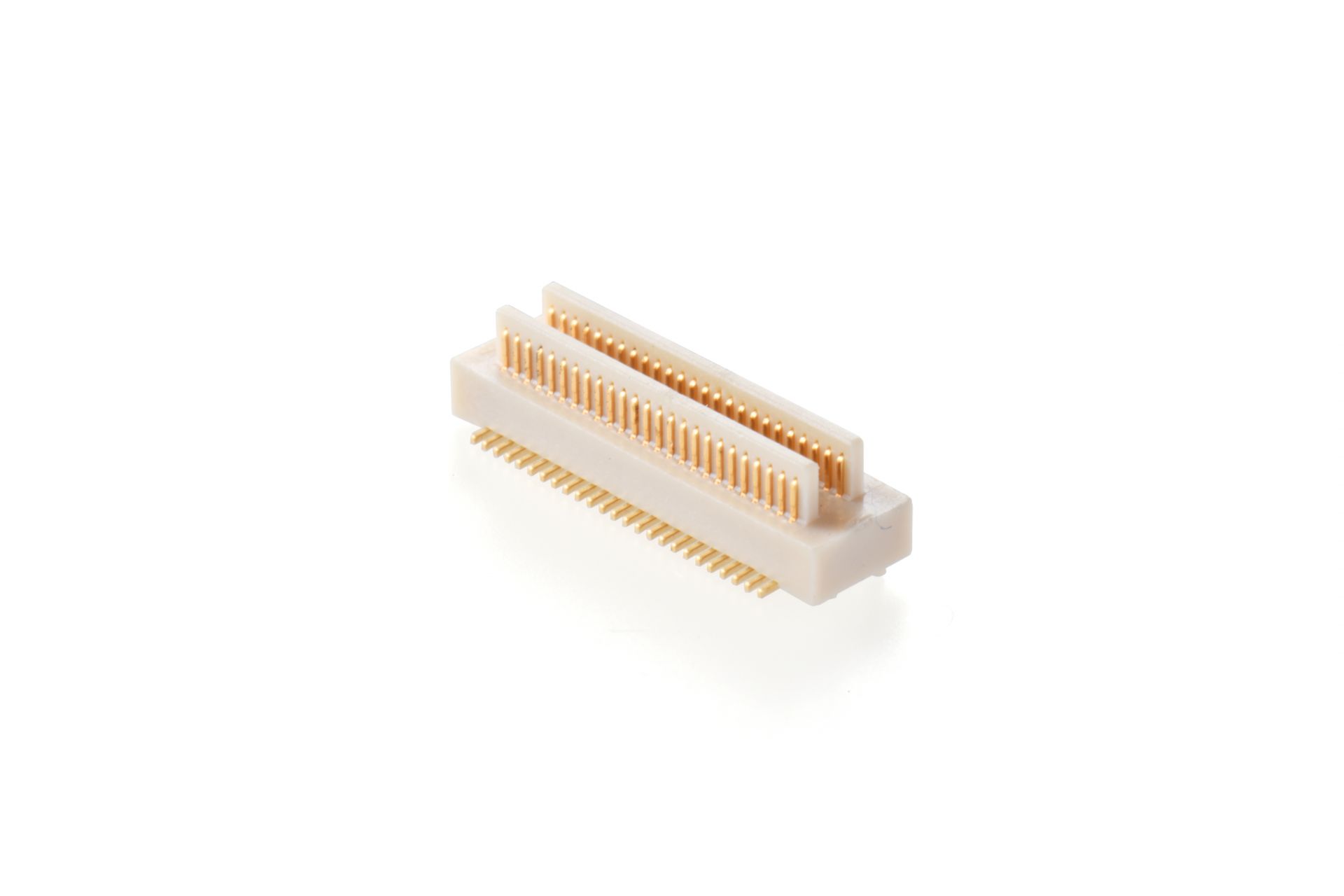

  • NPVB050P40R(432)

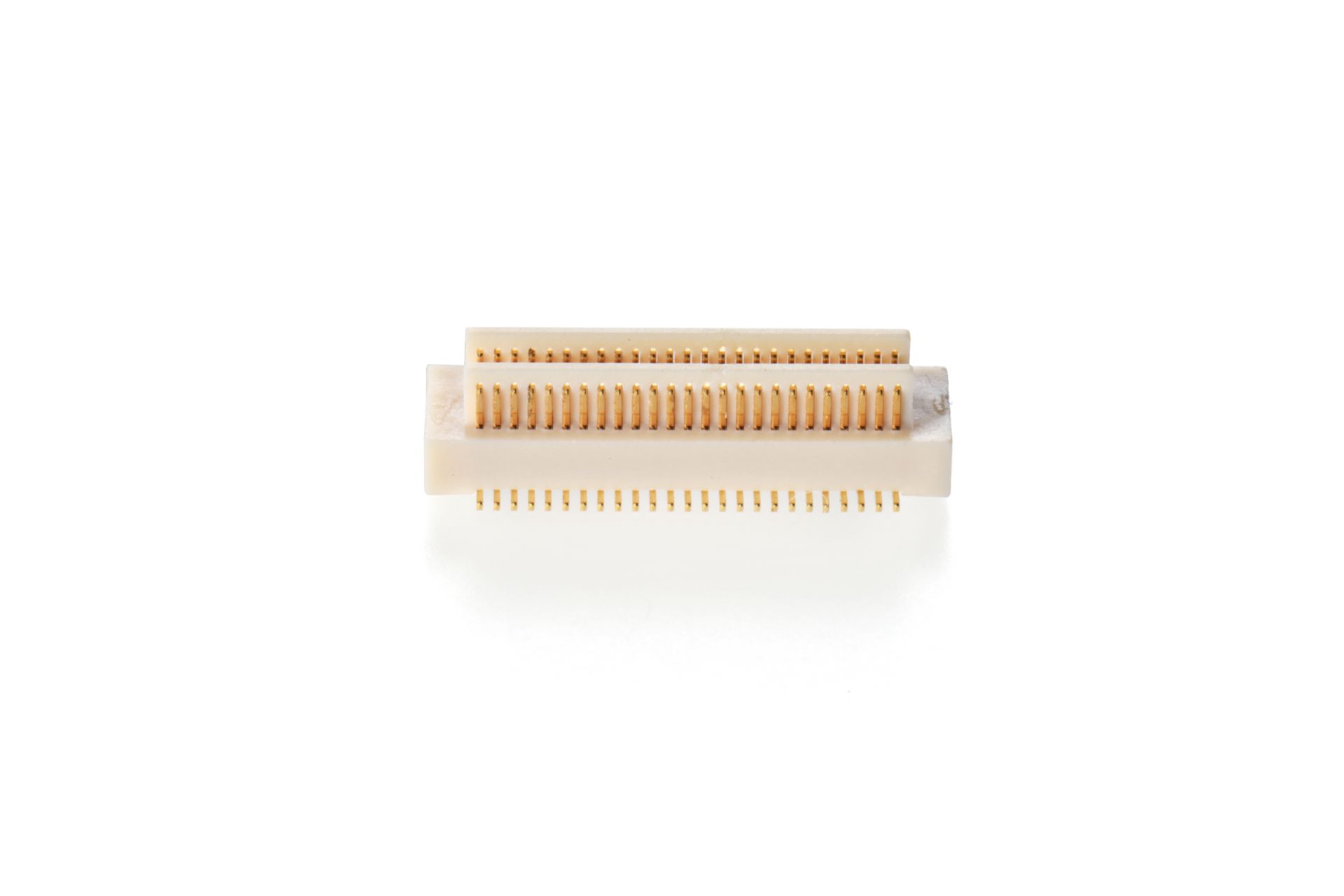

  • NPVB050S20R(432)_1
  • NPVB050S20R(432)
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
NPVBXXXPXXR-RXXX-H 340KB PDF
download
DOWNLOAD
NPVBXXXSXXR-RXXX-H 324KB PDF
download
