Board & Wire Connector Pin / Female Header PADXX-1X

Pin / Female Header

PADXX-1X

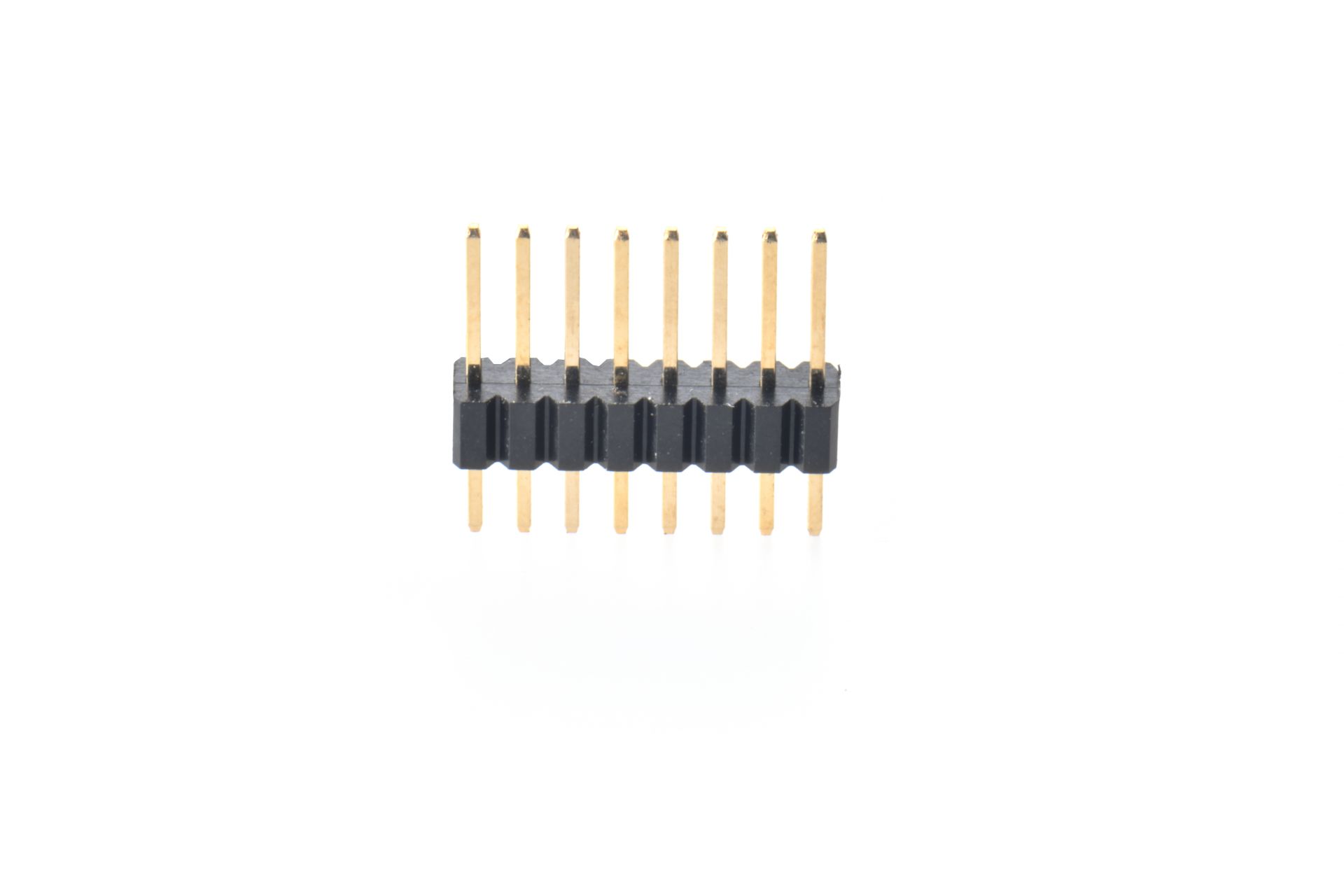

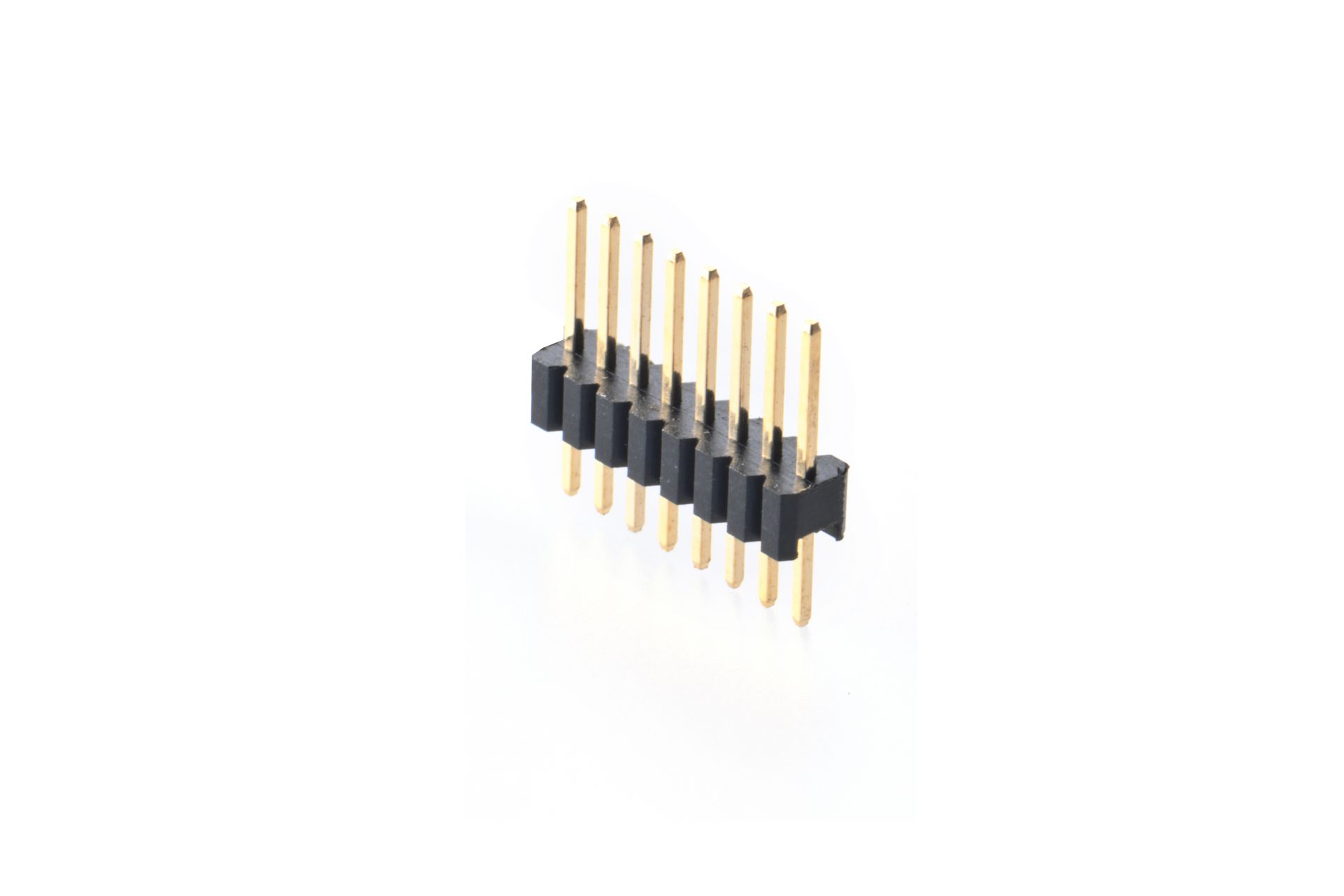

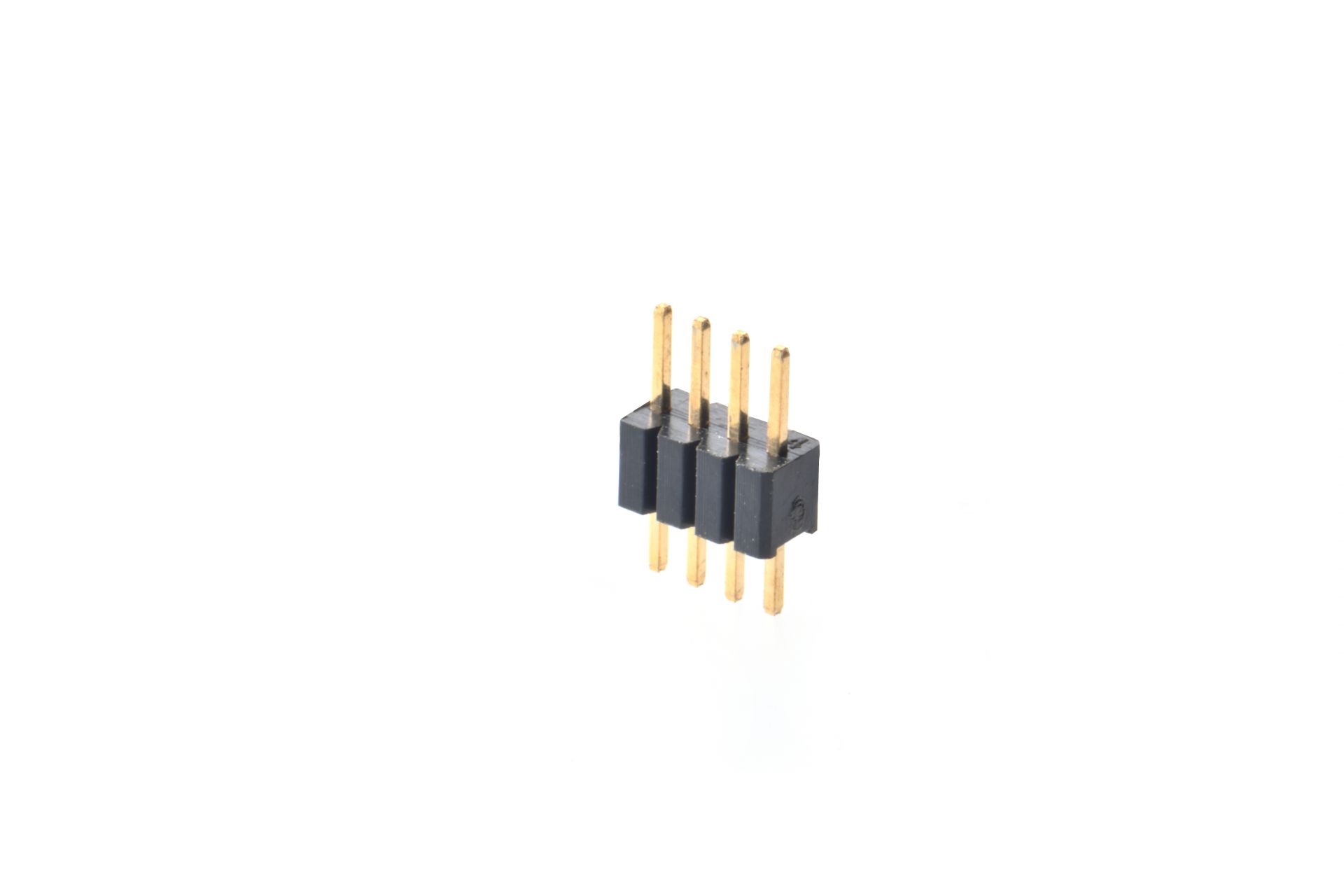

1.27X1.27mm PIN HEADER DIP 180° SINGLE ROW

PAD
10
(1)
1X
20
(2)
H
(3)
H
(4)

Description

(1)10:1.0mm INSULATOR HEIGHT
15:1.5mm INSULATOR HEIGHT
25:2.5mm INSULATOR HEIGHT
(2)02~50:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
PAD10-1XXX-HH	83KB	PDF	DOWNLOAD
PAD15-1XXX-HH	259KB	PDF	DOWNLOAD
PAD20-1XXX-HH	253KB	PDF	DOWNLOAD
PAD25-1XXX-HH	259KB	PDF	DOWNLOAD
