Board & Wire Connector Pin / Female Header PAVX/PXX2-X

Pin / Female Header

PAVX/PXX2-X

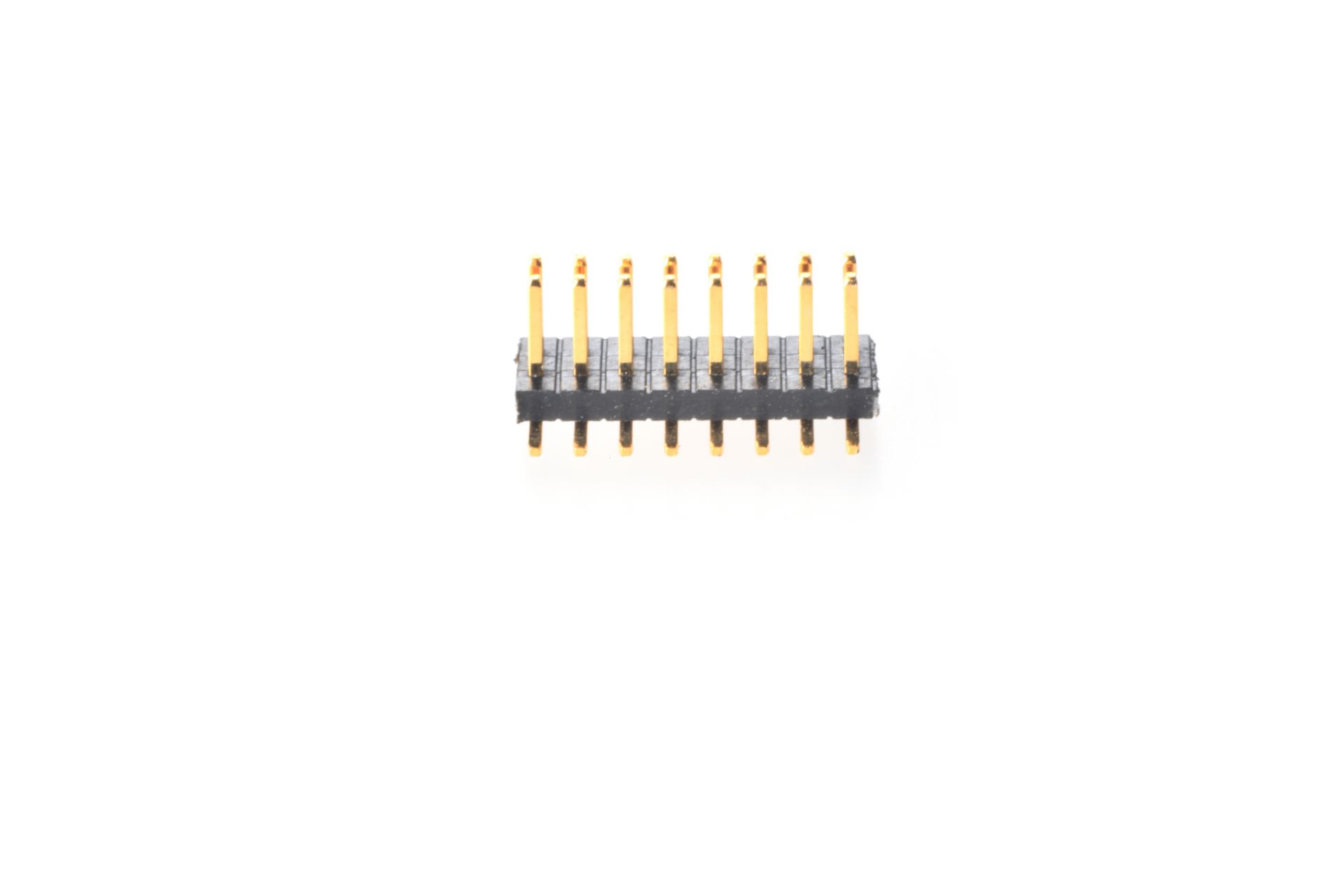

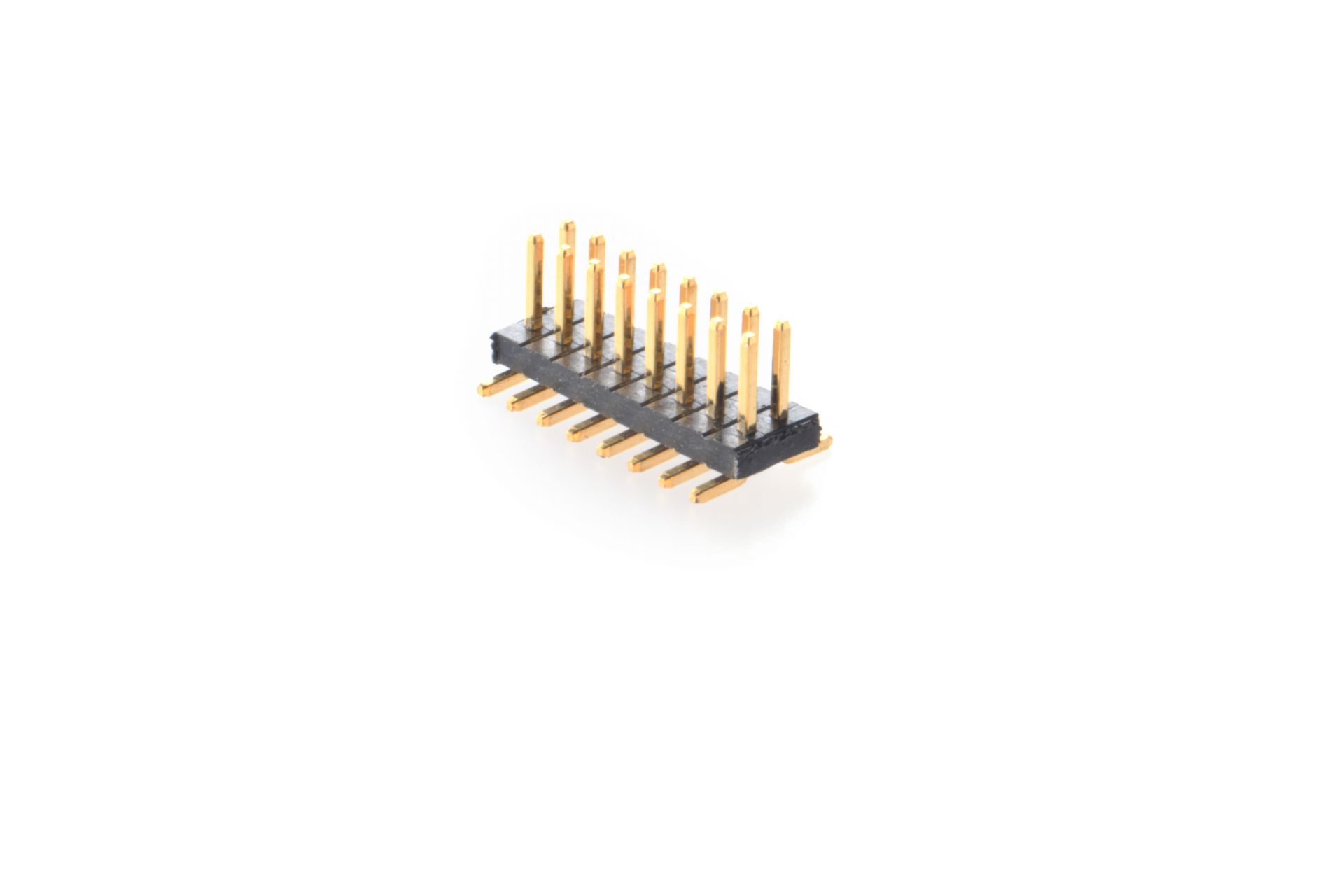

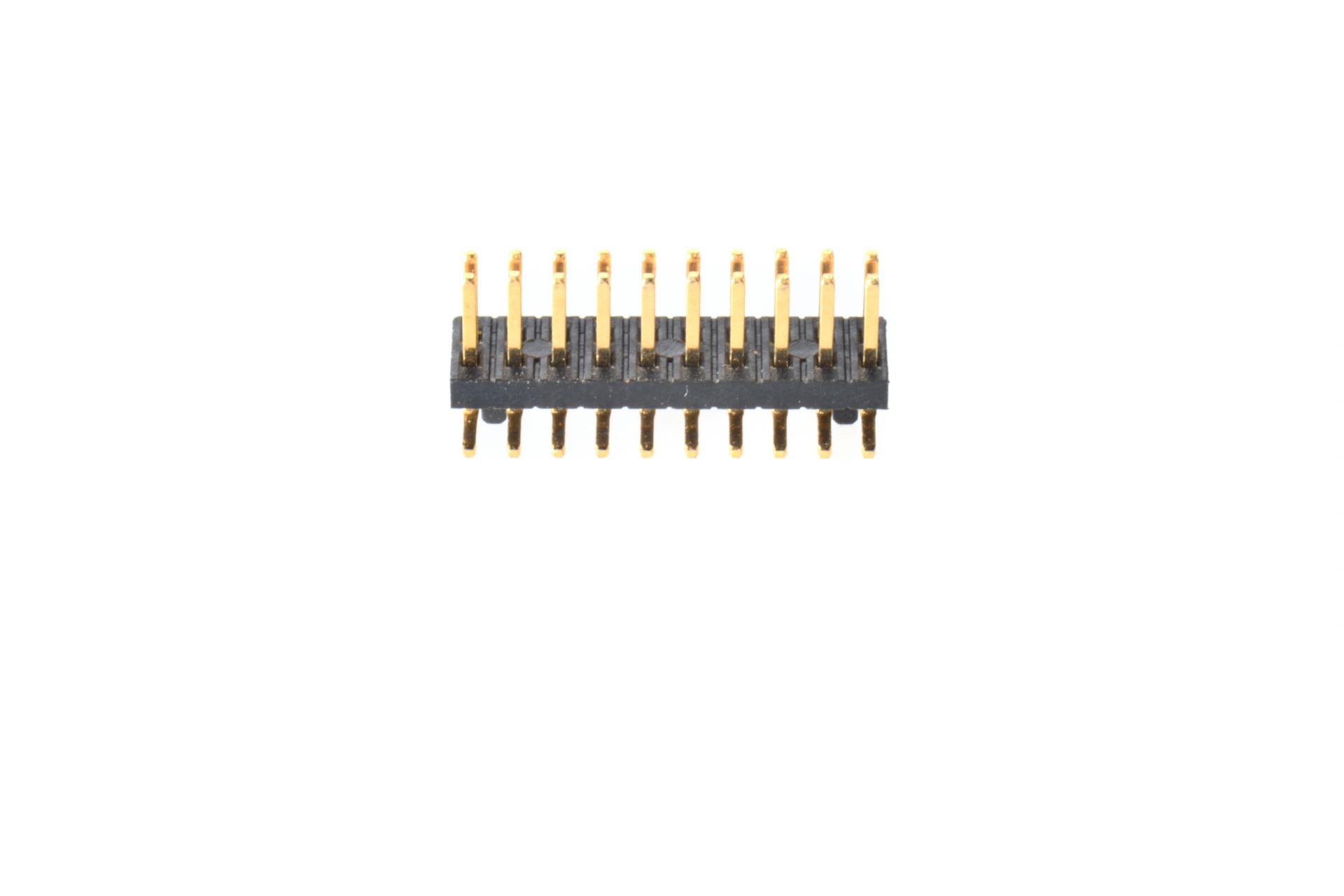

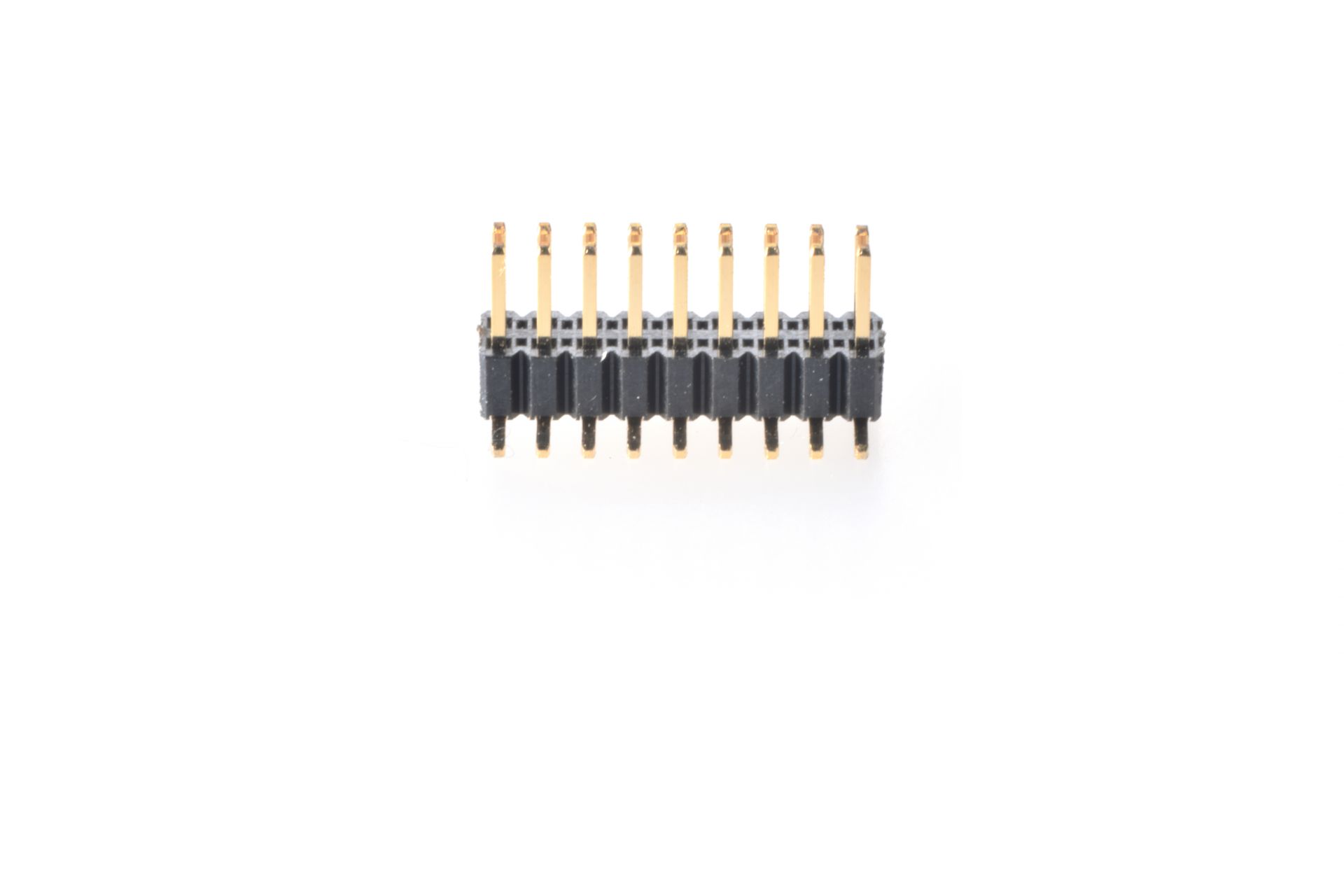

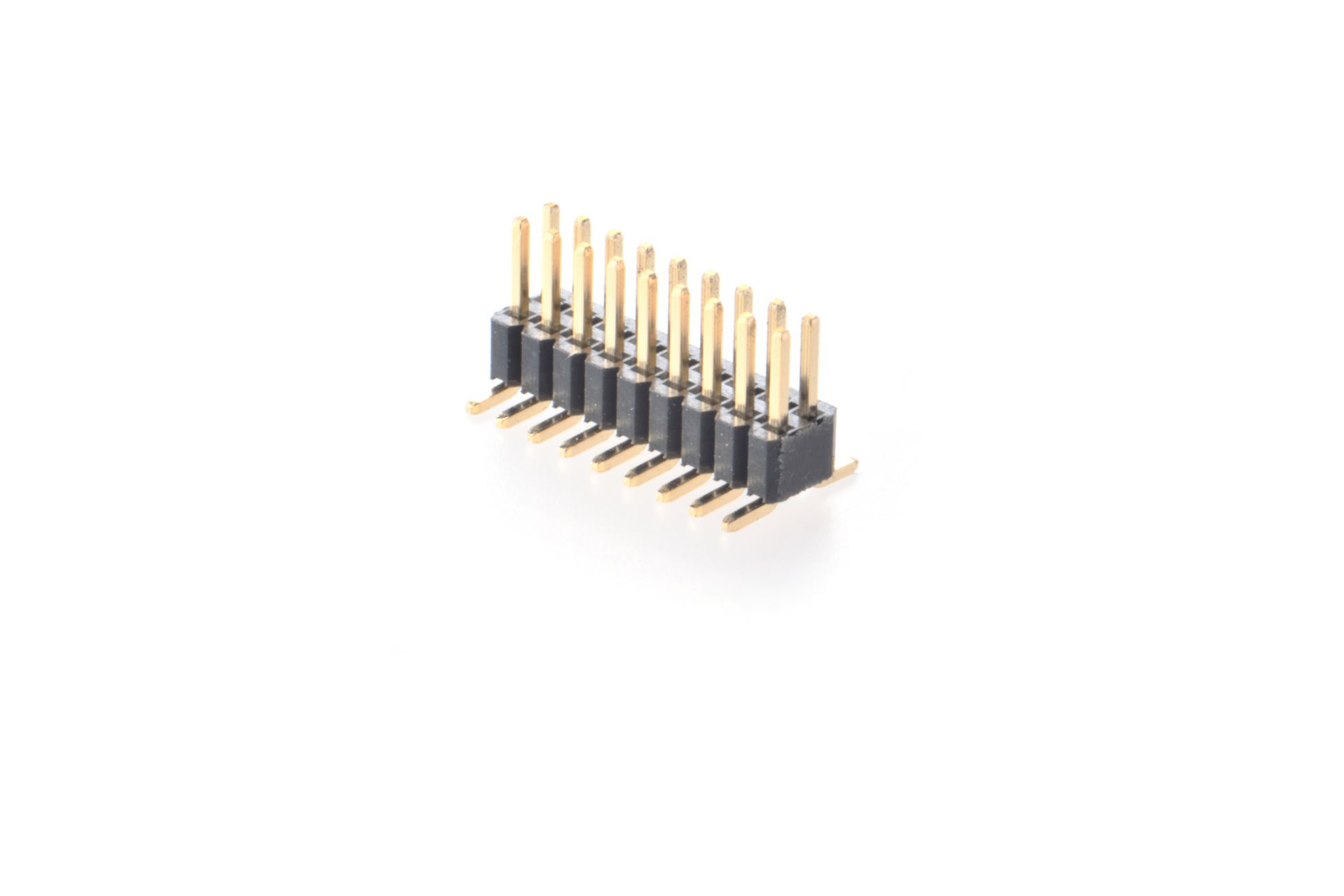

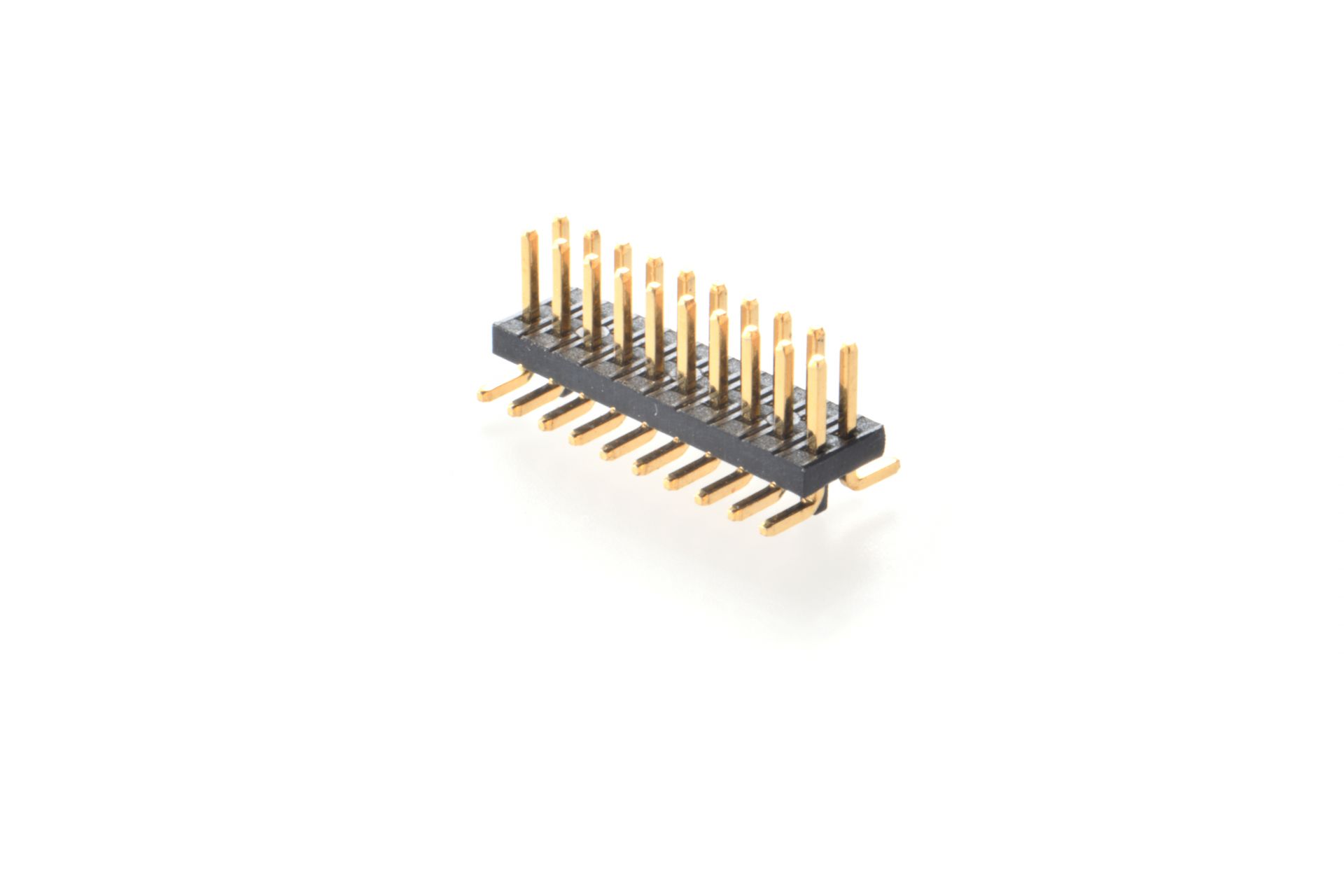

1.27X1.27mm PIN HEADER SMT 180° DUAL ROW

PAV
X
(1)
15
(2)
2X
20
(3)
H
(4)

Description

(1)X:WITHOUT POST
P:WITH POST
(2)15:SMT HEIGHT=1.5mm
20:SMT HEIGHT=2.0mm
25:SMT HEIGHT=2.5mm
30:SMT HEIGHT=3.0mm
(3)02~50:NO. OF POSITION / PER ROW
(4)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
PAVP15-2XXXC-H	282KB	PDF	DOWNLOAD
PAVP20-2XXX-H	281KB	PDF	DOWNLOAD
PAVX25-2XXXC-H	294KB	PDF	DOWNLOAD
PAVX30-2XXXC-H	294KB	PDF	DOWNLOAD
