Board & Wire Connector Pin / Female Header PAWX/P25-2X

Pin / Female Header

PAWX/P25-2X

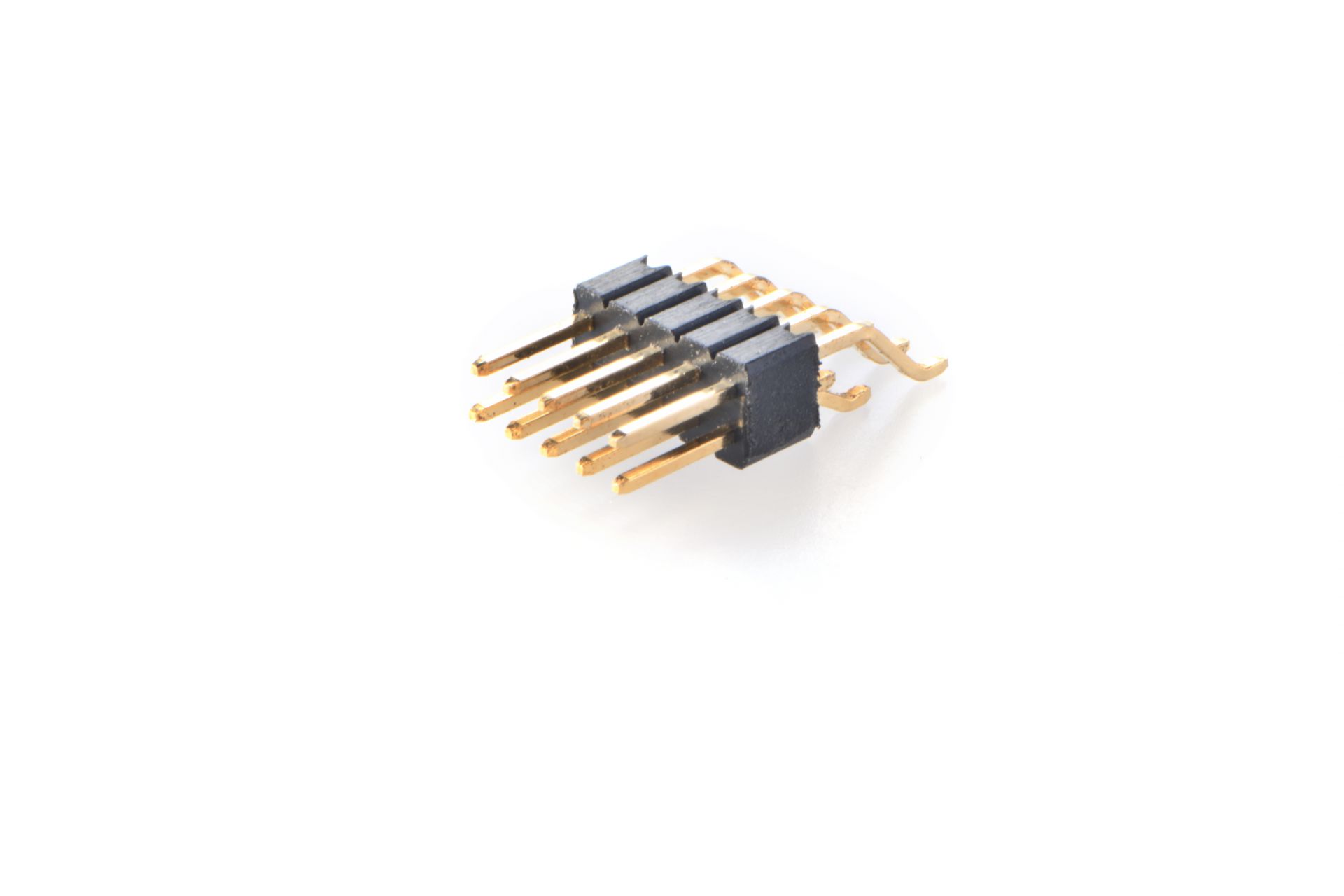

1.27X1.27mm PIN HEADER SMT 90° DUAL ROW

PAW
X
(1)
25-2X
20
(2)
C40
(3)
C
(4)
H
(5)

Description

(1)X:WITHOUT POST
P:WITH POST
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:CONTACT LENGTH 3.0mm
C20:CONTACT LENGTH 2.0mm
C40:CONTACT LENGTH 4.0mm
(4)BLANK:WITHOUT CAP
C:WITH CAP
(5)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
PAWX25-2XXXC-H	295KB	PDF	DOWNLOAD
PAWX25-2XXXC40C-H	294KB	PDF	DOWNLOAD
PAWP25-2XXXC-H	306KB	PDF	DOWNLOAD
PAWP25-2XXXC40C-H	301KB	PDF	DOWNLOAD
