Housing, Wafer and Terminal

PCEZ

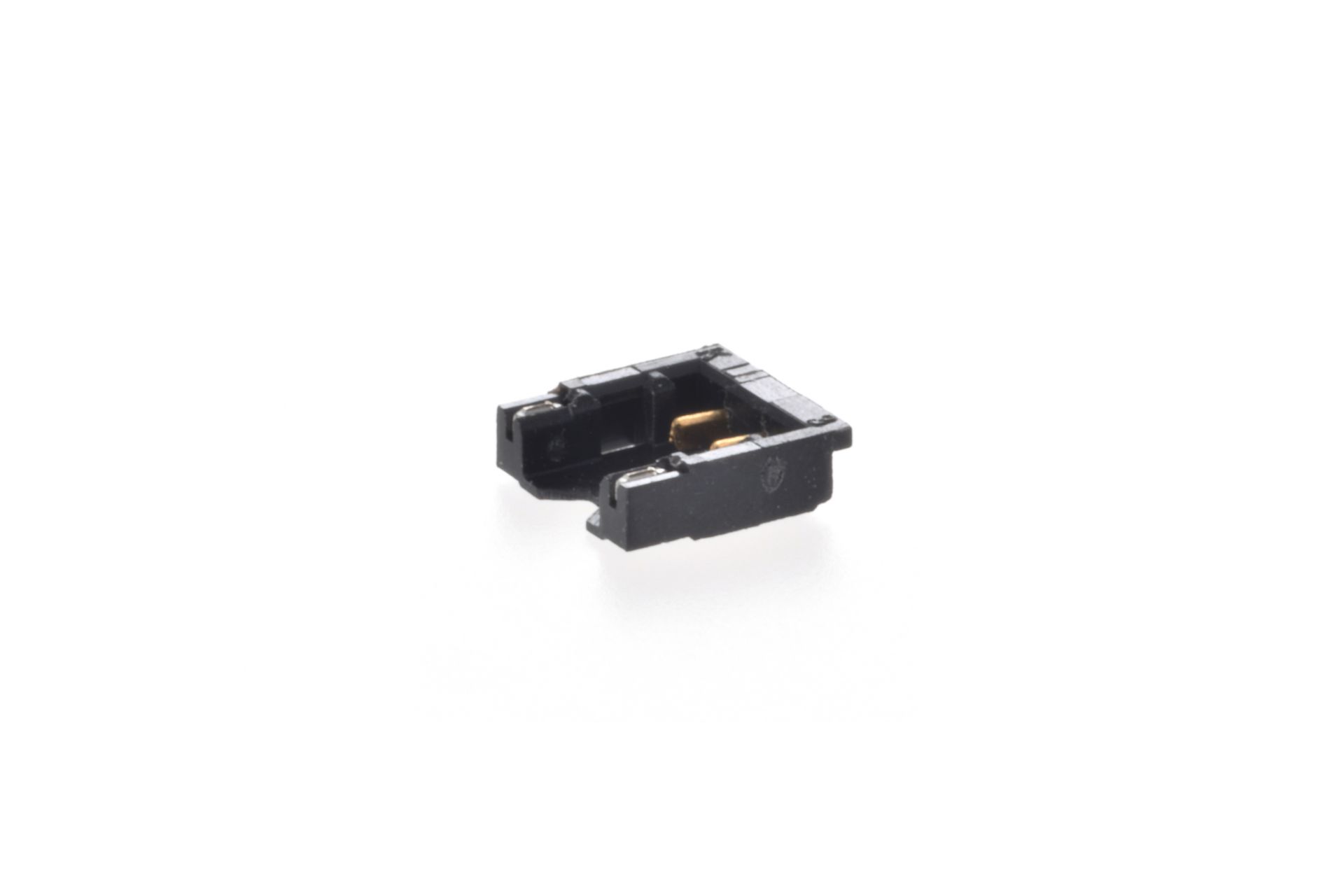

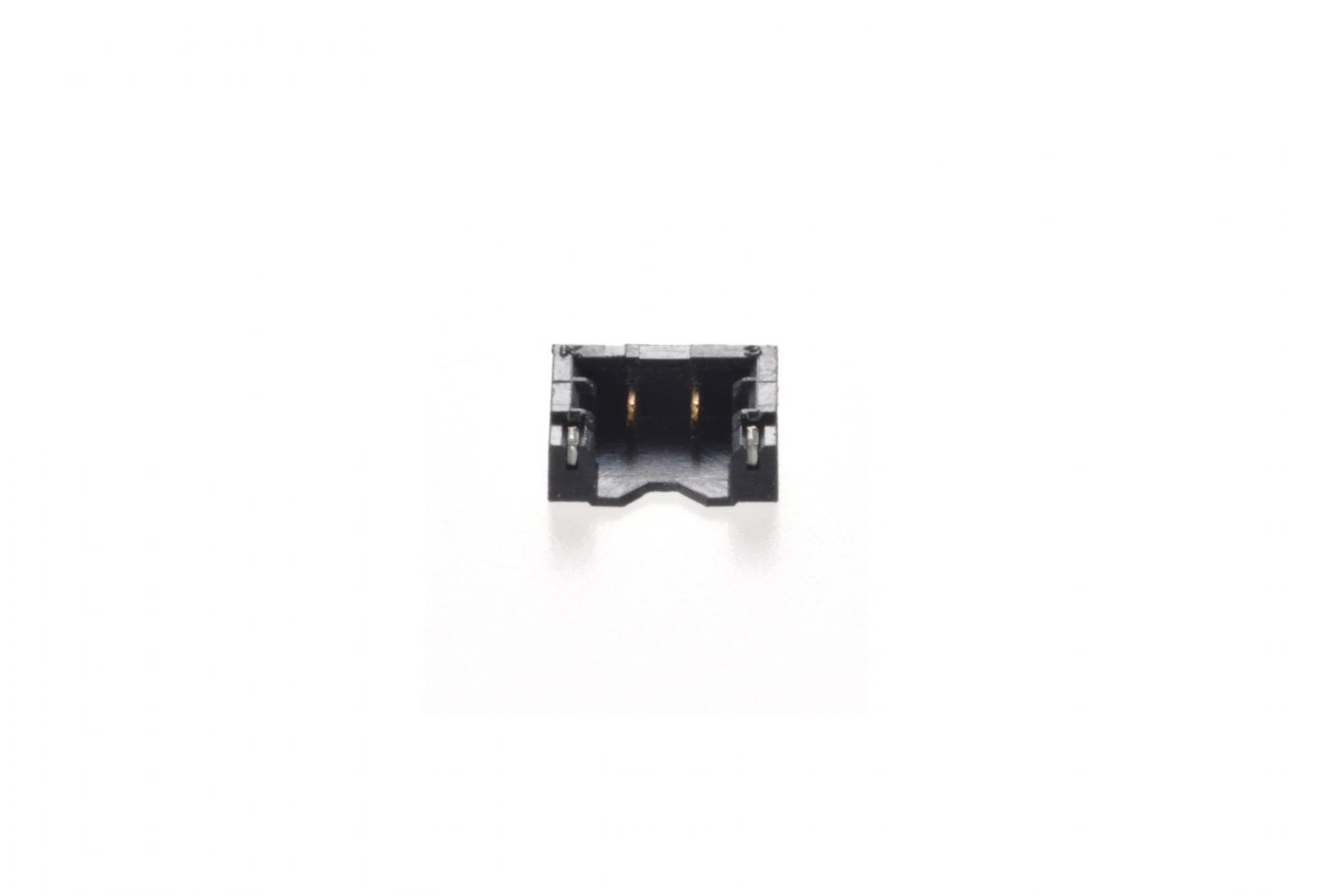

1.2mm PCEZ BOARD TO WIRE
  • PCEZ

  • 02
    (1)
  • W
    (2)
  •
    R3K

  •
    H
    (3)

Description

  • (1)  02~07:NO. OF POSITION

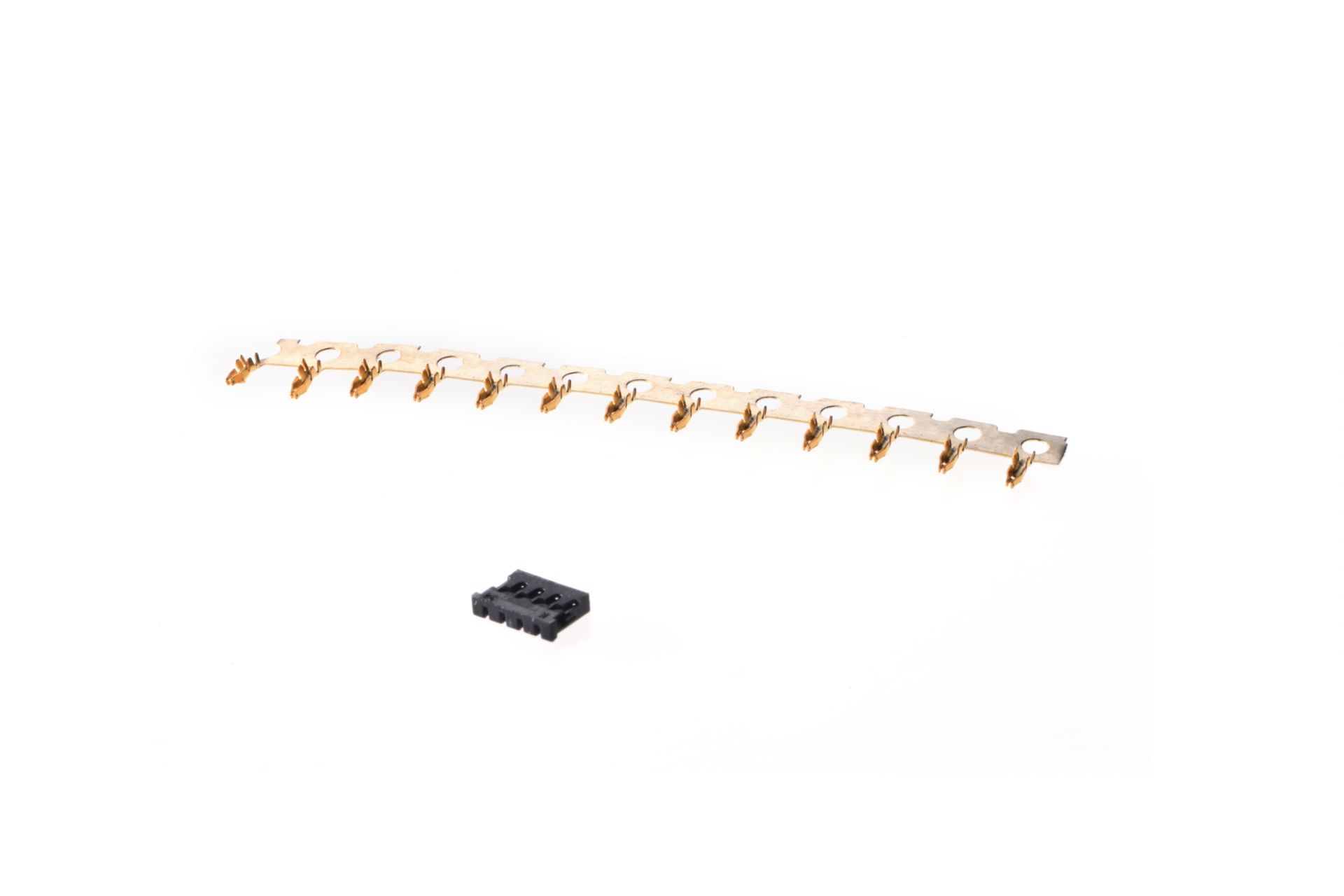

    T:FEMALE TERMINAL TIN PLATED
  • (2) H:FEMALE HOUSING
    W:MALE SMT RIGHT ANGLE
  • (3) H:RoHS Compliant

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
PCEZXXW-R6K-H 268KB PDF
download
DOWNLOAD
PCEZXXH-HH 158KB PDF
download
DOWNLOAD
PCEZT-G-R20K-H 234KB PDF
download
DOWNLOAD
