Housing,Header and Terminal

PS

3.68mm PS WIRE TO WIRE
  • PS

  • 1X02
    (1)
  • P
    (2)
  •
    H
    (3)

Description

  • (1) 1X01、1X02、1X03、1X04、1X05、2X02、2X03、3X03、3X04、3X05:NO. OF POSITION

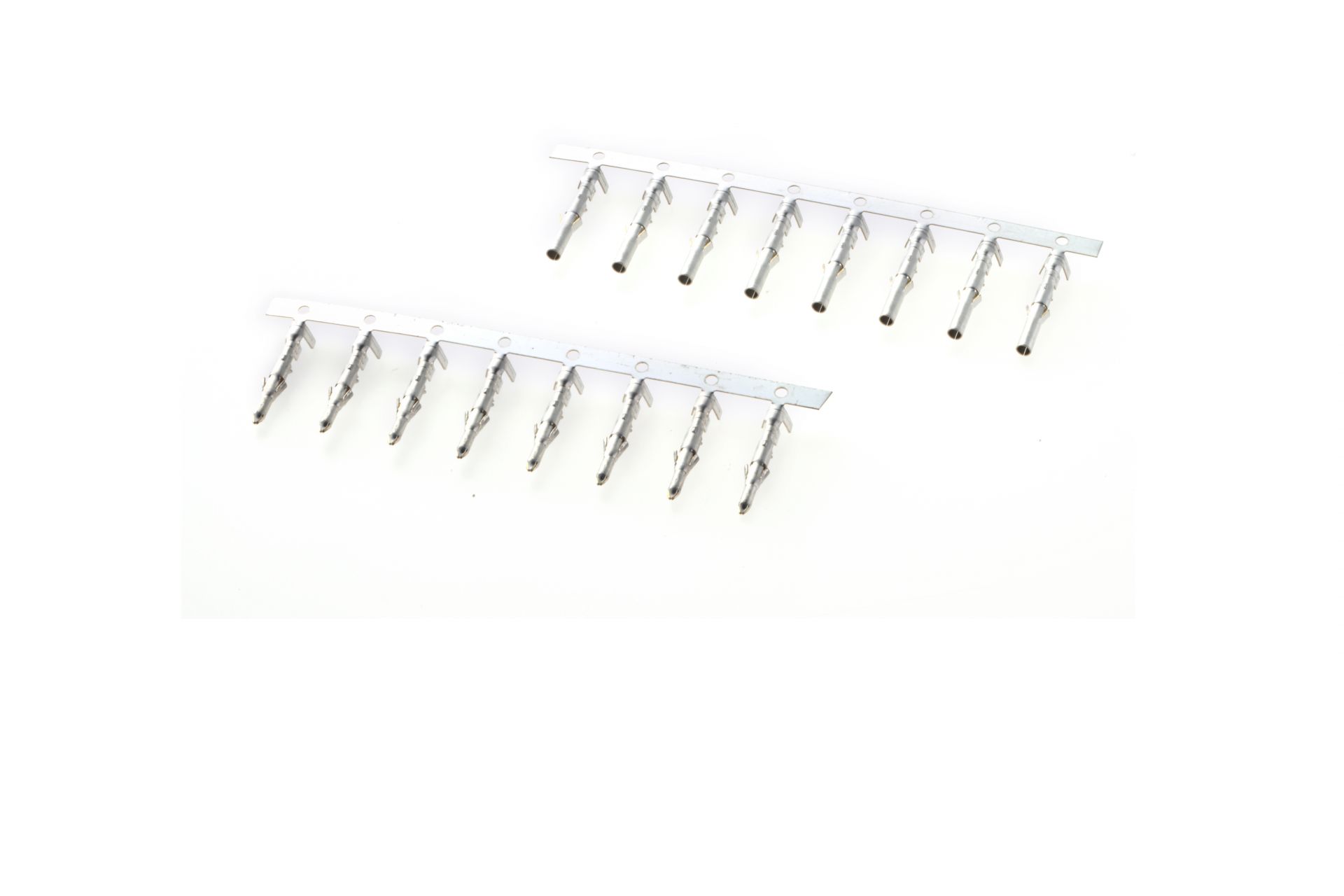

  • (2) M:MALE TERMINAL TIN PLATED
          F:FEMALE TERMINAL TIN PLATED

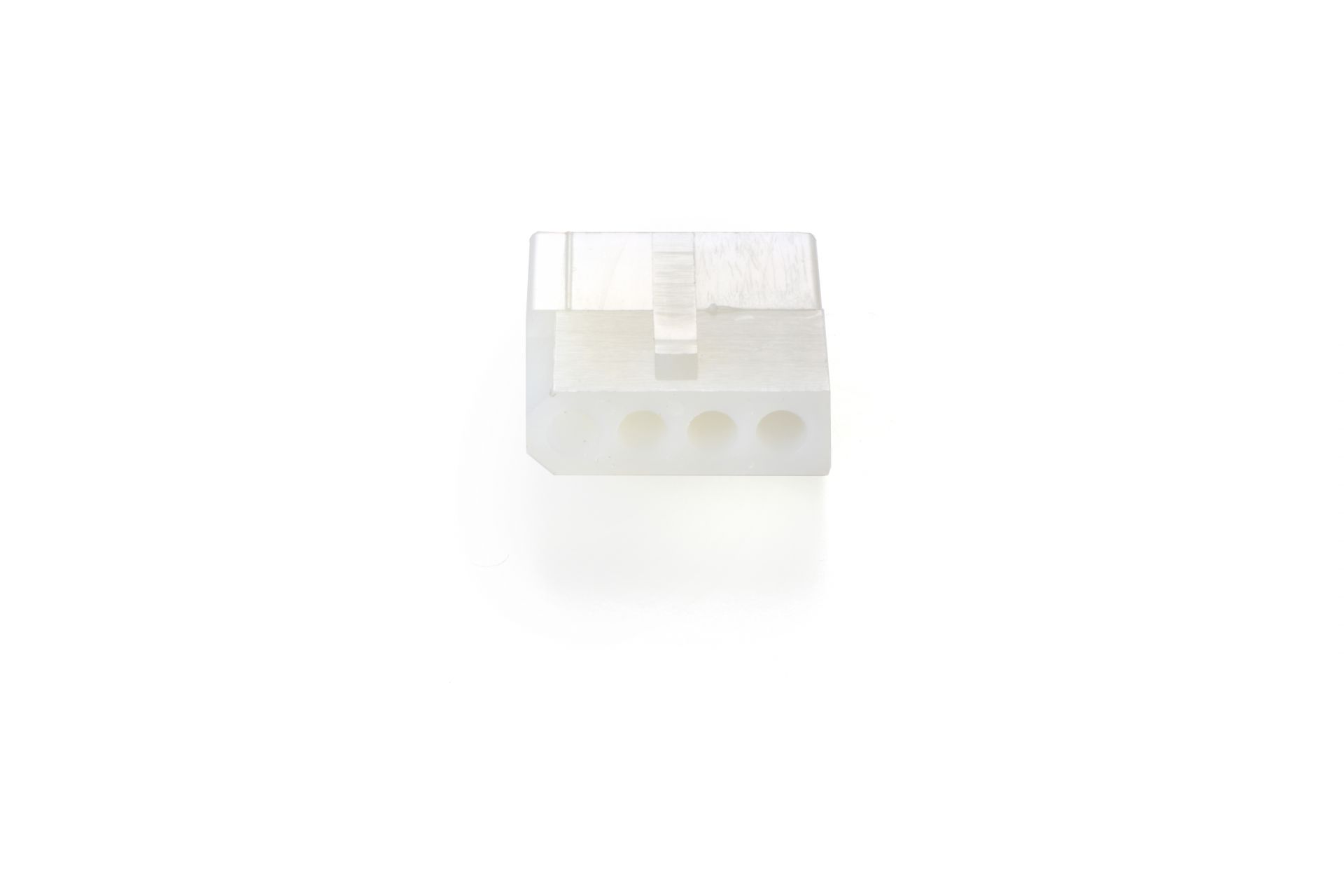

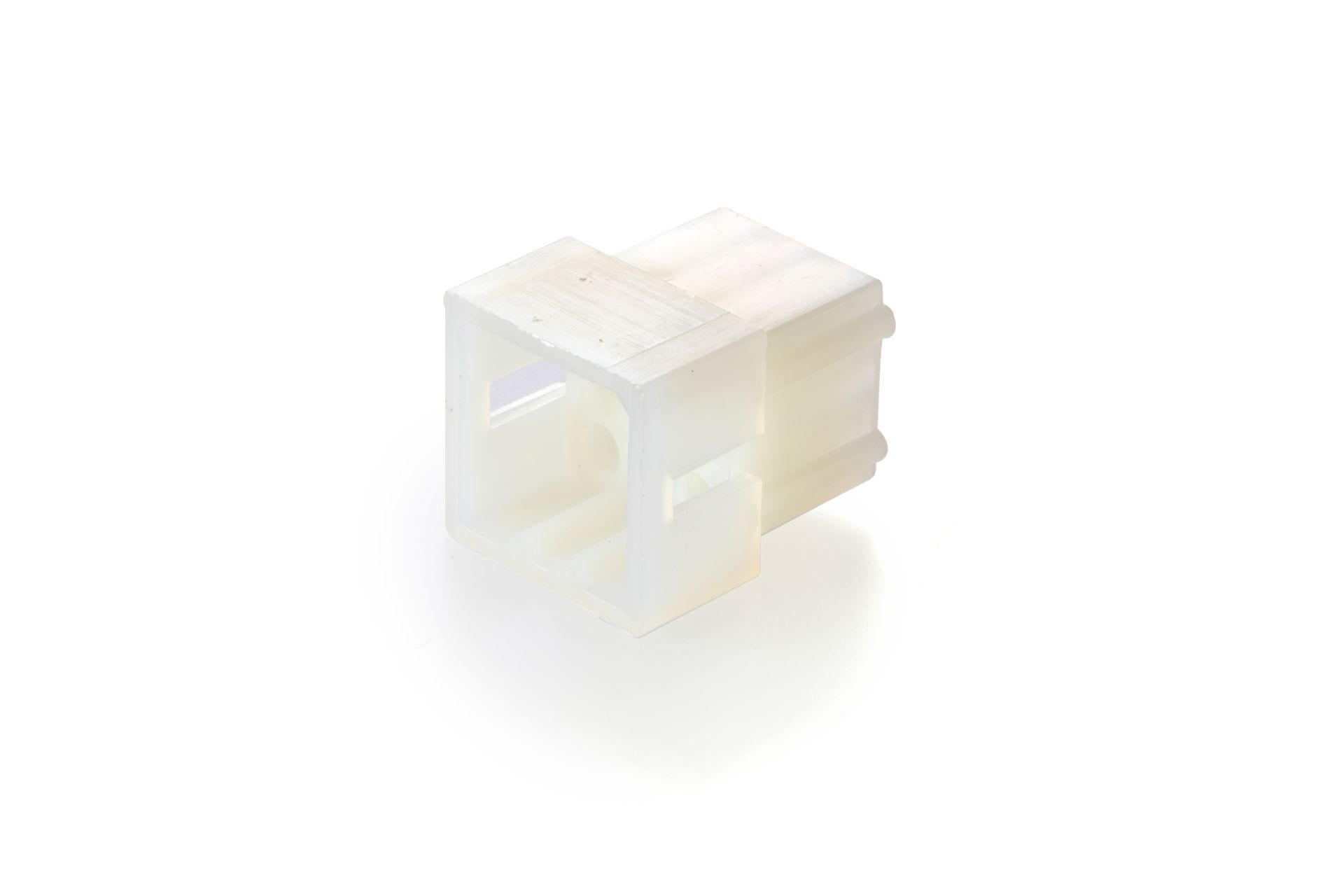

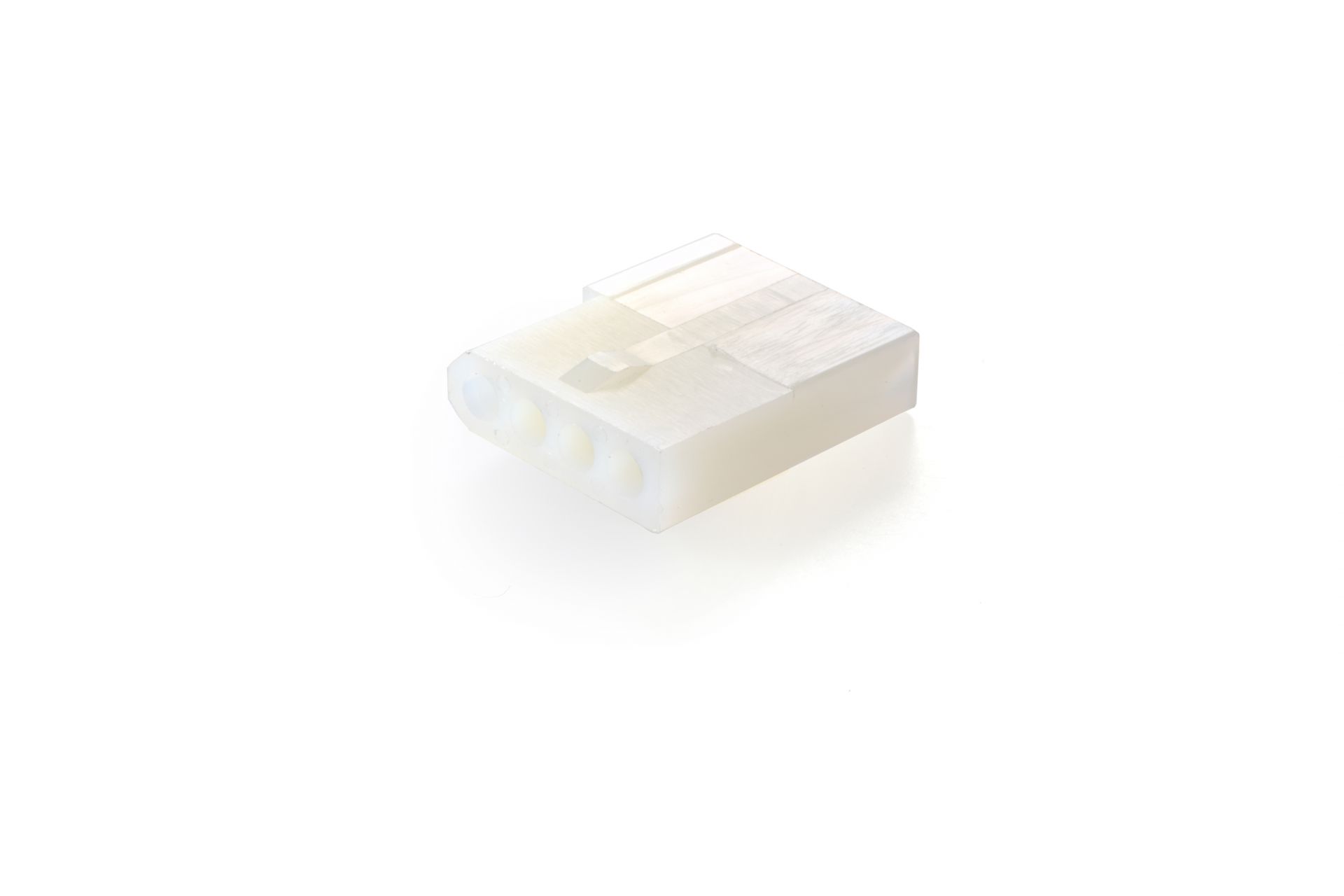

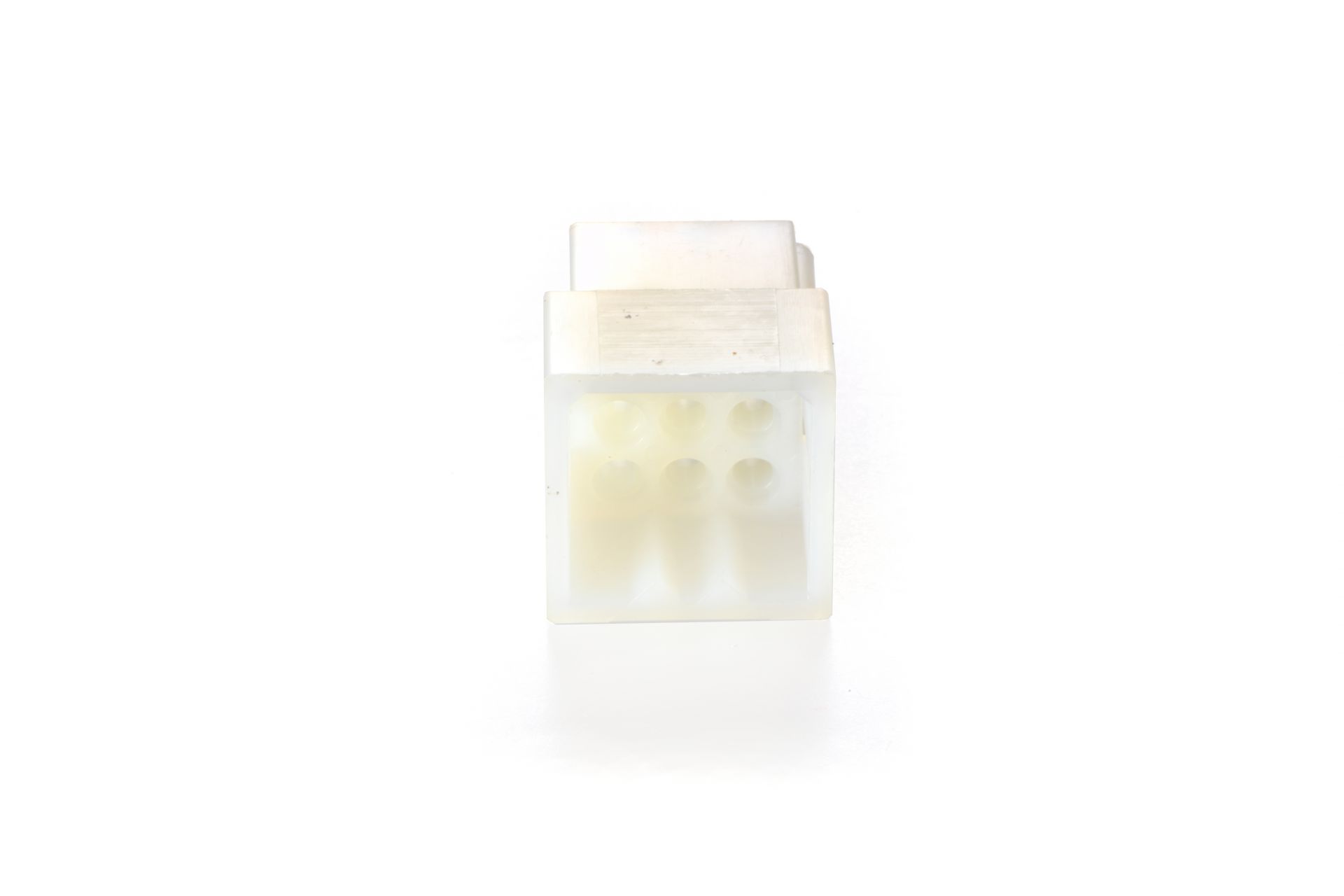

          P:MALE HOUSING
          PE:MALE HOUSING WITH LATCH
          S:FEMALE HOUSING
          SE:FEMALE HOUSING WITH LATCH
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
PSXXXXPE-H 307KB PDF
download
DOWNLOAD
PSXXXXP-H 273KB PDF
download
DOWNLOAD
PSXXXXS-H 272KB PDF
download
DOWNLOAD
