Housing,Header and Terminal

PV

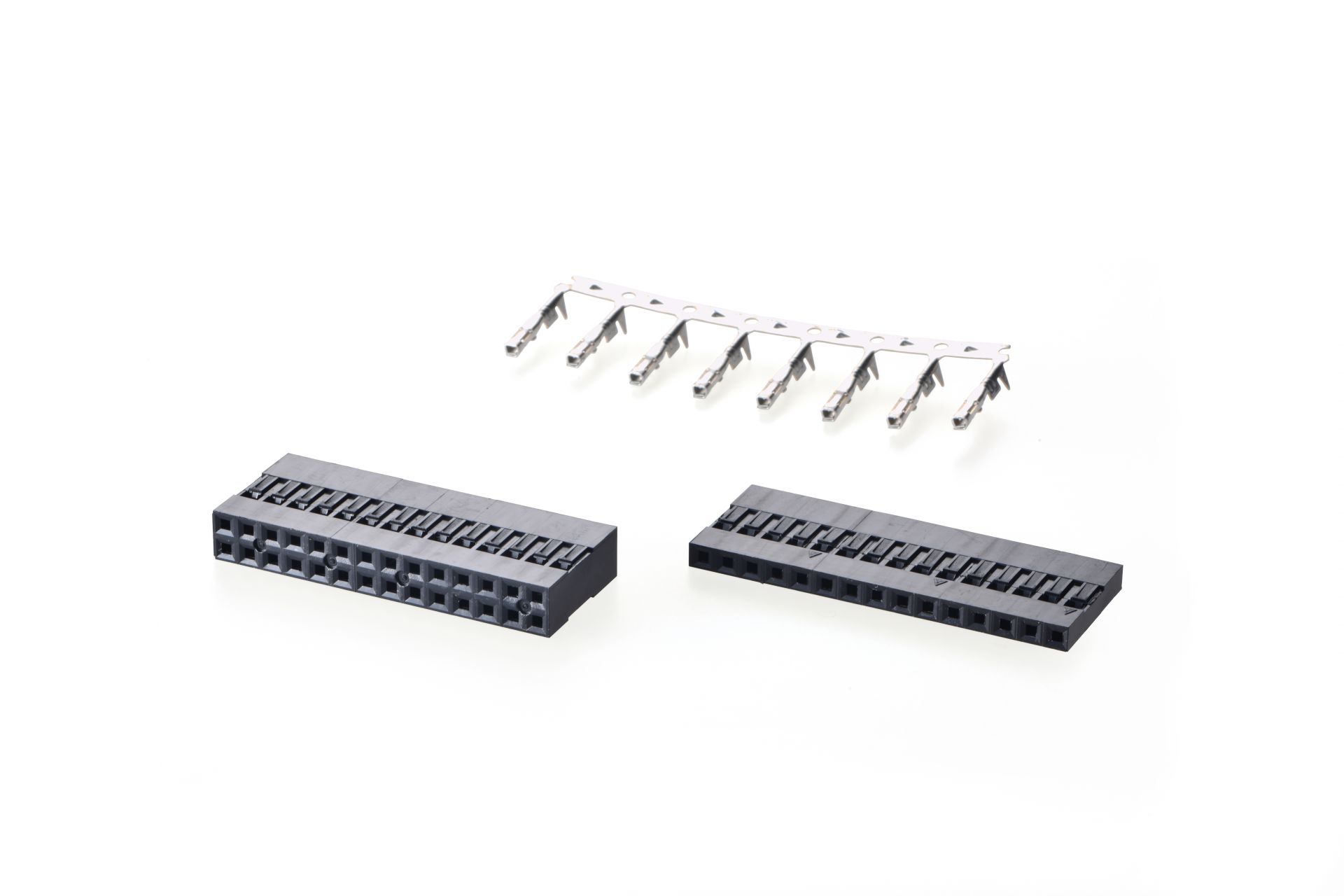

2.54mm PV SLIM TYPE BOARD TO WIRE
  • PV

  • 1
    (1)
  • X

  • 20
    (2)
  •
    H
    (3)

Description

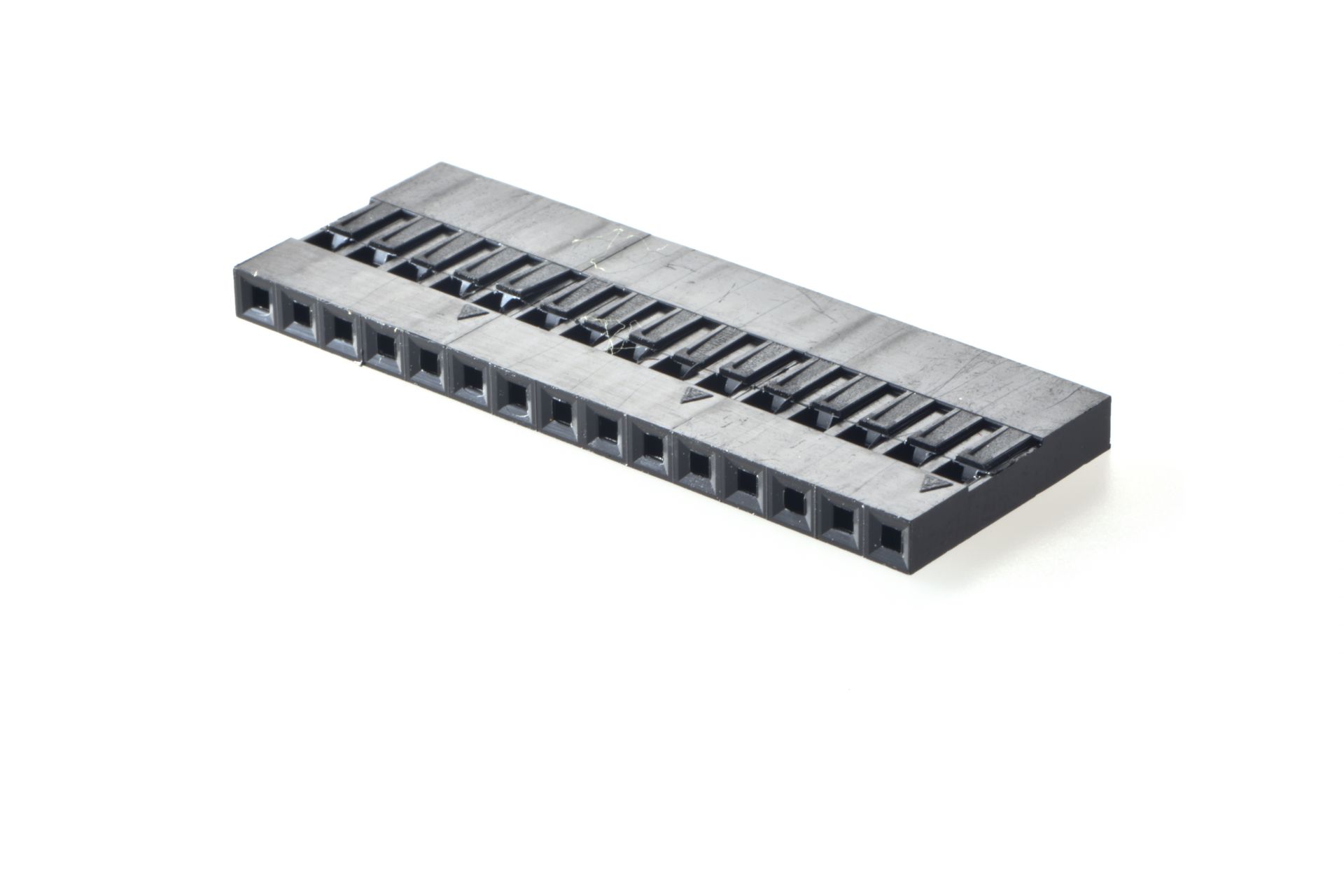

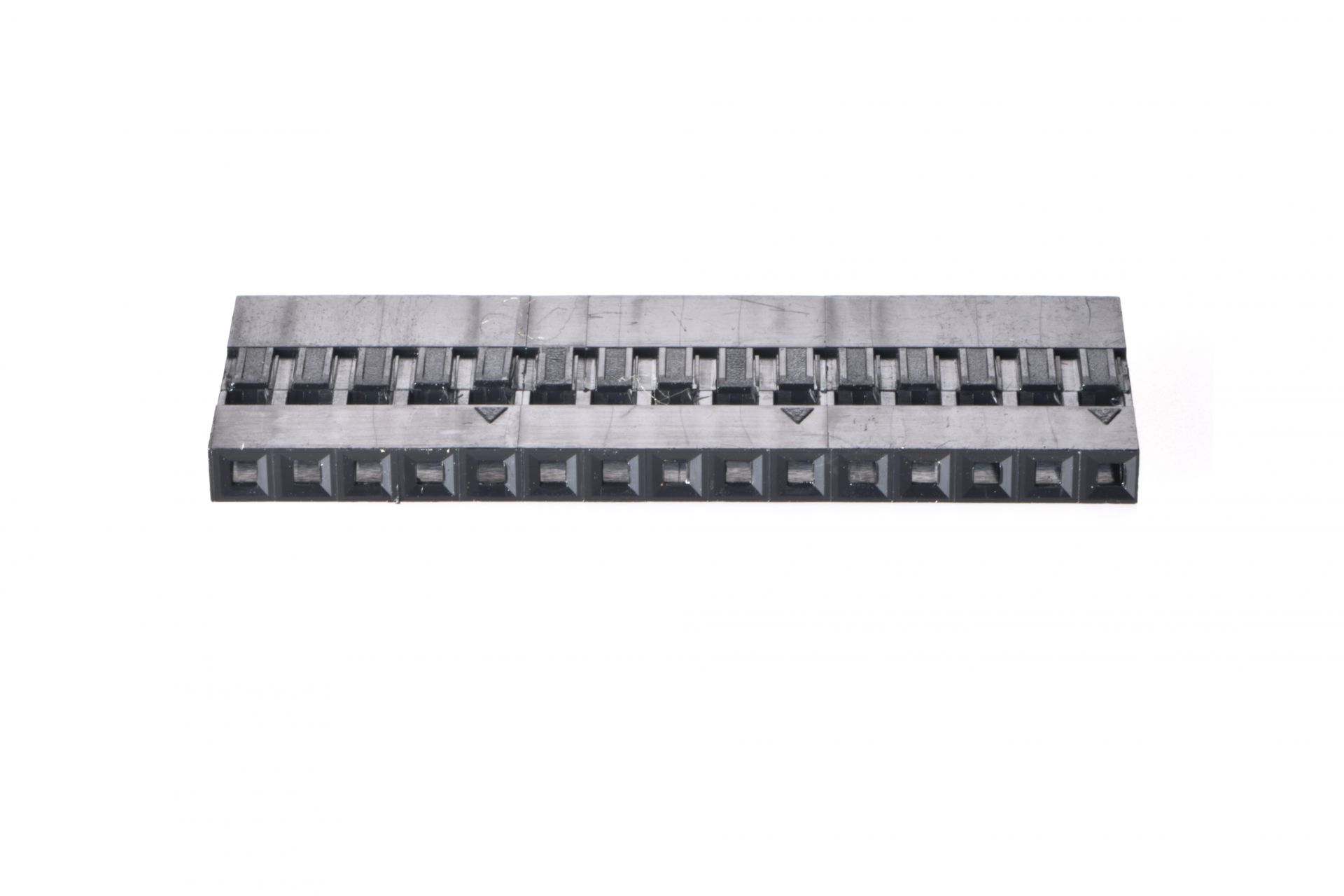

  • (1) 1:SINGLE ROW

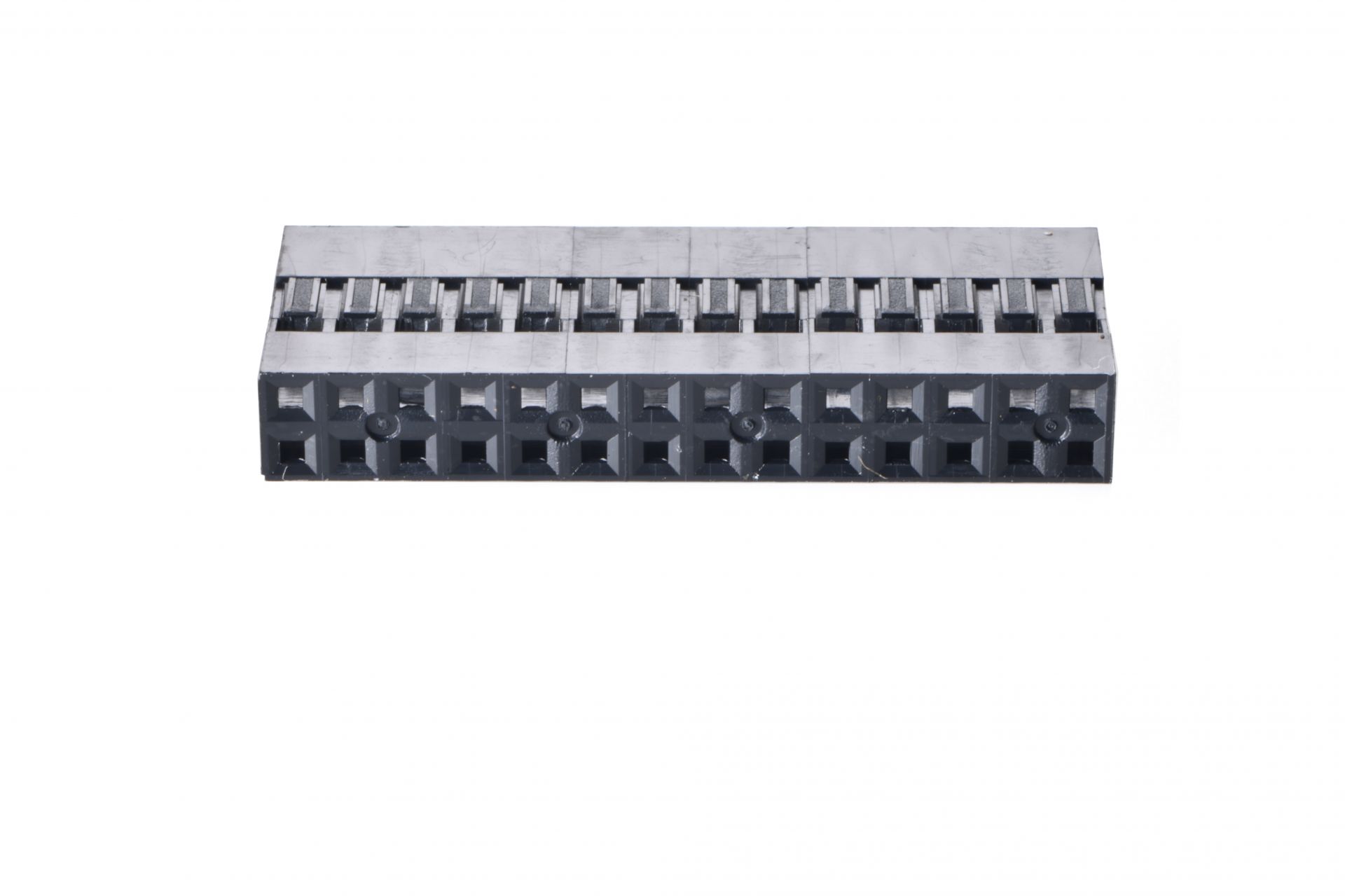

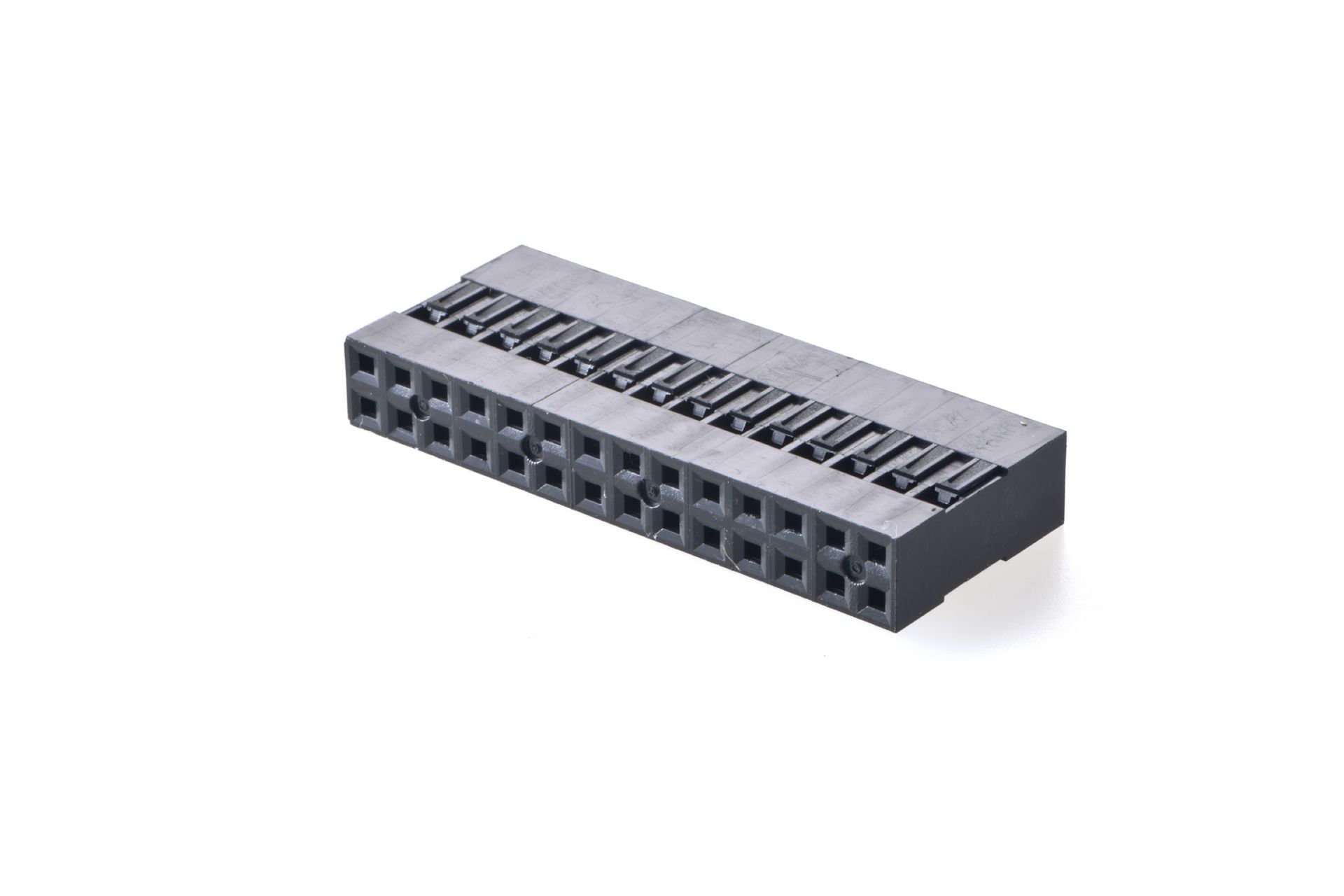

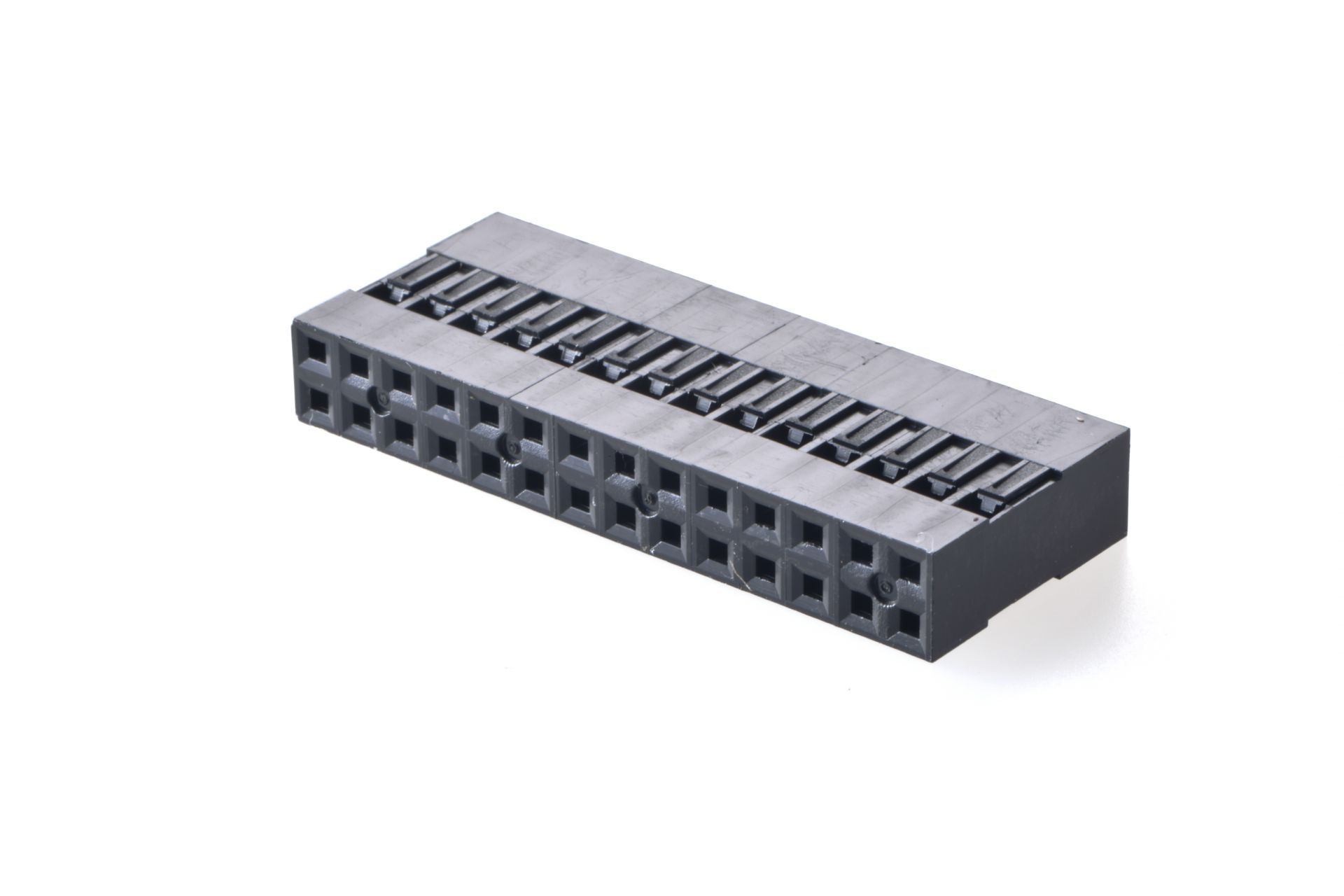

          2:DUAL ROW
          T:FEMALE TERMINAL TIN PLATED
          G:FEMALE TERMINAL GOLD FLASH
          K:POLARIZATION KEY TOP
  • (2) 02~40:NO. OF POSITION
  • (3) RoHS

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
PV1XXX-H 240KB PDF
download
DOWNLOAD
PV2XXX-H 263KB PDF
download
DOWNLOAD
PVT-R10K-H 254KB PDF
download
DOWNLOAD
