Board & Wire Connector Pin / Female Header PVXXX-2X

Pin / Female Header

PVXXX-2X

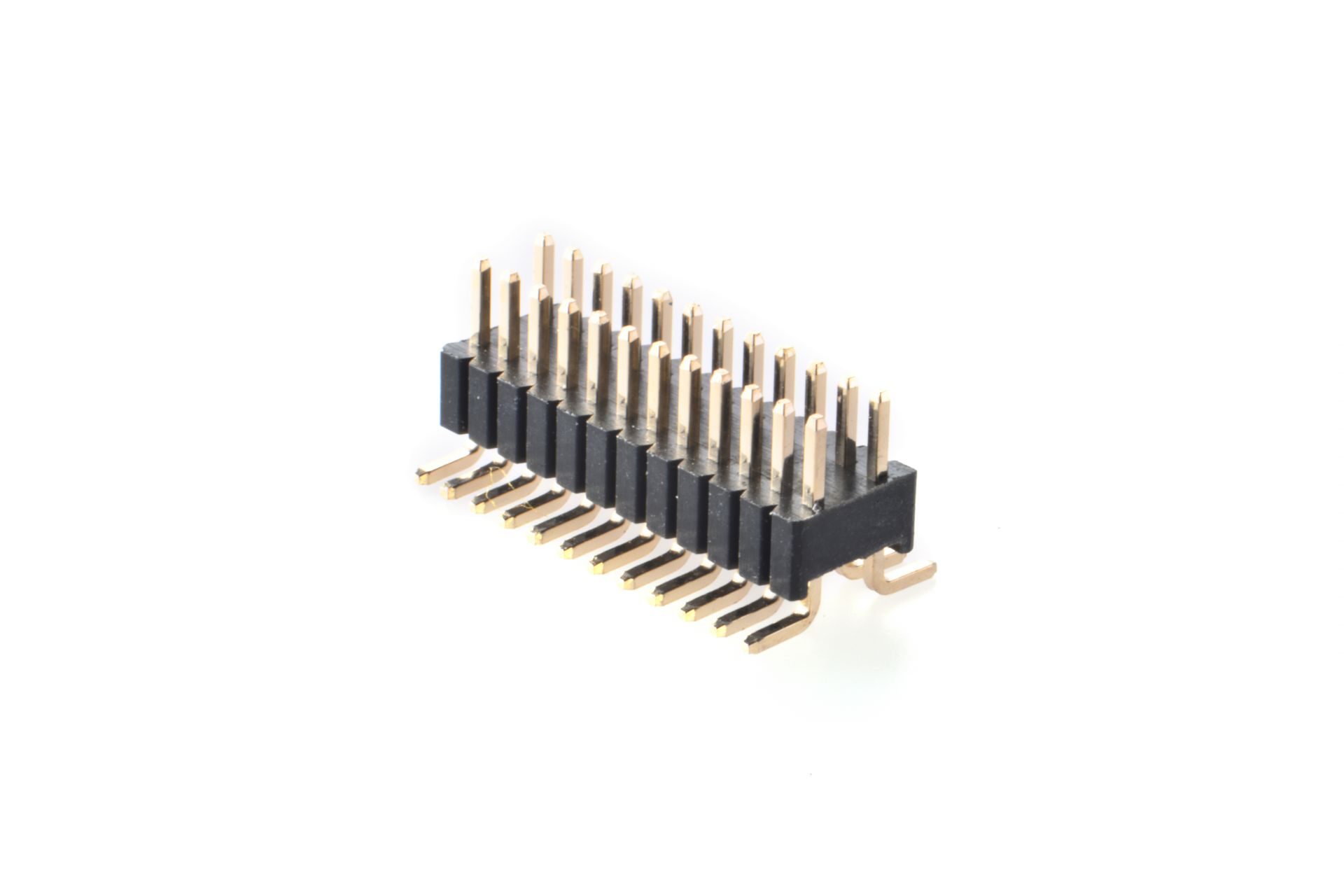

1.27X2.54mm PIN HEADER SMT 180° WITHOUT POST DUAL ROW

PVX
38
(1)
2X
20
(2)
C32
(3)
C
(4)
H
(5)

Description

(1)35:SMT HEIGHT 3.5mm
38:SMT HEIGHT 3.8mm
(2)02~40:NO. OF POSITION / PER ROW
(3)BLANK:CONTACT LENGTH 2.8mm
C32:CONTACT LENGTH 3.2mm
(4)BLANK:WITHOUT CAP
C:WITH CAP
(5) RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	PVX38-2XXX-H	275KB	PDF	DOWNLOAD
	PVX38-2XXXC32C-H	280KB	PDF	DOWNLOAD
