Board & Wire Connector Pin / Female Header SB2X

Pin / Female Header

SB2X

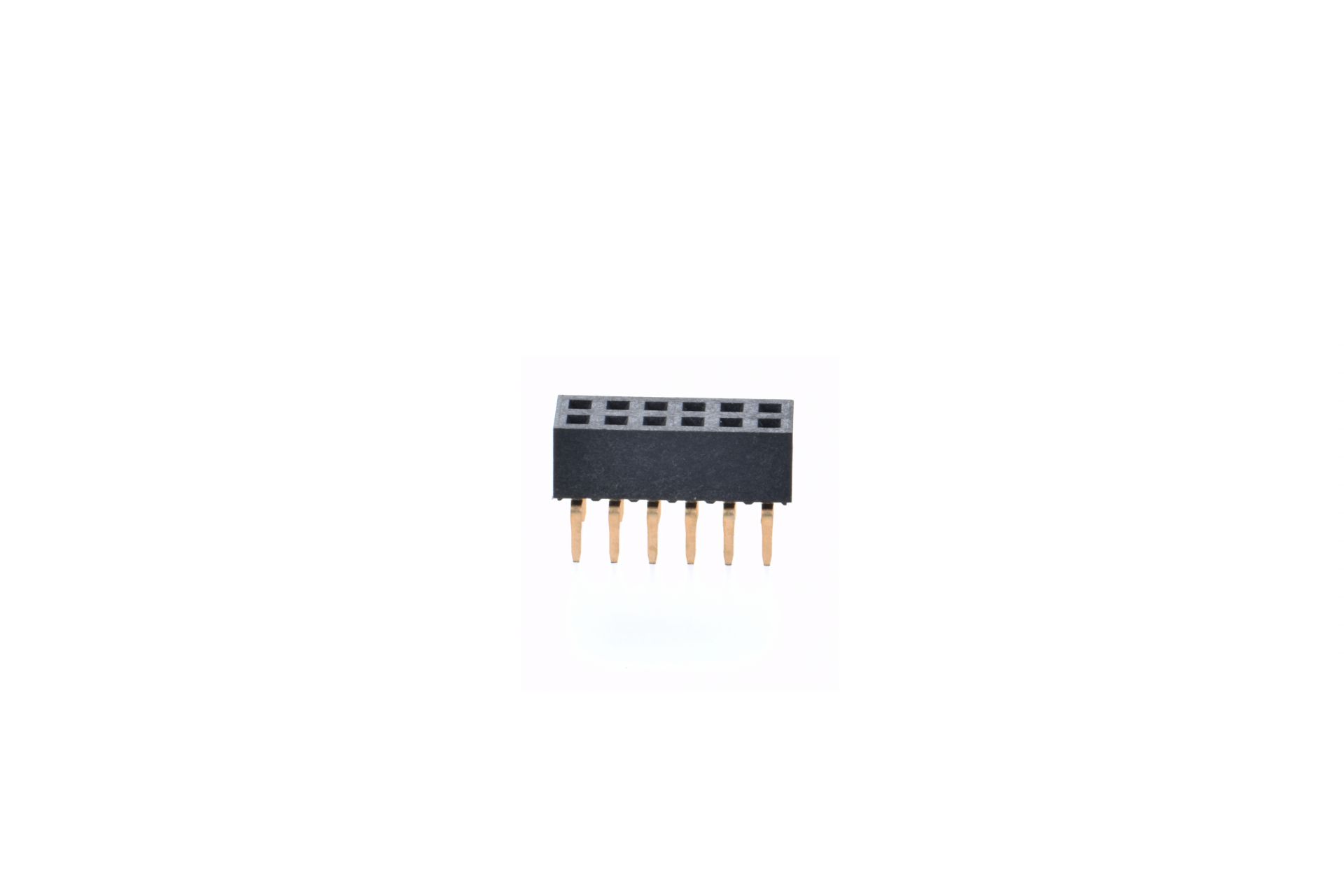

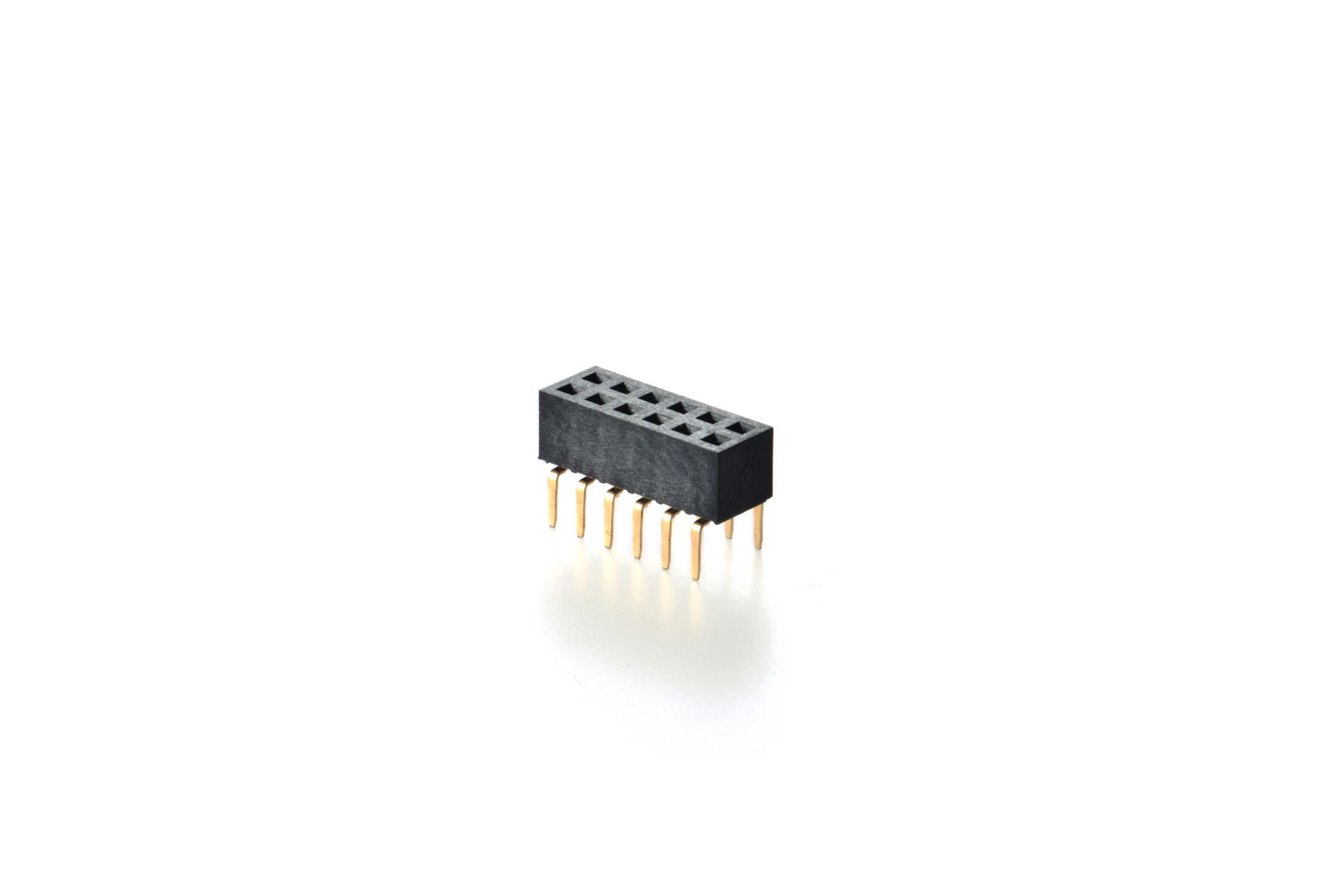

2.0mm FEMALE HEADER DIP 180° DUAL ROW BOTTOM ENTRY

SB2X
10
(1)
P5
(2)
H
(3)
H
(4)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)P5:PIN SPACING=5.0mm
P6:PIN SPACING=6.0mm
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SB2XXXP5-HH	266KB	PDF	DOWNLOAD
	SB2XXXP6-HH	88KB	PDF	DOWNLOAD
