Card Connector Smart Card Connector SCF
Smart card

SCF

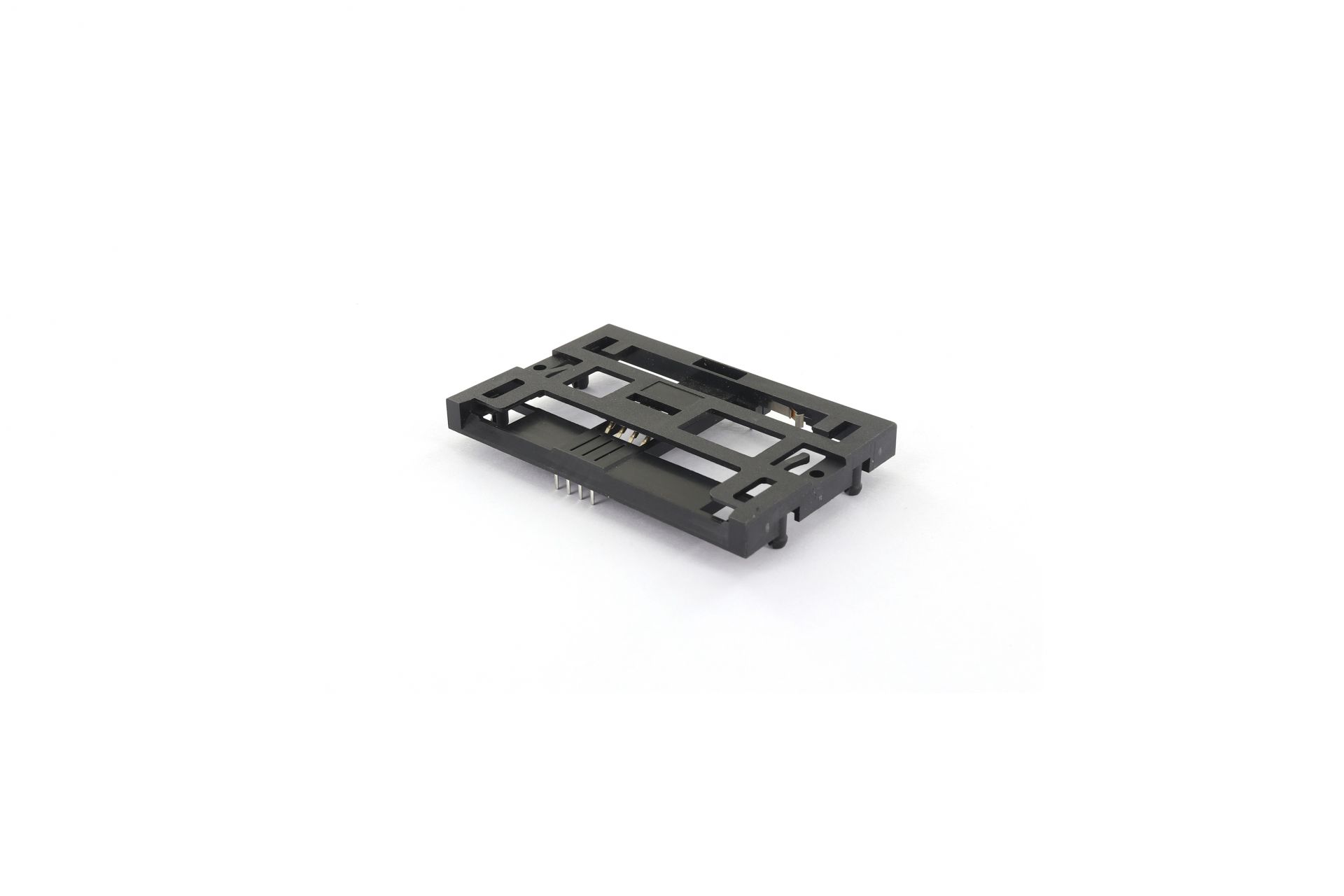

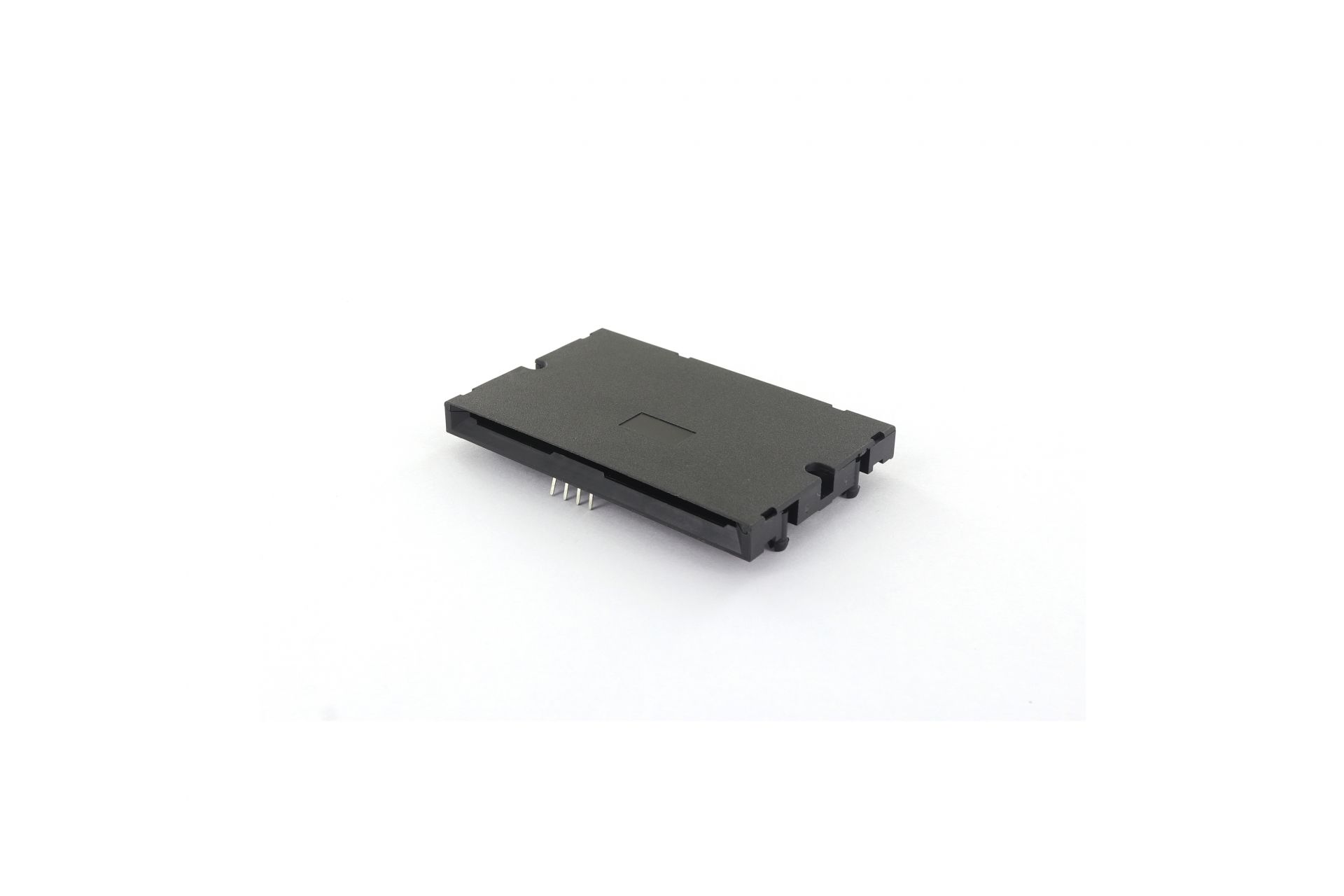

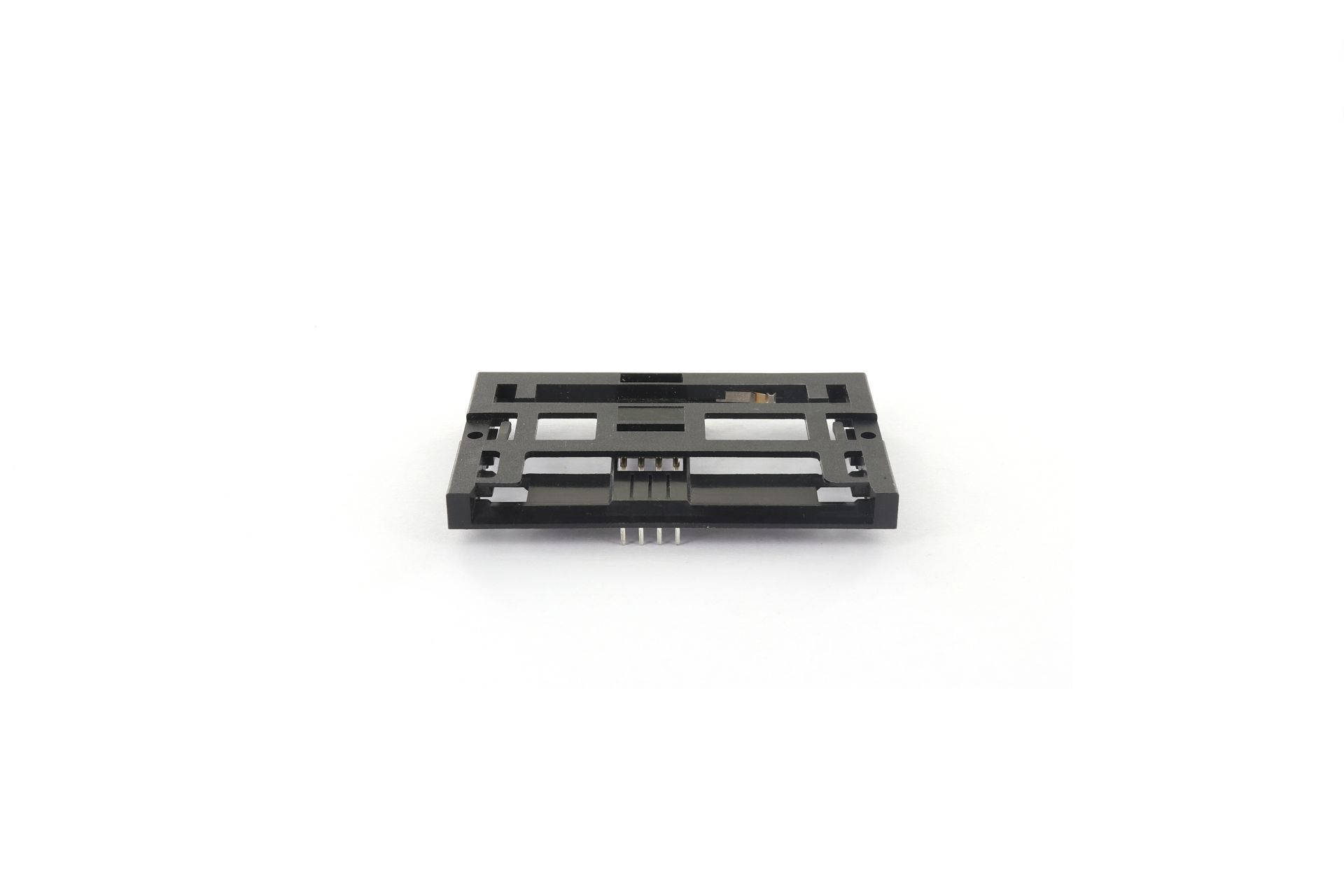

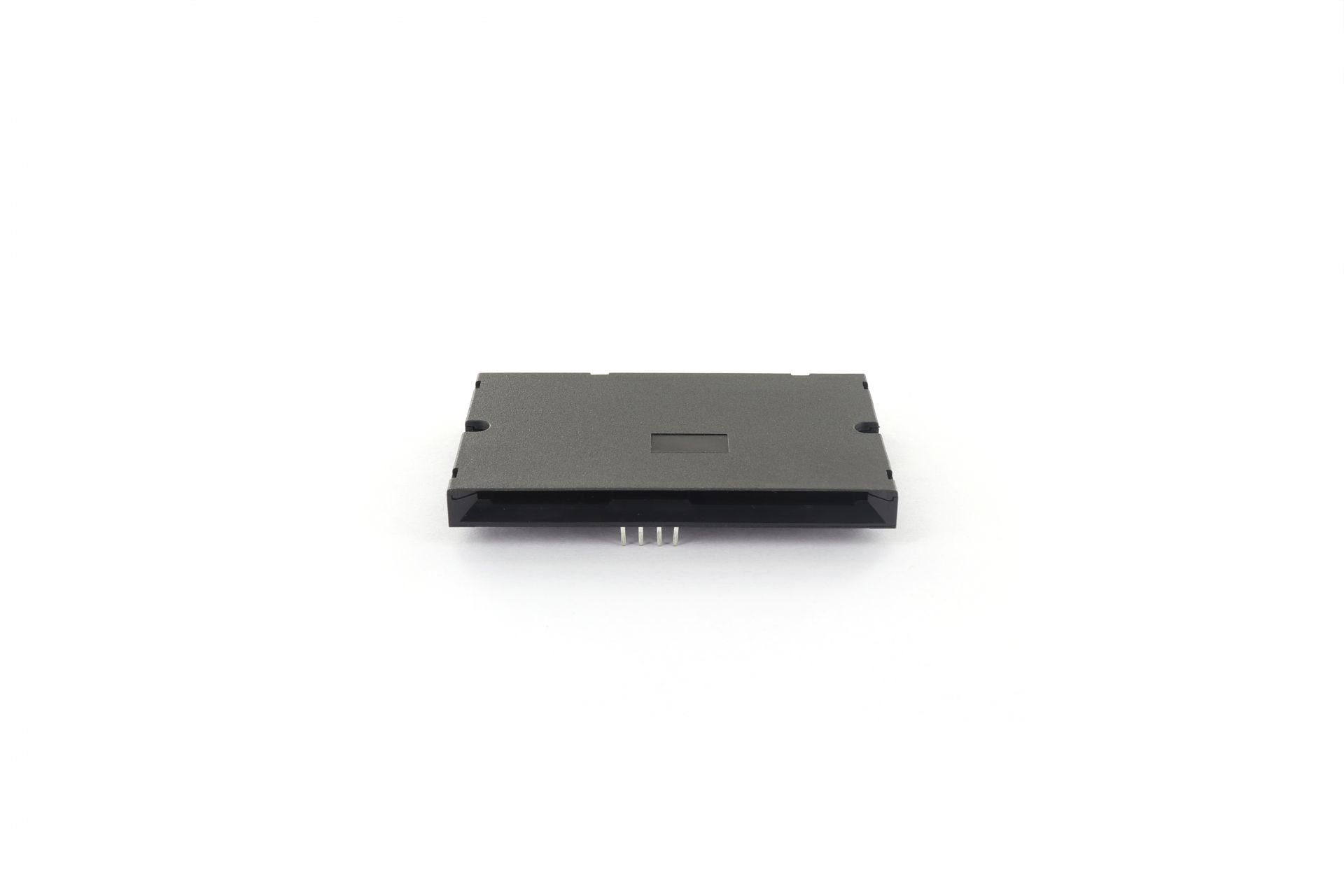

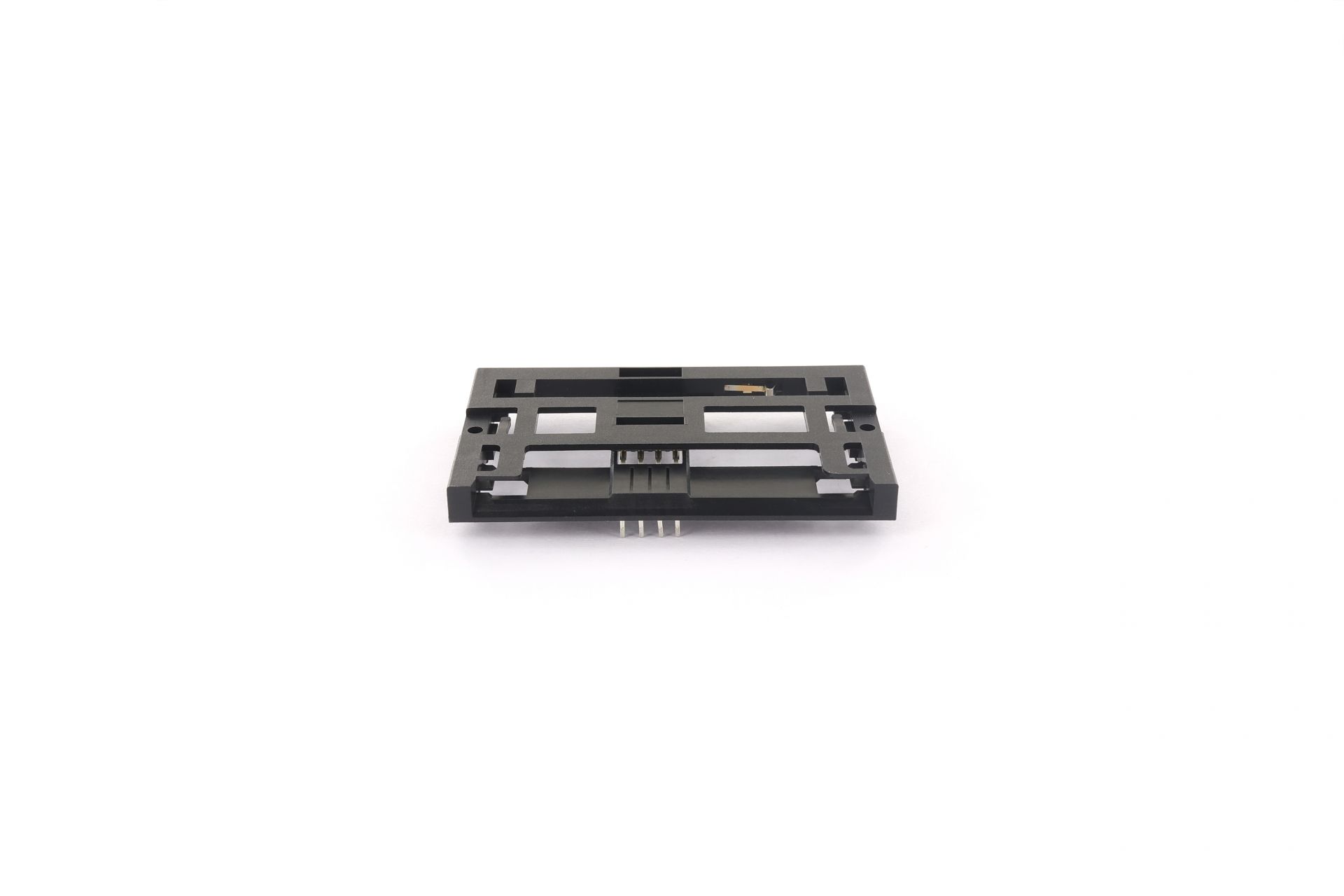

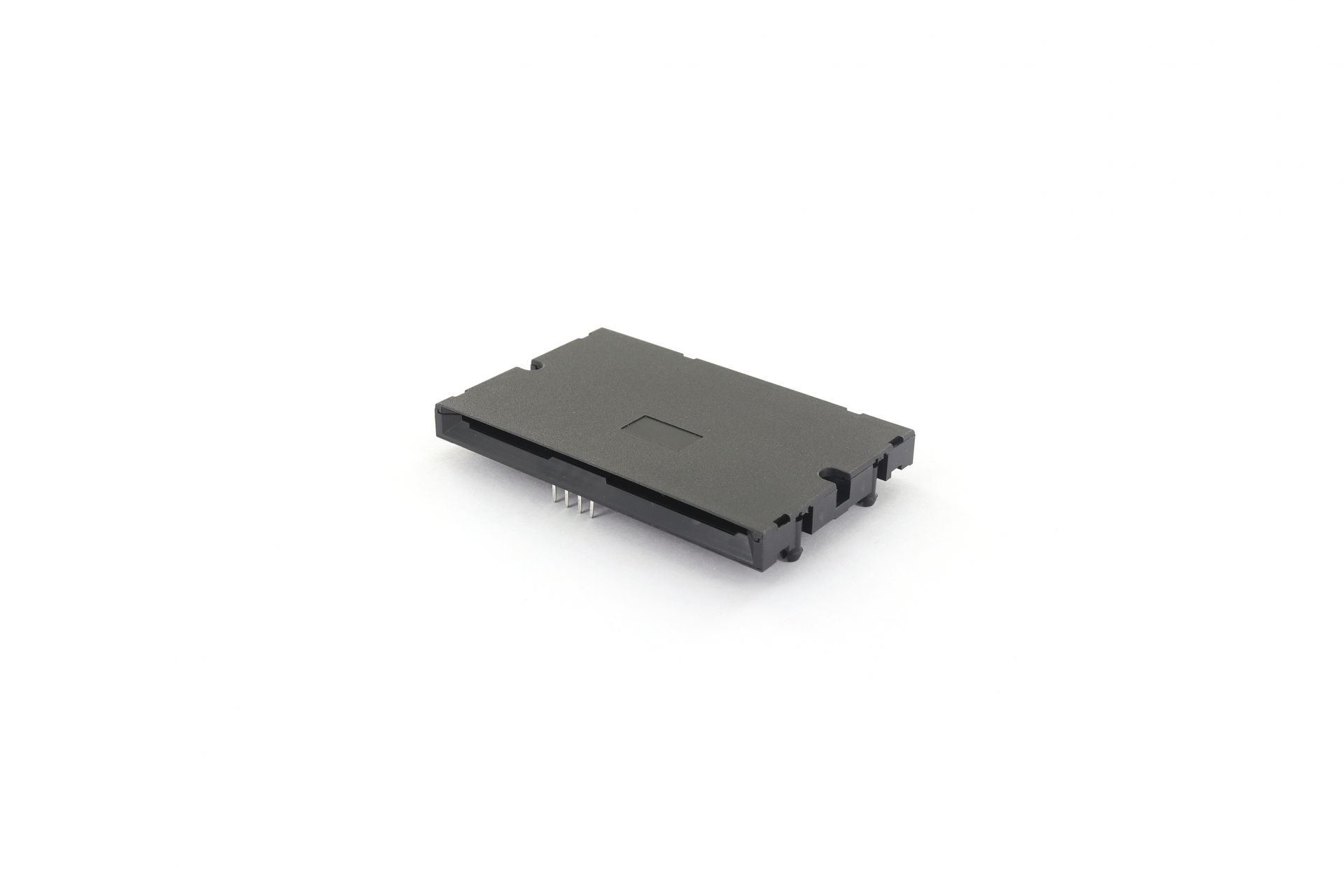

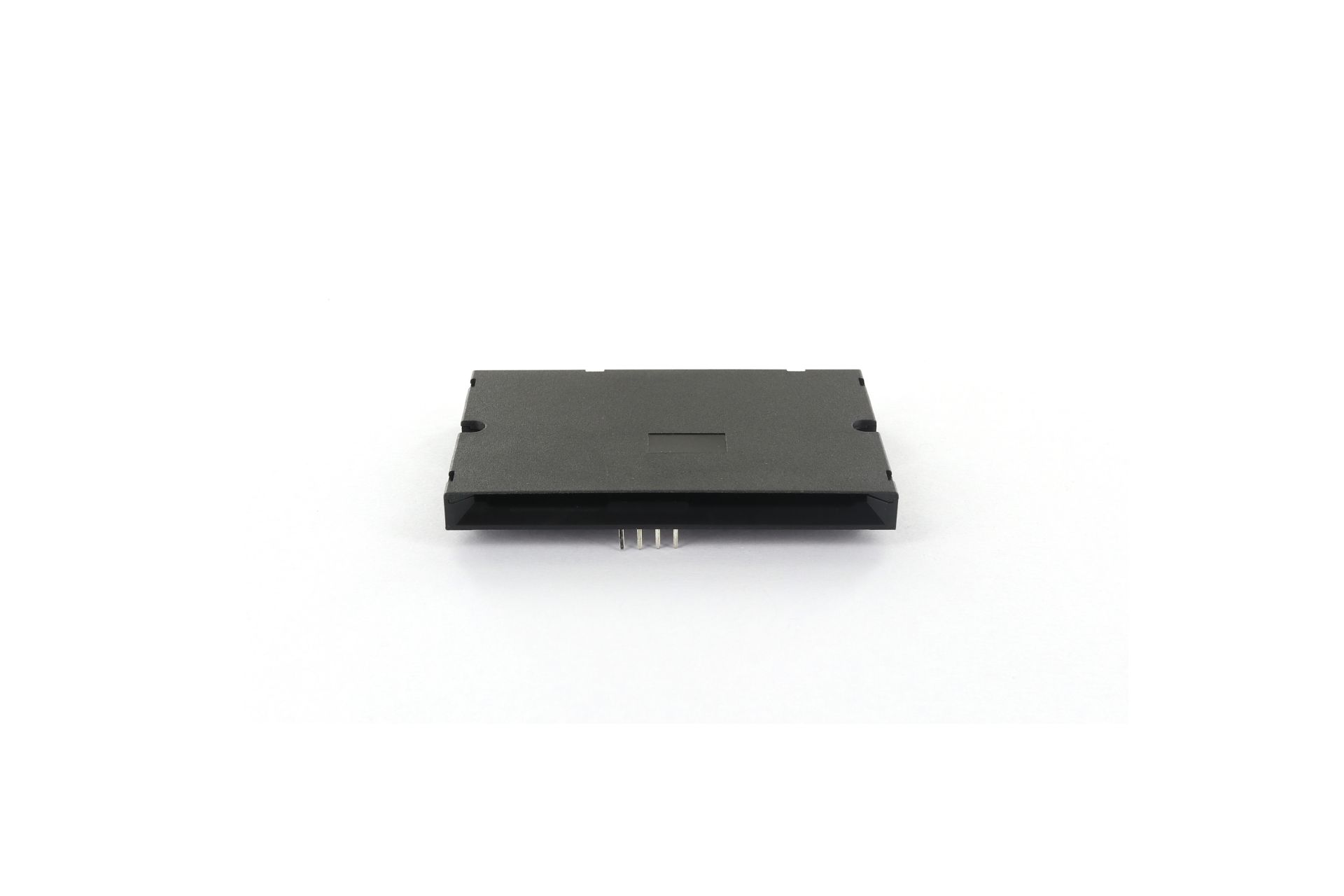

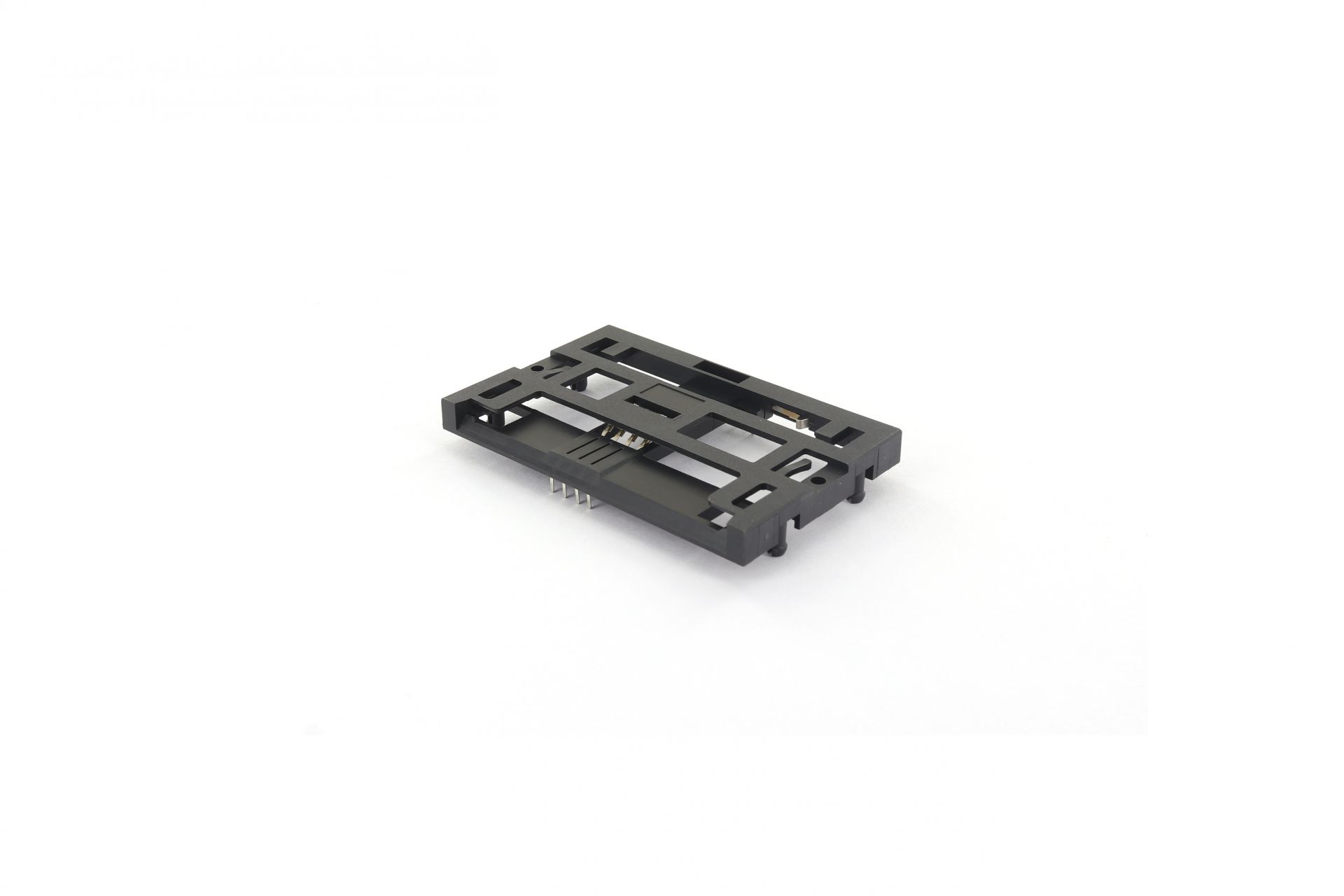

SMART CARD BOX TYPE, FRICTION TYPE, 62X40X5.8mm
  • SCF

  •
    R

  •
    08
    (1)
  •
    B
    (2)
  •
    01
    (3)
  •
    H
    (4)

Description

  • (1) 08:NO. OF POSITION
  • (2) A:SWITCH, BLADE TYPE, NORMAL CLOSE
          B:SWITCH, BLADE TYPE, NORMAL OPEN
  • (3) 01:LAYOUT OF SWITCH, TYPE 1
  • (4) RoHS
  • IMG_2630-2
  • IMG_2629-2
  • IMG_2627-2
  • IMG_2626-2
  • IMG_2633-2
  • IMG_2632-2
  • IMG_2624-2
  • IMG_2623-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SCF-R08A01-020N2-H 124KB PDF
download
DOWNLOAD
SCF-R08B01-020N2-H 122KB PDF
download
DOWNLOAD
SCF-R08A01-020E-H 123KB PDF
download
DOWNLOAD
SCF-R08B01-020E-H 124KB PDF
download
DOWNLOAD
