Smart card

SCH

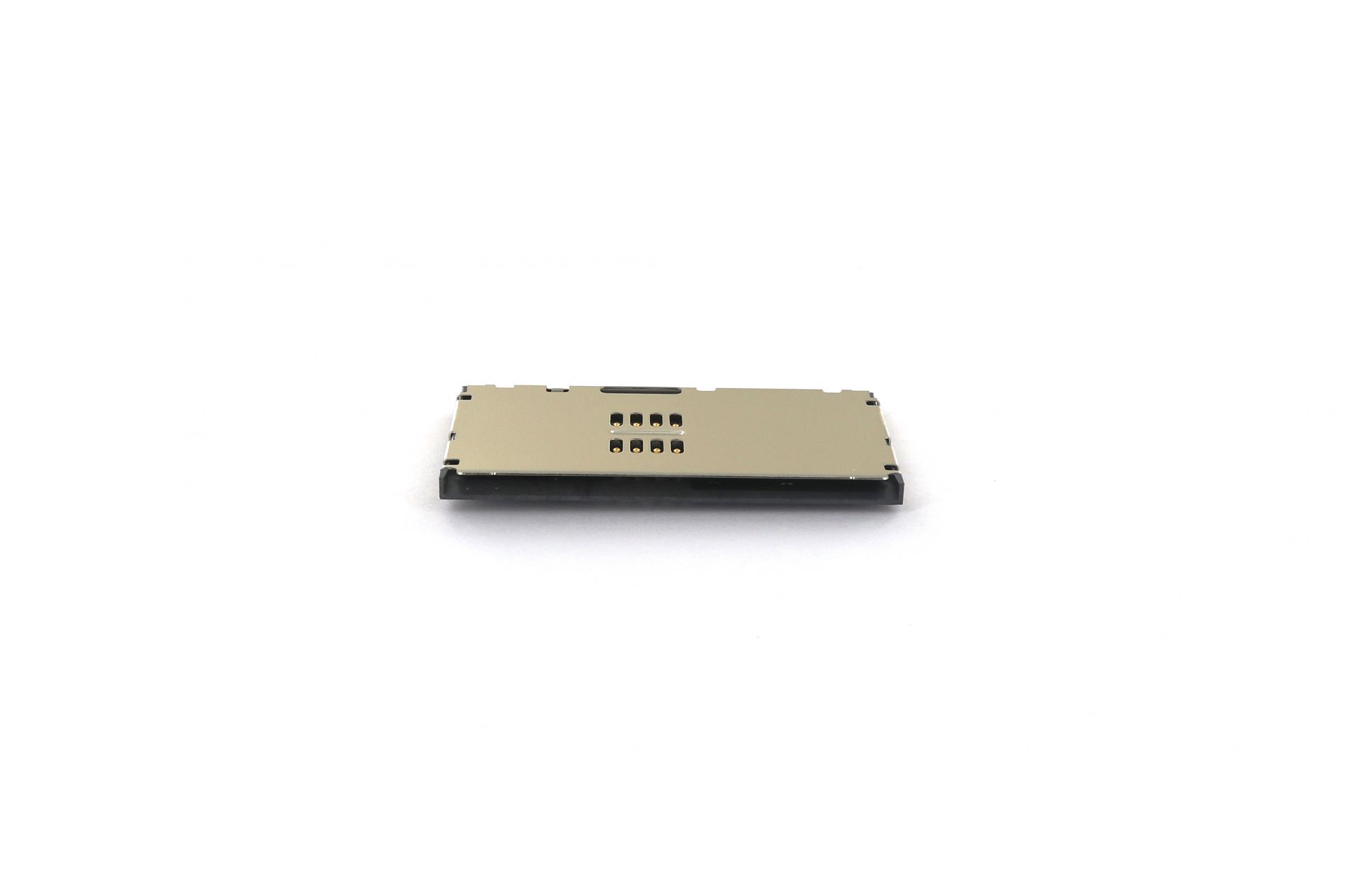

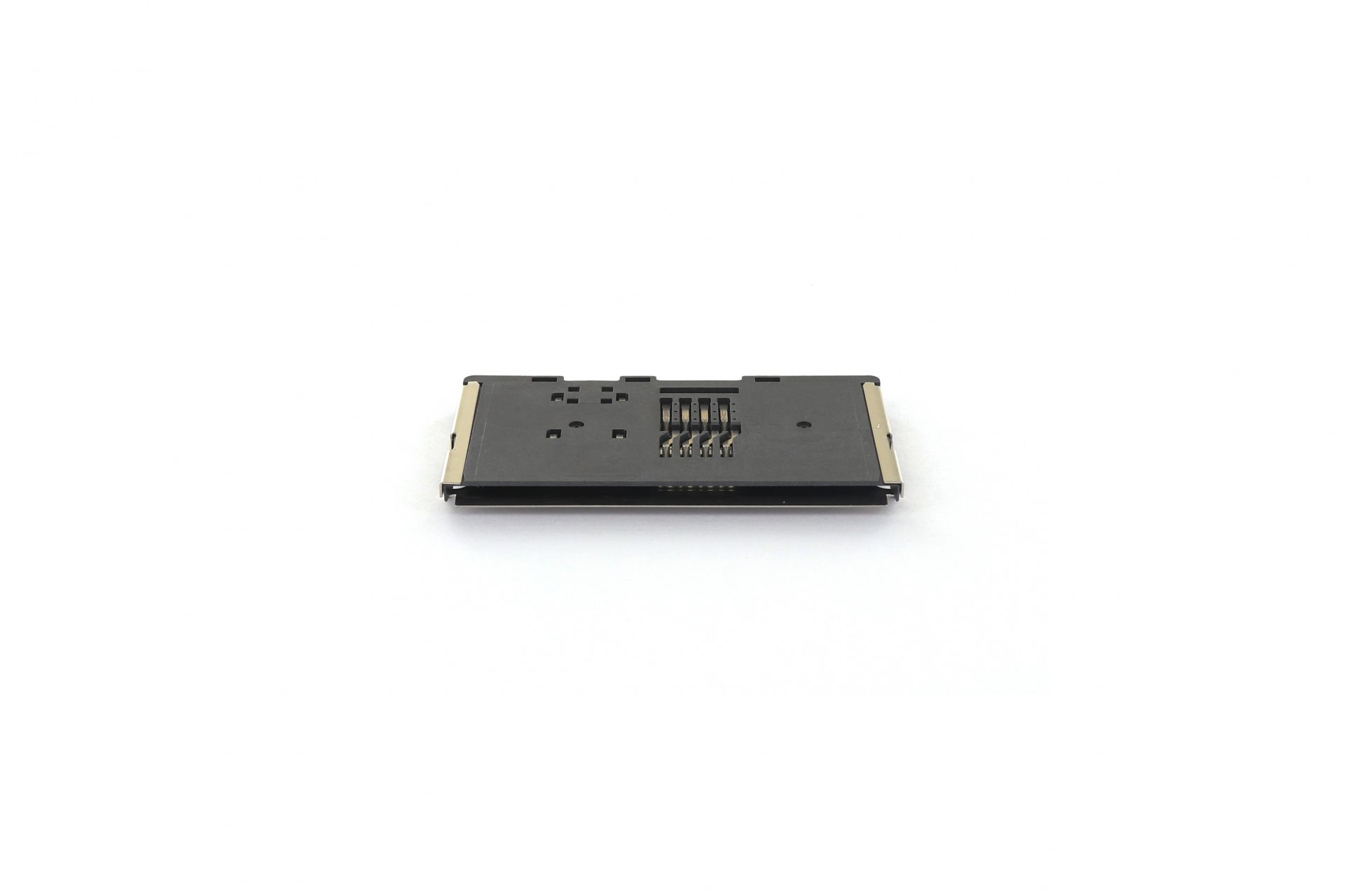

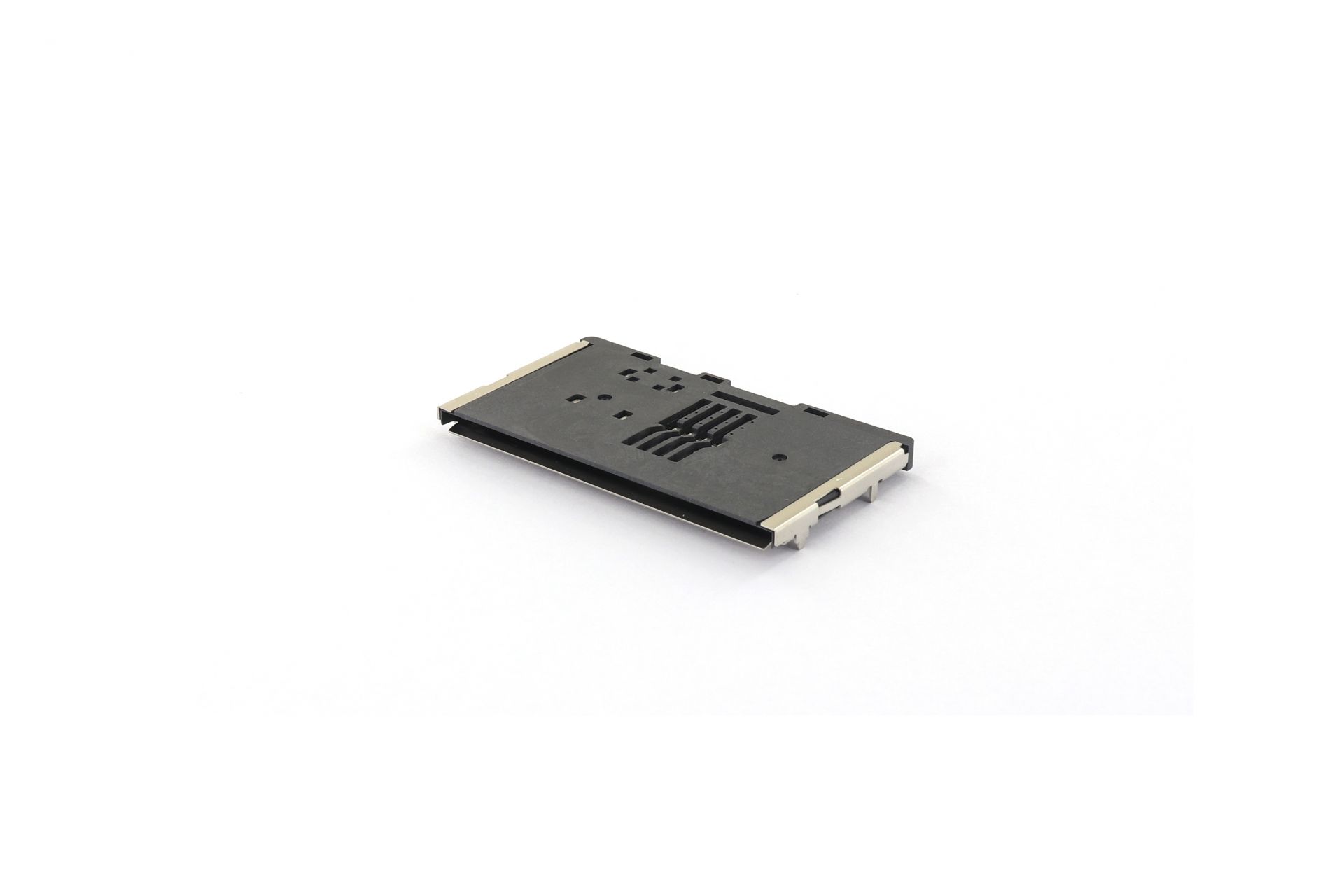

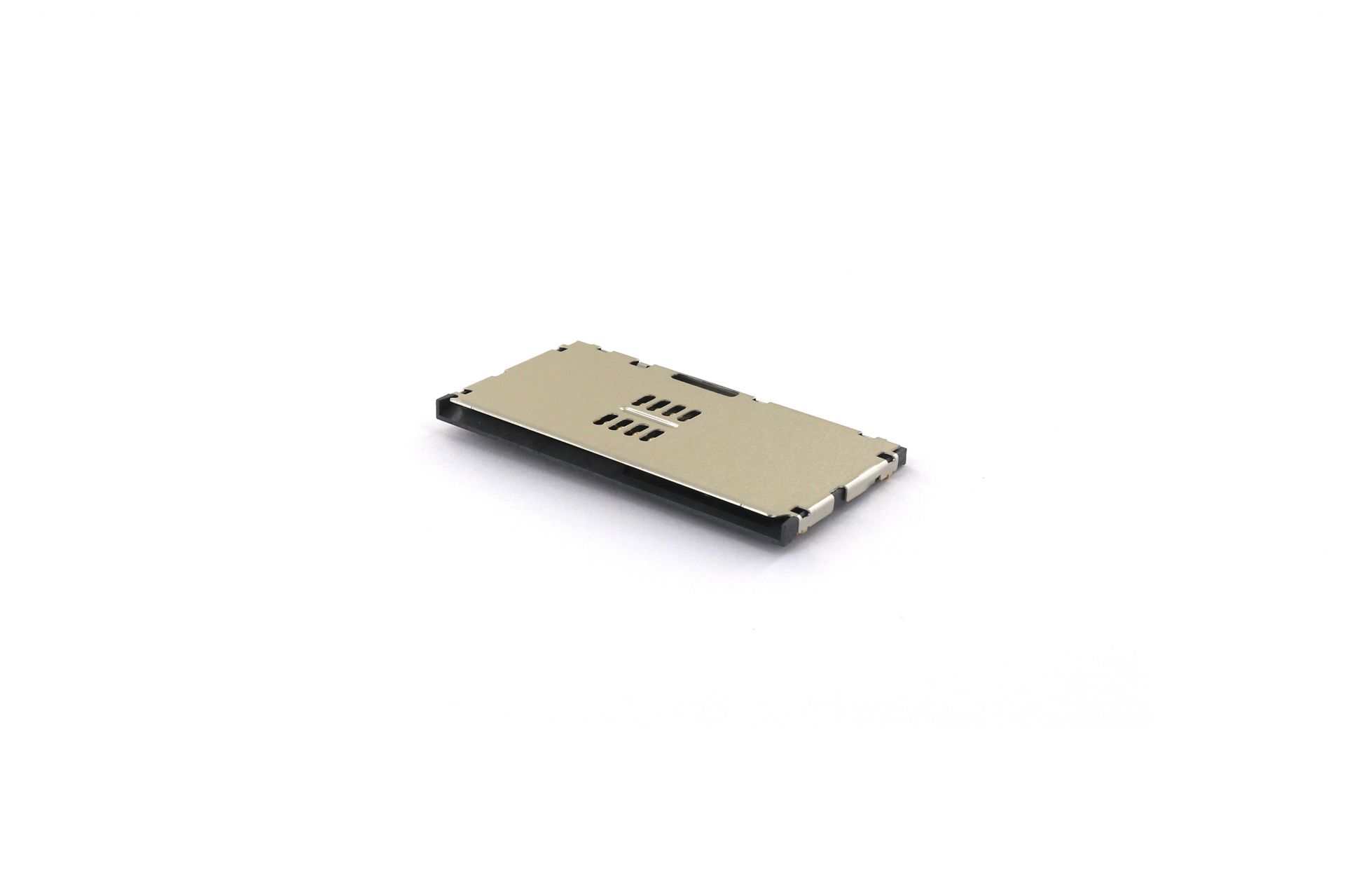

1.27mm SMART CARD FRICTION TYPE 08P SMT 90° WITH POST SEALED SWITCH TYPE 4
  • SCH

  •
    W
    (1)
  •
    08
    (2)
  •
    S
    (3)
  •
    04

  •
    100
    (4)
  •
    H
    (5)

Description

  • (1) W:SMT RIGHT ANGLE
  • (2) 08:NO. OF POSITION
  • (3) S: SEALED SWITCH
  • (4) 100:SELECTIVE GOLD PLATED 10u"
  • (5) RoHS
  • IMG_2656-2
  • IMG_2655-2
  • IMG_2652-2
  • IMG_2651-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SCH-W08S04-100C-H 329KB PDF
download
DOWNLOAD
SCH-W08S04-4-150C-H 196KB PDF
download
DOWNLOAD
