Card Connector Smart Card Connector SCL
Smart card

SCL

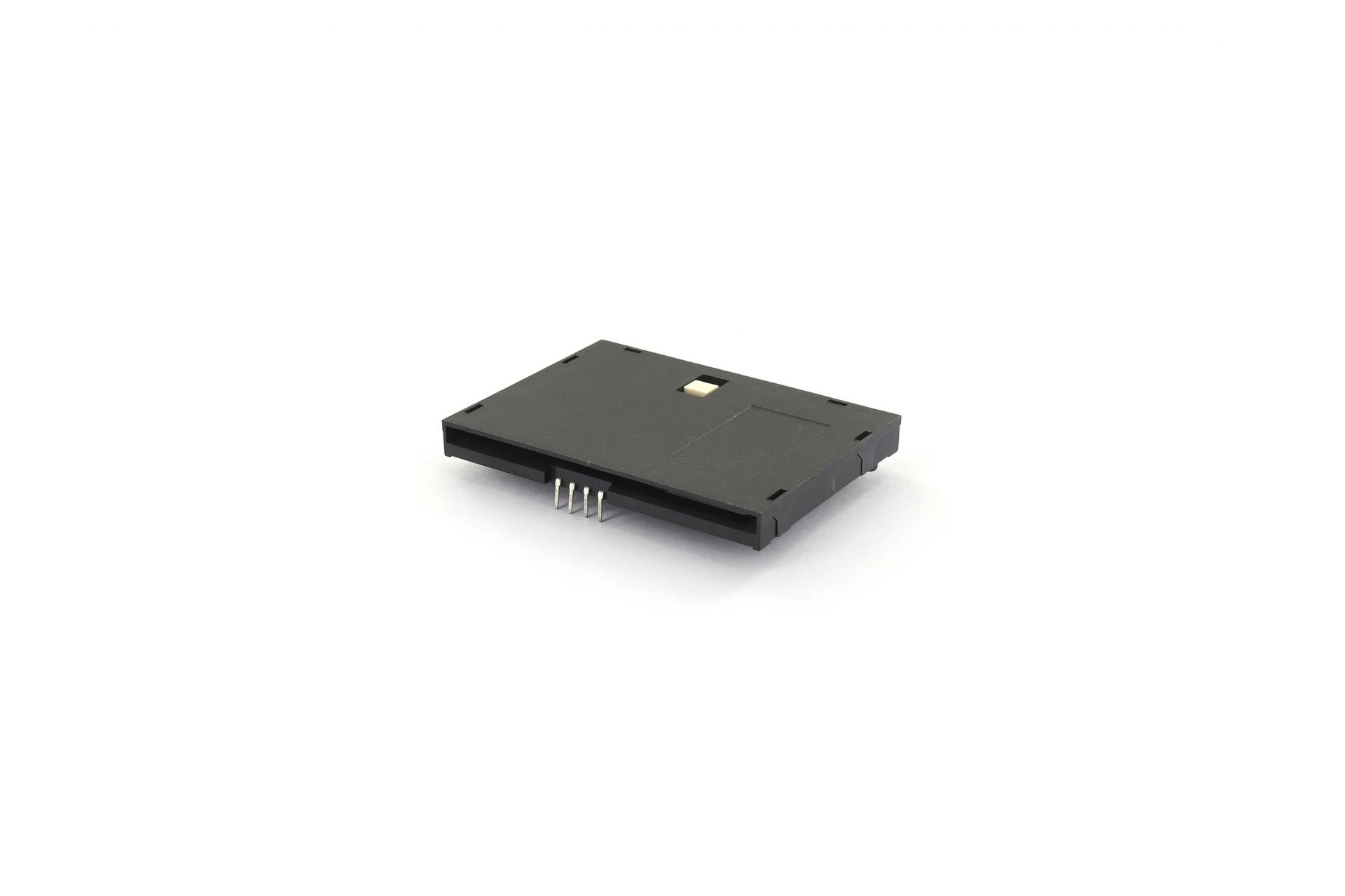

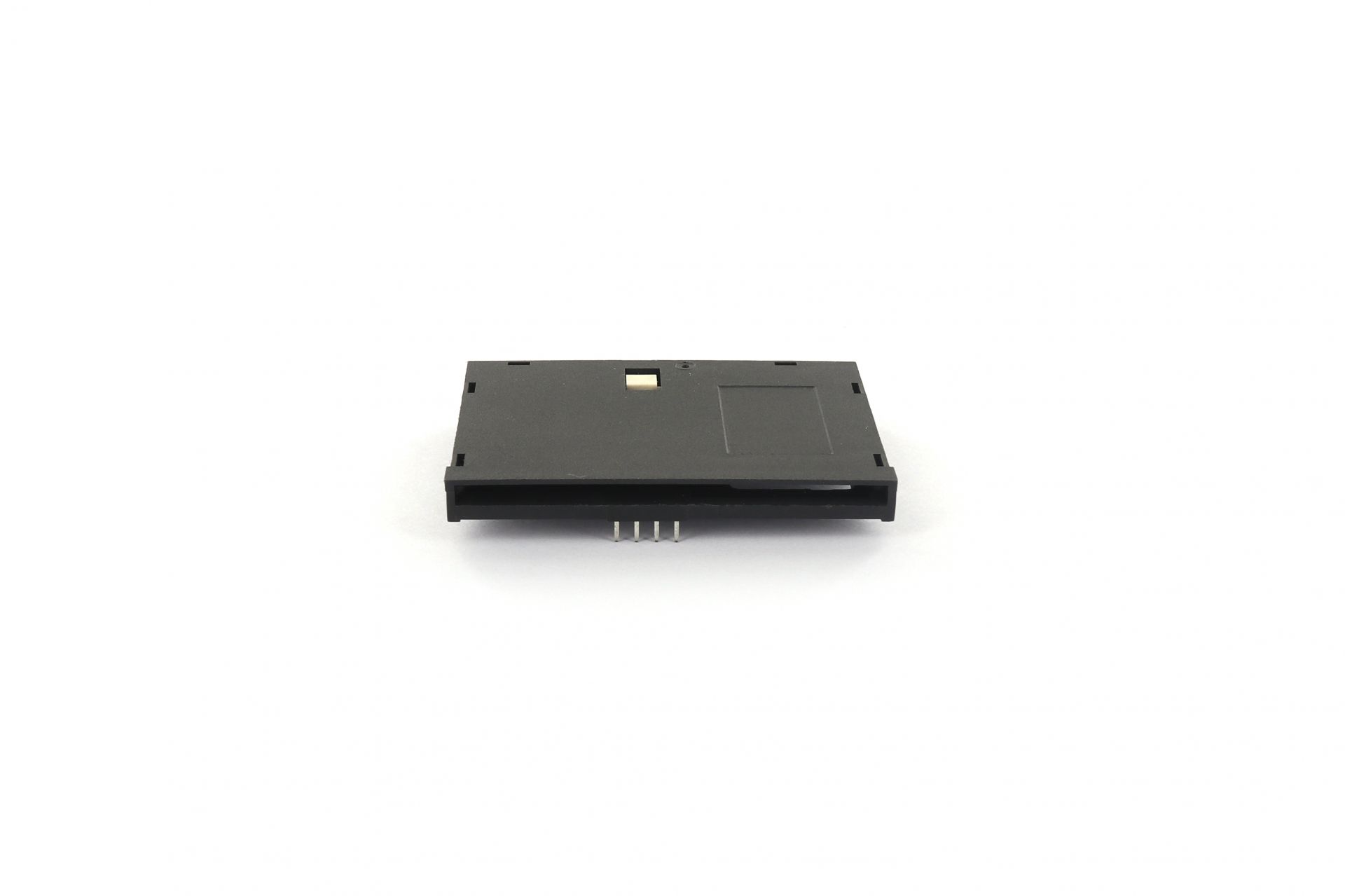

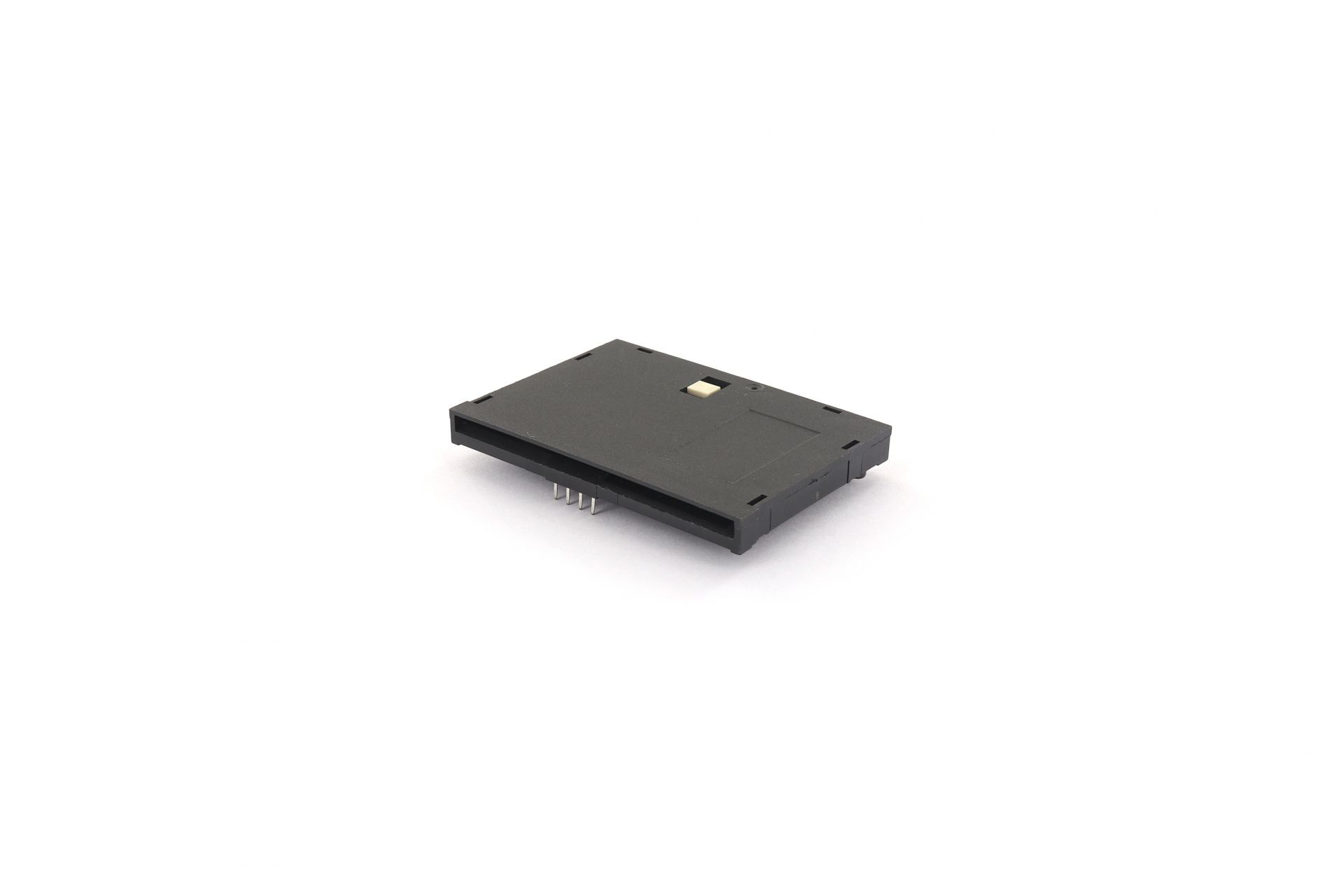

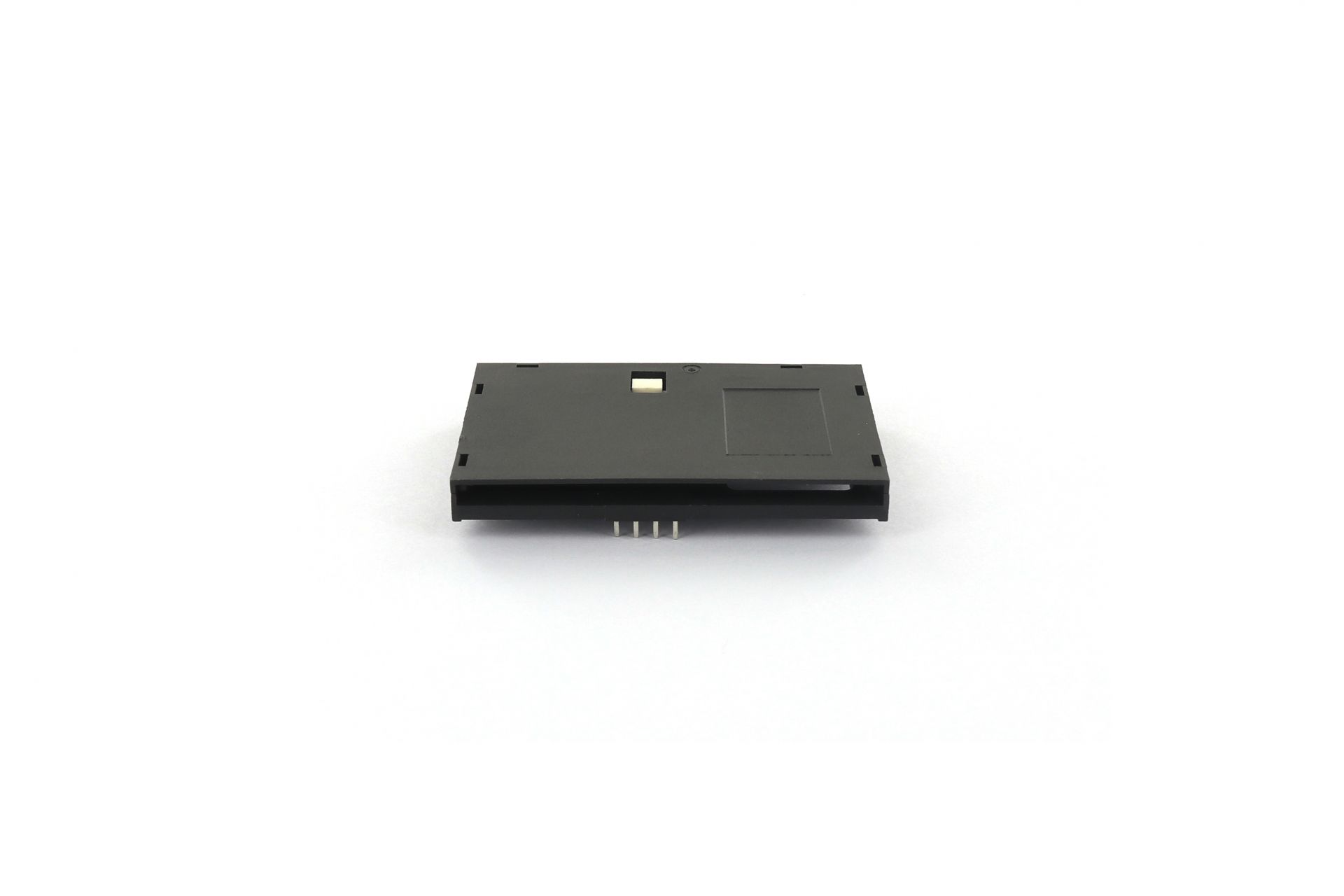

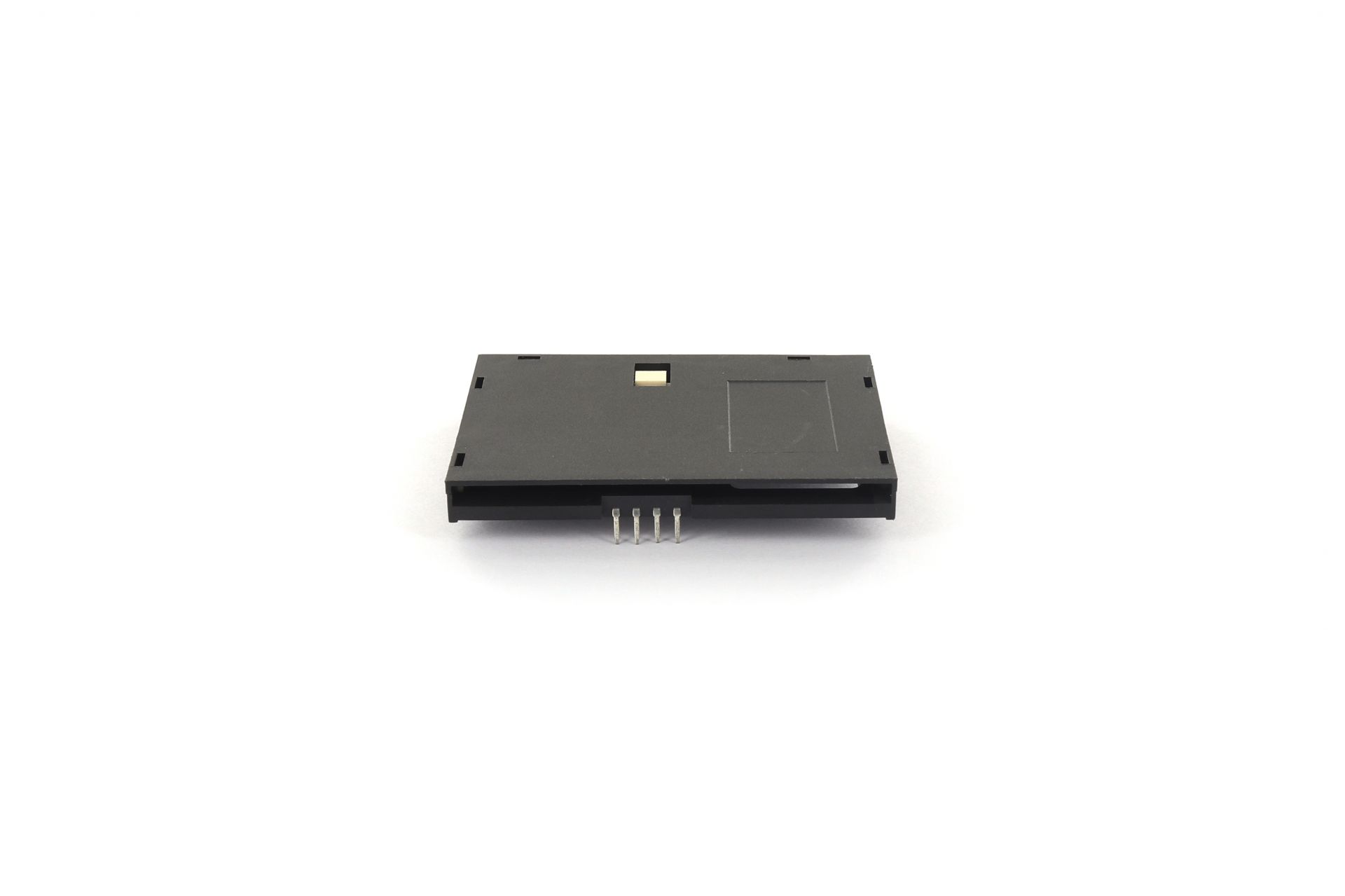

SMART CARD LANDING TYPE 08P DIP 90° WITH TACT SWITCH
  • SCL

  •
    R

  •
    08
    (1)
  •
    B
    (2)
  •
    01
    (3)
  •
    020
    (4)
  •
    N4
    (5)
  •
    H
    (6)

Description

  • (1) 08:NO. OF POSITION
  • (2) A:SWITCH, BLADE TYPE, NORMAL CLOSE
          B:SWITCH, BLADE TYPE, NORMAL OPEN
          T:WITH TACT SWITCH
  • (3) 01:LAYOUT OF SWITCH, TYPE 1
          03:LAYOUT OF SWITCH, TYPE 3
  • (4) 020:SELECTIVE GOLD FLASH
  • (5) N4:NEW TYPE
          N6:NEW TYPE
  • (6) RoHS
  • IMG_2662-2
  • IMG_2661-2
  • IMG_2671-2
  • IMG_2670-2
  • IMG_2666-2
  • IMG_2665-2
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SCL-R08T03-020N6-H 82KB PDF
download
DOWNLOAD
SCL-R08B01-020N4-H 92KB PDF
download
DOWNLOAD
SCL-R08A01-020N4-H 92KB PDF
download
DOWNLOAD
