Board & Wire Connector Pin / Female Header SDXX-1/2X

Pin / Female Header

SDXX-1/2X

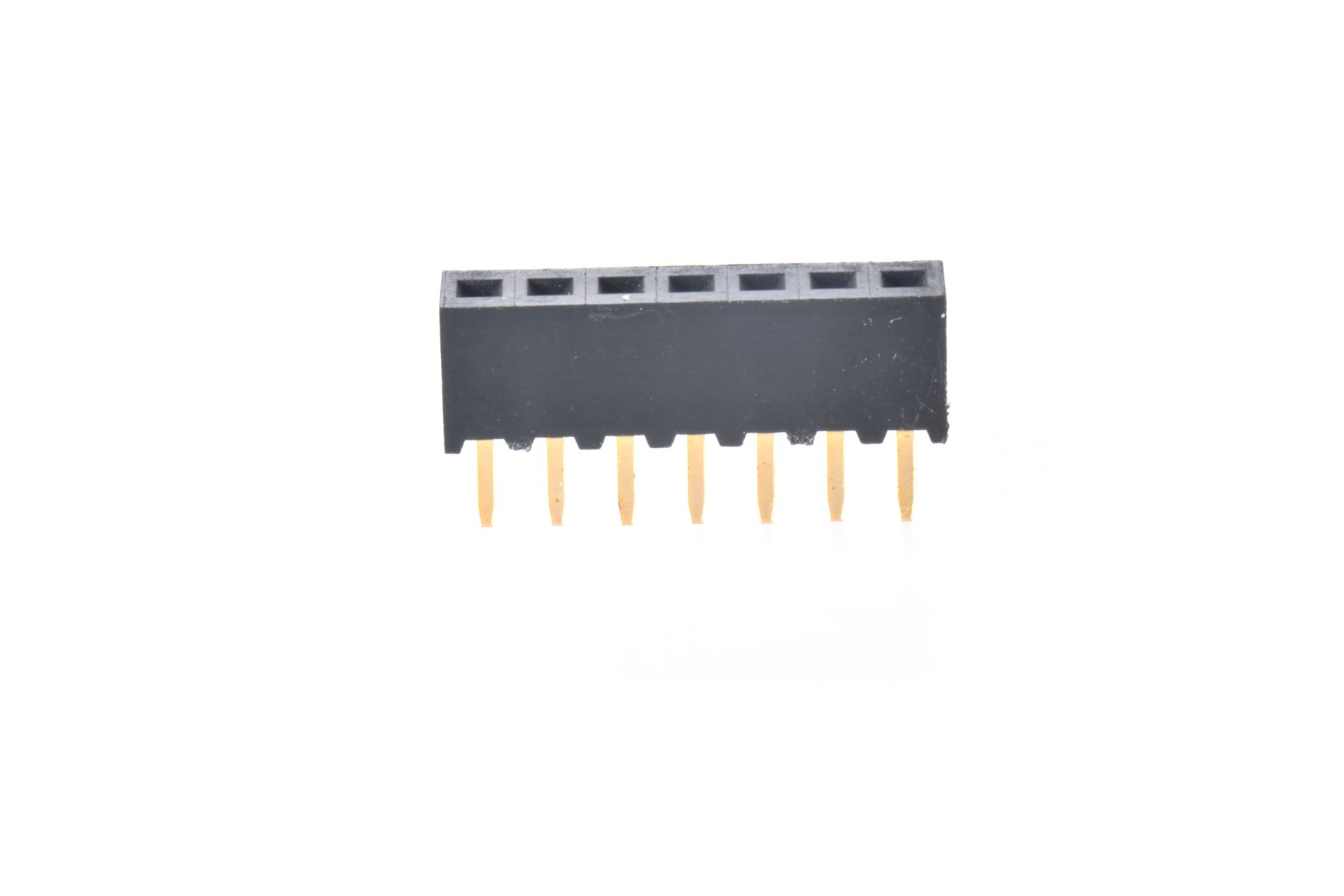

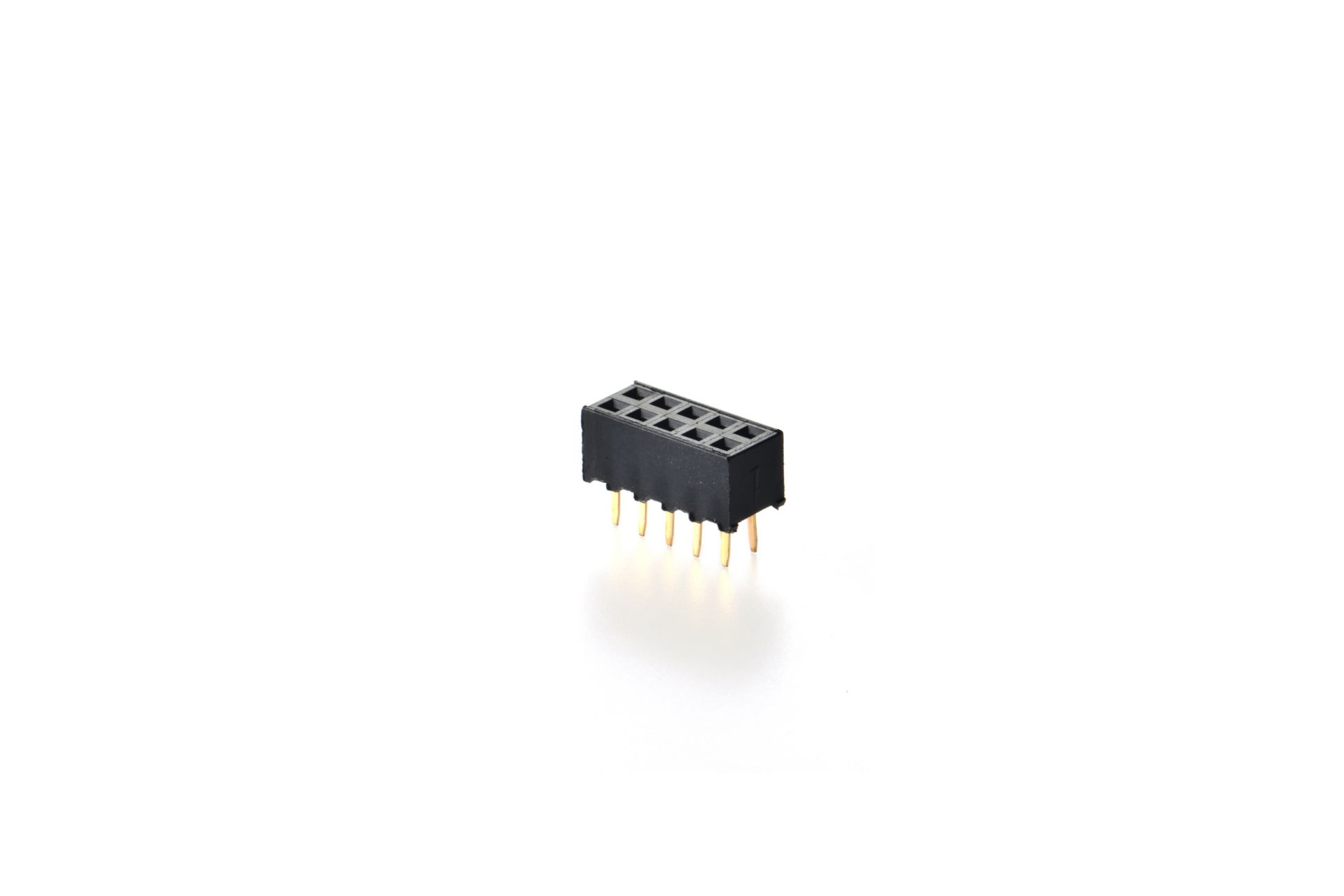

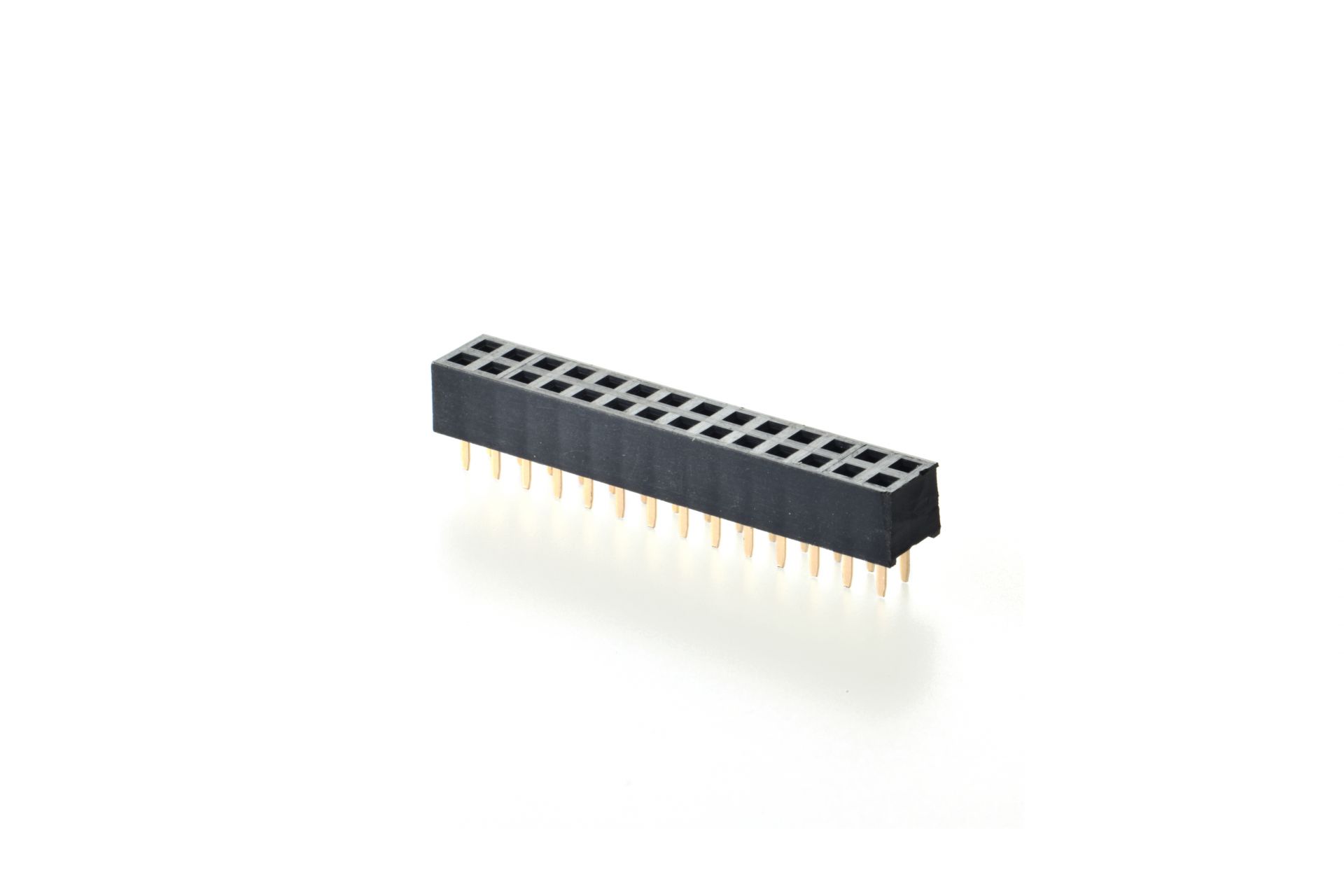

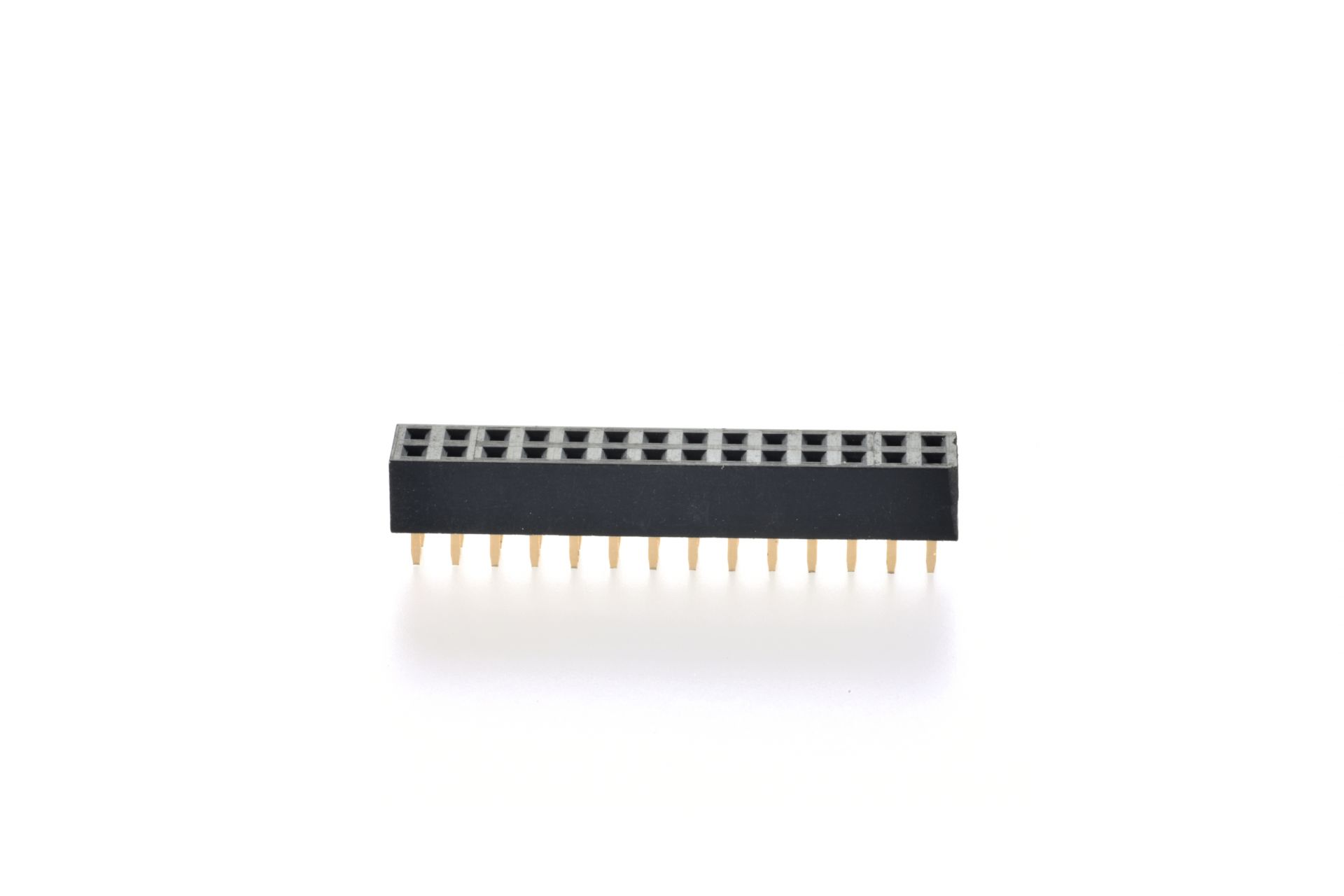

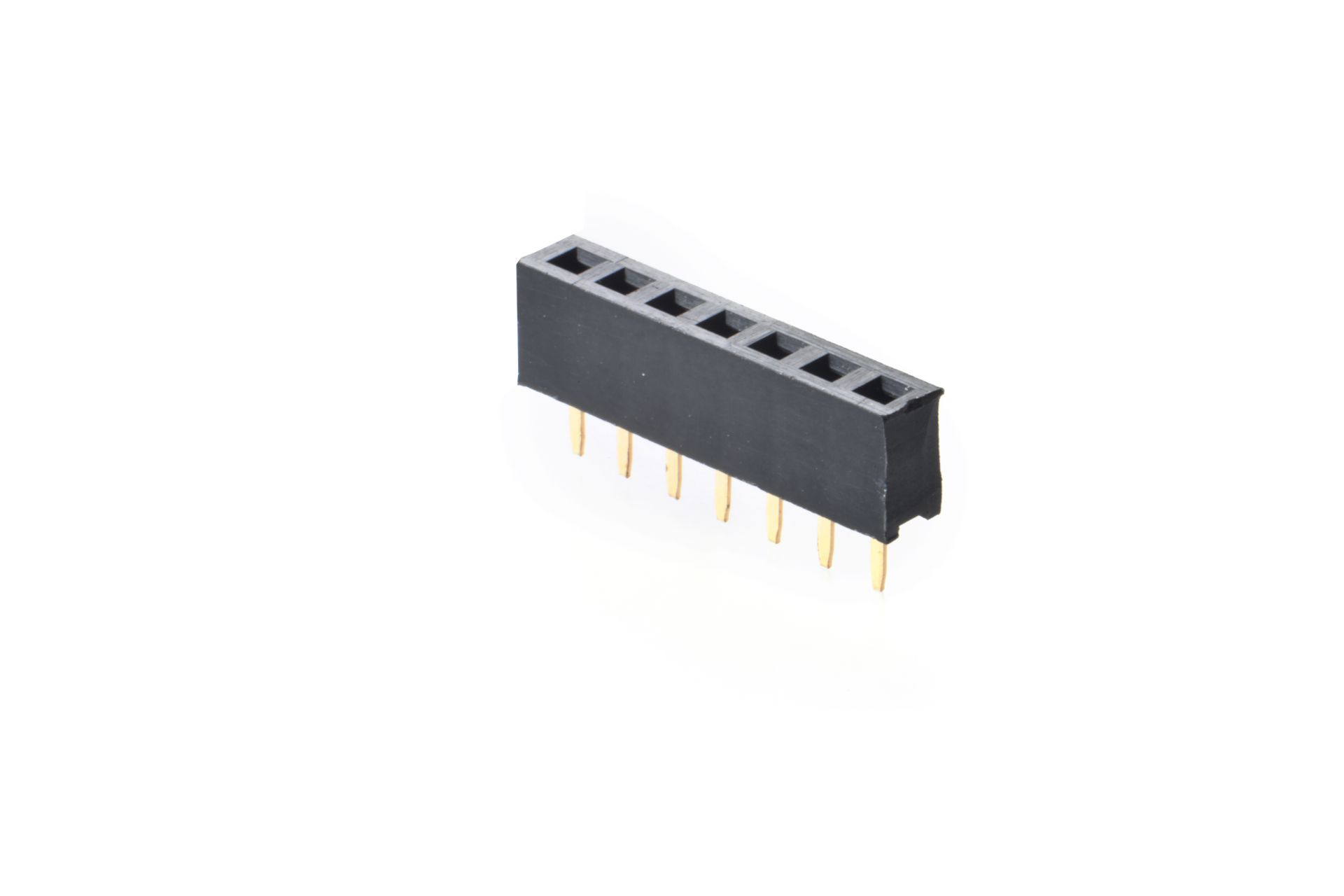

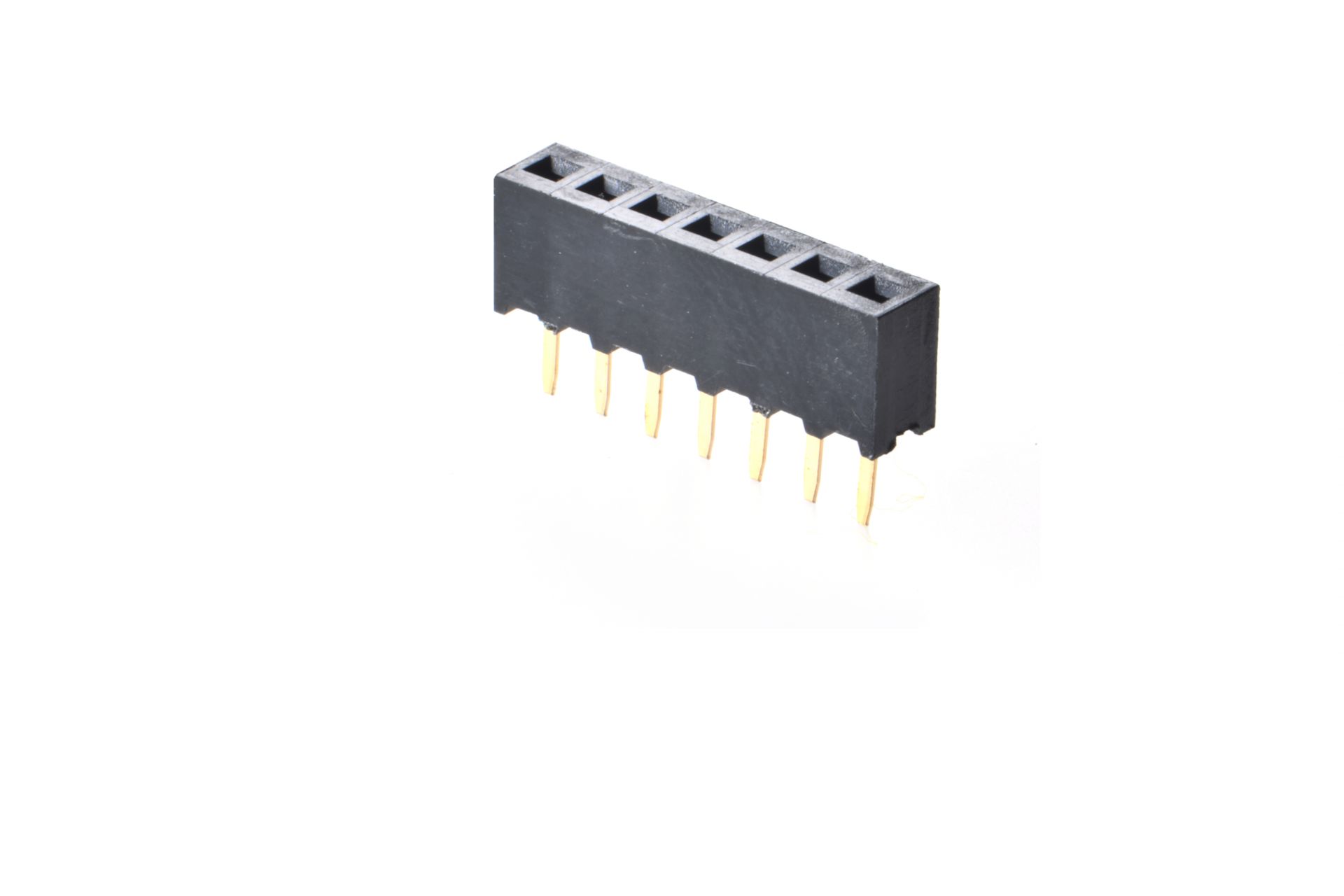

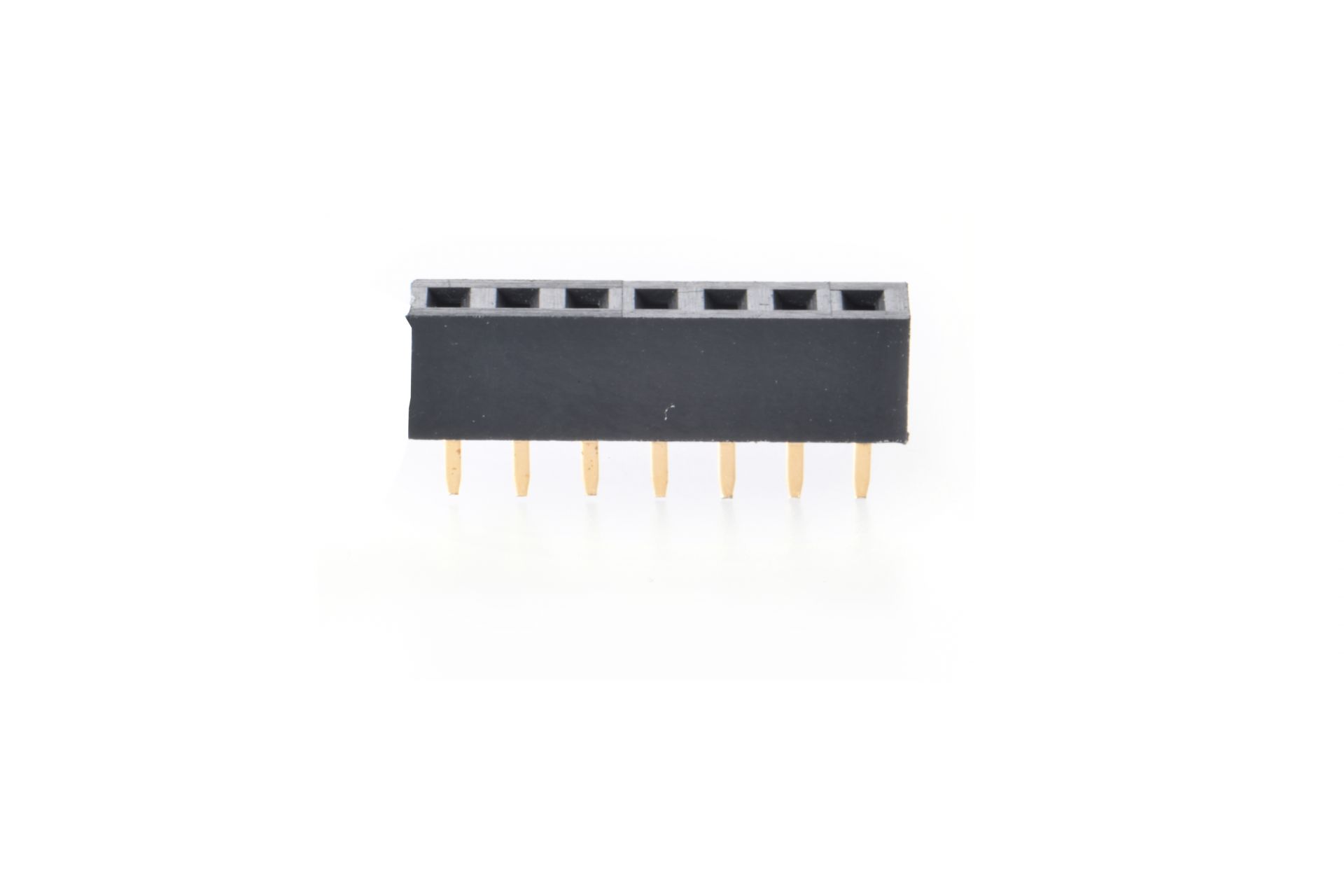

2.0mm FEMALE HEADER DIP 180° OPTIONAL INSULATOR HEIGHT

SD
40
(1)
1
(2)
X
20
(3)
H
(4)
H
(5)

Description

(1)40:4.0mm INSULATOR HEIGHT
46:4.6mm INSULATOR HEIGHT
63:6.3mm INSULATOR HEIGHT
(2)1:SINGLE ROW
2:DUAL ROW
(3)02~40:NO. OF POSITION / PER ROW
(4)WITHSTAND HIGH TEMPERATURE
(5)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
SD40-1XXX-HH	246KB	PDF	DOWNLOAD
SD40-2XXX-HH	264KB	PDF	DOWNLOAD
SD63-1XXX-HH	83KB	PDF	DOWNLOAD
SD63-2XXX-HH	250KB	PDF	DOWNLOAD
