Board & Wire Connector Pin / Female Header SEDA11

Pin / Female Header

SEDA11

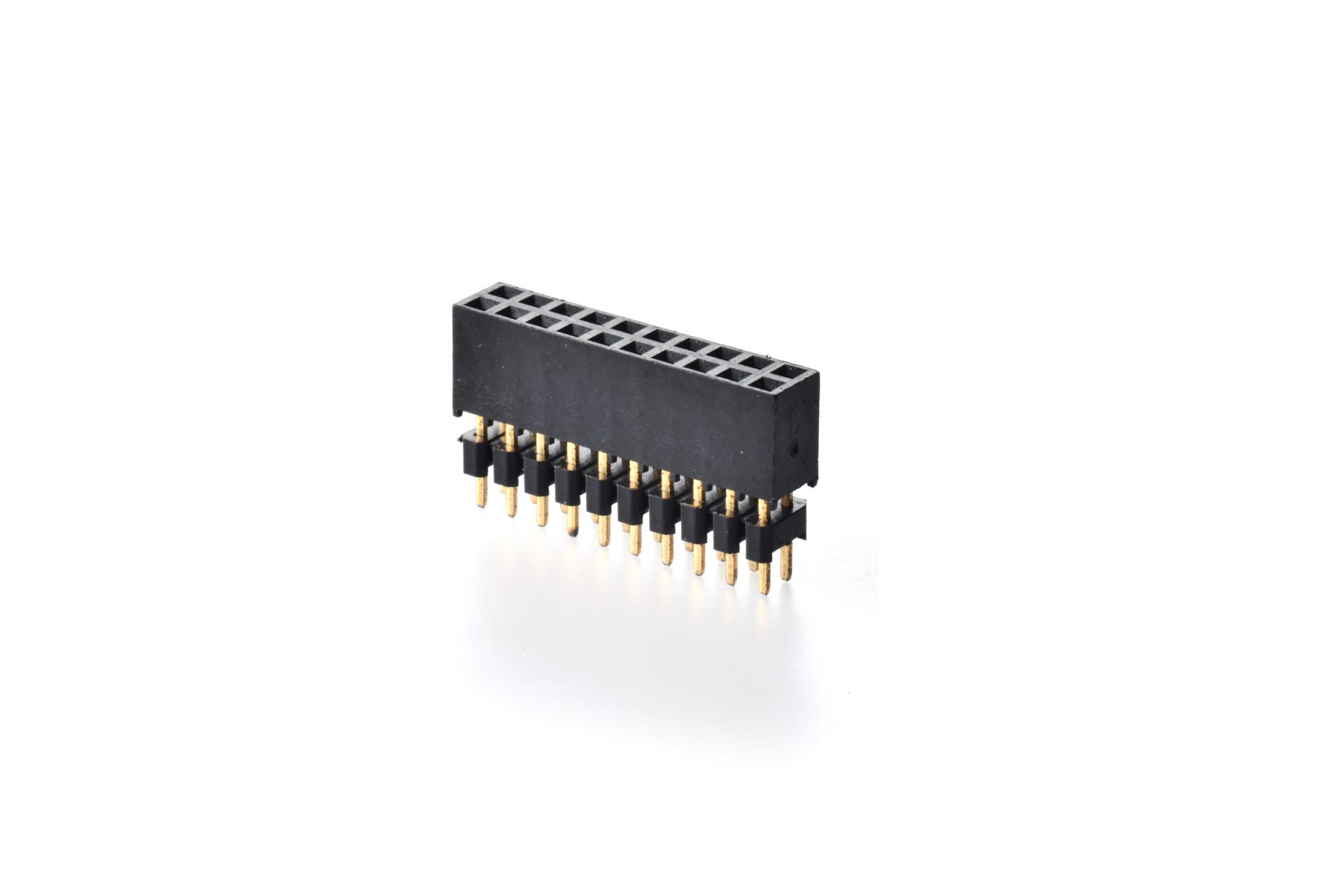

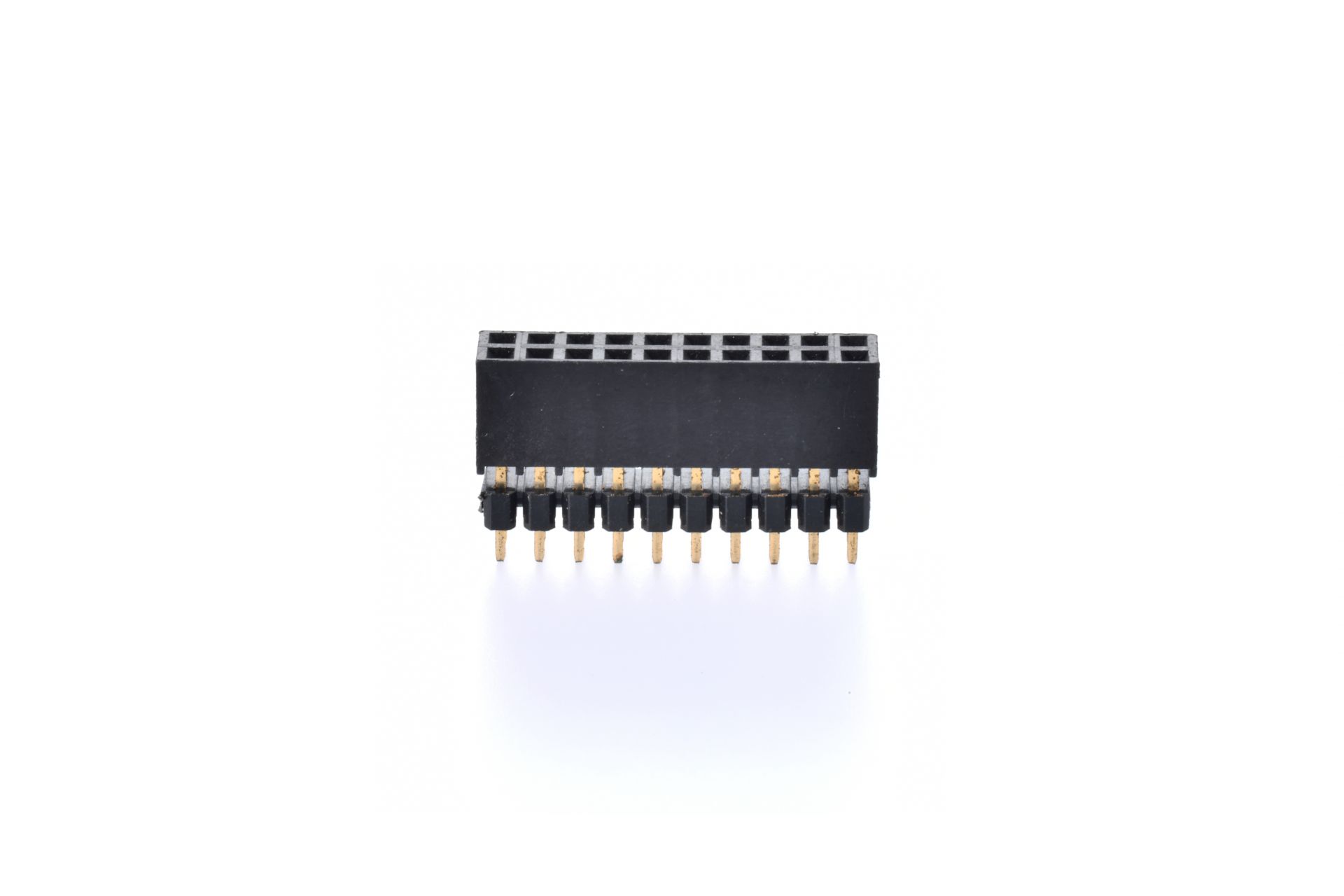

2.0mm FEMALE HEADER SPACER TYPE DIP 180° PLUS ONE PLASTIC TOTAL LENGTH=11.63mm

SEDA11
2
(1)
X
20
(2)
H
(3)
H
(4)

Description

(1)2:DUAL ROW
4:FOUR ROW
(2)02~40:NO. OF POSITION / PER ROW(DUAL ROW)
05~40:NO. OF POSITION / PER ROW(FOUR ROW)
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SEDA11-4XXXD31-HH	257KB	PDF	DOWNLOAD
	SEDA11-2XXX-HH	100KB	PDF	DOWNLOAD
