Board & Wire Connector Pin / Female Header SEDA21

Pin / Female Header

SEDA21

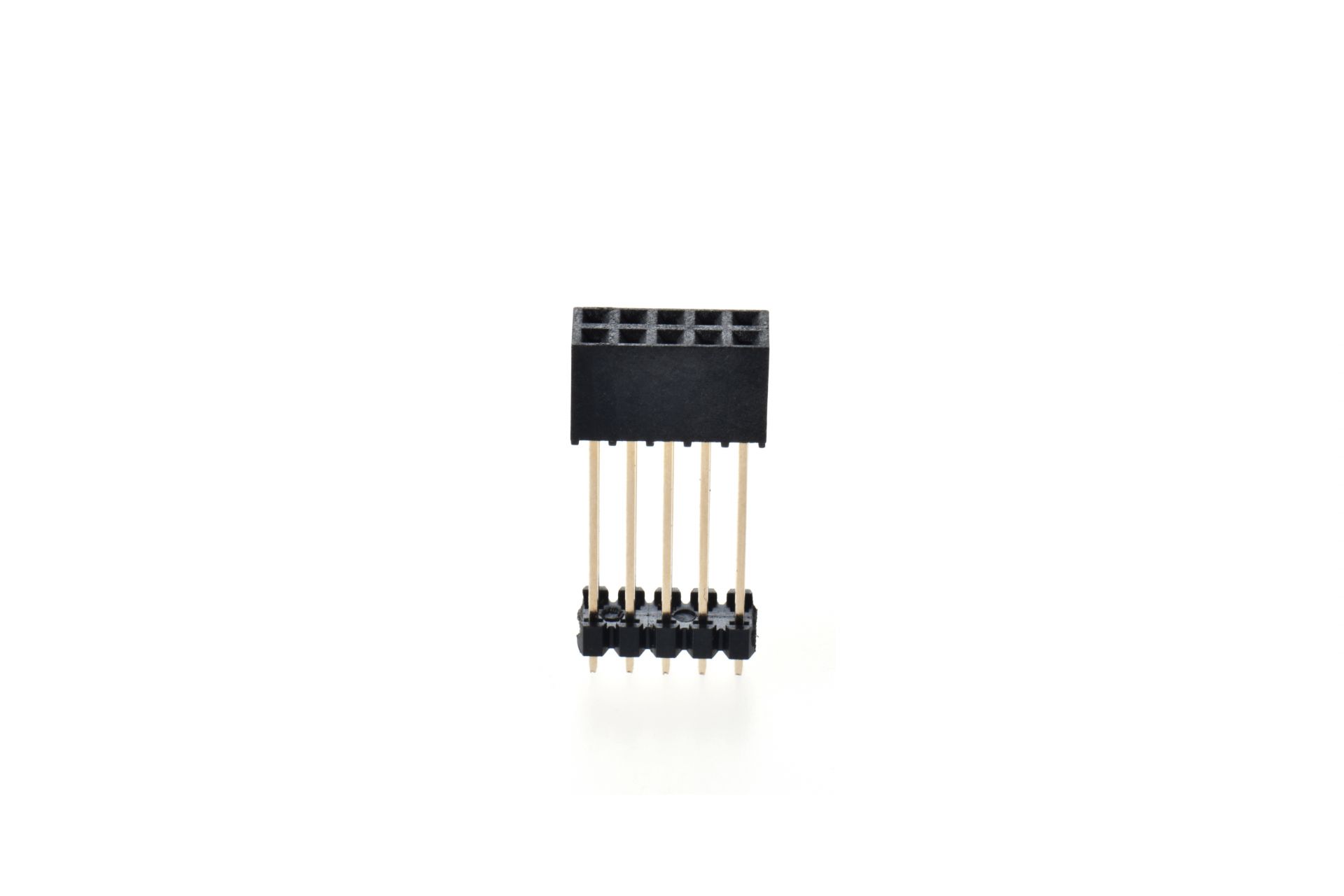

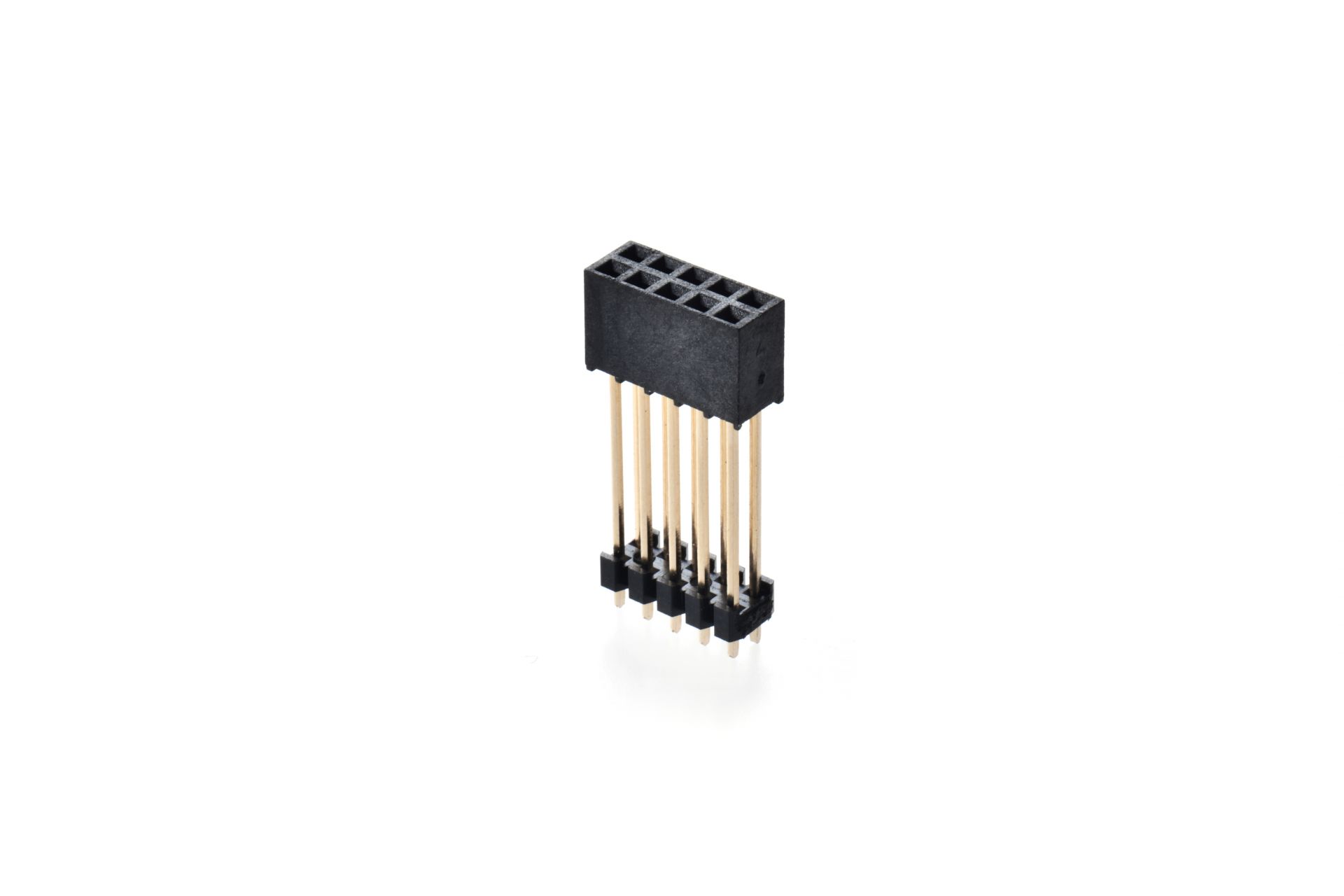

2.0mm FEMALE HEADER SPACER TYPE DIP 180° PLUS ONE PLASTIC TOTAL LENGTH=21.45mm

SEDA21
2X
30
(1)
H
(2)
H
(3)

Description

(1)02~40:NO. OF POSITION / PER ROW
(2)WITHSTAND HIGH TEMPERATURE
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SEDA21-2XXX-HH	86KB	PDF	DOWNLOAD
