Board & Wire Connector Pin / Female Header SR1/2X

Pin / Female Header

SR1/2X

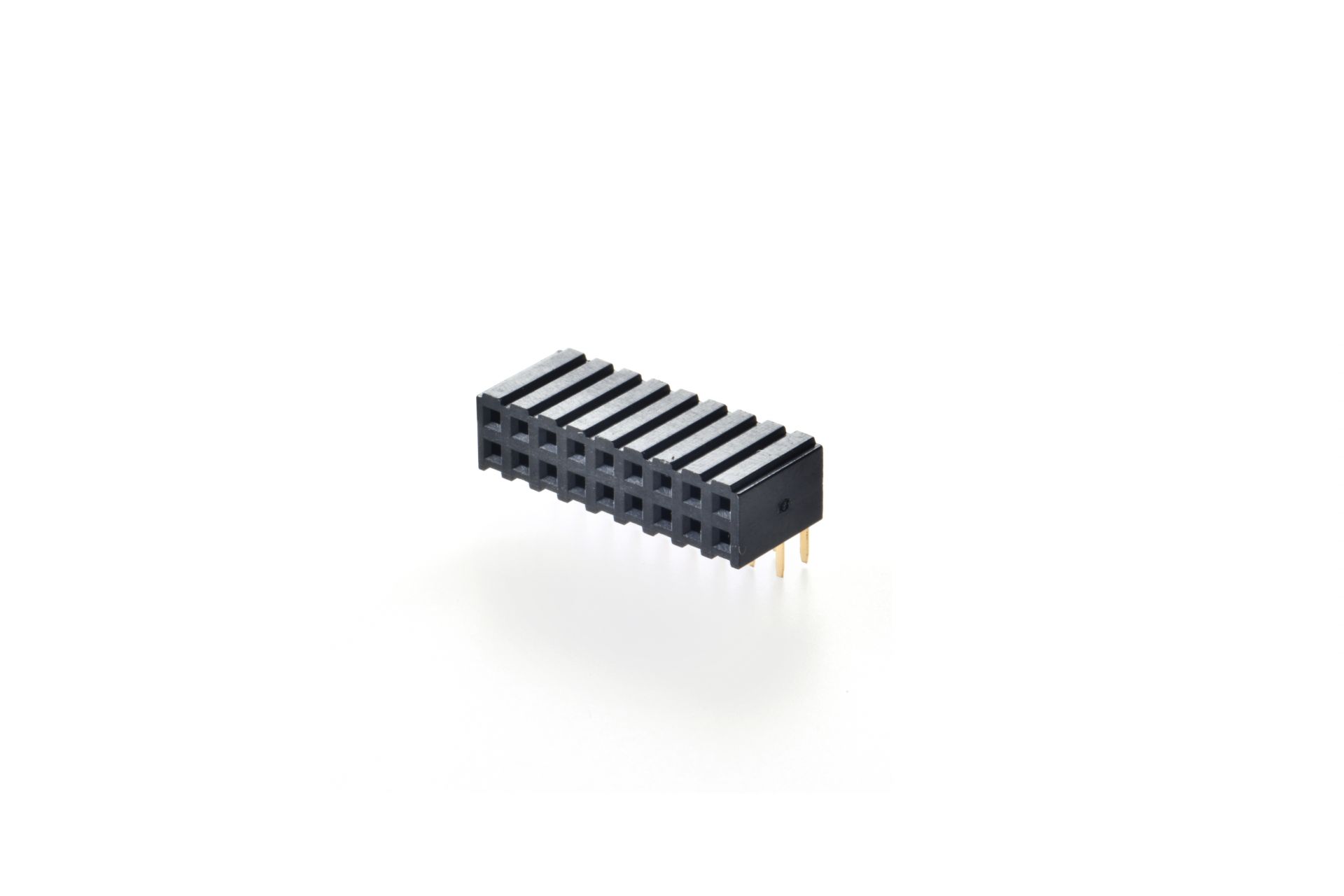

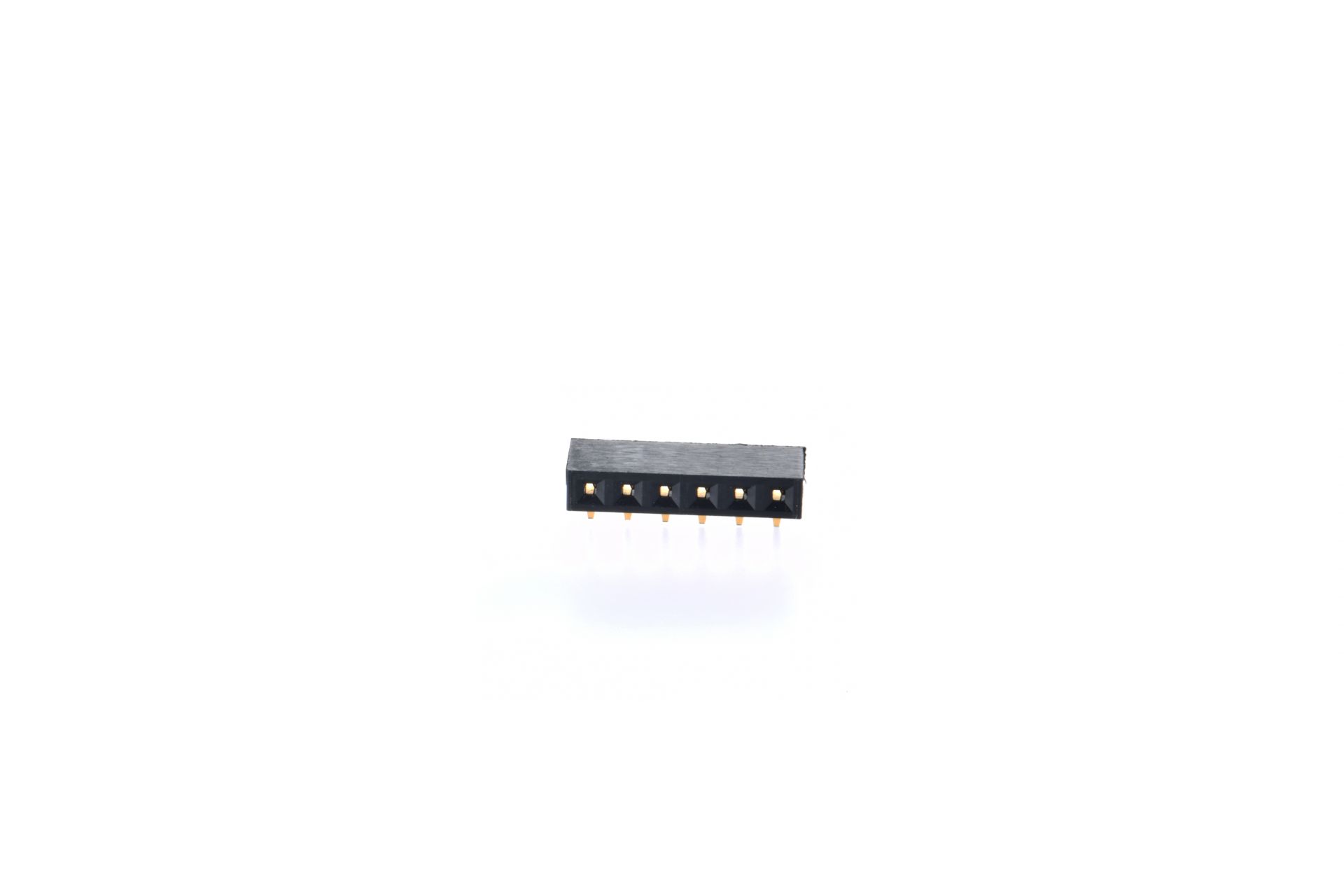

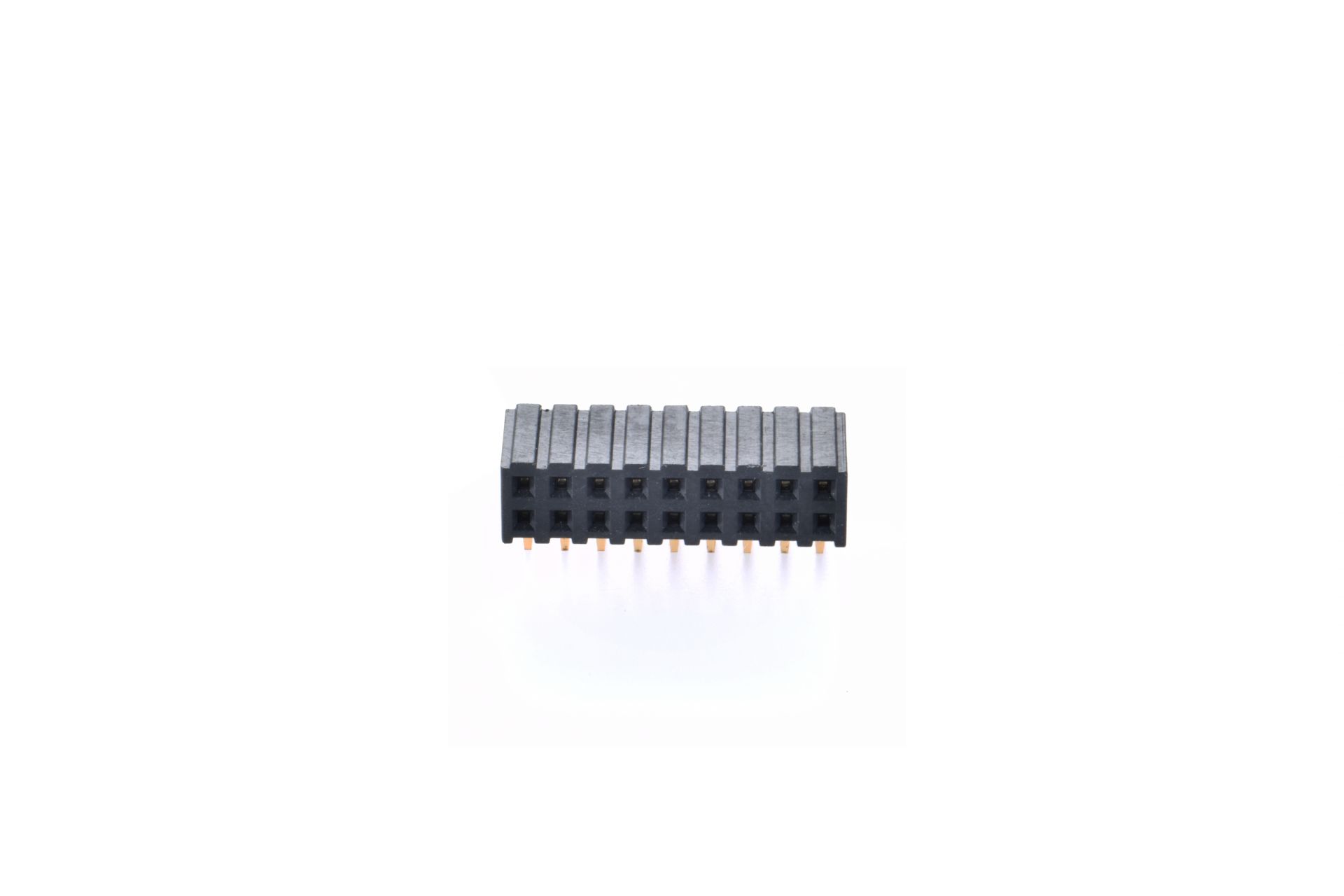

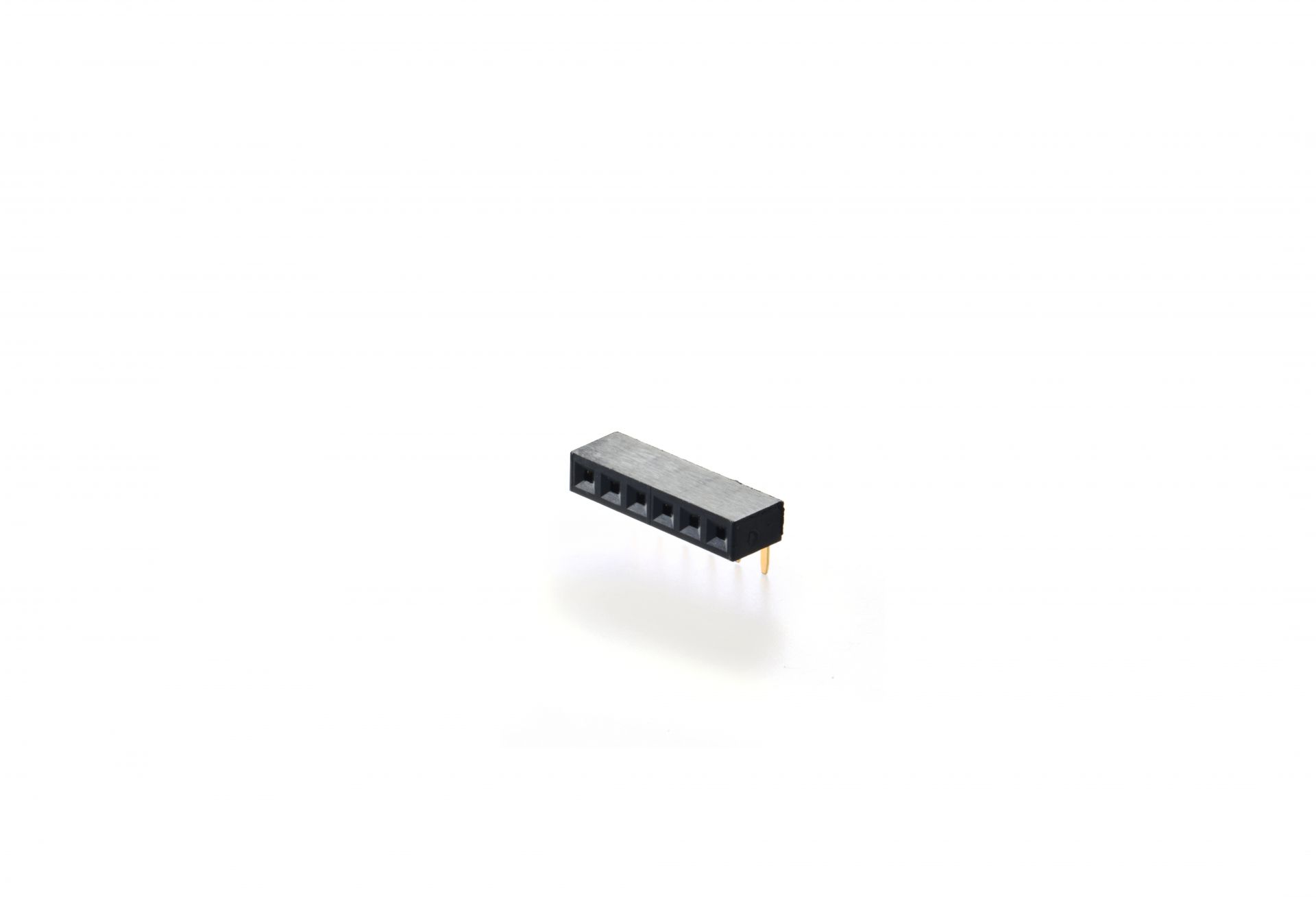

2.0mm FEMALE HEADER DIP 90°

SR
1
(1)
X
20
(2)
H
(3)
H
(4)

Description

(1)1:SINGLE ROW
2:DUAL ROW
(2)02~40:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SR1XXX-HH	98KB	PDF	DOWNLOAD
	SR2XXX-HH	86KB	PDF	DOWNLOAD
