Board & Wire Connector Swiss Round Pin Connector SS

Swiss Round Pin Connectors

SS

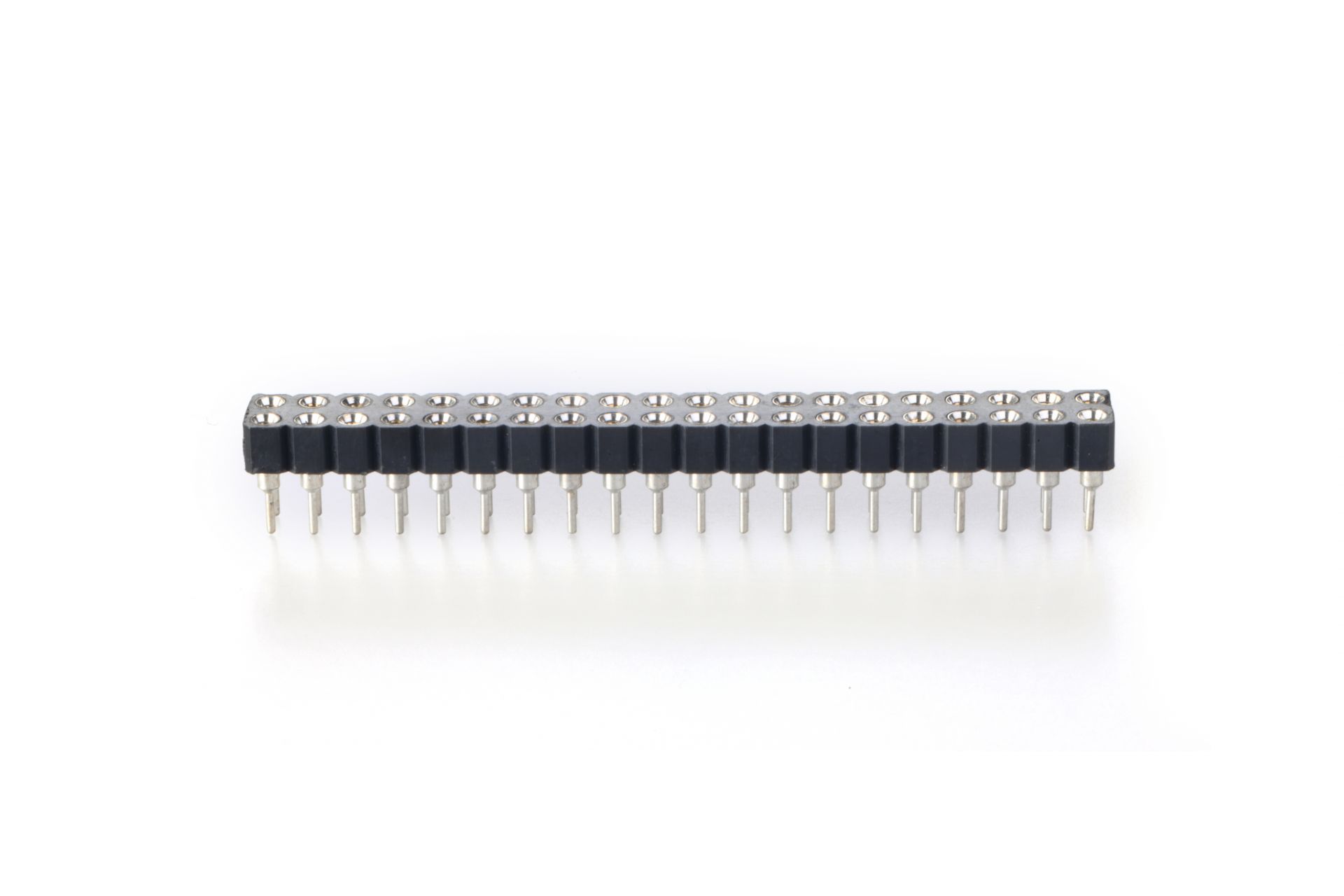

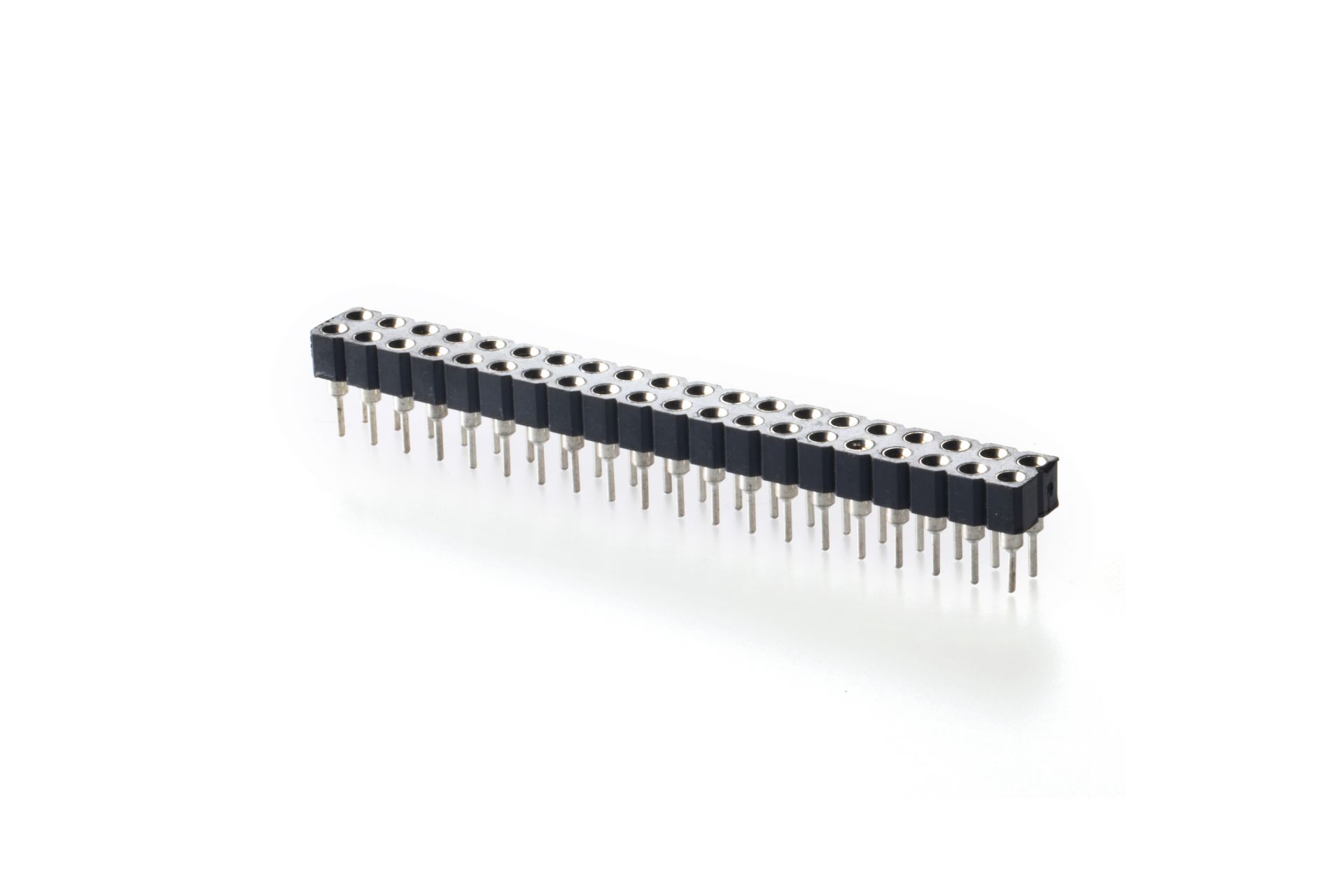

2.54mm SWISS ROUND PIN SOCKET

SS
1
(1)
X
40
(2)
T
(3)

Description

(1)1:SINGLE ROW
2:DUAL ROW
(2)02~40:NO. OF POSITION / PER ROW
(3)R:DIP RIGHT ANGLE
V:SMT STRAILGHT
A:SMT STRAILGHT A TYPE
BLANK:OUTER SLEEVE, TIN PLATED
CLIP, GOLD FLASH
G:OUTER SLEEVE, GOLD FLASH
CLIP, GOLD FLASH
T:OUTER SLEEVE, TIN PLATED
CLIP, TIN PLATED

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SS1XXX-HH	270KB	PDF	DOWNLOAD
	SS2XXX-HH	275KB	PDF	DOWNLOAD
	SS1XXXT-HH	269KB	PDF	DOWNLOAD
	SS2XXXT-HH	275KB	PDF	DOWNLOAD
	SS1XXXVLC-H	280KB	PDF	DOWNLOAD
	SS2XXXAC-H	272KB	PDF	DOWNLOAD
