Others Switch SWXXSR/V
Switch

SWXXSR/V

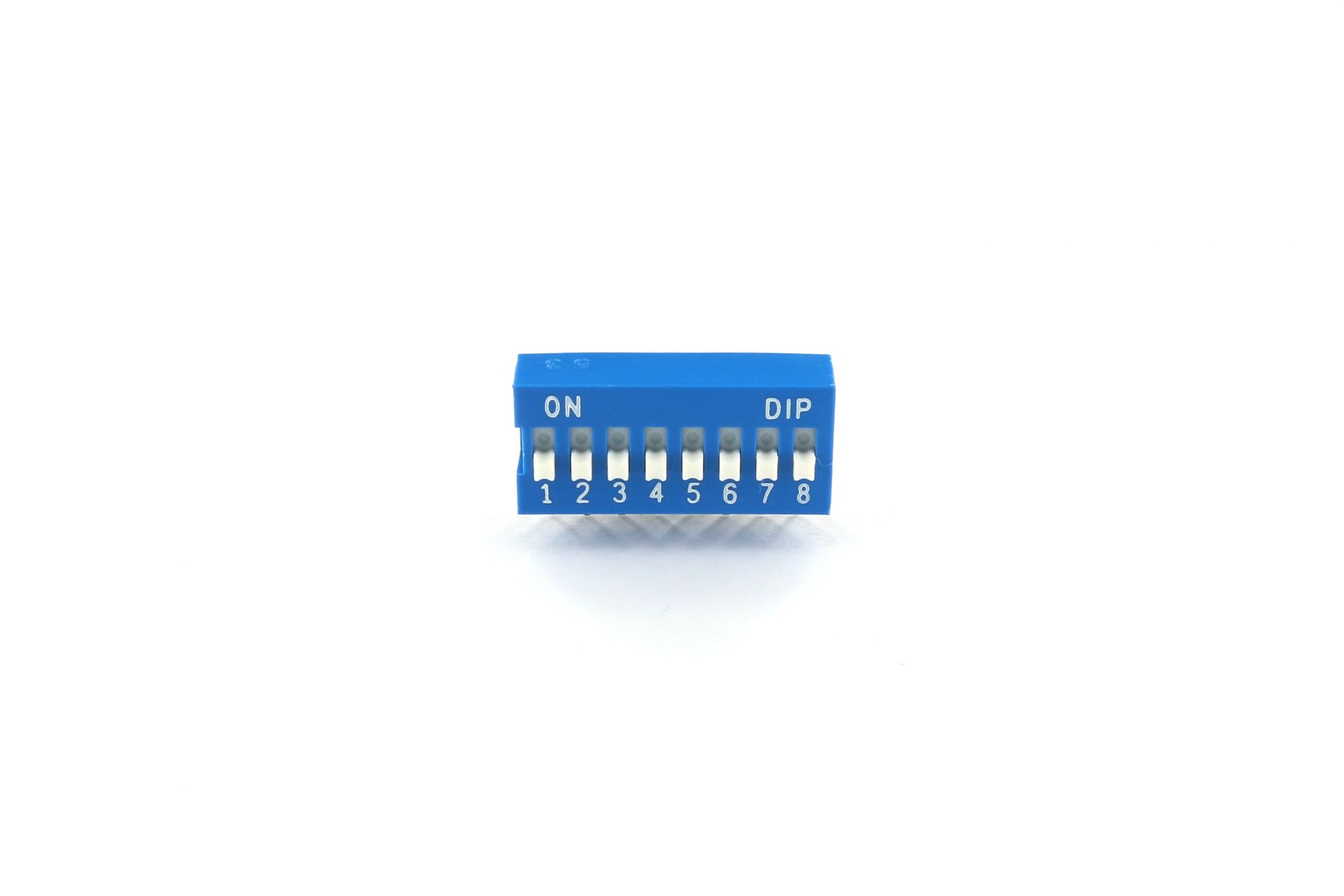

2.54mm DIP SWITCH SLIDE TYPE
  • SW

  • 08
    (1)
  • S

  • R
    (2)
  •
    RD
    (3)
  •
    H
    (4)

Description

  • (1)02,03,04,05,06~12:POSITION

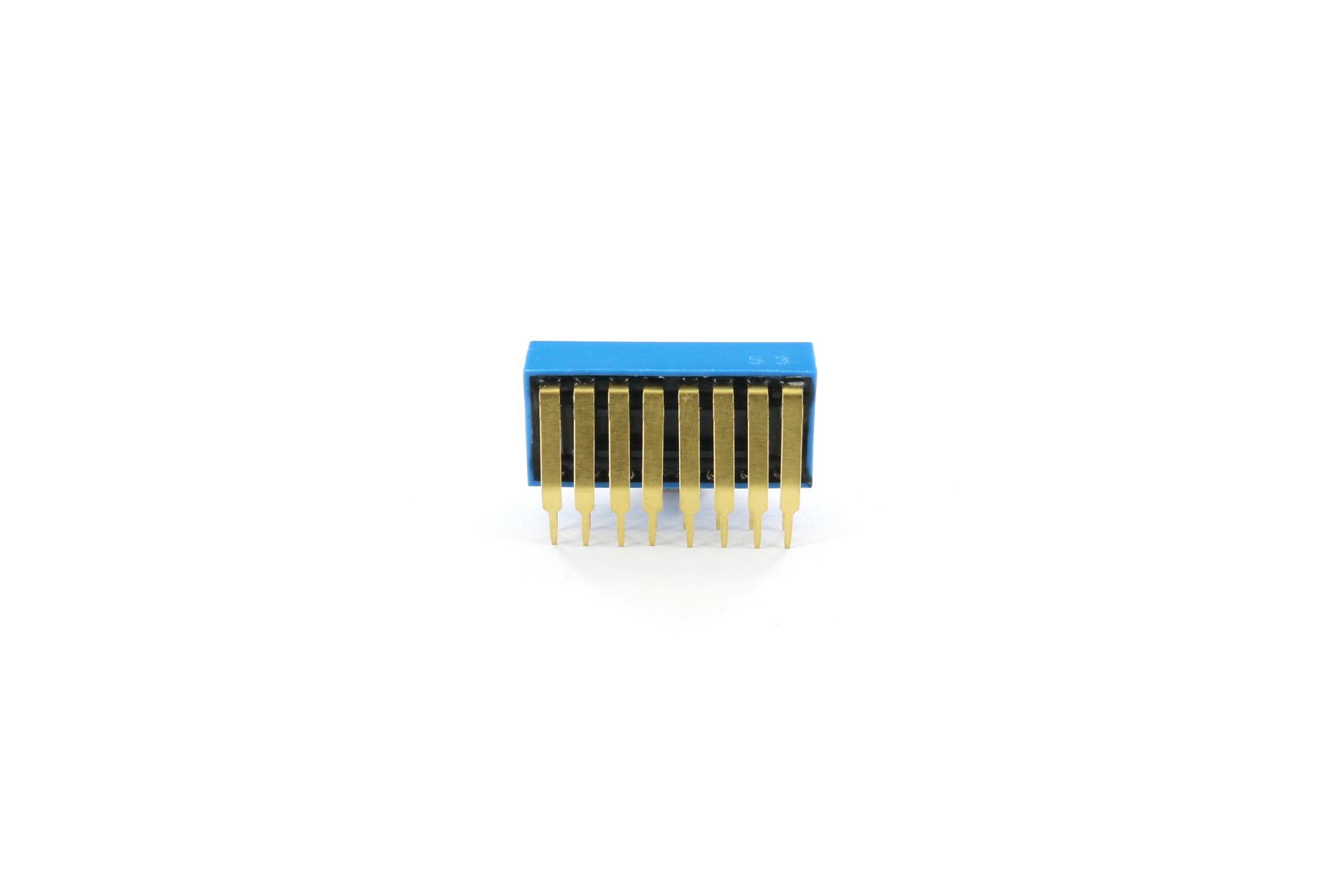

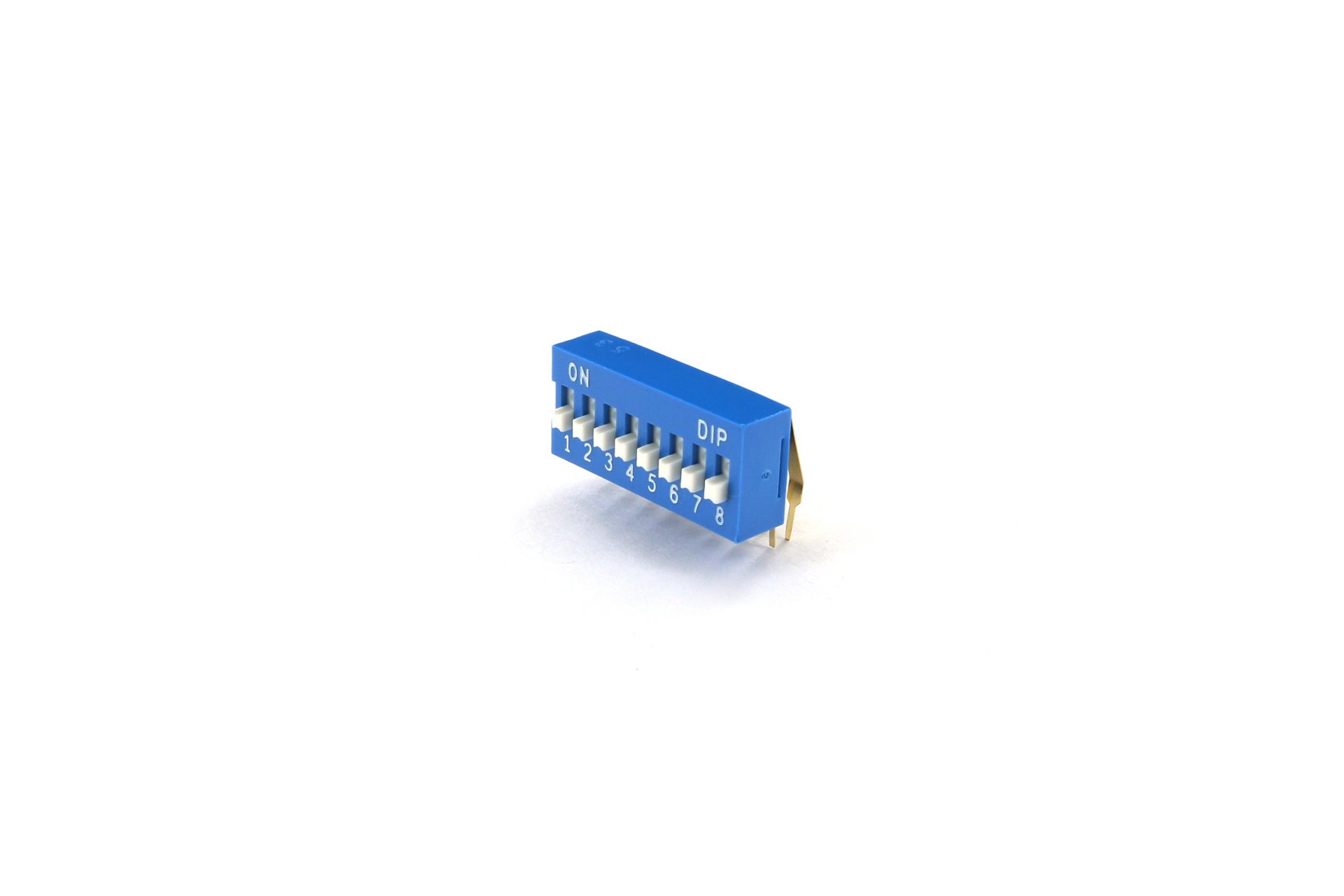

  • (2)R:DIP RIGHT ANGLE

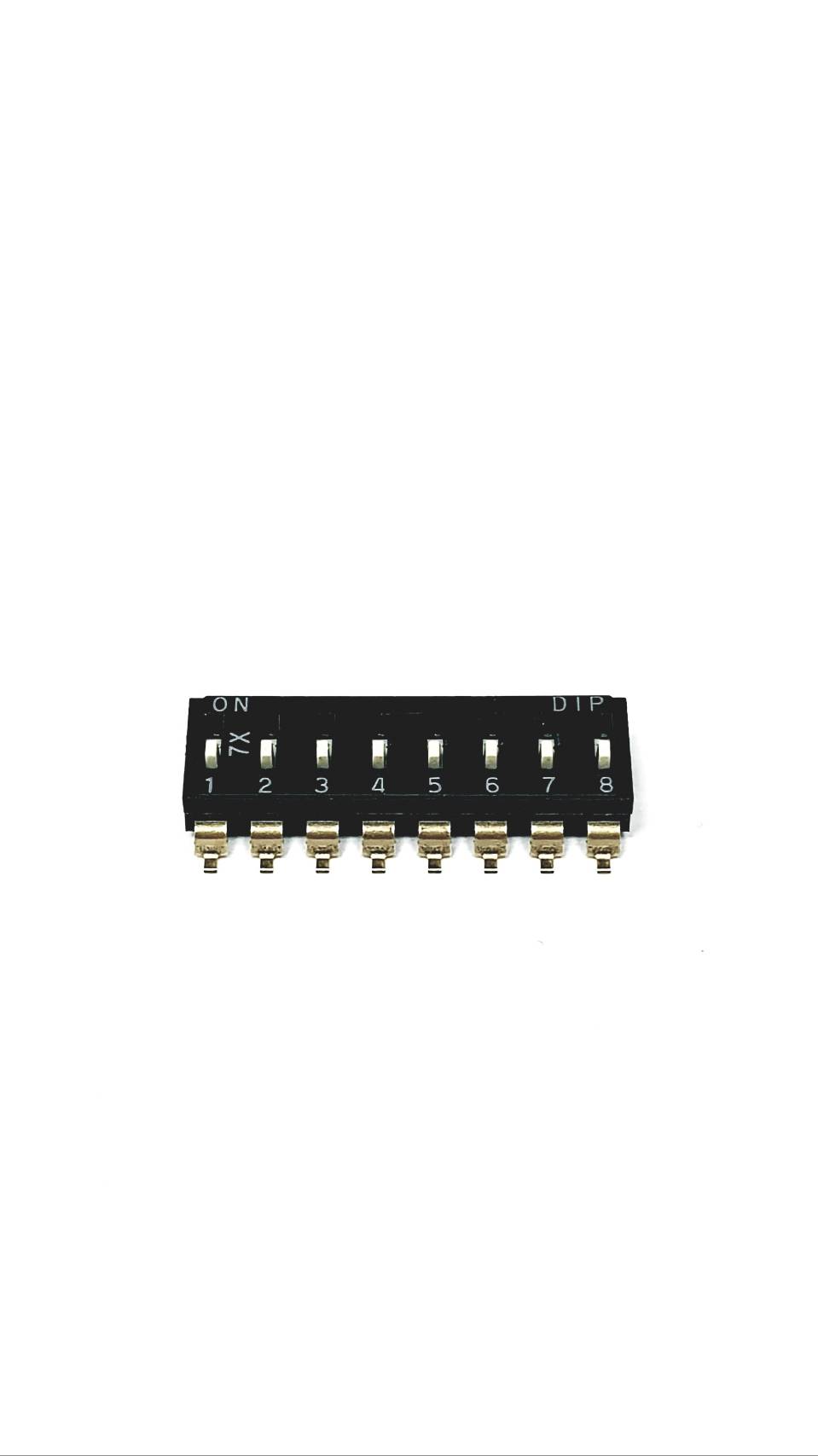

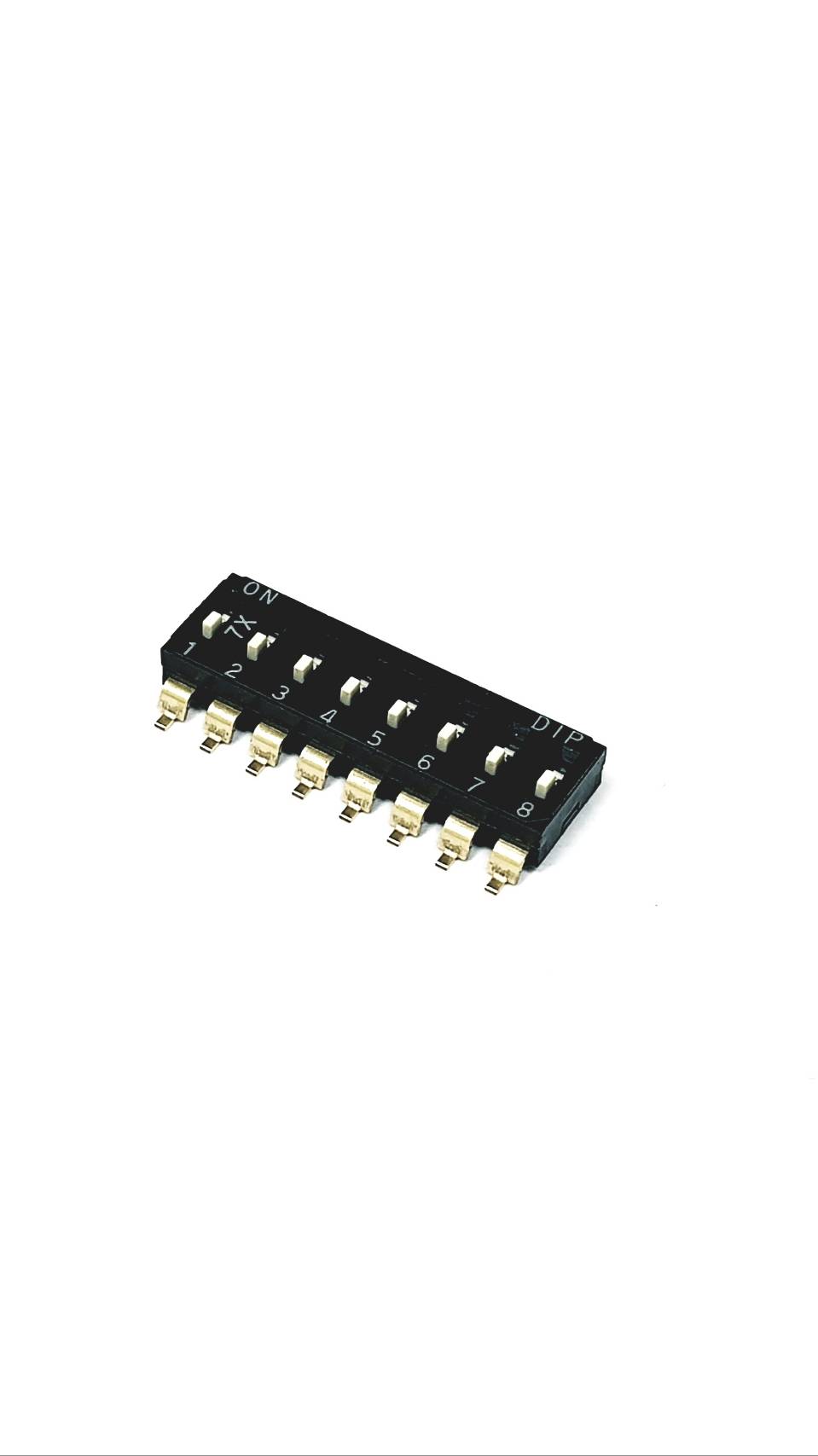

        V:SMT STRAIGHT
  • (3)BLANK:BLUE INSULATOR

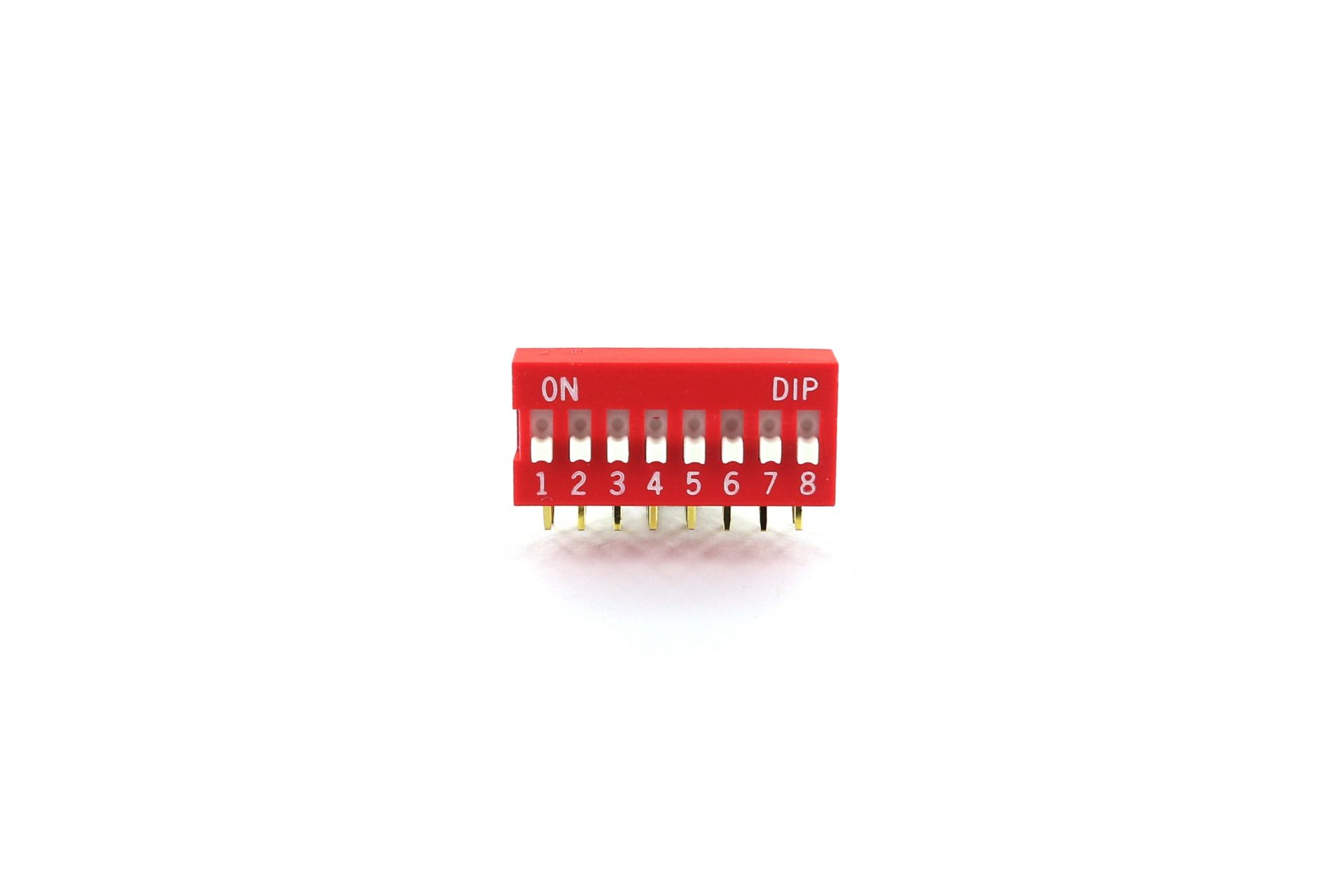

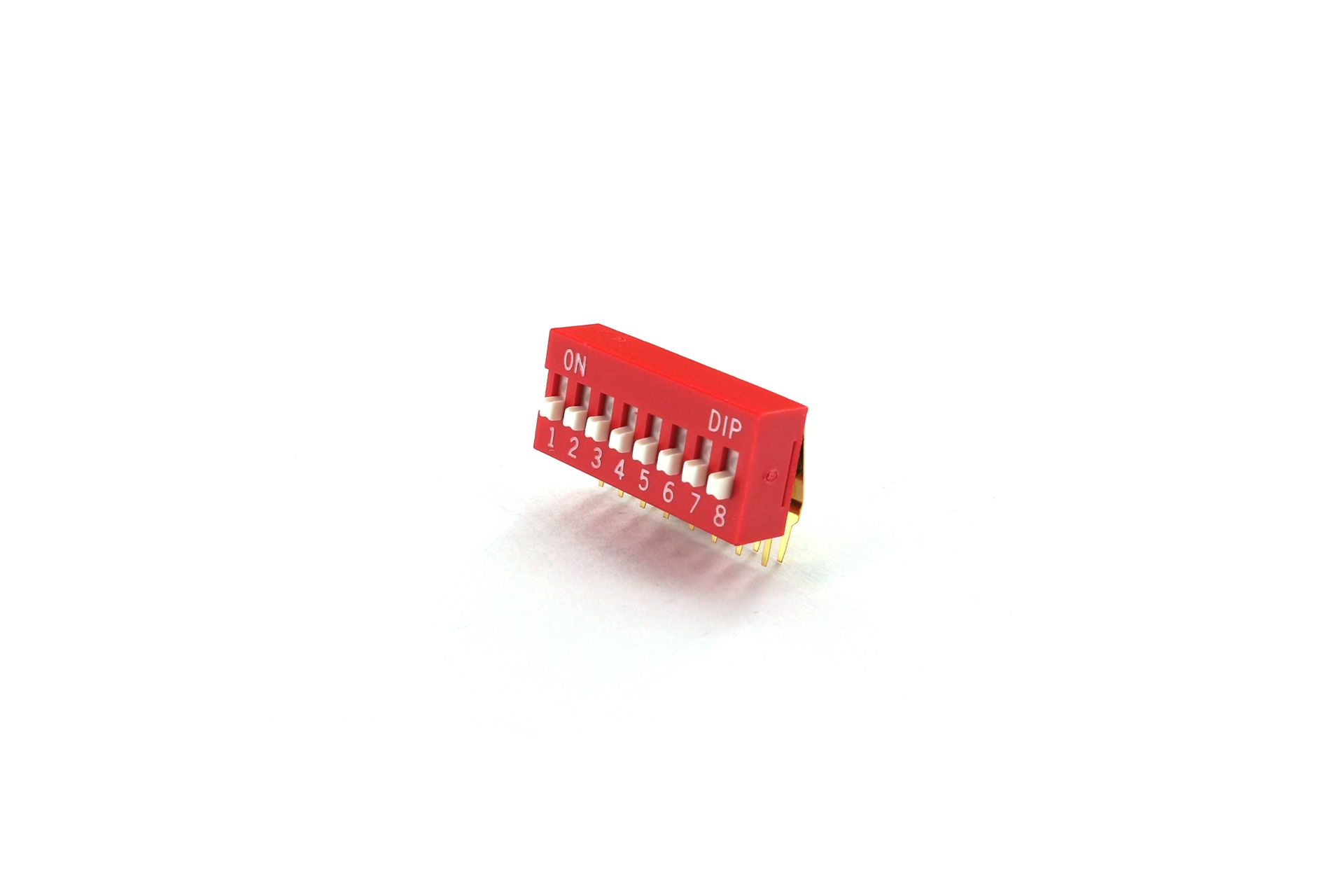

        RD:RED INSULATOR
        BK:BLACK INSULATOR
  • (4)RoHS
  • SW08SR(271)_1
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
SWXXSR-XX-H 286KB PDF
download
DOWNLOAD
SWXXSV-R9H-H 289KB PDF
download
DOWNLOAD
