Board & Wire Connector Pin / Female Header SWXXX-1/2X

Pin / Female Header

SWXXX-1/2X

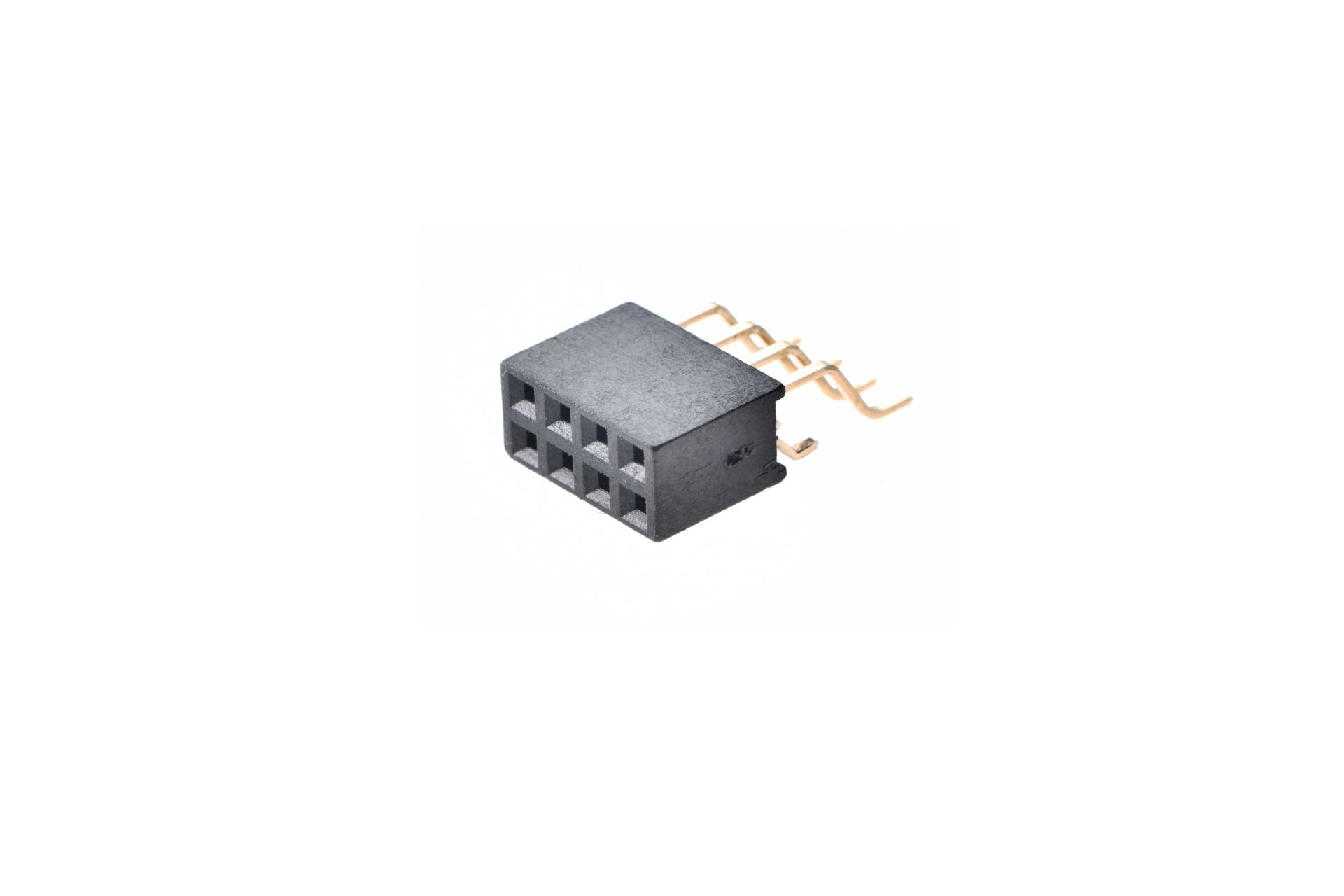

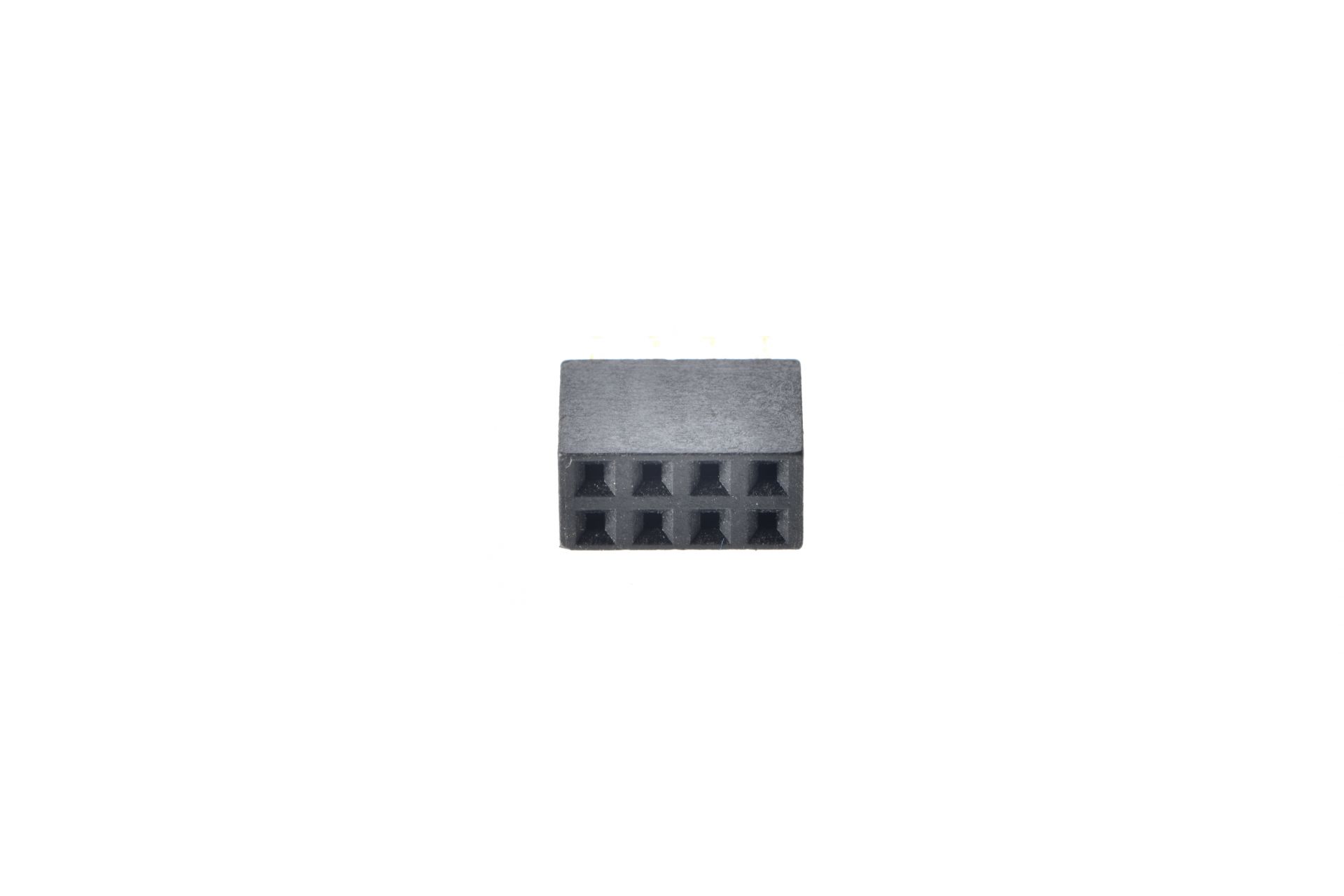

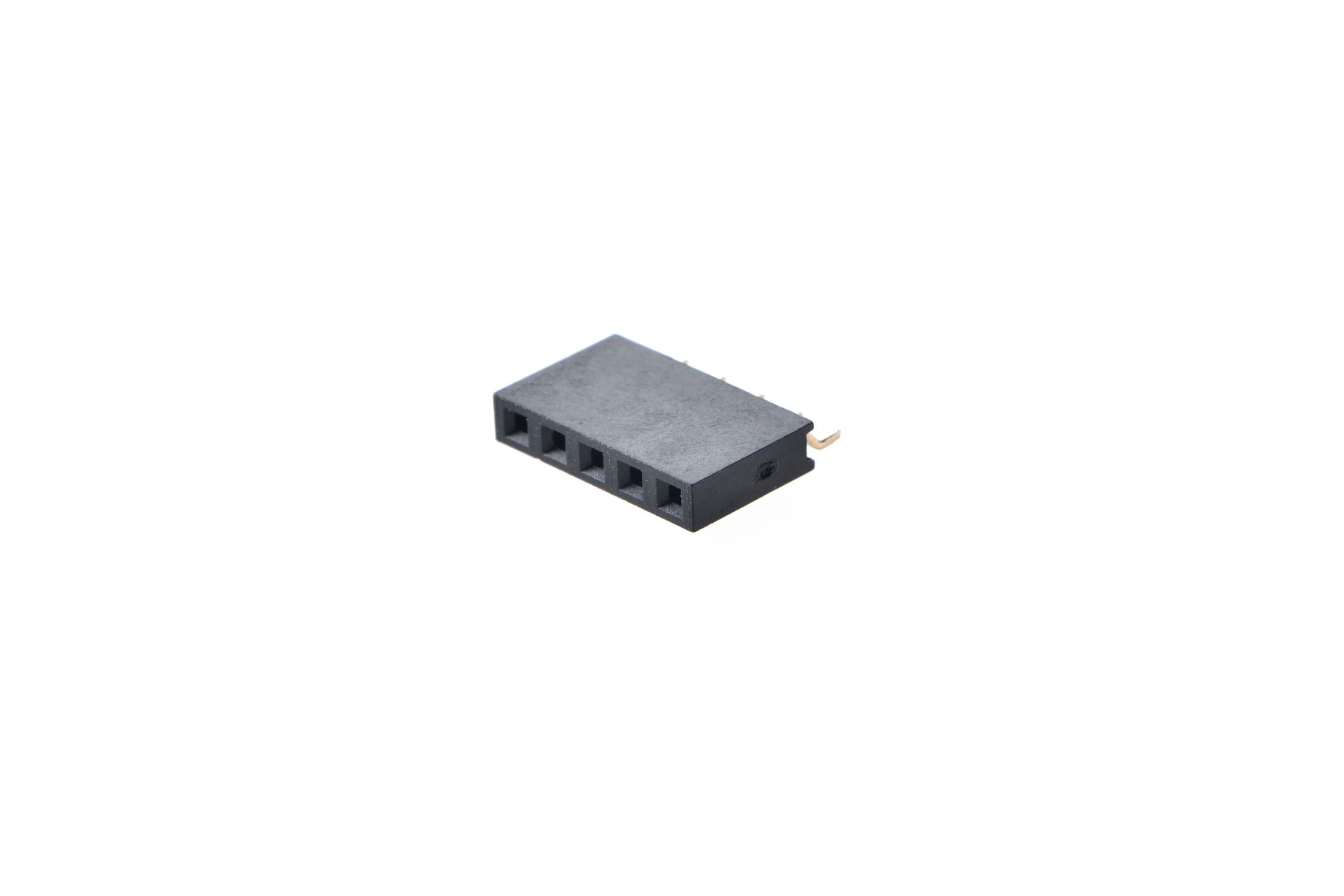

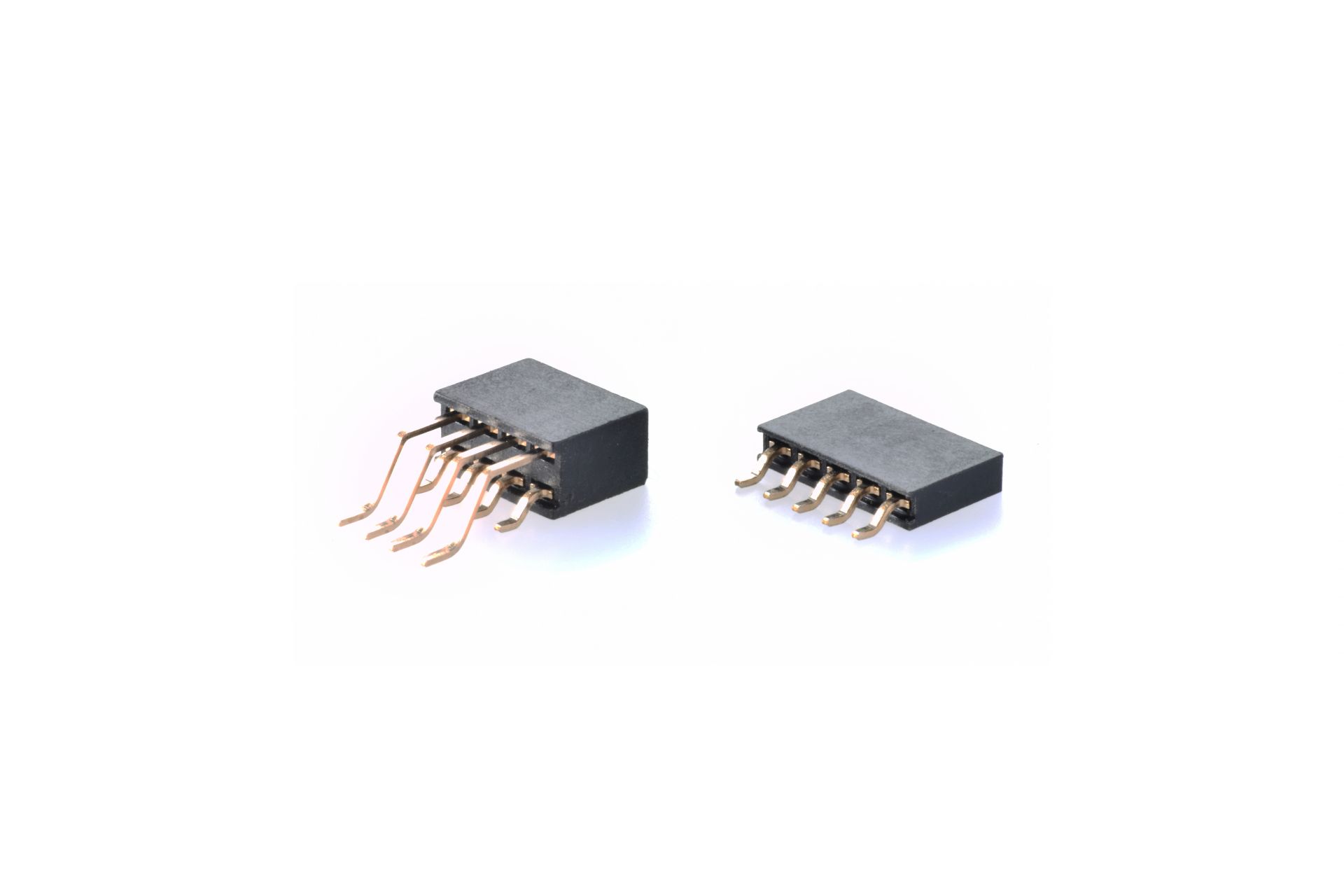

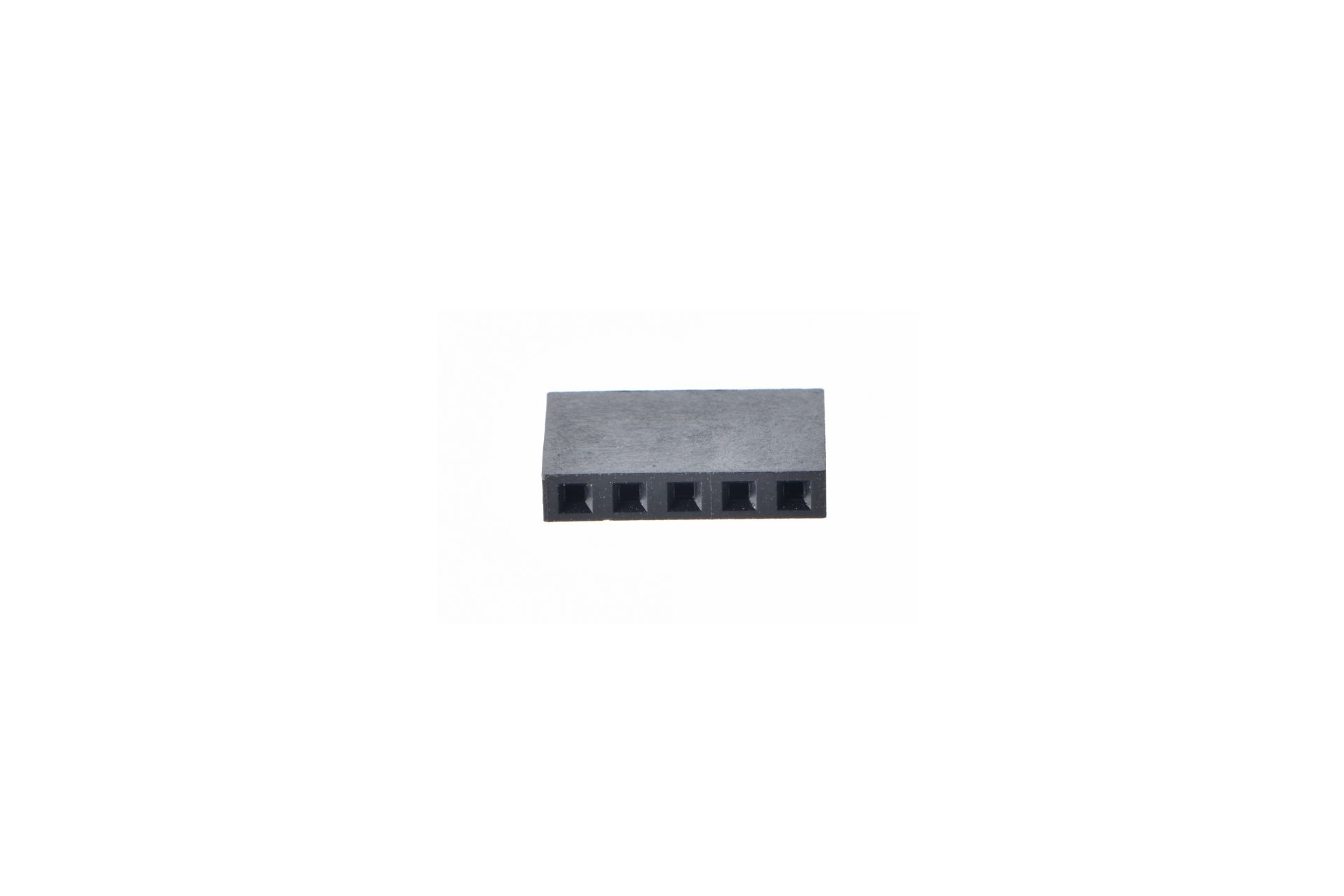

2.0mm FEMALE HEADER SMT 90° WITHOUT POST

SWX
43
(1)
1
(2)
X
20
(3)
H
(4)

Description

(1)43:4.3mm INSULATOR HEIGHT
63:6.3mm INSULATOR HEIGHT
(2)1:SINGLE ROW
2:DUAL ROW
(3)02~40:NO. OF POSITION/PER ROW
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	SWX63-1XXX-H	278KB	PDF	DOWNLOAD
	SWX63-2XXX-H	280KB	PDF	DOWNLOAD
