Terminal Block
TB51

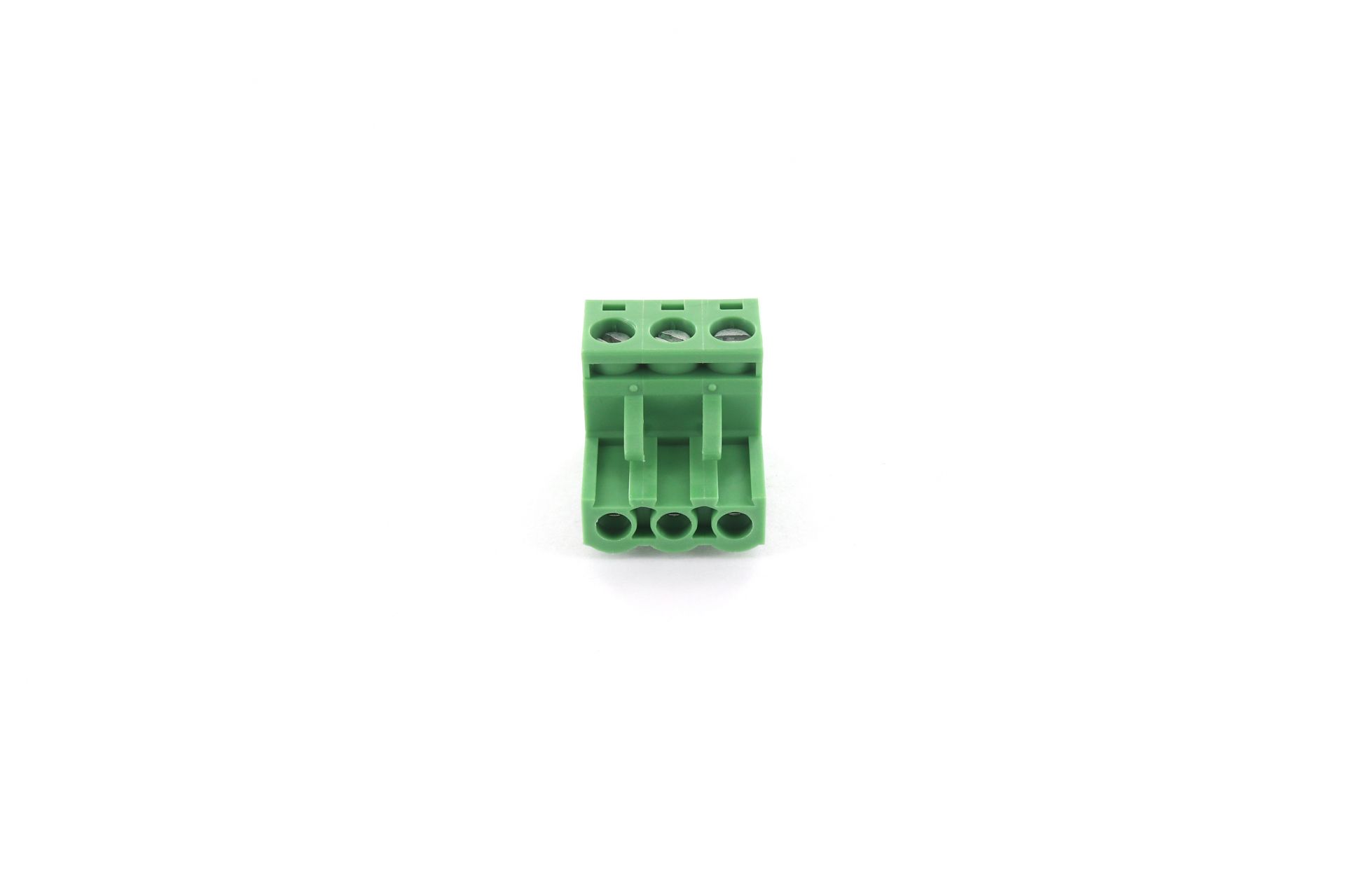

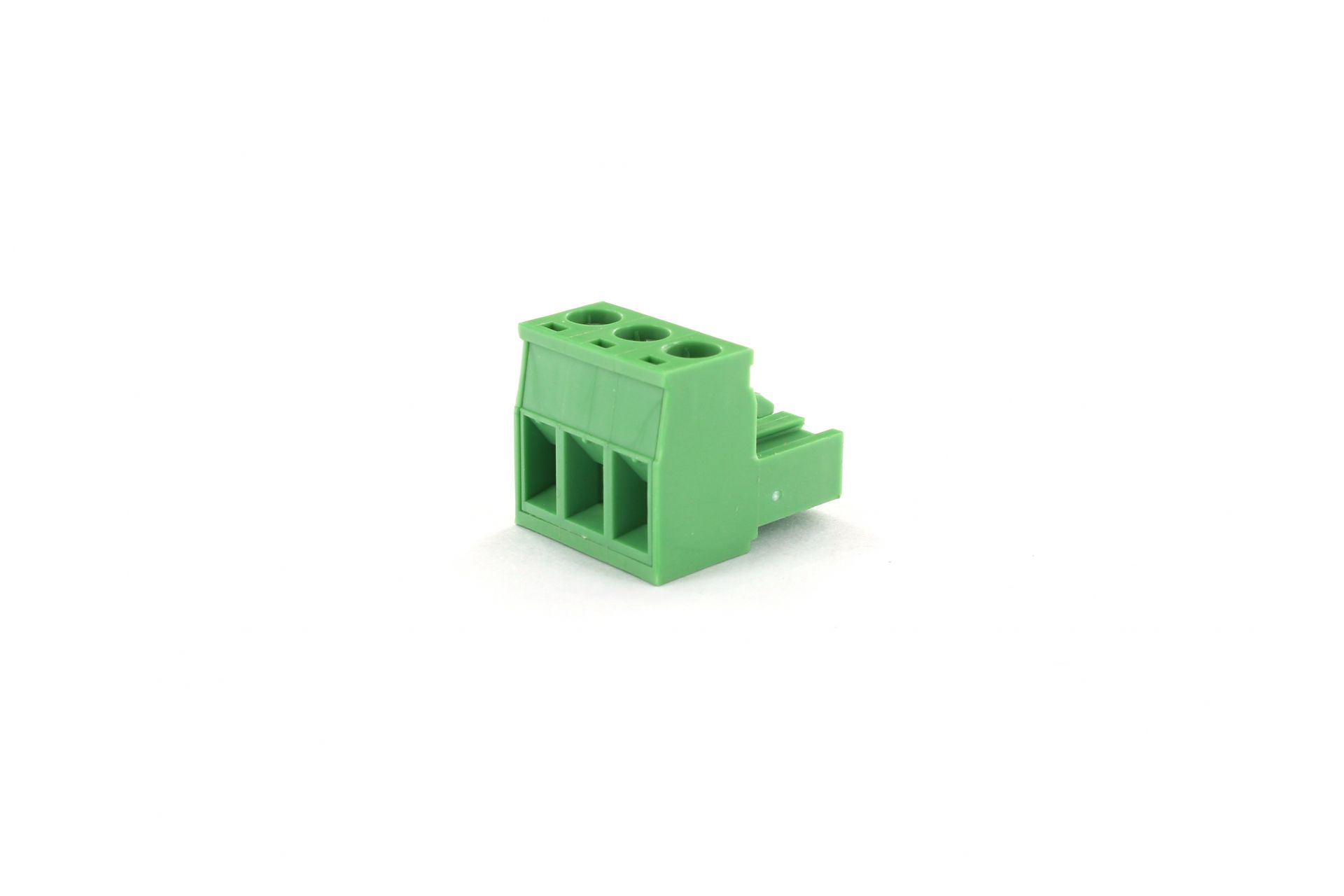

5.08mm TERMINAL BLOCK PLUGGABLE RISING CLAMP TYPE
-
TB51
-
08(1)
-
SW(2)
-
S26R(3)
-
H(4)
Description
-
(1)02~24:NO. OF POSITION
-
(2)PD:MALE DIP STRAIGHT OPEN END

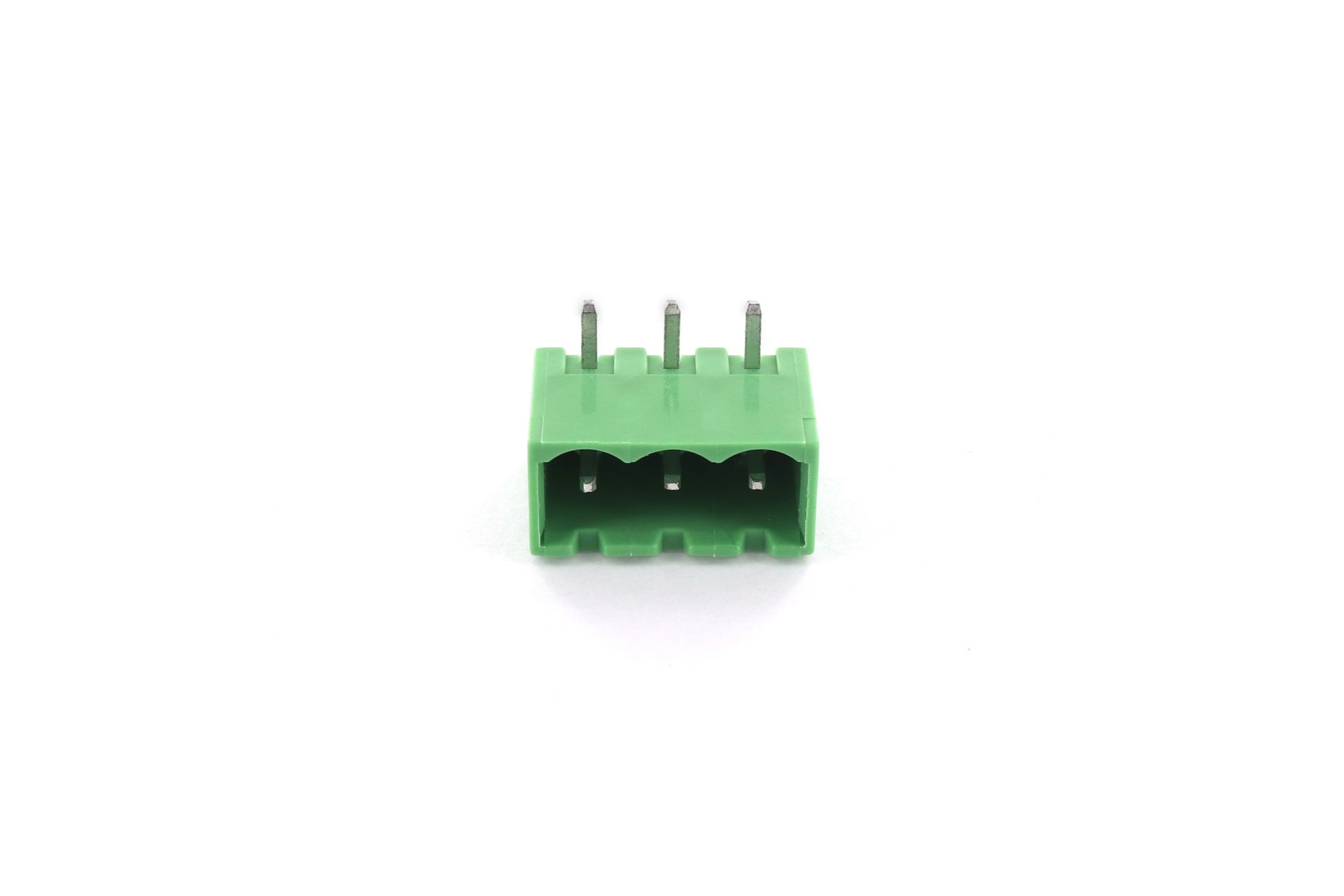

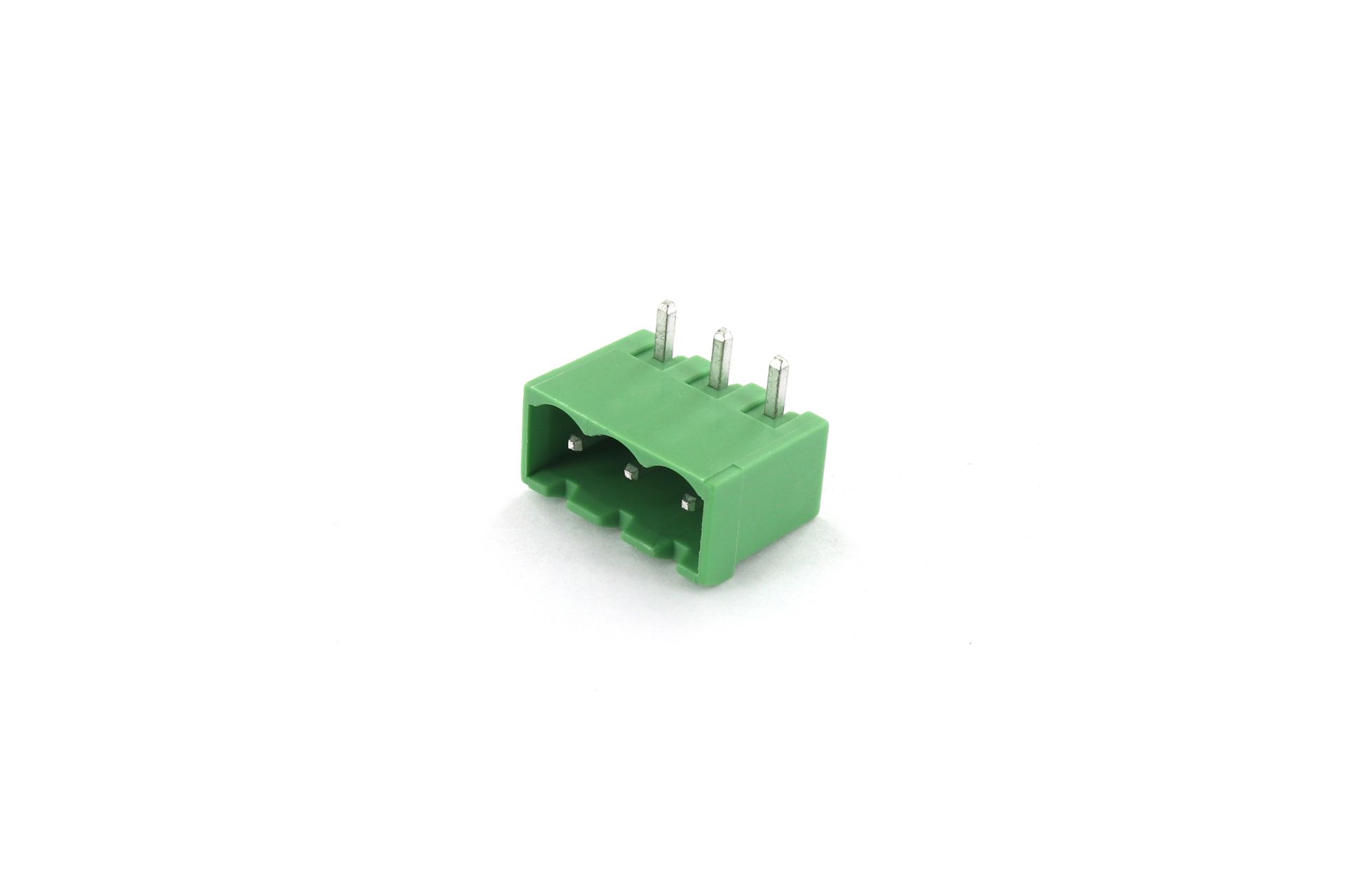

PR:MALE DIP RIGHT ANGLE OPEN END
PDB:MALE DIP STRAIGHT CLOSE END
PRB:MALE DIP RIGHT ANGLE CLOSE END
PDBE:MALE DIP STRAIGHT CLOSE END WITH MOUNTING EAR
PRBE:MALE DIP RIGHT ANGLE CLOSE END WITH MOUNTING EAR

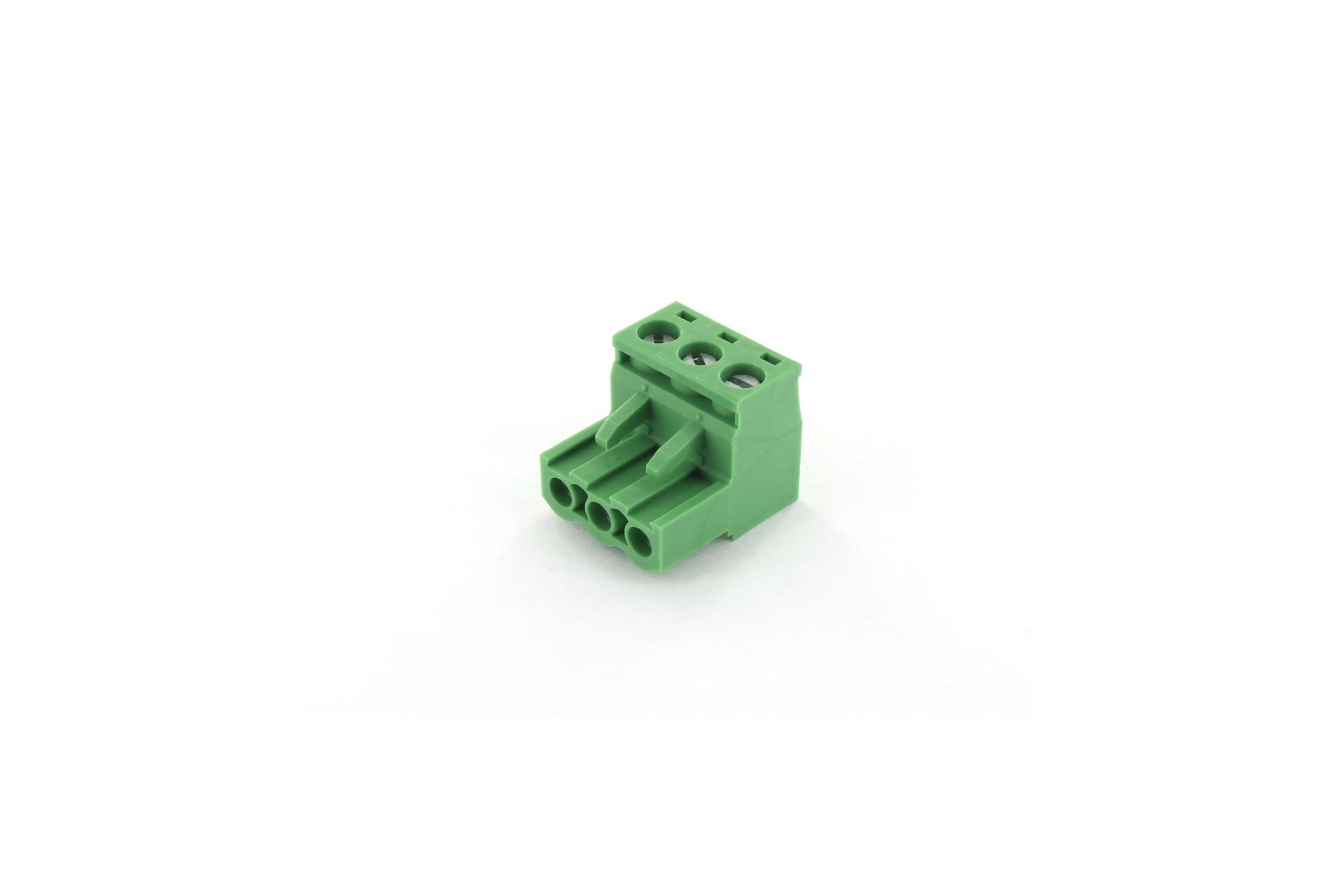

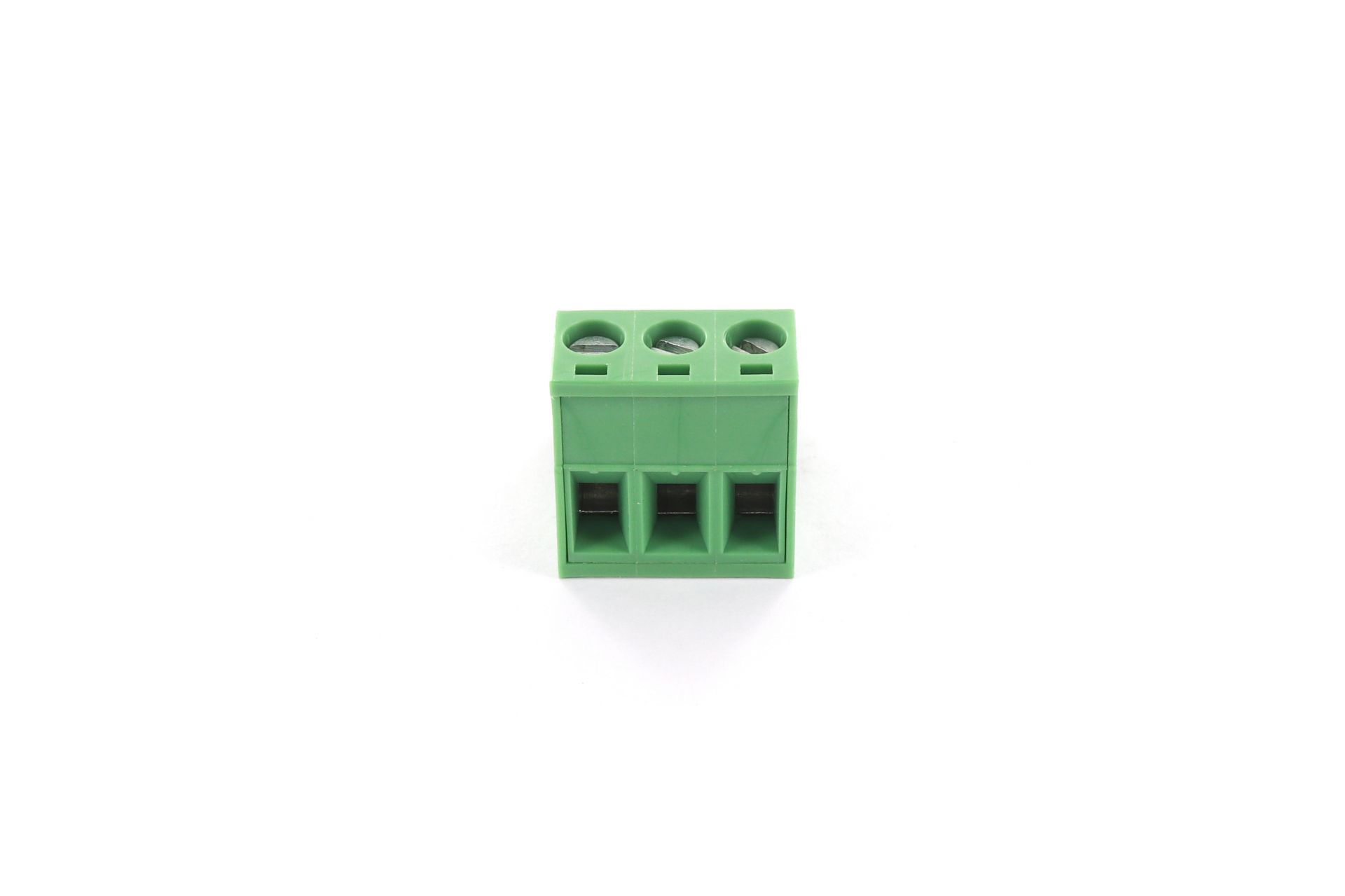

SW:FEMALE SCREW TYPE
SWE:FEMALE SCREW TYPE WITH MOUNTING EAR -
(3)S26:STRAIGHT HEIGHT=26mm HOOK
S26R:STRAIGHT HEIGHT=26mm REVERSE HOOK -
(4)RoHS
INQUIRY
DOWNLOADDOWNLOAD
| PART NUMBER | SIZE | FILE TYPE | DRAWINGS | |
|---|---|---|---|---|
| TB51XXPD-H | 85KB |
|
||
| TB51XXPR-XX-H | 266KB |
|
||
| TB51XXPDB-XX-H | 93KB |
|
||
| TB51XXPRB-XX-H | 268KB |
|
||
| TB51XXPDBE-H | 259KB |
|
||
| TB51XXPRBE-XX-H | 89KB |
|
||
| TB51XXSW-XX-H | 260KB |
|
||
| TB51XXSWE-H | 266KB |
|
||
| TB51XXSW-S26-H | 271KB |
|
