Others Terminal Block TBDXX
Terminal Block

TBDXX

TERMINAL BLOCK RISING CLAMP TYPE DOUBLE DECK DIP 180
  • TBD

  • 38
    (1)
  • 06
    (2)
  • D

  • 16
    (3)
  •
    H
    (4)
  •

Description

  • (1)38:PITCH 3.81mm
        50:PITCH 5.0mm
        51:PITCH 5.08mm
  • (2)02~24:NO. OF POSITION/PER ROW
  • (3)16:HEIGET:16.2mm
        19:HEIGET:19.1mm
        25:HEIGET:25.5mm
  • (4)RoHS

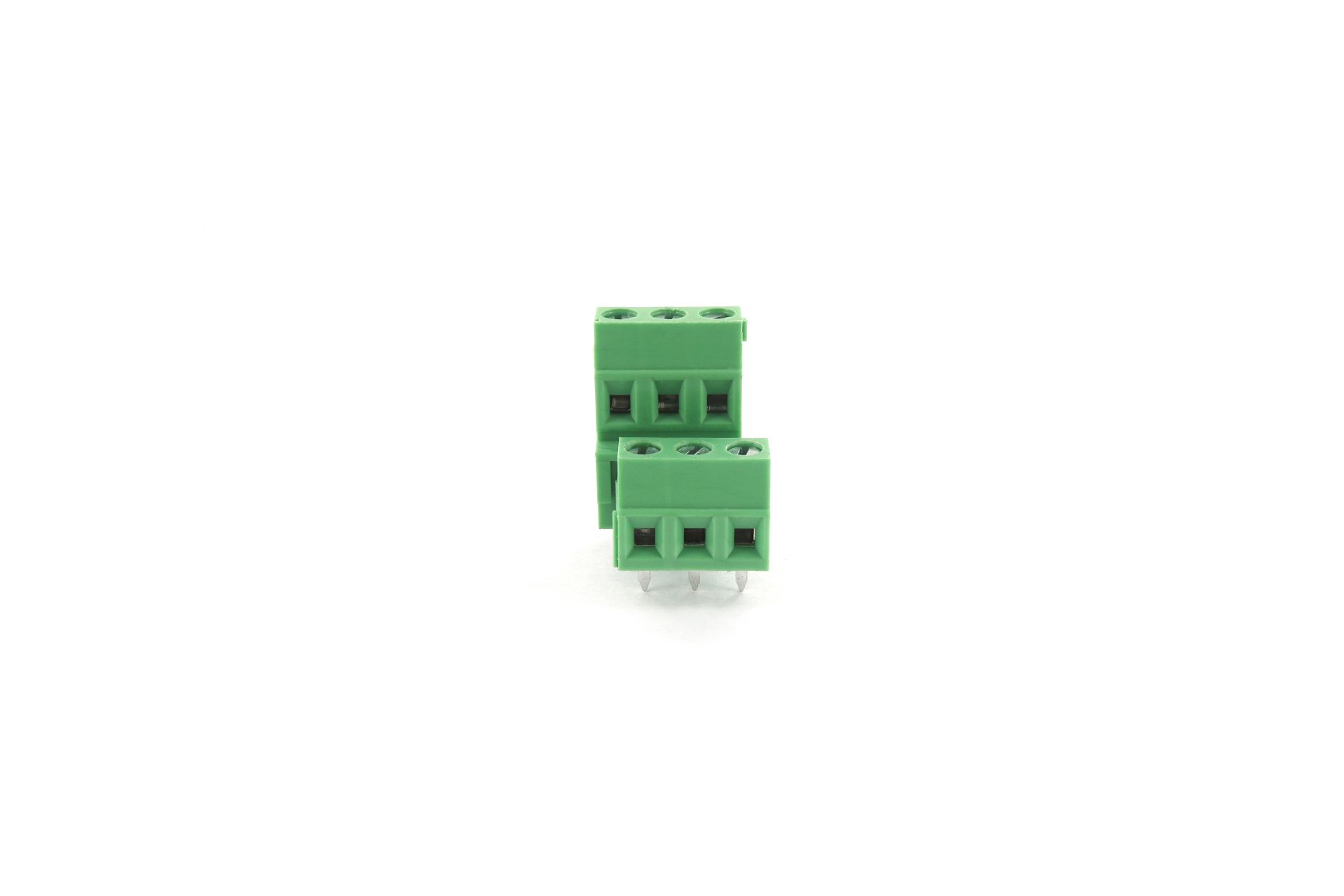

  • TBD3803D16(689)_1

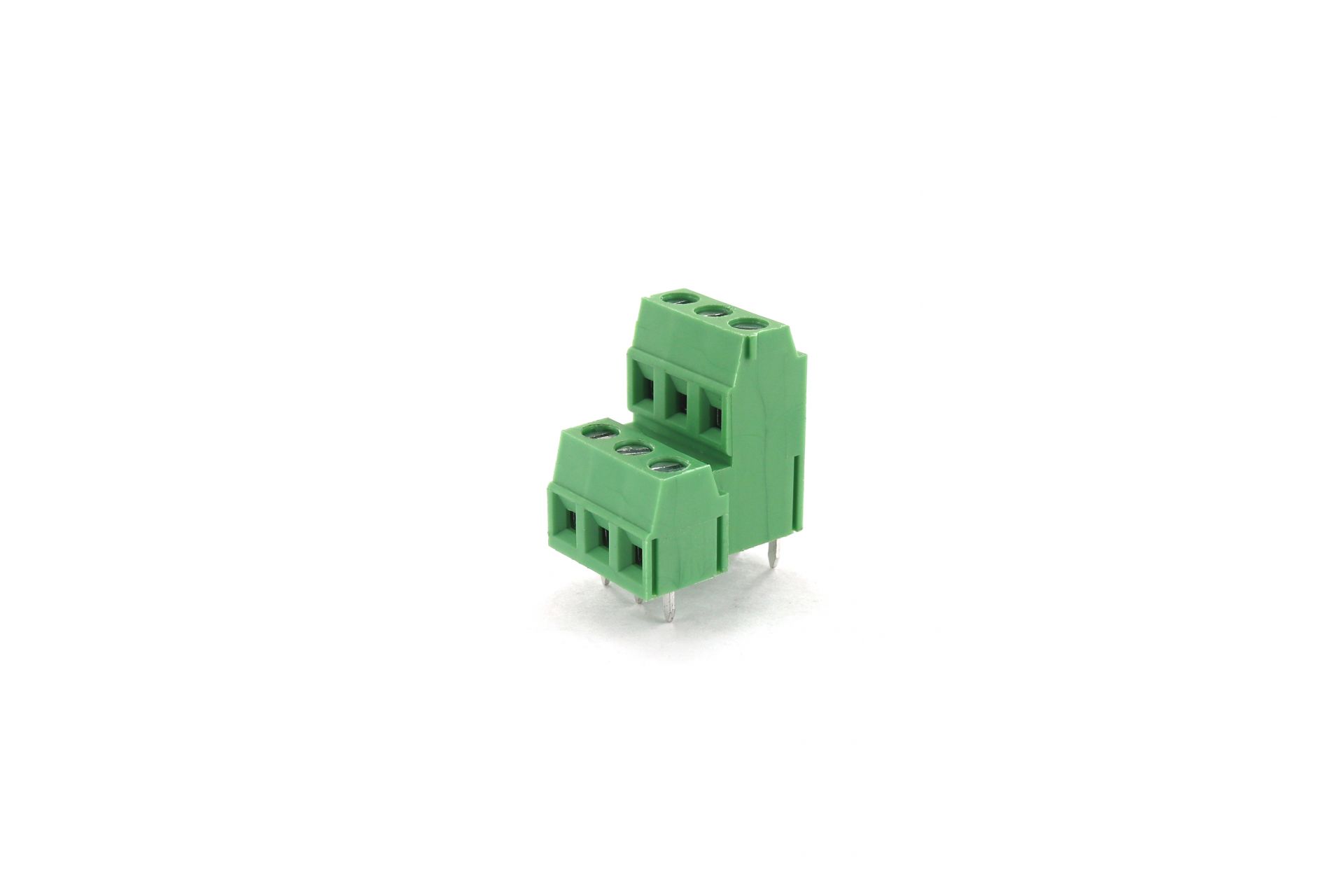

  • TBD3803D16(689)_2

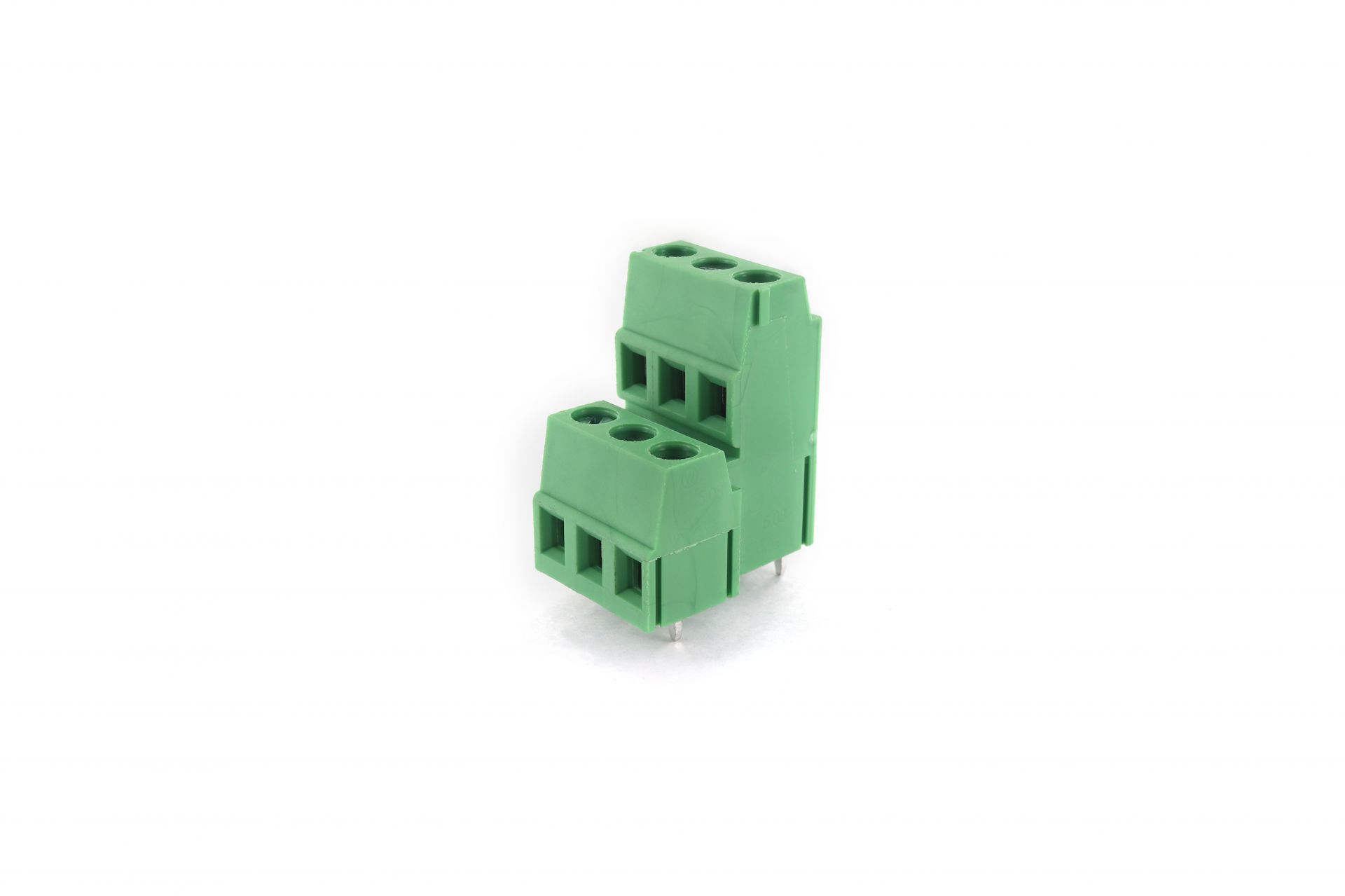

  • TBD3803D16(689)

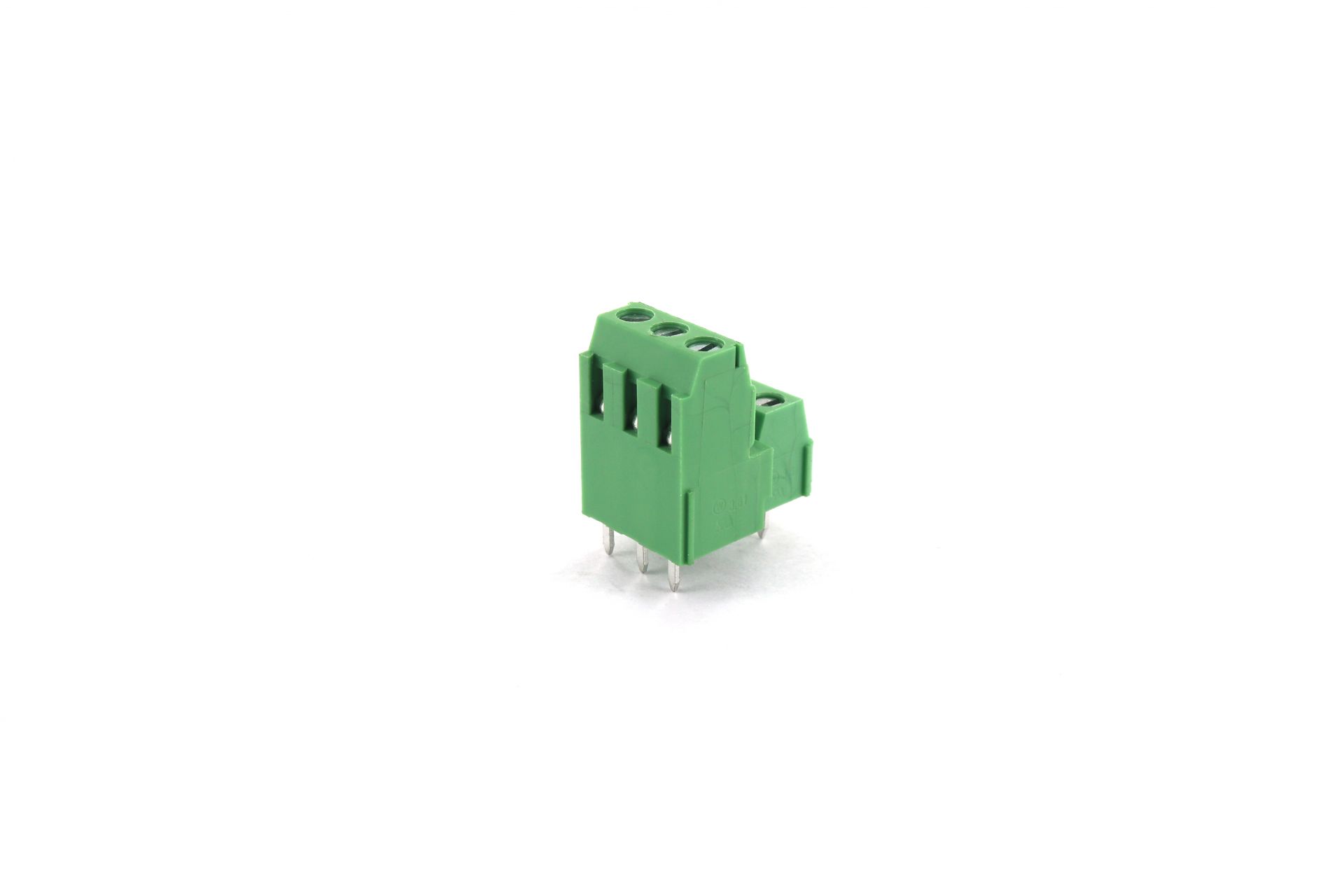

  • TBD3803D16(689)_3

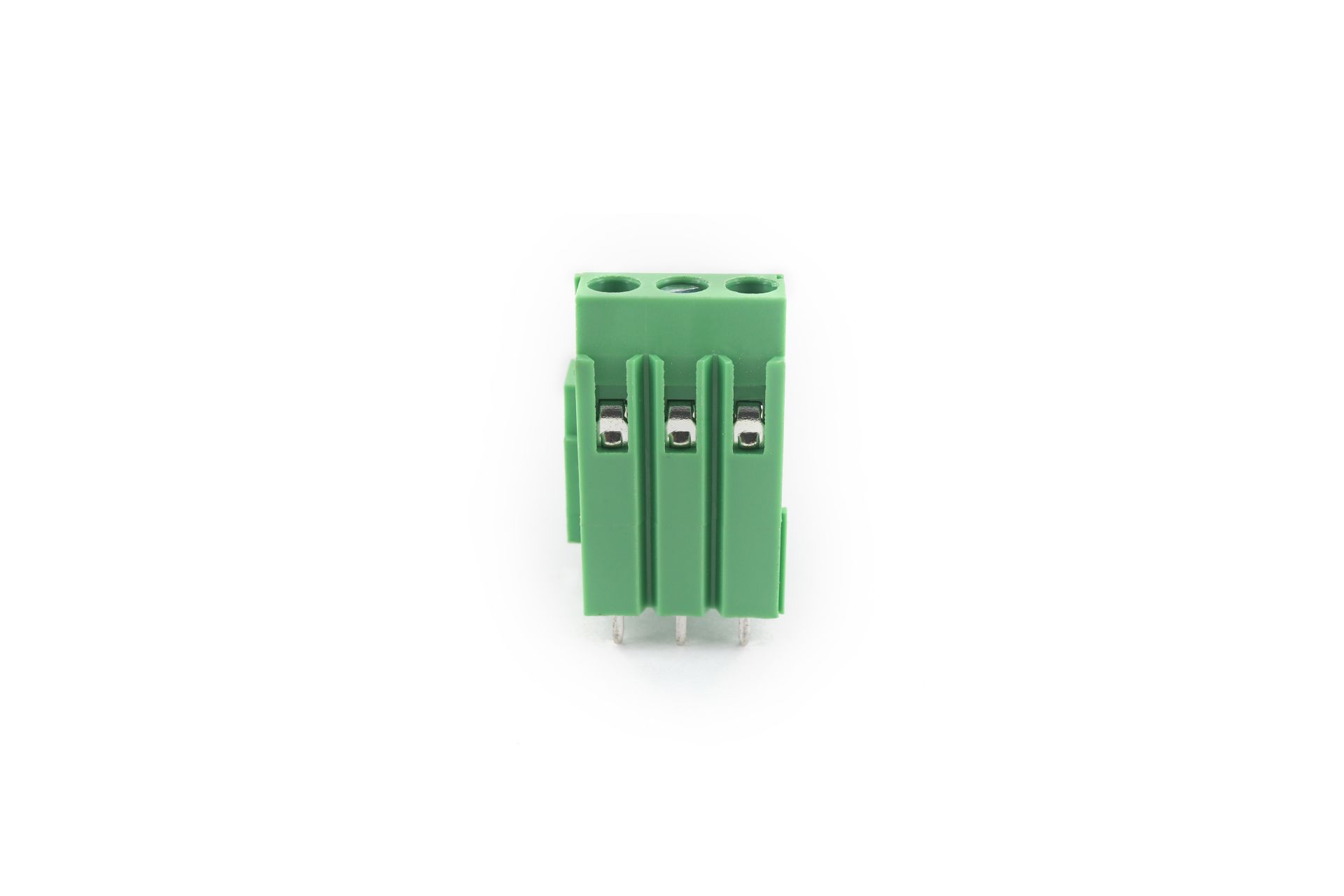

  • TBD5103D25(689)_1

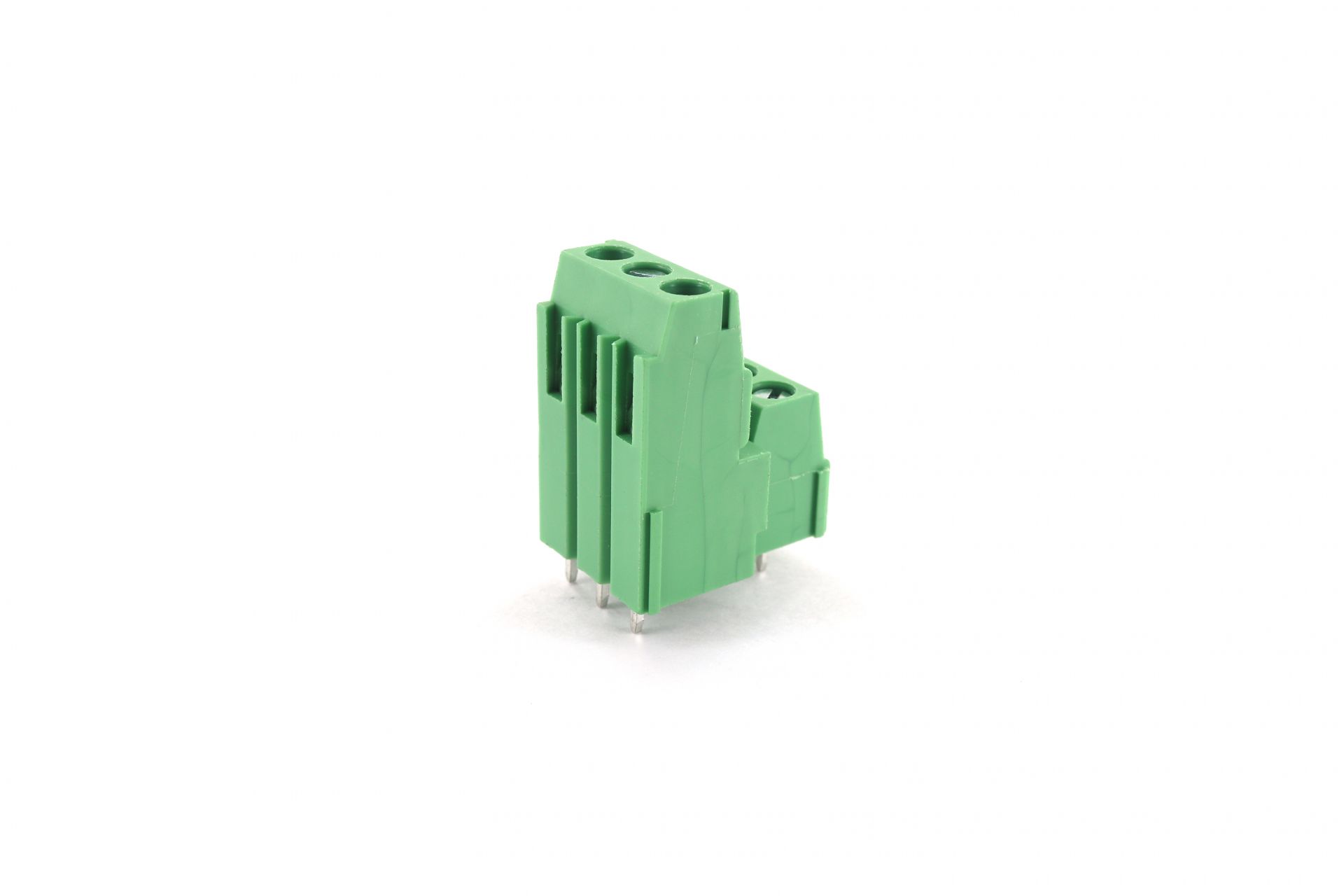

  • TBD5103D25(689)_2

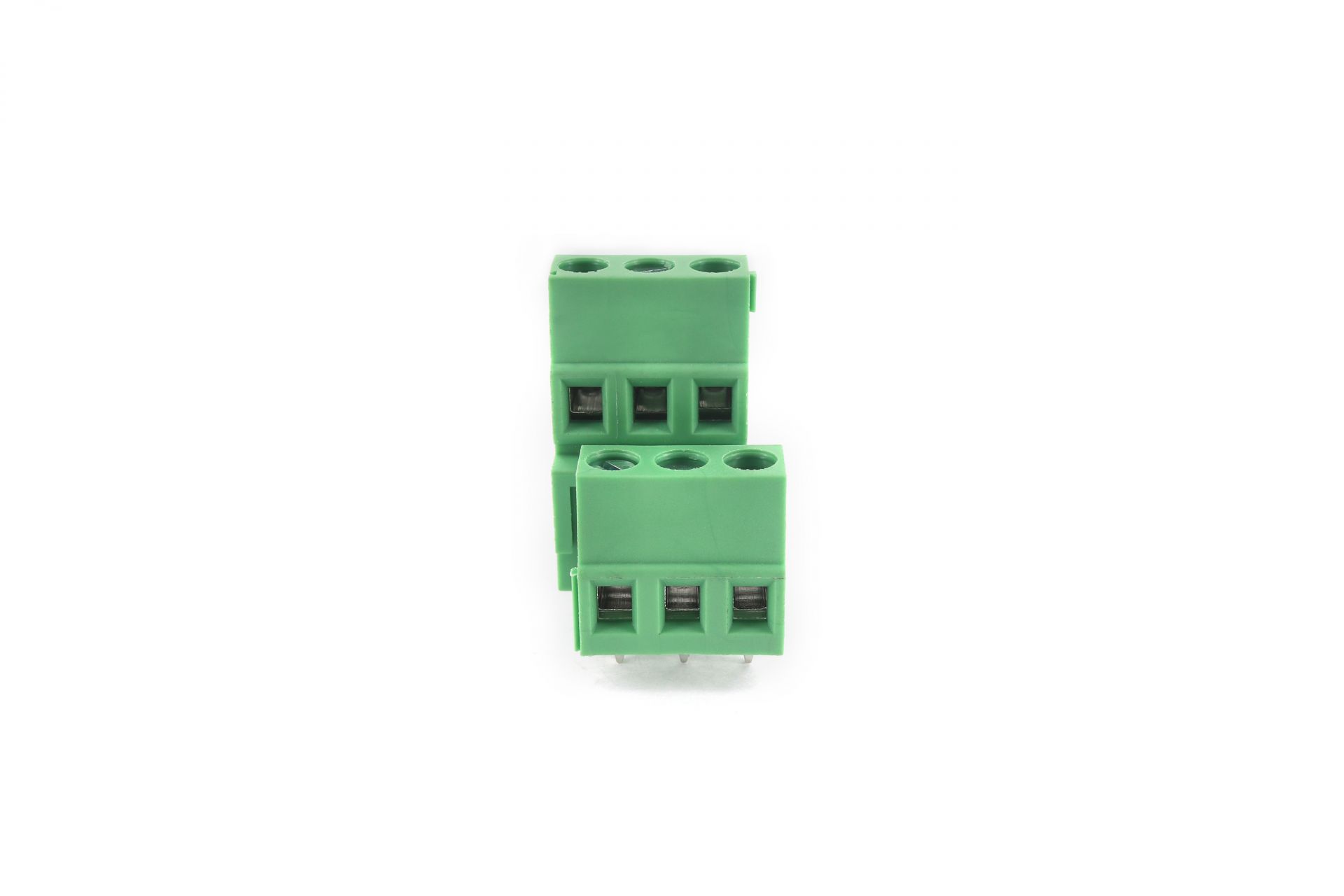

  • TBD5103D25(689)
  • TBD5103D25(689)_3
INQUIRY
INQUIRY

DOWNLOAD

PART NUMBER SIZE FILE TYPE DRAWINGS
TBD38XXD16-H 117KB PDF
download
DOWNLOAD
TBD50XXD25-H 115KB PDF
download
DOWNLOAD
TBD51XXD19-H 113KB PDF
download
DOWNLOAD
