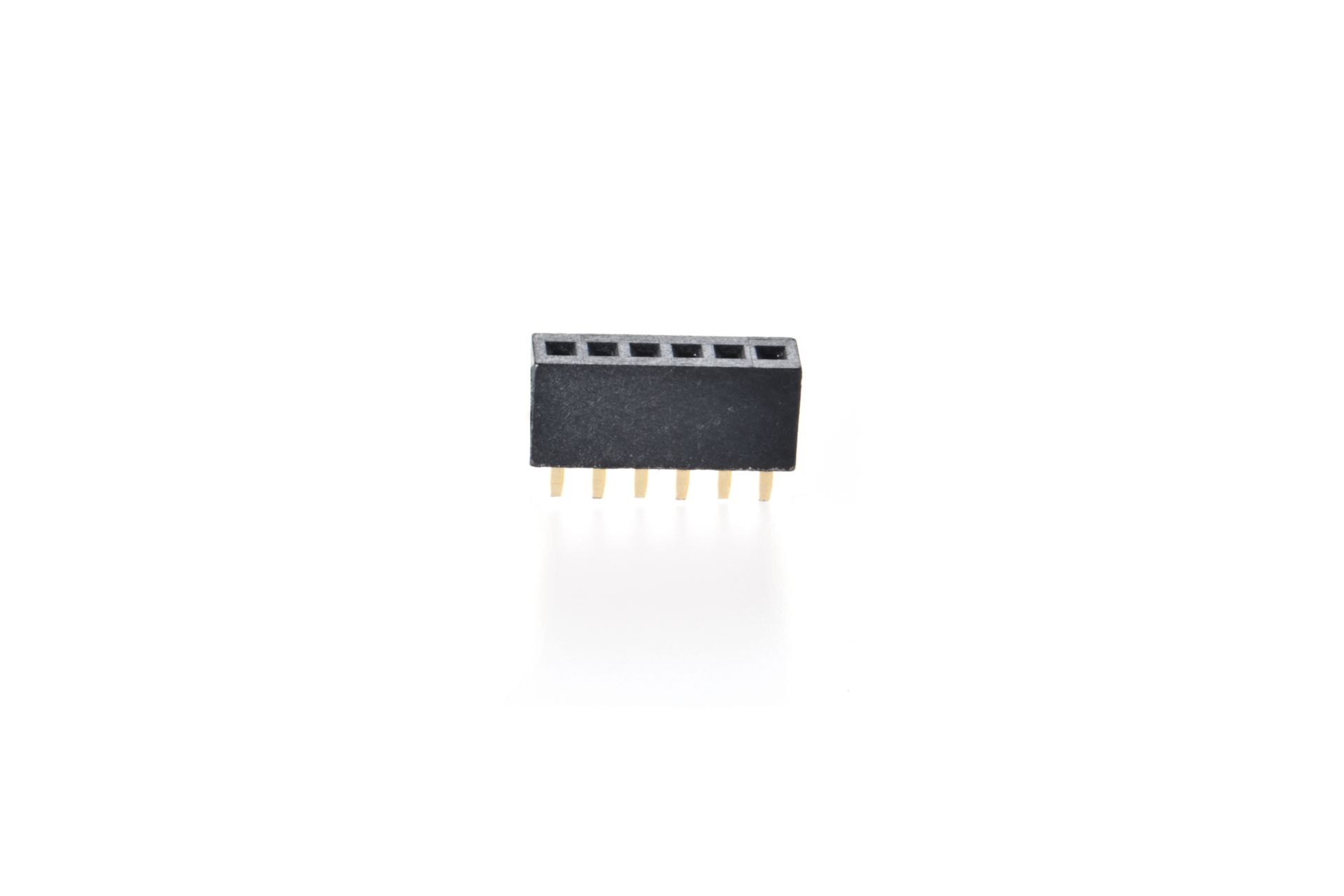

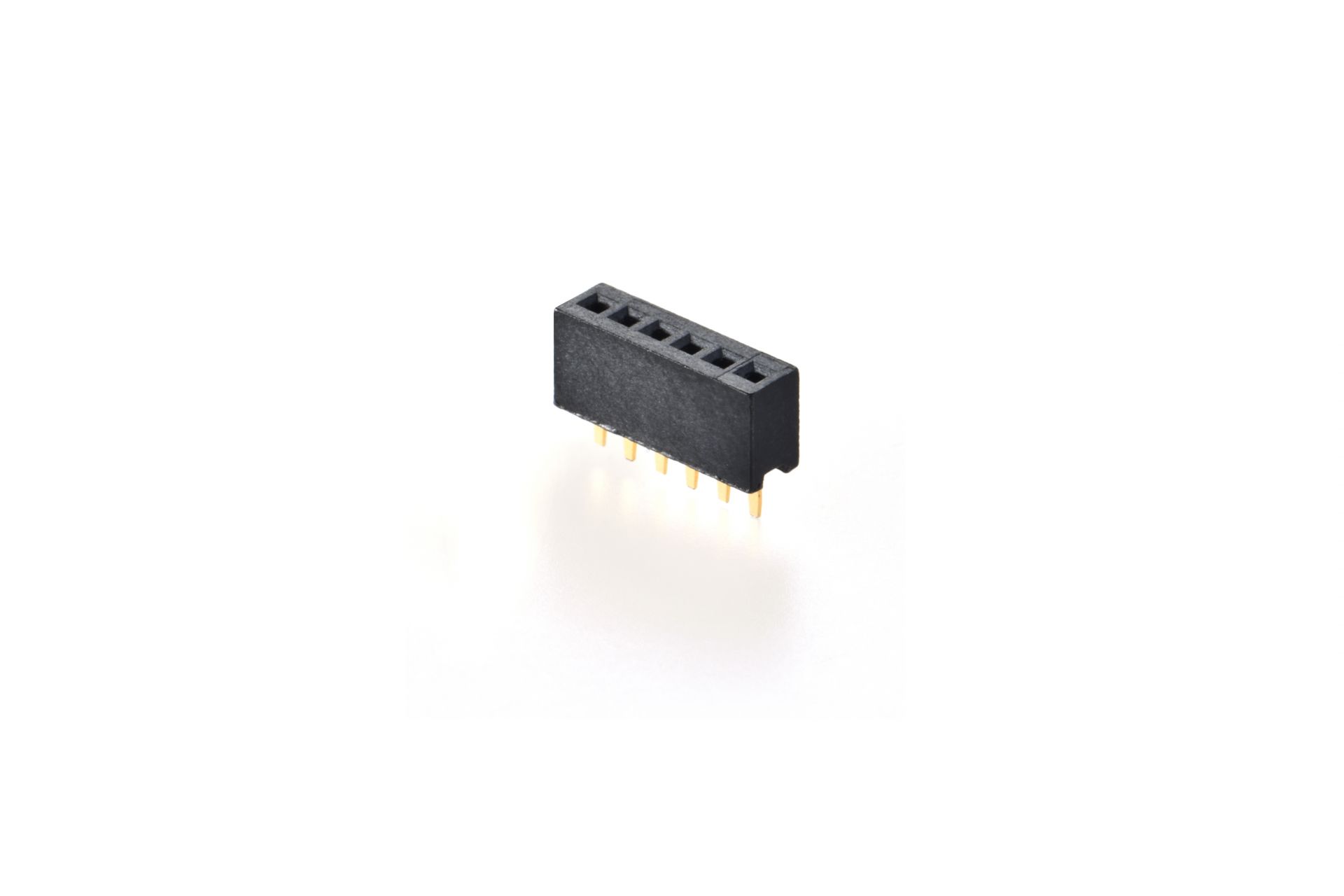

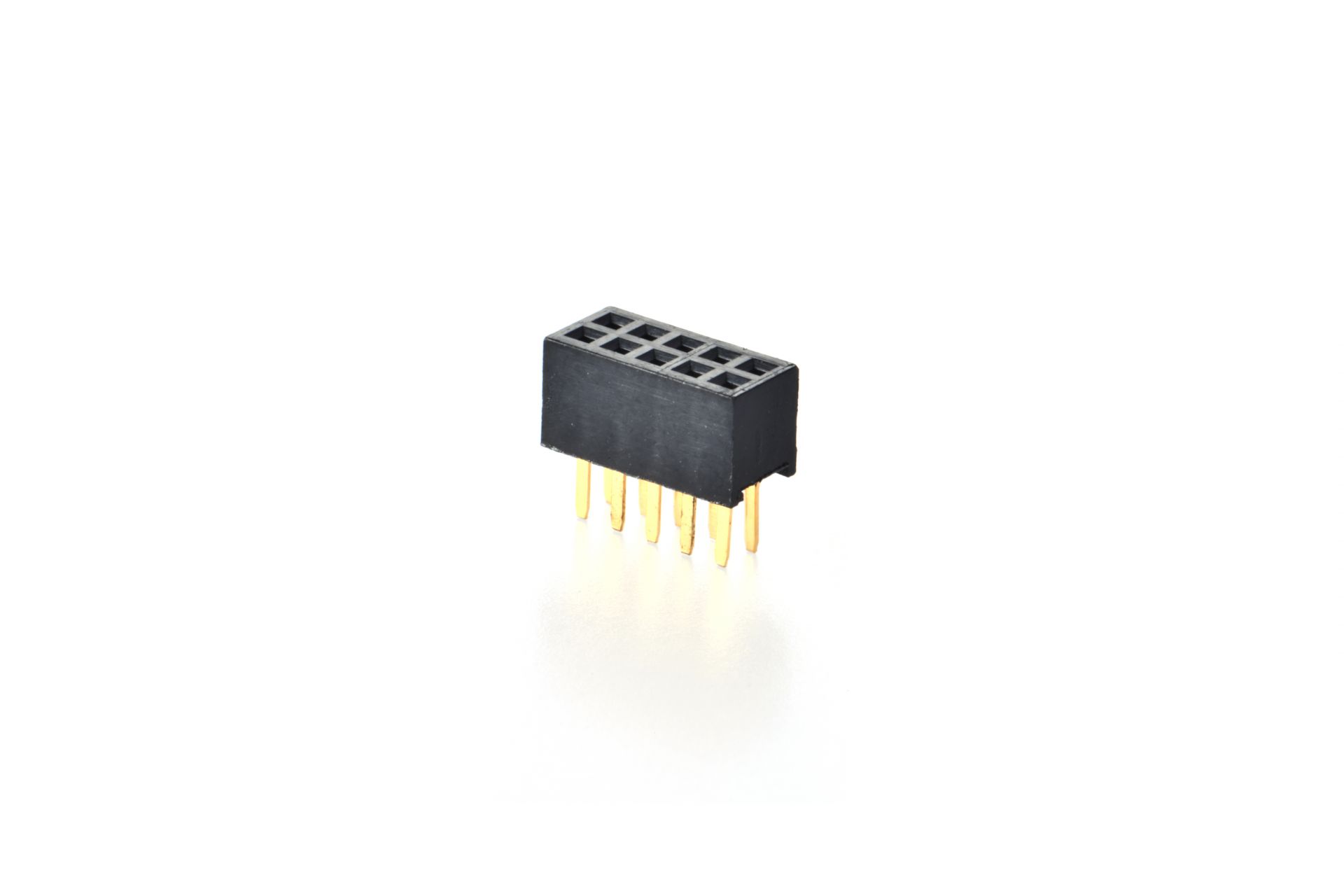

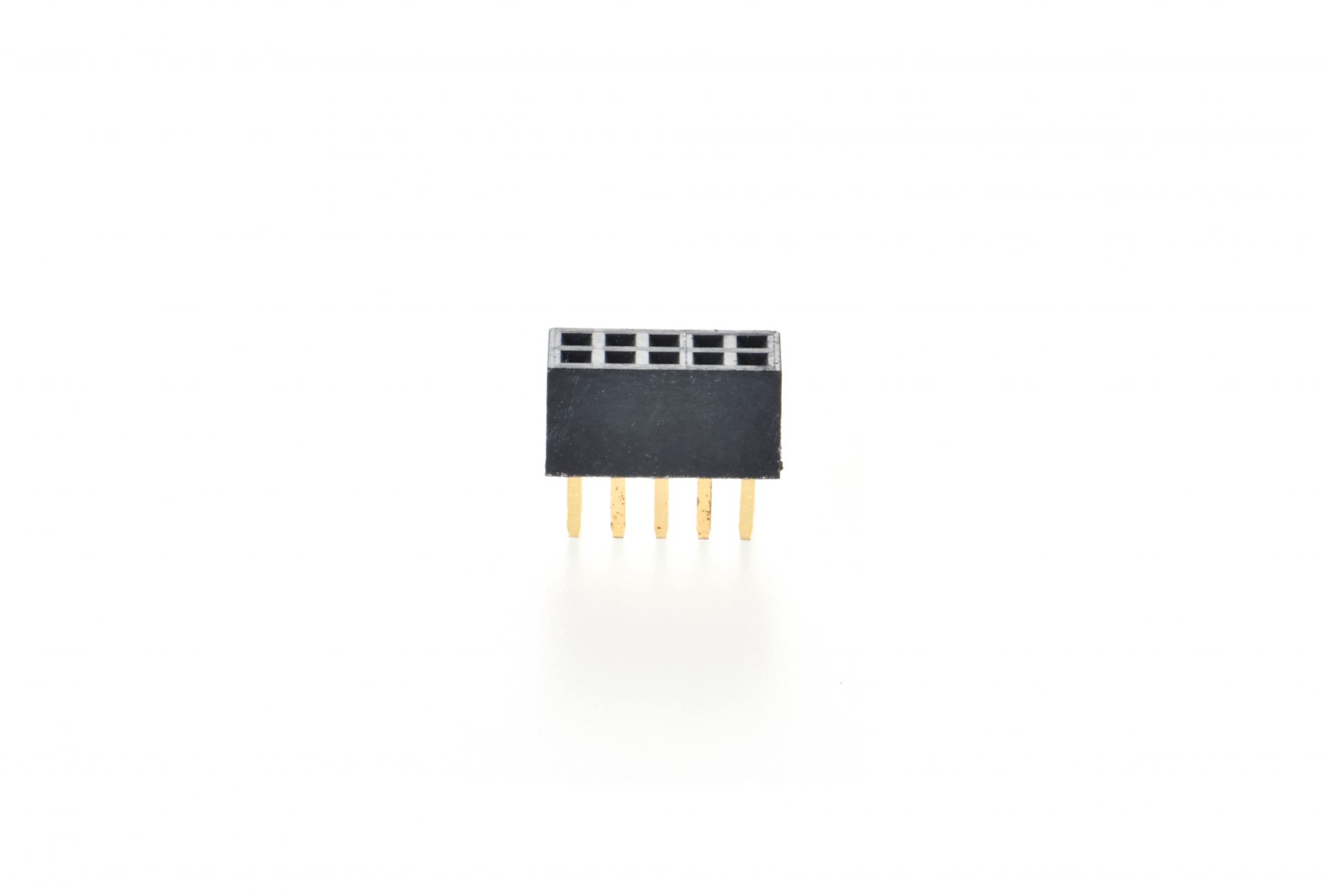

Board & Wire Connector Pin / Female Header YADXX-1/2X

Pin / Female Header

YADXX-1/2X

1.27X1.27mm FEMALE HEADER DIP 180°

YAD
43
(1)
2
(2)
X
20
(3)
H
(4)
H
(5)

Description

(1)34:3.4mm INSULATOR HEIGHT
43:4.3mm INSULATOR HEIGHT
(2)1:SINGLE ROW
2:DUAL ROW
(3)02~50:NO. OF POSITION / PER ROW
(4)WITHSTAND HIGH TEMPERATURE
(5)RoHS

INQUIRY

DOWNLOAD

PART NUMBER	SIZE	FILE TYPE	DRAWINGS
YAD34-1XXX-HH	258KB	PDF	DOWNLOAD
YAD34-2XXX-HH	88KB	PDF	DOWNLOAD
YAD43-1XXX-HH	245KB	PDF	DOWNLOAD
YAD43-2XXX-HH	262KB	PDF	DOWNLOAD
