Board & Wire Connector Pin / Female Header YAVP/X22-2X

Pin / Female Header

YAVP/X22-2X

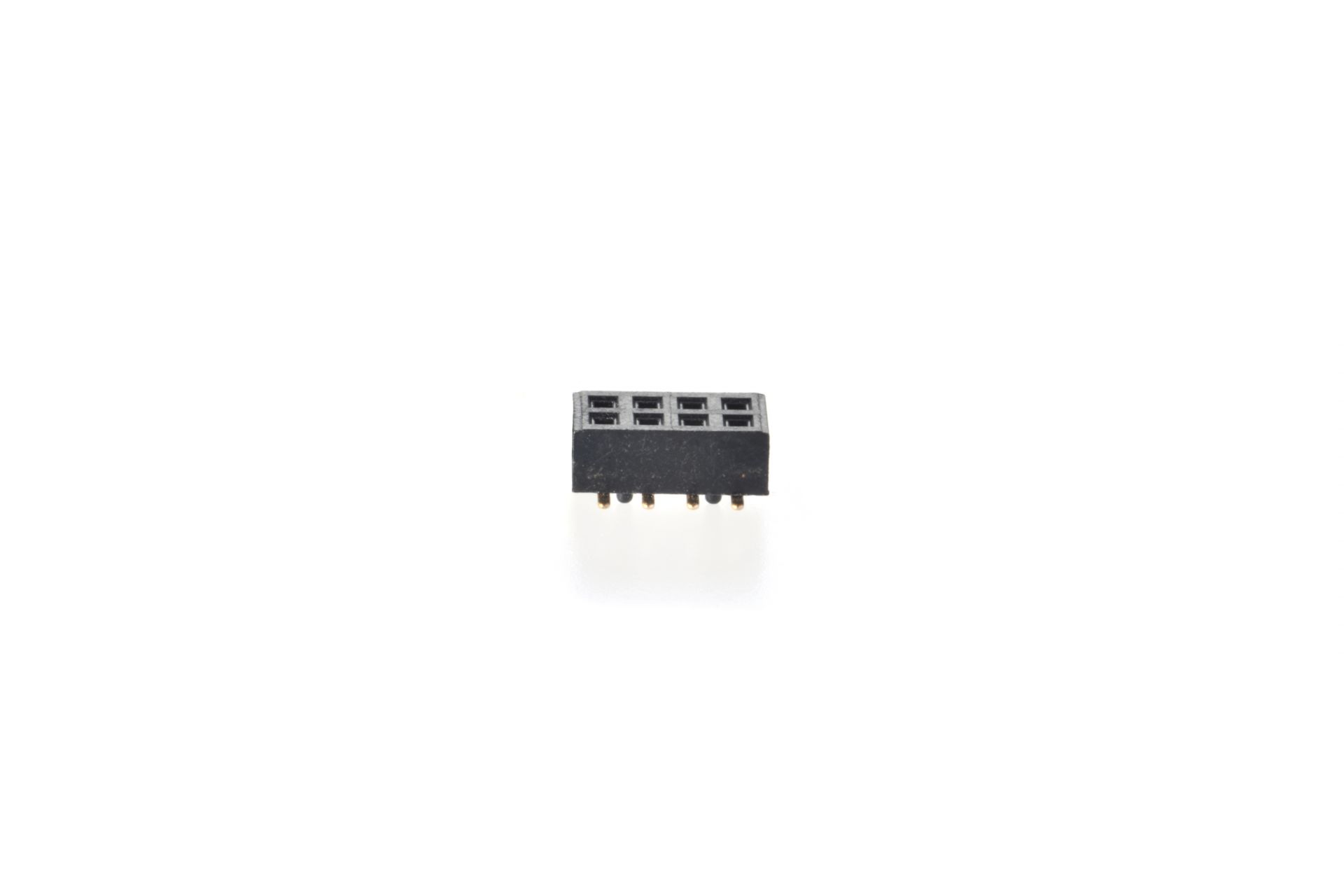

1.27X1.27mm FEMALE HEADER SMT 180° DUAL ROW TOTAL HEIGHT=2.2mm WITH CAP

YAV
P
(1)
22-2X
20
(2)
H
(3)

Description

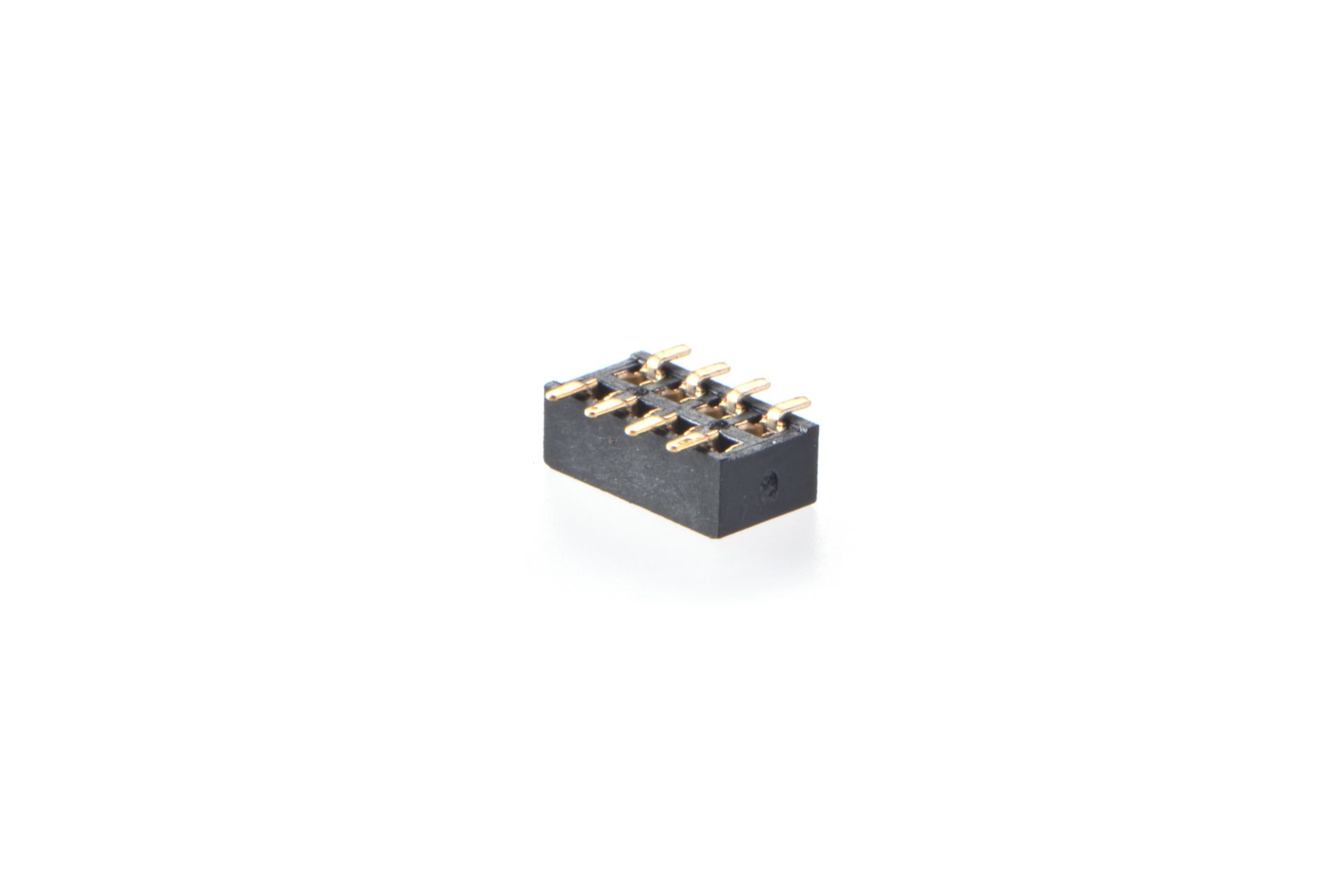

(1)X:WITHOUT POST

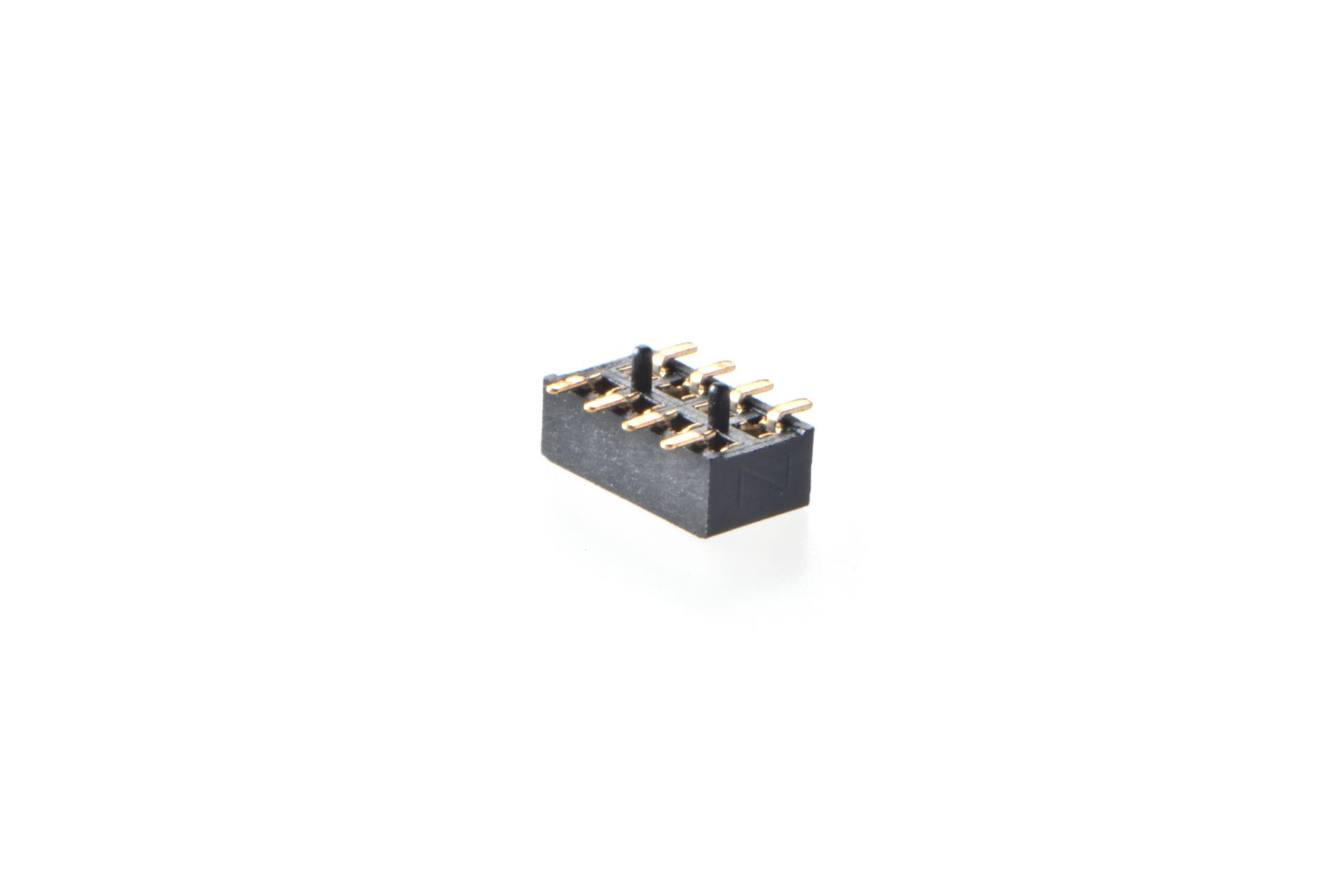

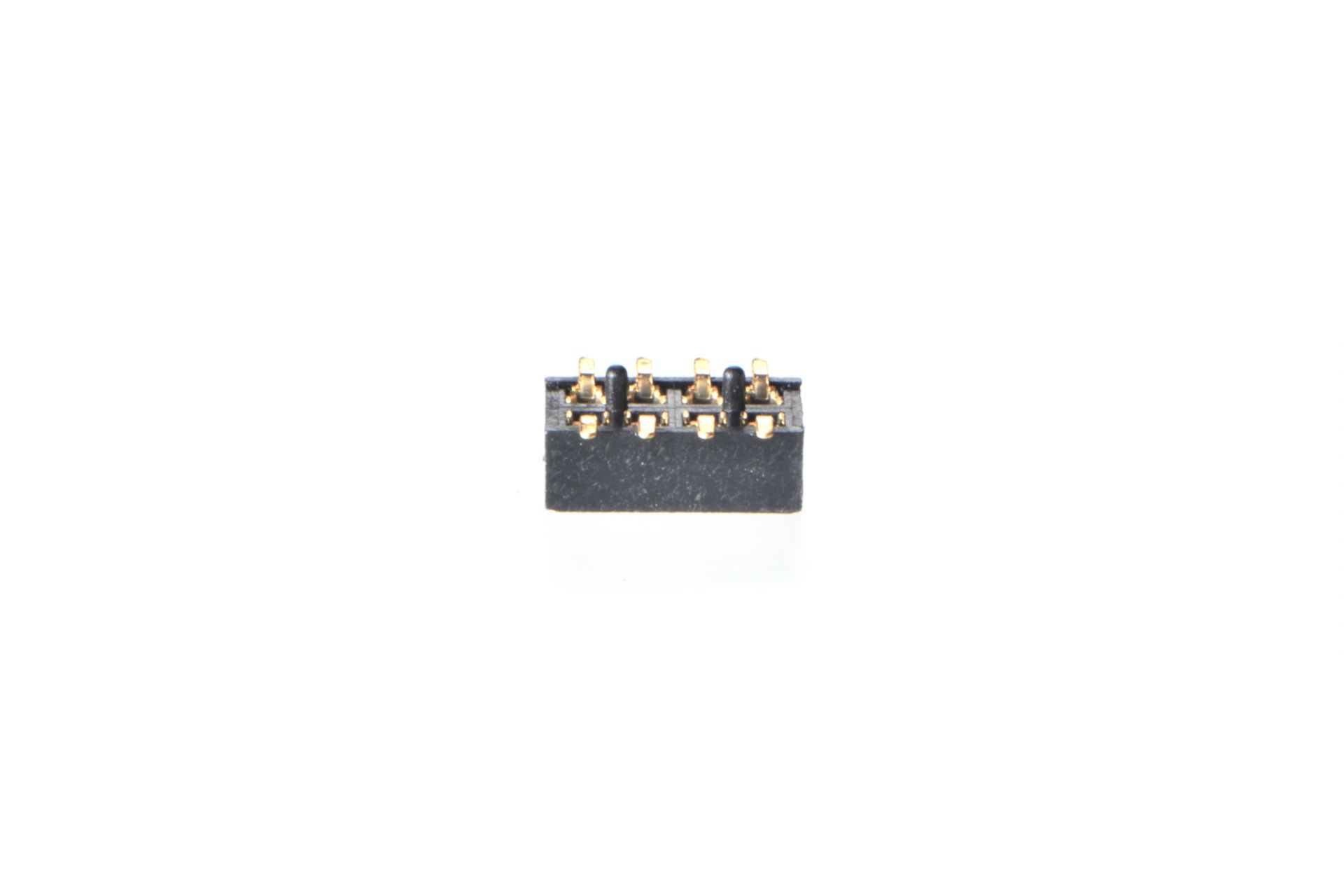

P:WITH POST
(2)02~40:NO. OF POSITION / PER ROW
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	YAVX22-2XXXC-H	279KB	PDF	DOWNLOAD
	YAVP22-2XXXC-H	283KB	PDF	DOWNLOAD
