Board & Wire Connector Pin / Female Header YDXX-2X

Pin / Female Header

YDXX-2X

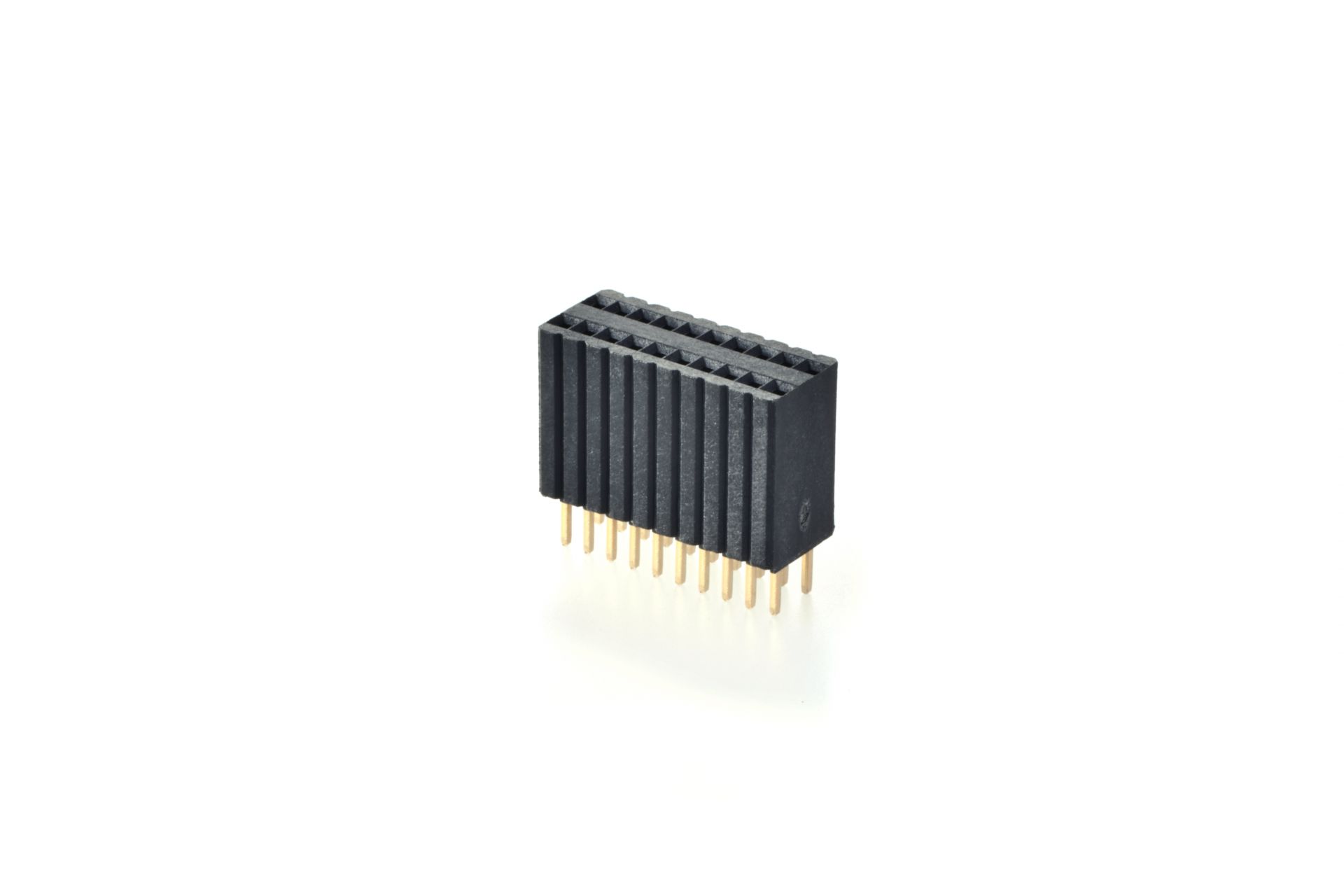

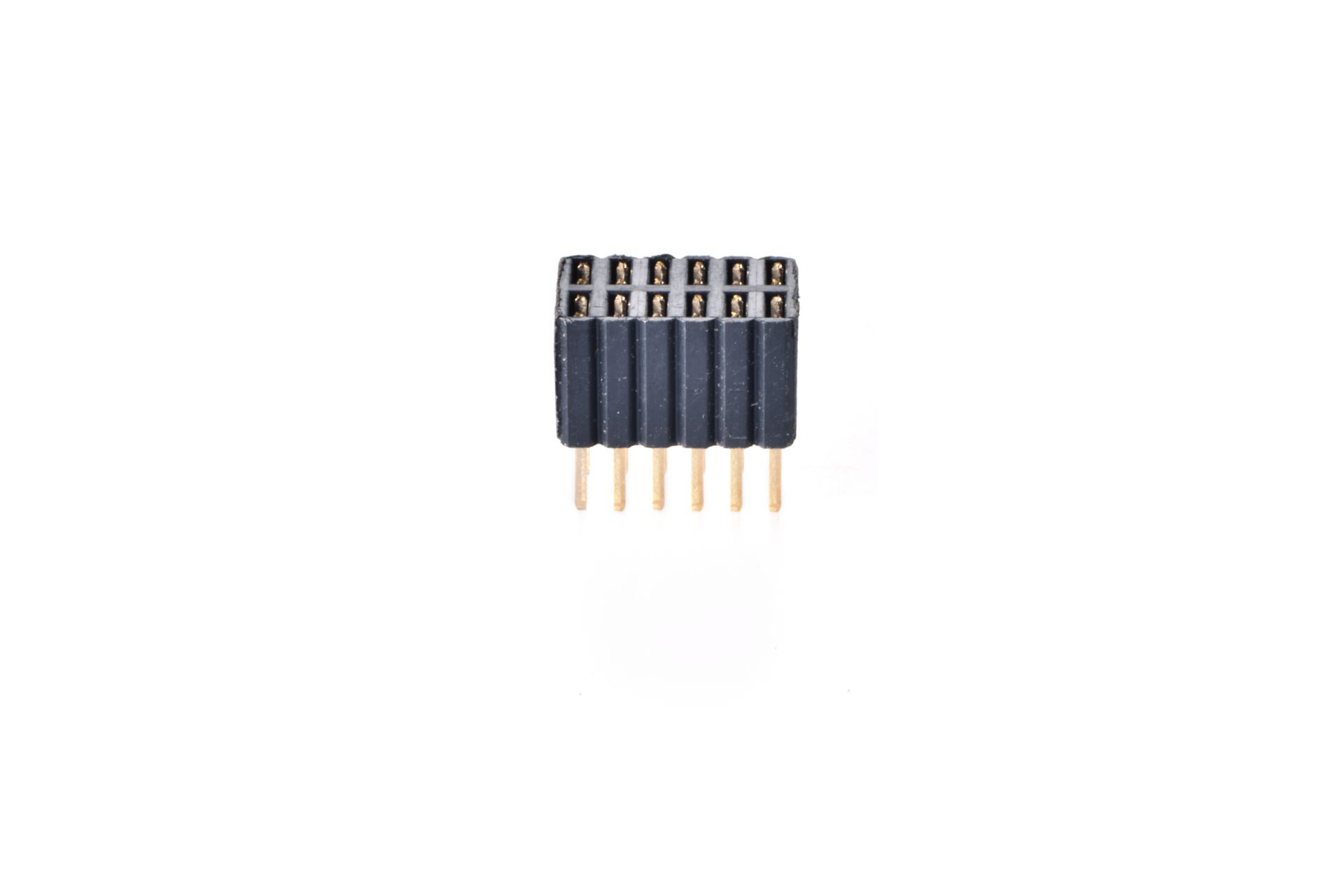

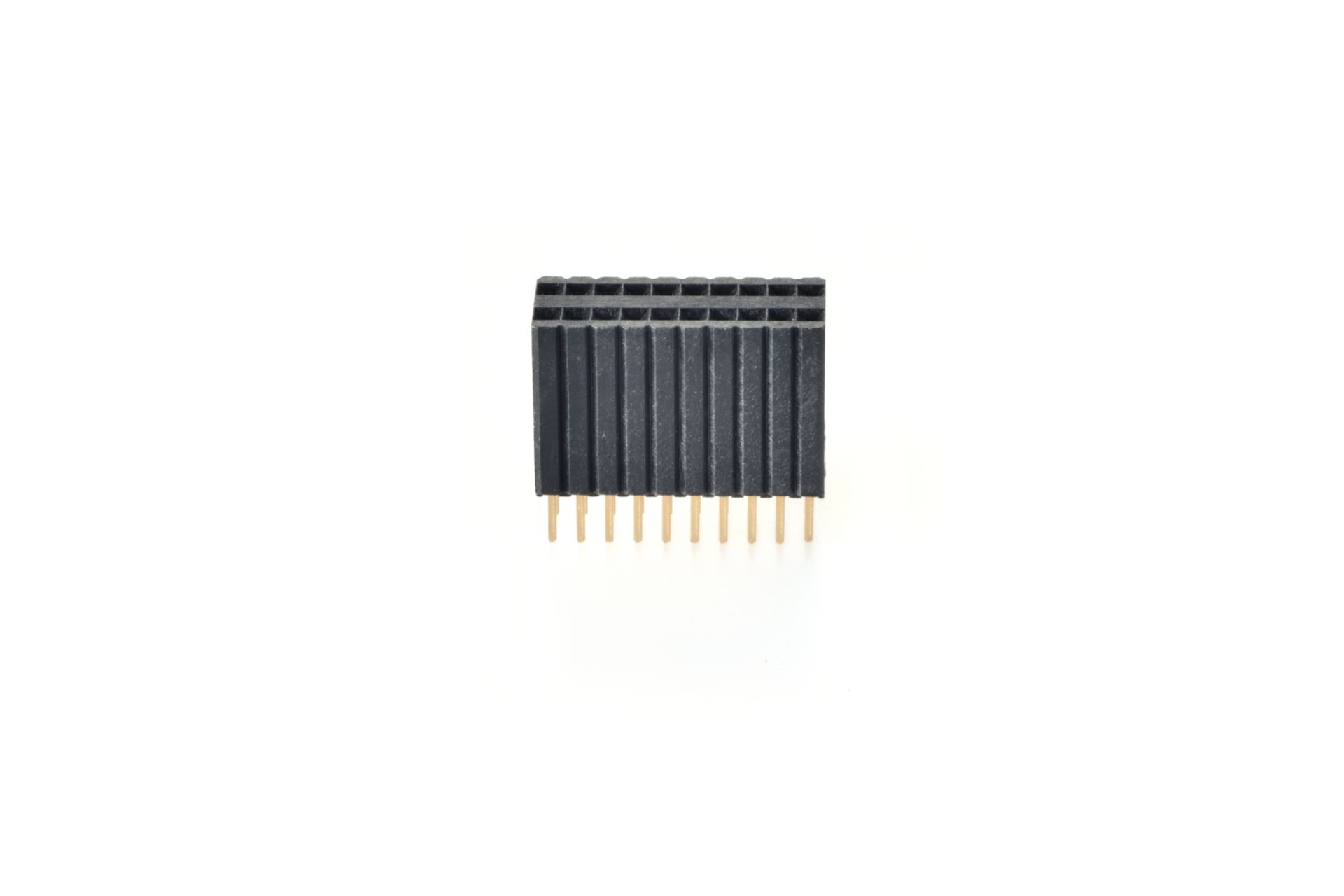

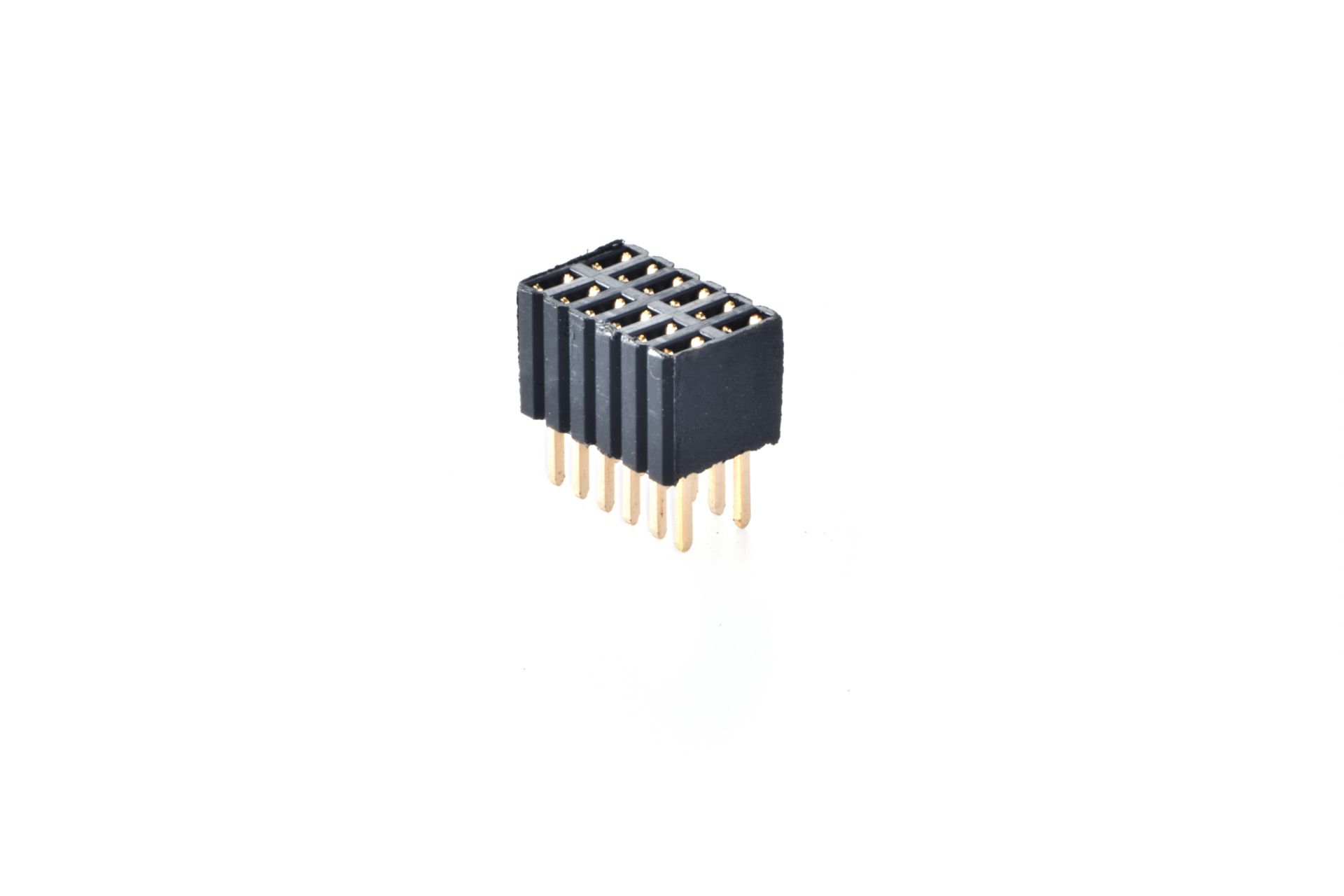

1.27X2.54mm FEMALE HEADER DIP 180° DUAL ROW

YD
46
(1)
2X
40
(2)
H
(3)
H
(4)

Description

(1)46:4.6mm INSULATOR HEIGHT
85:8.5mm INSULATOR HEIGHT
(2)02~40:NO. OF POSITION / PER ROW
(3)WITHSTAND HIGH TEMPERATURE
(4)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	YD46-2XXX-HH	249KB	PDF	DOWNLOAD
	YD85-2XXX-HH	86KB	PDF	DOWNLOAD
