Board & Wire Connector Pin / Female Header YVX/P59-2X

Pin / Female Header

YVX/P59-2X

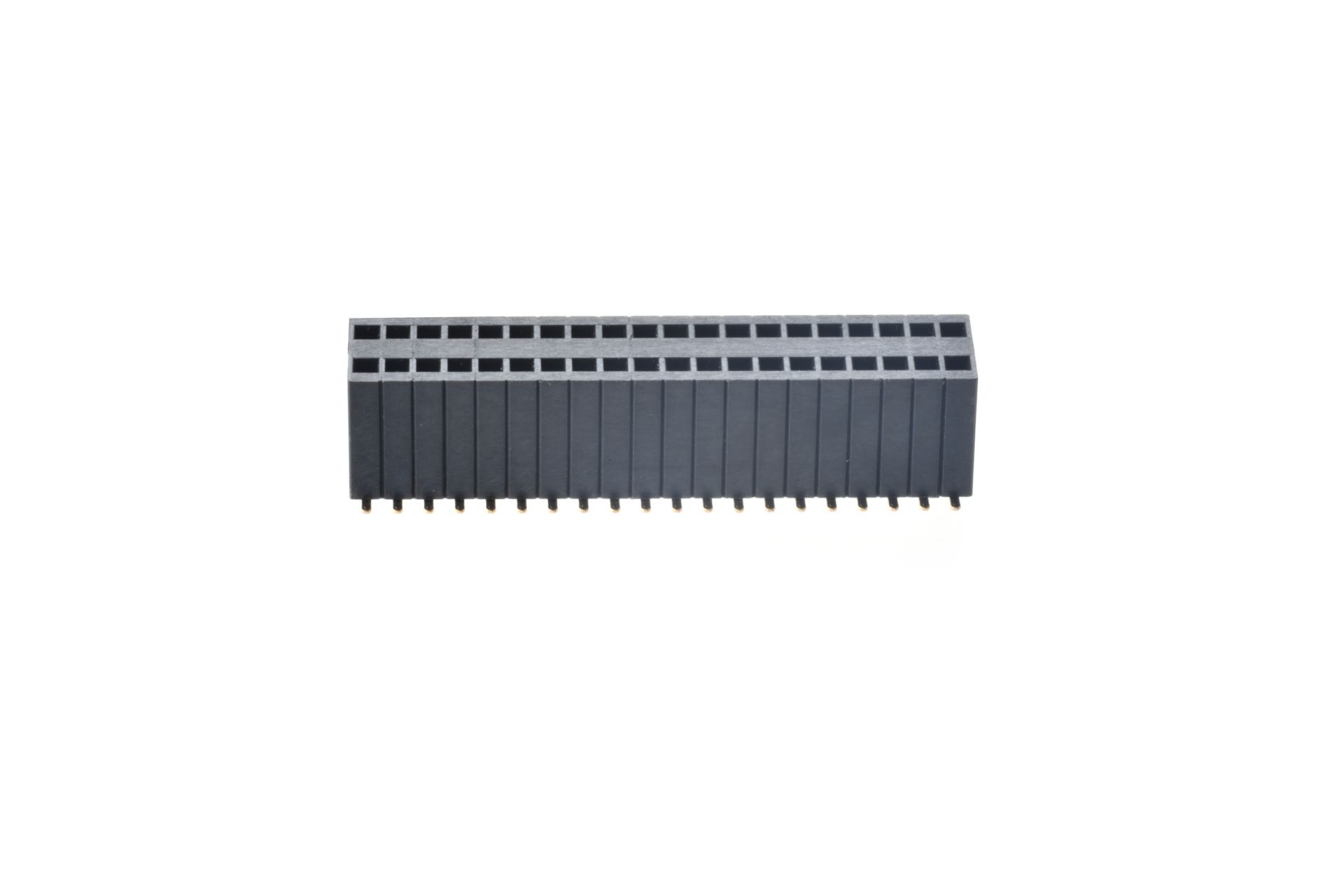

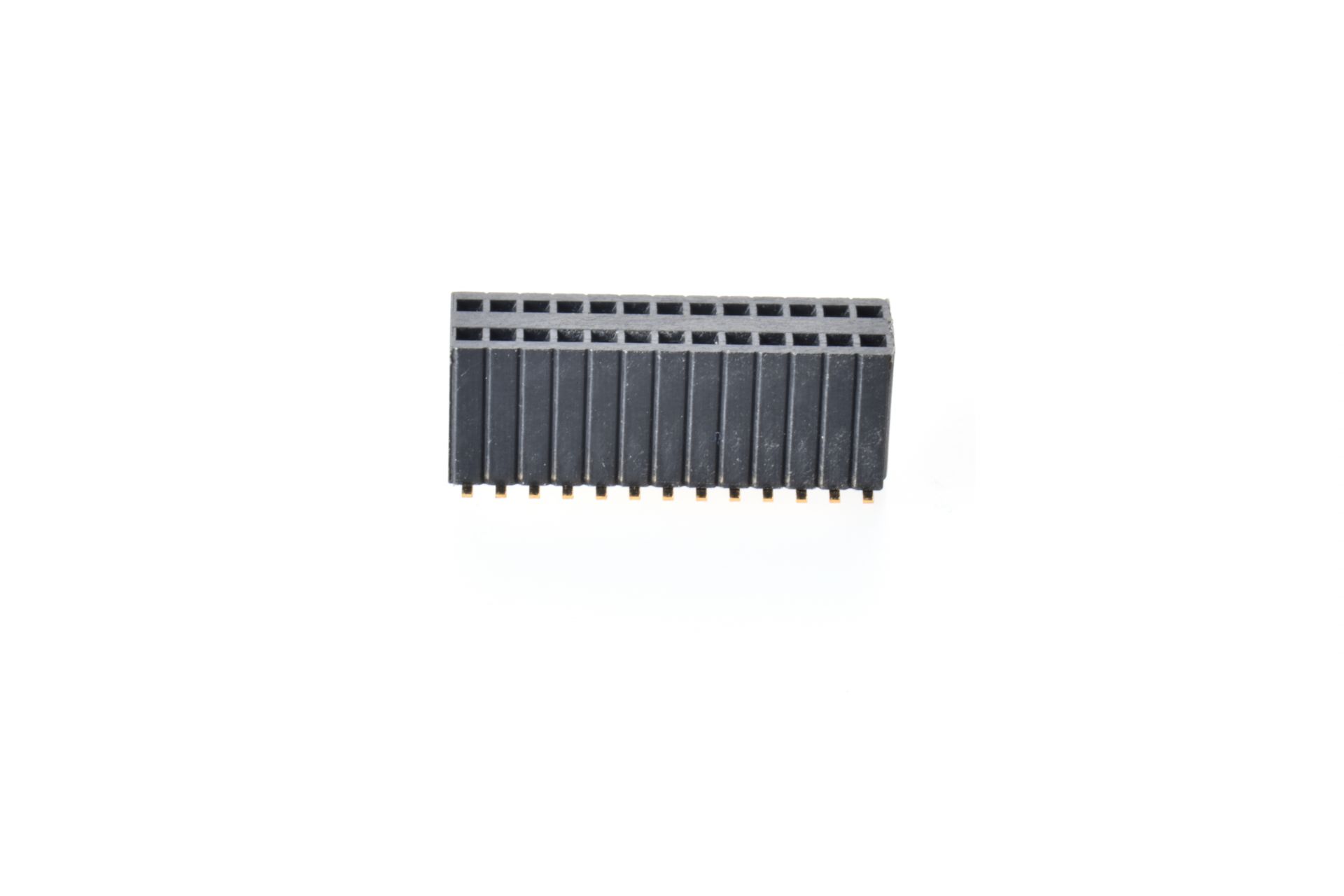

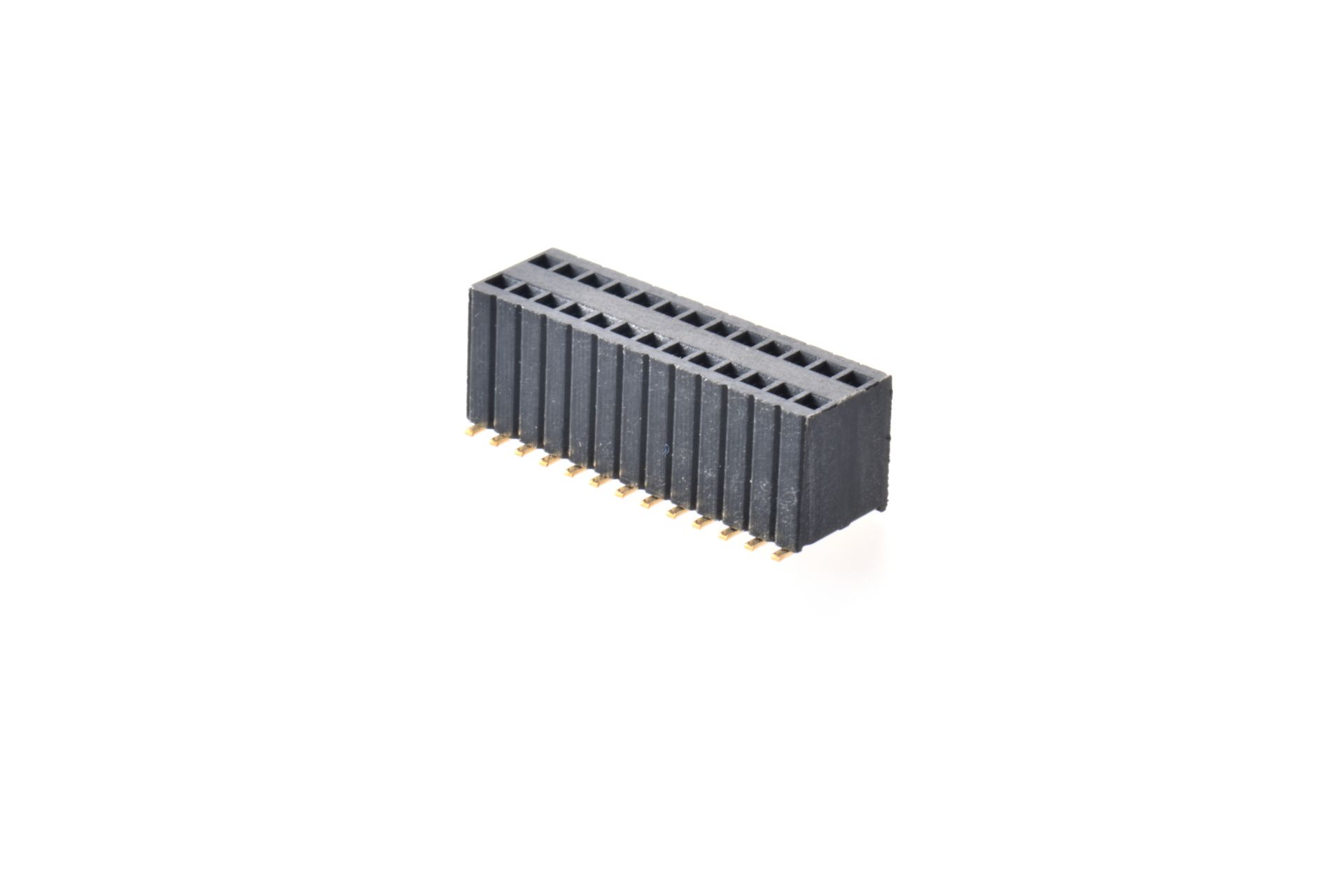

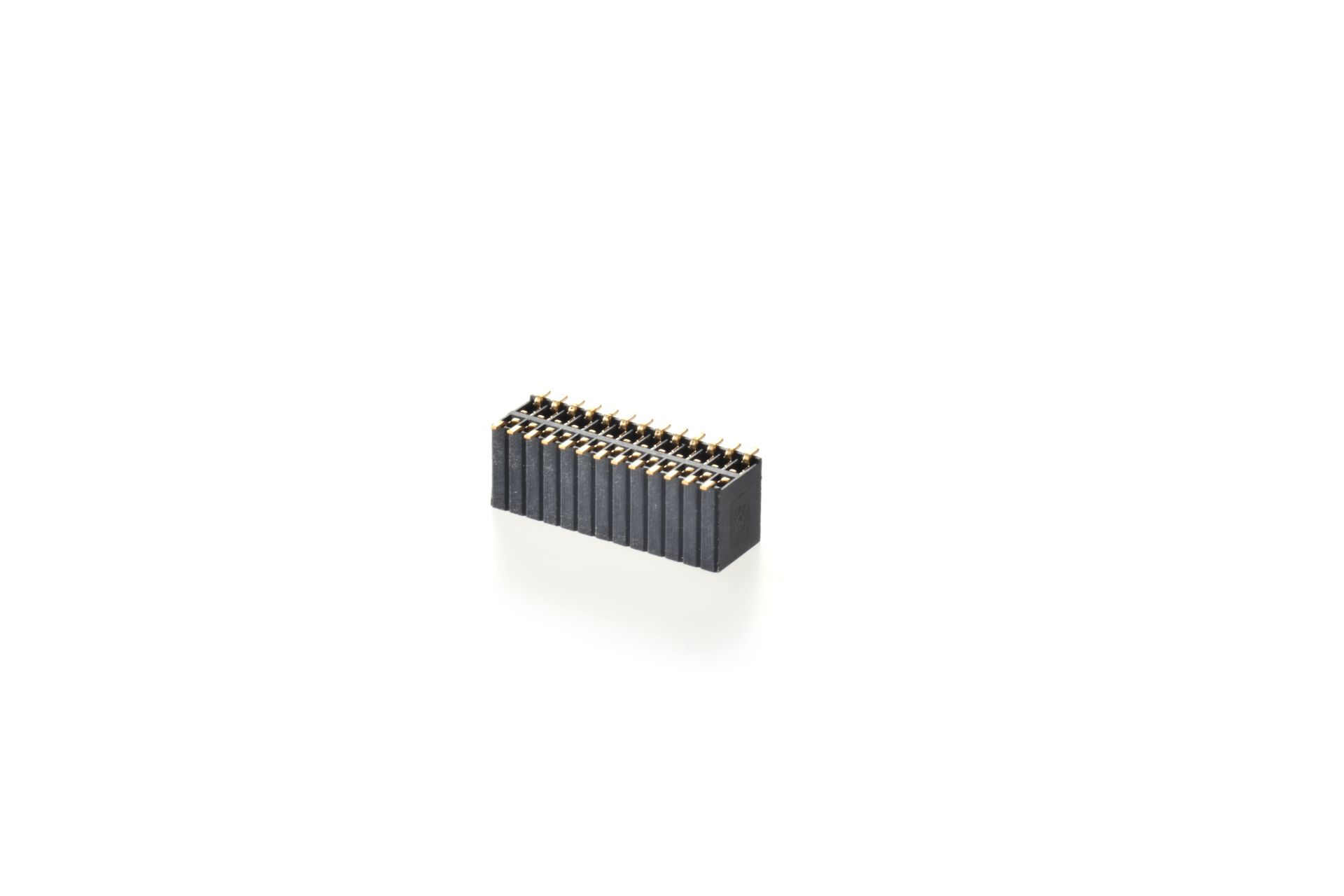

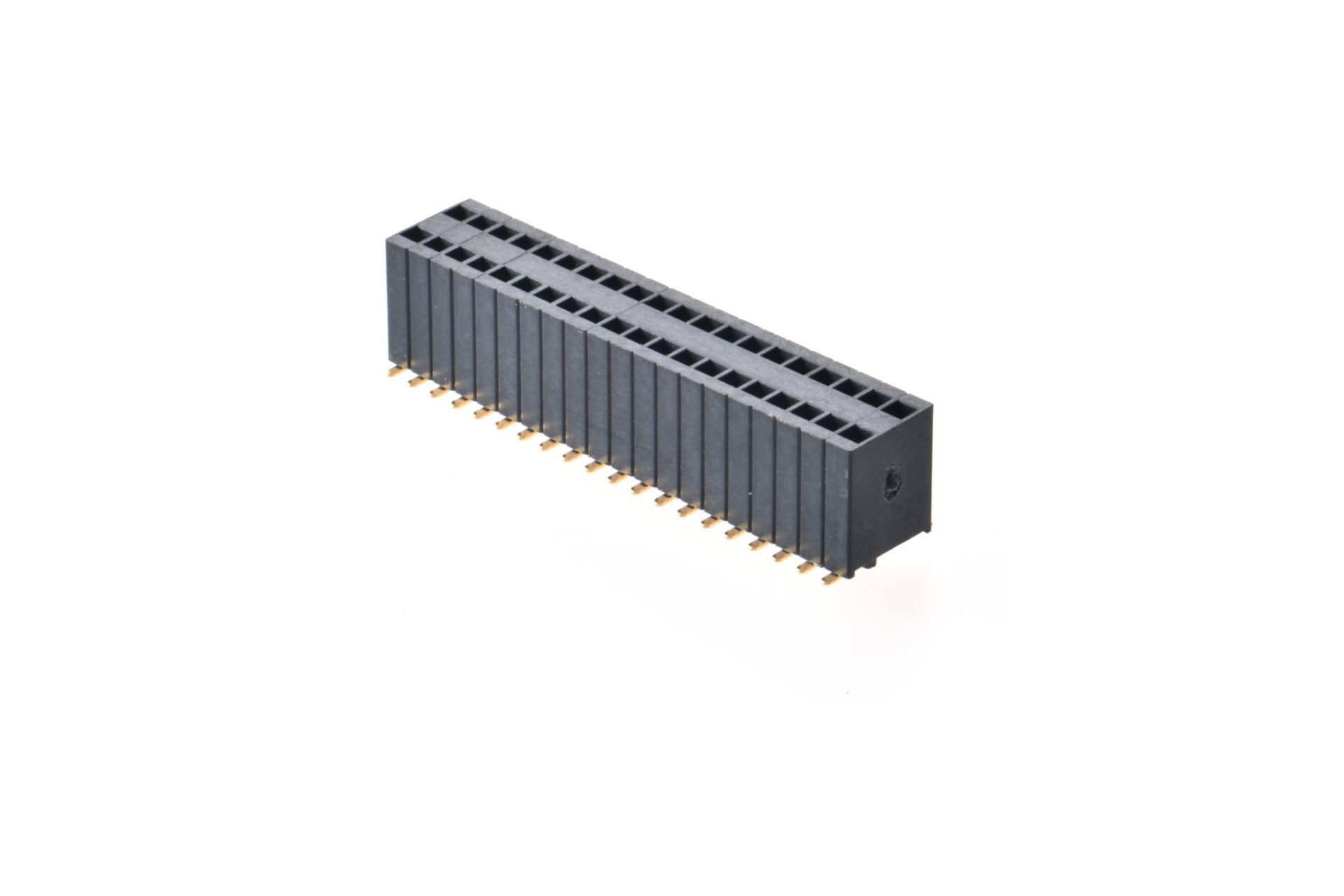

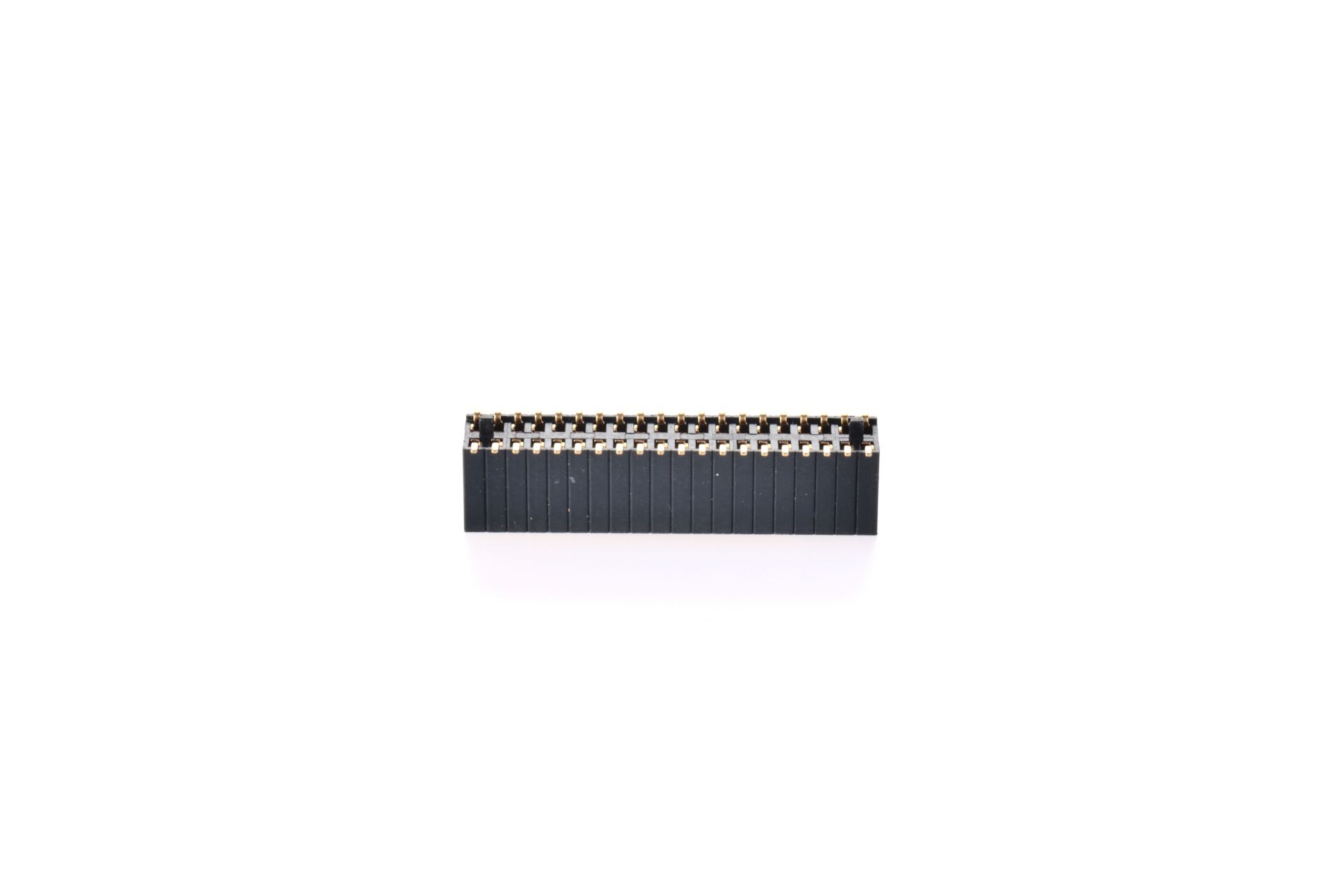

1.27X2.54mm FEMALE HEADER SMT 180° TOTAL HEIGHT=5.95mm DUAL ROW

YV
P
(1)
59-2X
20
(2)
H
(3)

Description

(1)X:WITHOUT POST
P:WITH POST
(2)02~40:NO. OF POSITION / PER ROW
(3)RoHS

INQUIRY

DOWNLOAD

	PART NUMBER	SIZE	FILE TYPE	DRAWINGS
	YVX59-2XXXC-H	321KB	PDF	DOWNLOAD
	YVP59-2XXXC-H	259KB	PDF	DOWNLOAD
